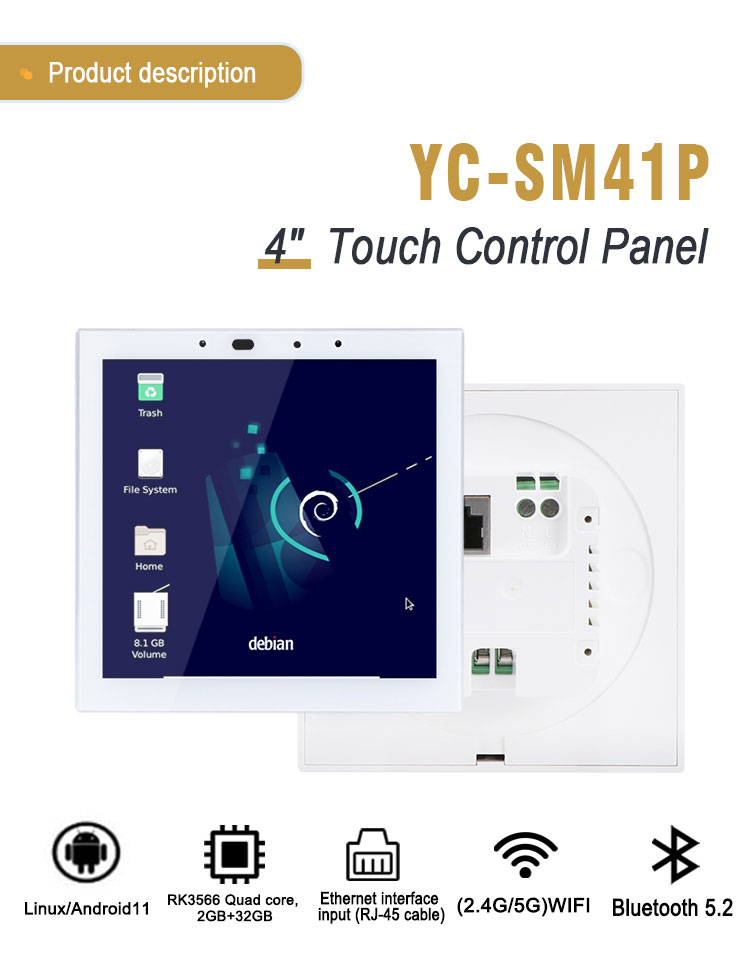

YC-SM41P (White)

4″ Smart Home Automation Touch Control Panel

Key Features

POE (Power Over Ethernet) power supply for simplified installation.
Optional temperature and humidity sensors for smart home functionality.
Universal bracket compatible with various wall boxes, ensuring easy setup.
Available in both white and classic black to match any decor.
Google Play Store for all your app needs.
Customization options available for OEM, including logo personalization and model number changes.

4″ SM41P equipped with an RK3566 processor, featuring 2GB RAM and 32GB storage, Android 11 and Debian 11 system options.

Send Inquiry

Overview

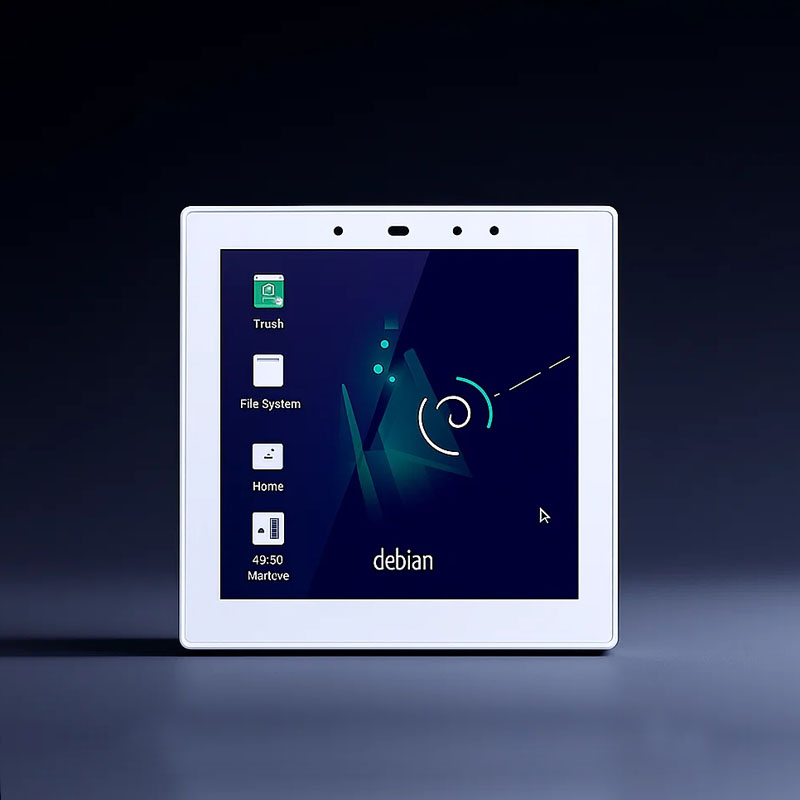

The YC-SM41P is a powerful 4-inch smart touch control panel designed to seamlessly integrate into various smart environments such as homes, offices, and hotels. Running on Android 9 and powered by the PX30 quad-core Cortex-A35 processor, this device offers smooth performance and reliable functionality for managing smart devices and systems.

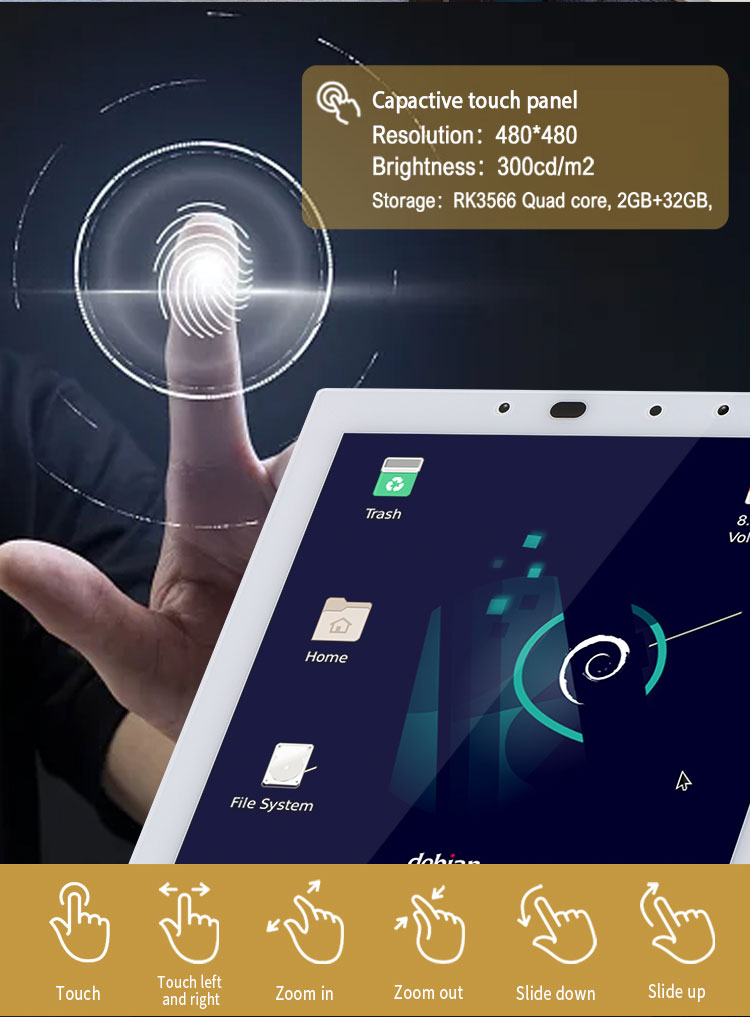

With a high-resolution capacitive touch panel (480×480), users can enjoy a bright, clear display (300cd/m²) for easy control of their connected devices. The panel supports multi-touch functionality, including touch gestures such as left and right, zoom in and out, side-down, and slide-up, providing intuitive and responsive interaction.

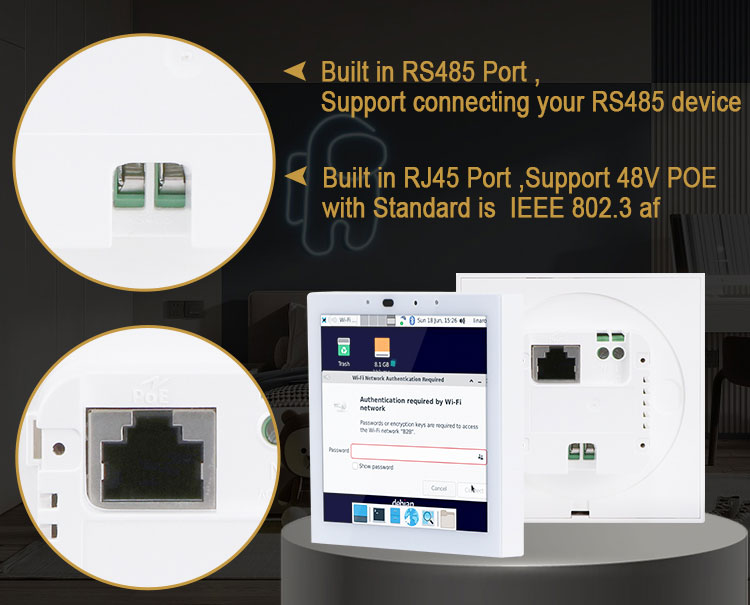

The YC-SM41P is equipped with 2GB RAM and 8GB of ROM storage, with an optional 16GB ROM upgrade for additional space. It offers versatile connectivity options, including Ethernet (RJ45), Wi-Fi, and Bluetooth 4.0, ensuring seamless communication with various smart devices. Additionally, the built-in RS485 port enables easy connection to compatible devices, expanding its application for home automation, smart office management, and more.

This smart control panel also supports 48V PoE (Power over Ethernet) through the built-in RJ45 port, following the IEEE 802.3 at/af standard, which simplifies installation by transmitting both power and data over a single Ethernet cable.

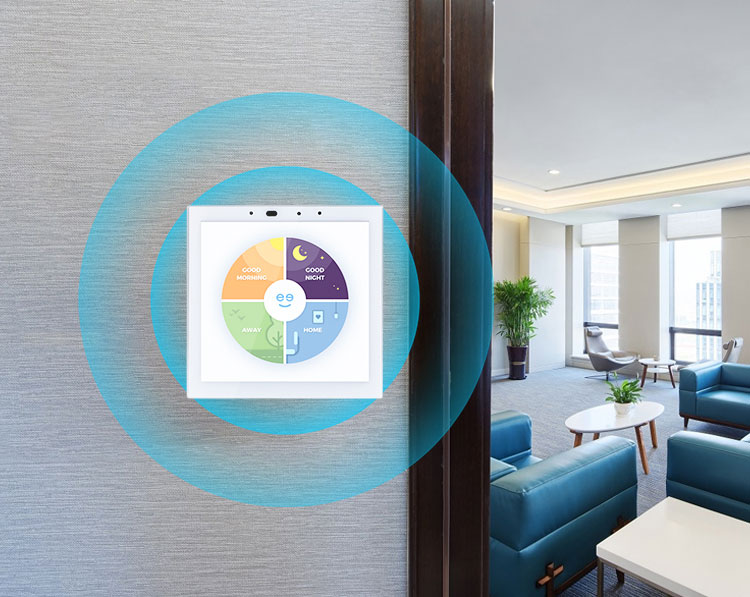

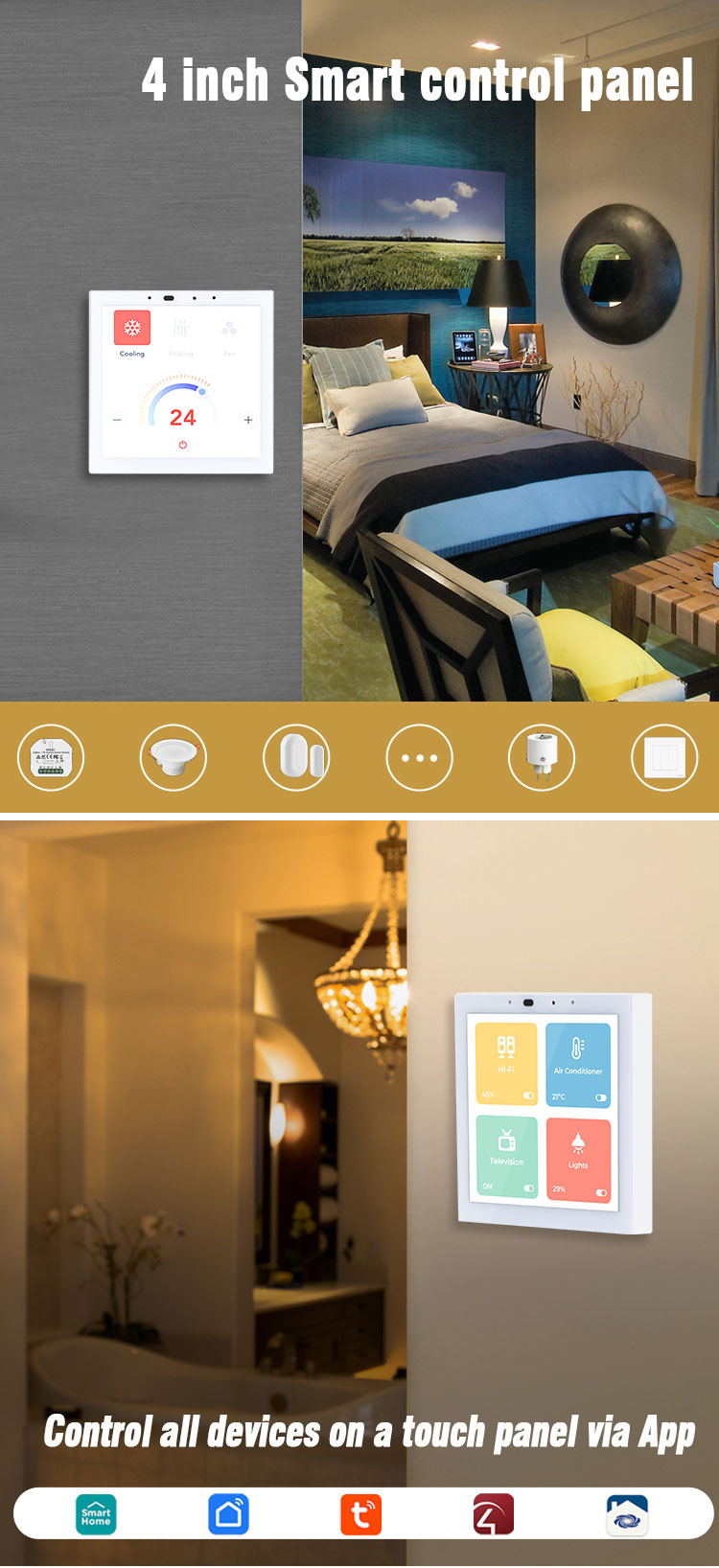

Designed for embedded installation, the YC-SM41P can be easily installed into various wall switch boxes, making it a versatile solution for different environments. Whether for a smart hotel, home, or office, the YC-SM41P provides a sleek, efficient, and user-friendly interface for controlling all aspects of your smart ecosystem.

Specification

System	CPU	RK3566 Quad-core Cortex-A55
	RAM	2G
	ROM	32GB
	Operating System	Android 11/Linux
Display	Resolution	480*480 IPS
	Touch Panel	Capactive touch panel
	Display size	4”
Network	WIFI	802.11b/g/n (5G WIFI optional)
	Bluetooth	BLE 5.2
	Ethernet	10M/100M
Interface	RJ45	1*RJ45 Ethernet port, support POE
	Type C	1*Type C
	RS485	1*RS485
	Reset	1*Reset
	Speaker	Yes
	Microphone	2*Mic (not available for Linux version)
	Power supply	POE, IEEE802.3af
	Power supply	AC 110~240V, 50HZ

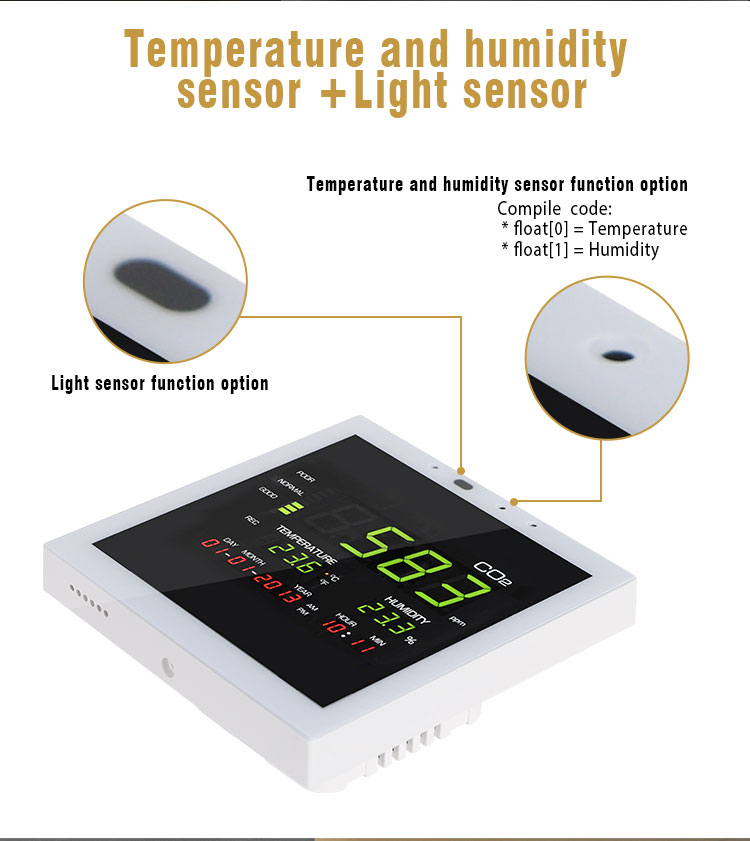

Customized Functions	Light sensor	Optional, black&white color are available
Customized Functions	Temperature and humidity sensor	Optional, black color is available
Media plays	Video	MOV / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB
	Audio	MP3 / WMA / WAV / AAC / FLAC / OGG
	Entertainment	Video / Movie / Music / FM online
Others	Installation	In-wall, suitable for EU, 86 wall box
	Color	Black/White
	Working temperature	-10℃~60°℃
	Language	Multi-language optional

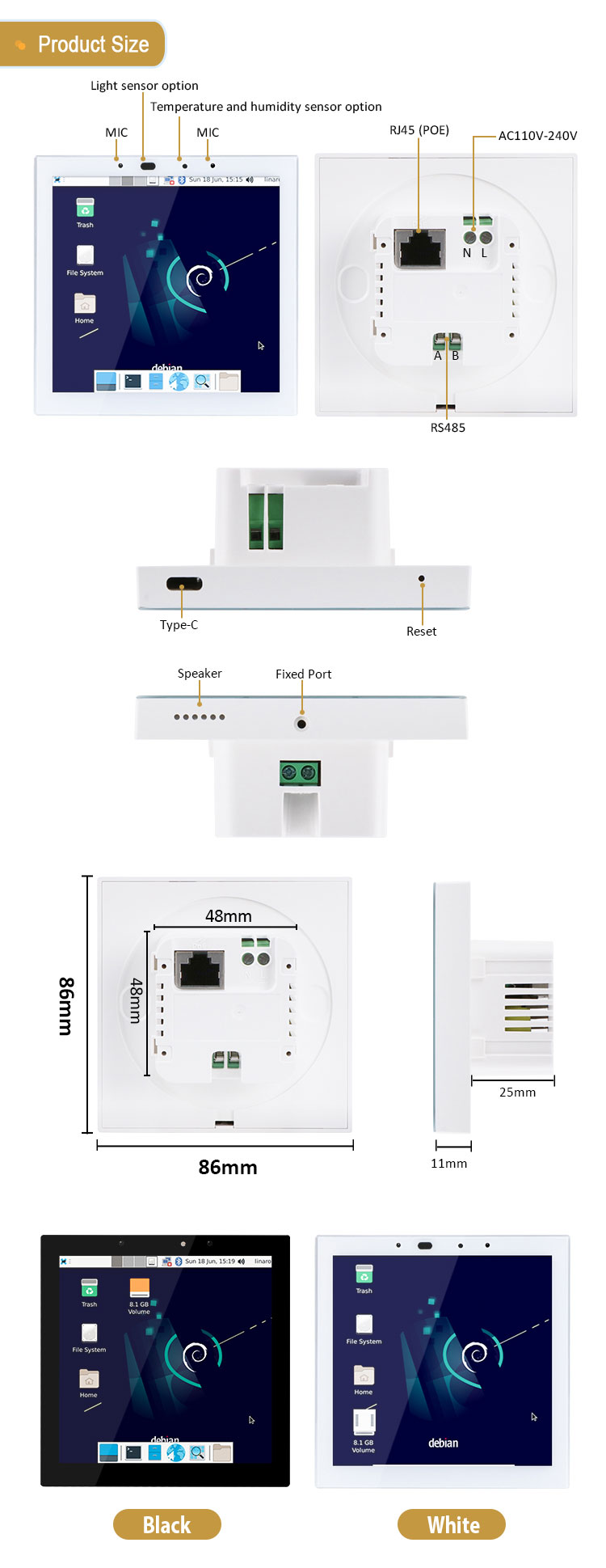

	Dimension	868536mm
Accessories	Bracket	1*Bracket for installation
Accessories	Wall box	1*86 wall box

Tutorial

Q&A

Q1:Does your panels support Zigbee?

A1:If you need your panels to work with Zigbee, we suggest using a Gateway. Connecting all sensors to the gateway, which is then linked to our control panel. A demonstration video illustrating this process can be found at the following link: https://youtu.be/D4vSVo23JXg

Q2:Does your panels support KNX?

A2:We are not currently a member of KNX, so we do not have authorization to include KNX protocol in our standard models. However, we offer two solutions:

1. Custom Integration: With 18 years of R&D and manufacturing experience, we can integrate KNX modules into our mainboards. We will provide a neutral Android OS, and you can handle the KNX firmware. This option allows you to create a custom model tailored to your specifications.

2. KNX IP Gateway Solution: For a quick and straightforward setup, you can use a KNX IP gateway to bridge your devices with our panel.

Q3:Can I open the box and start using the panel?

A3:All of our panels run on a neutral Android OS. They can connect wirelessly via Wi-Fi and Bluetooth. For wired connections, we offer RS485. Each panel comes with the Google Play Store, allowing you to easily install apps like Tuya and Home Assistant. Additionally, we can assist with pre-installing your APK upon request.

Q4:Does it come with POE?

A4:Yes, all our smart home control panels support PoE, adheres to the IEEE802.3af standard

Q5:What operating systems do you supply?

A5:Our smart home solutions support a variety of operating systems, including Android and Linux-based systems such as Ubuntu, Debian, and Buildroot.
