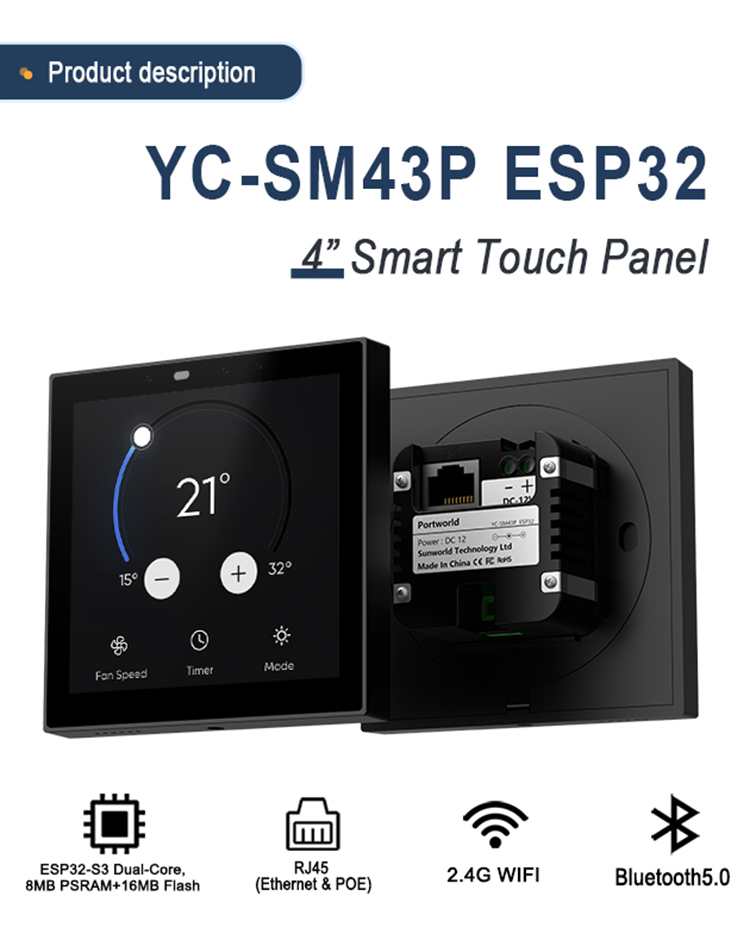

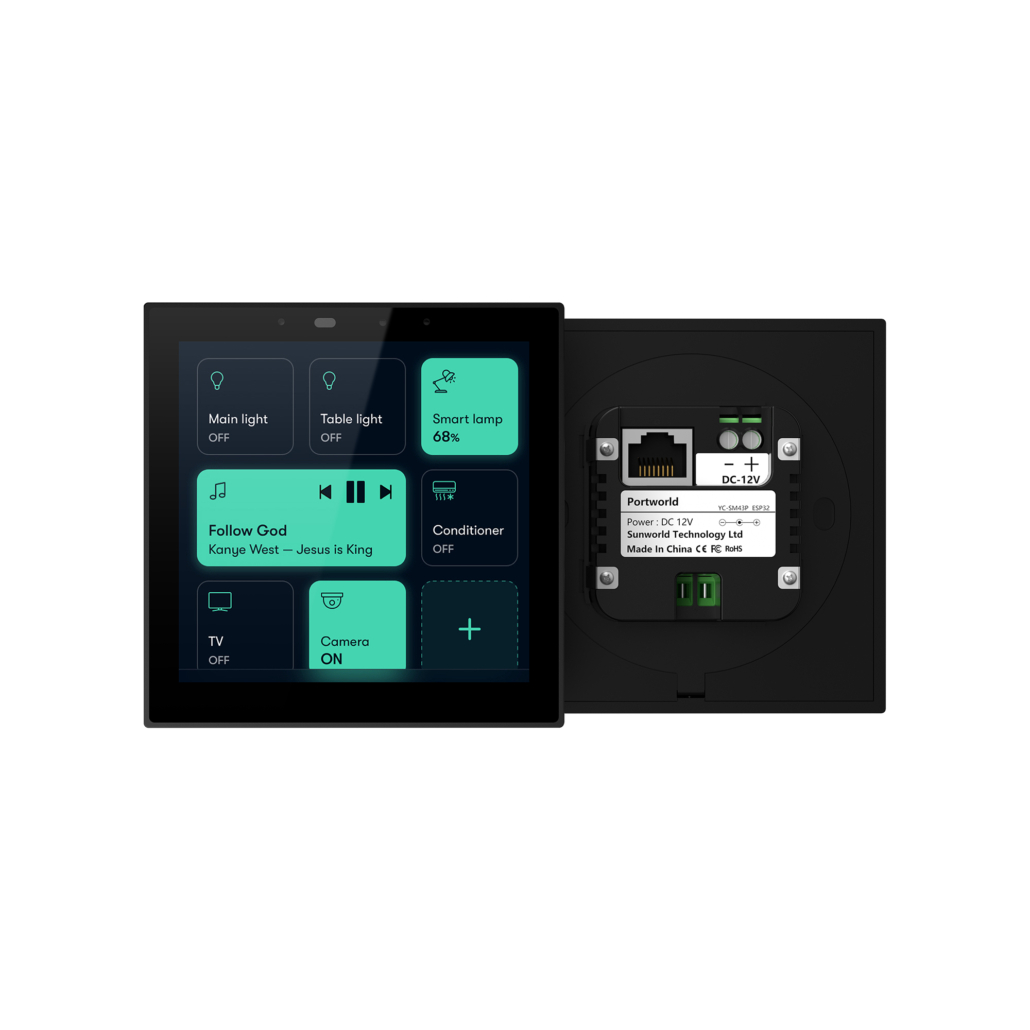

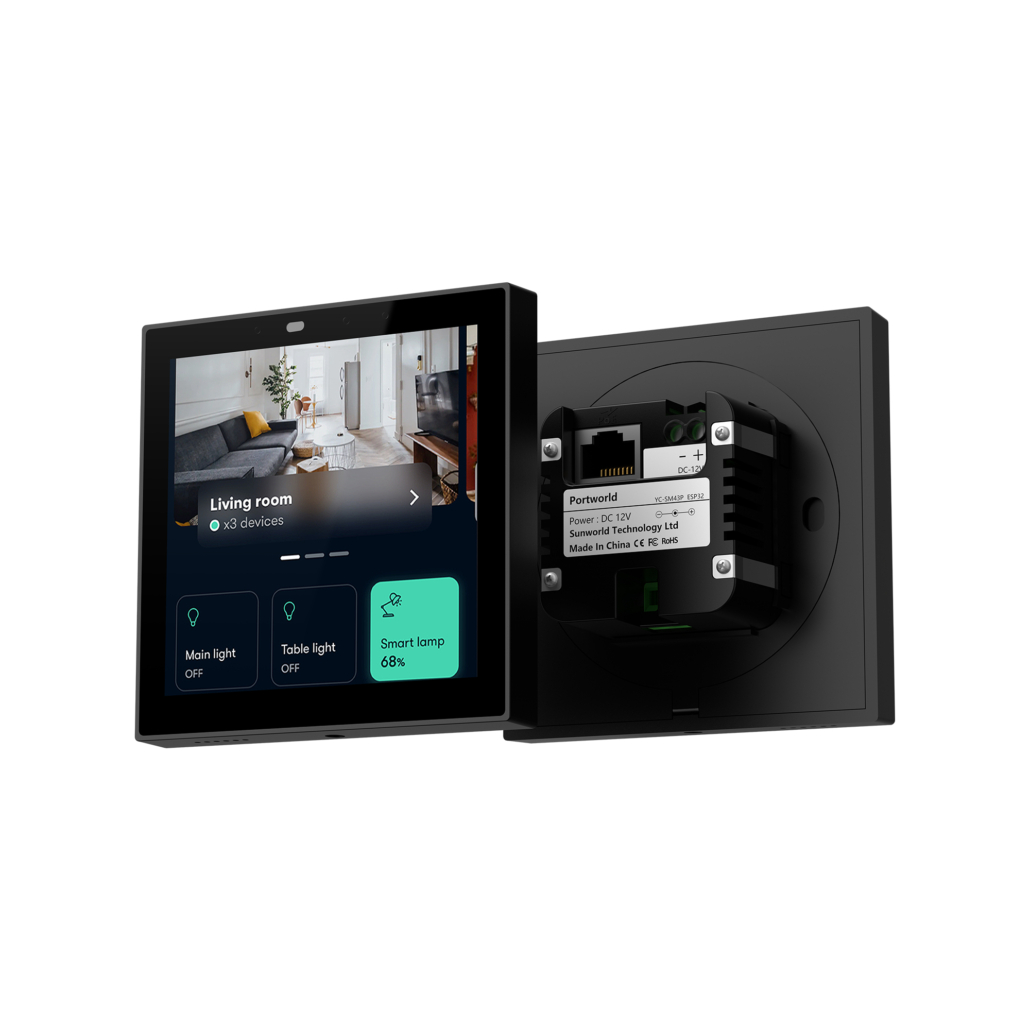

YC-SM43P ESP32 4″ Smart Touch Panel

YC-SM43P

ESP32 4″ Smart Touch Panel

Key Features

ESP32-S3 Dual-Core Processor
240MHz CPU with 8MB PSRAM and 16MB Flash for smooth operation.
4″ Capacitive Touch Display
480×480 resolution with responsive touch control.
Multiple Connectivity
Supports WiFi, Bluetooth 5.0, Ethernet, PoE, and RS485.
LVGL UI Development Support
Compatible with Arduino, ESP-IDF, PlatformIO, and LVGL.
86×86 Embedded Design
Supports wall-mounted installation for smart control applications.
OTA & Customization Support
Enables remote updates and OEM/ODM customization.

Overview

YC-SM43P is a compact ESP32-S3 based smart touch panel designed for smart home, industrial HMI, IoT control, and building automation applications. With a 4-inch capacitive touchscreen, LVGL graphical interface support, multiple communication interfaces, and flexible embedded installation design, it provides an efficient solution for customized intelligent control systems.

Key Features

ESP32-S3 High-Performance Platform

ESP32-S3 Dual-Core Xtensa LX7 processor
Up to 240MHz operating frequency
8MB PSRAM + 16MB Flash
Supports FreeRTOS real-time operation
Smooth multi-task processing and UI rendering

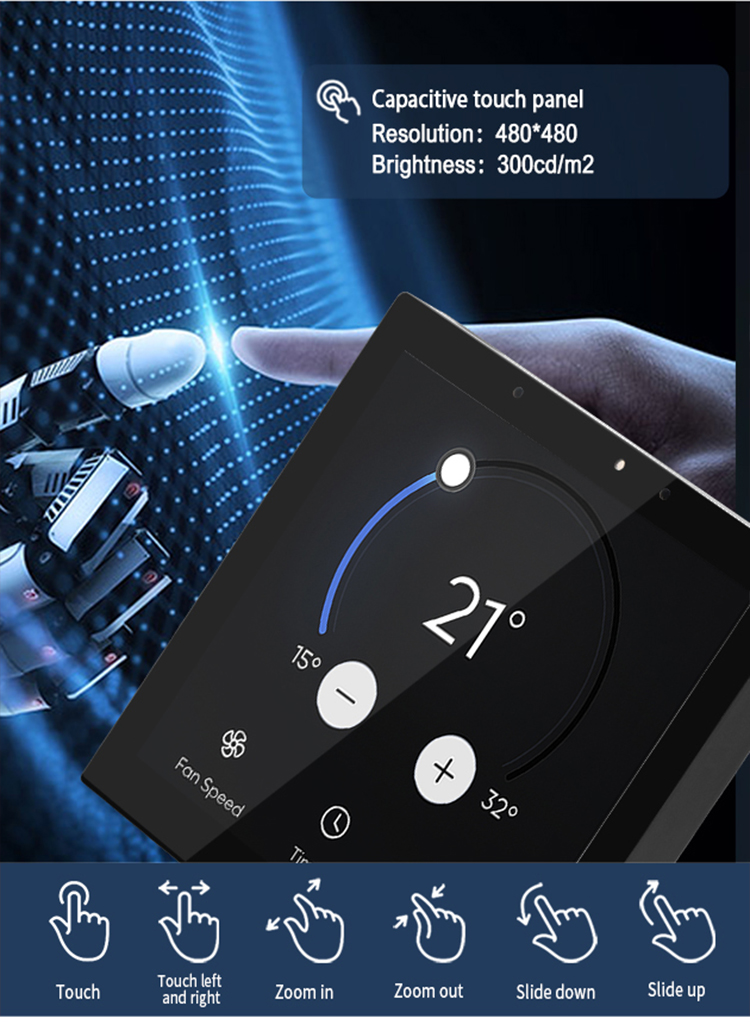

4-Inch High-Resolution Touch Display

4-inch capacitive touch screen
Resolution: 480 × 480
Brightness: 300 cd/m²
Supports multi-touch gestures

Ideal for:

Smart control panels
HMI interfaces
IoT terminals

Rich Connectivity Options

2.4GHz WiFi
Bluetooth 5.0
RJ45 Ethernet
PoE support
RS485 communication

Supports both wireless IoT applications and industrial wired communication.

Flexible Development & UI Customization

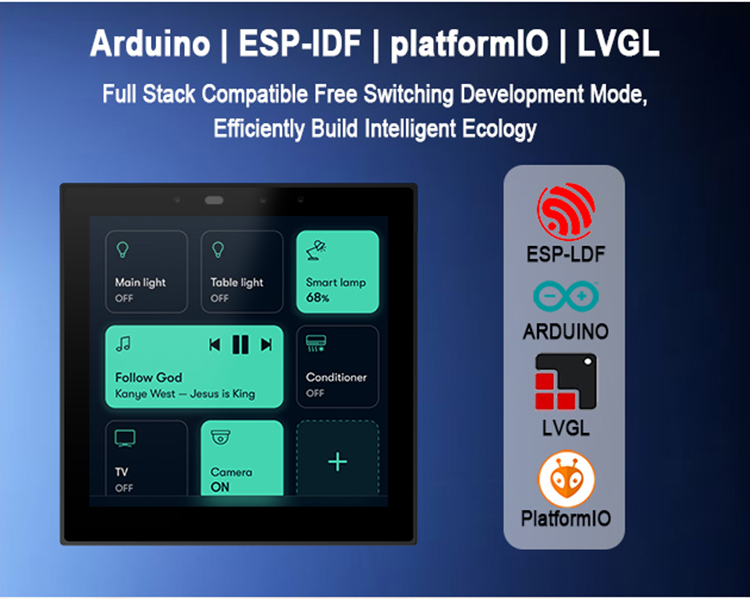

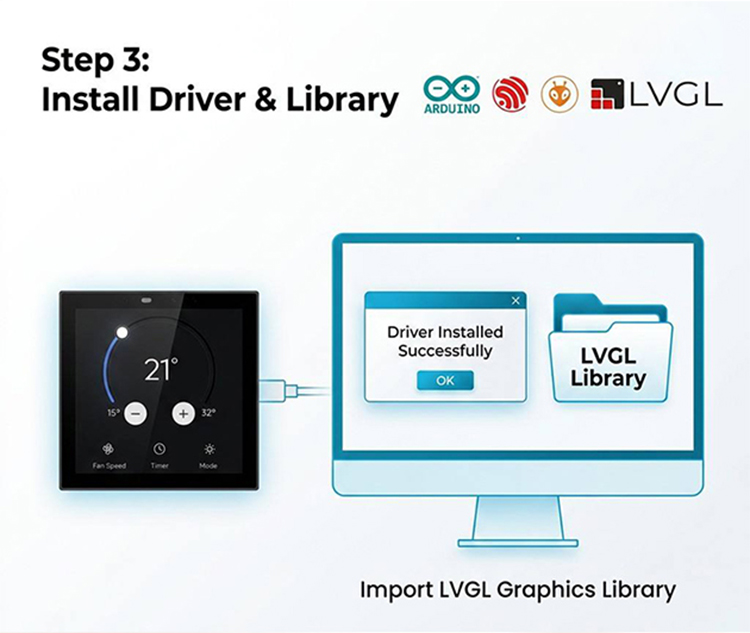

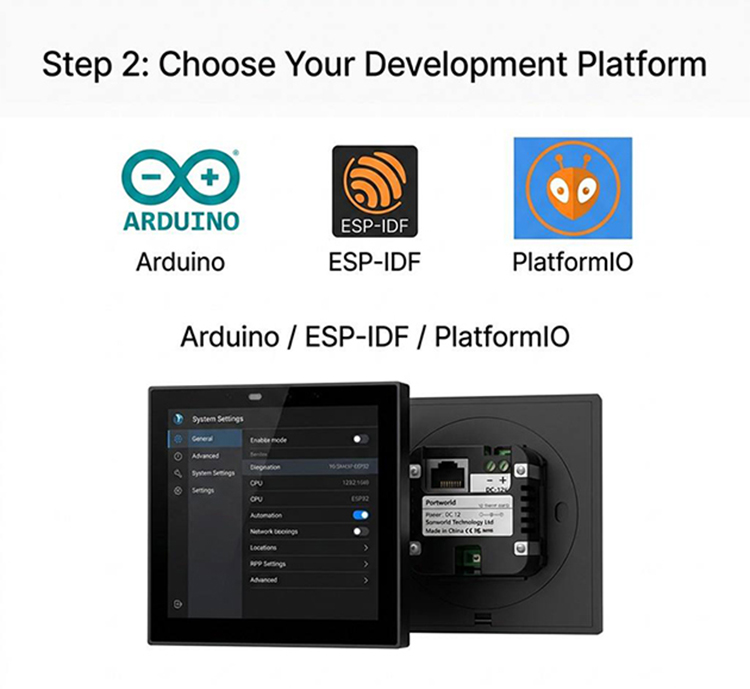

Supports multiple development environments:

Arduino
ESP-IDF
PlatformIO
LVGL

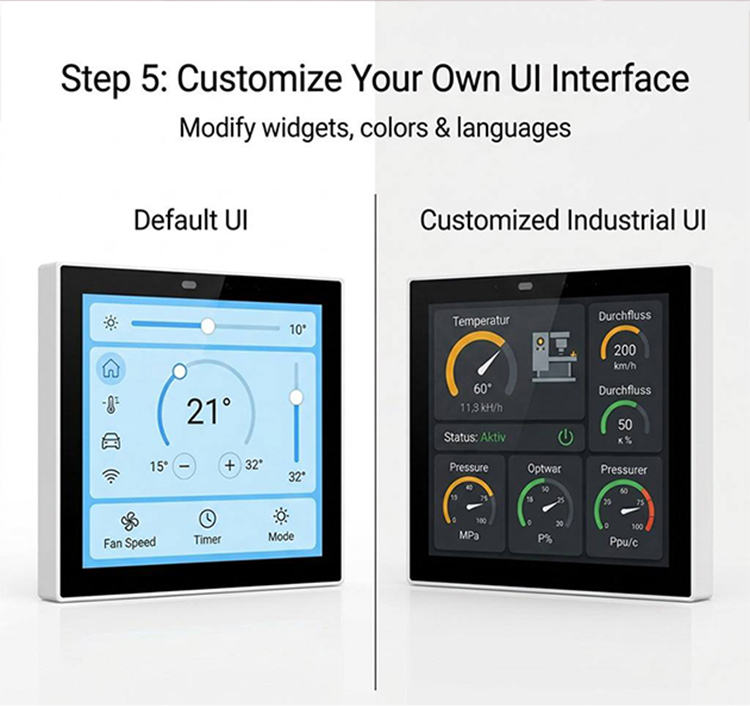

Developers can create customized interfaces with:

Custom widgets
Custom layouts
Different languages
Application-specific UI designs

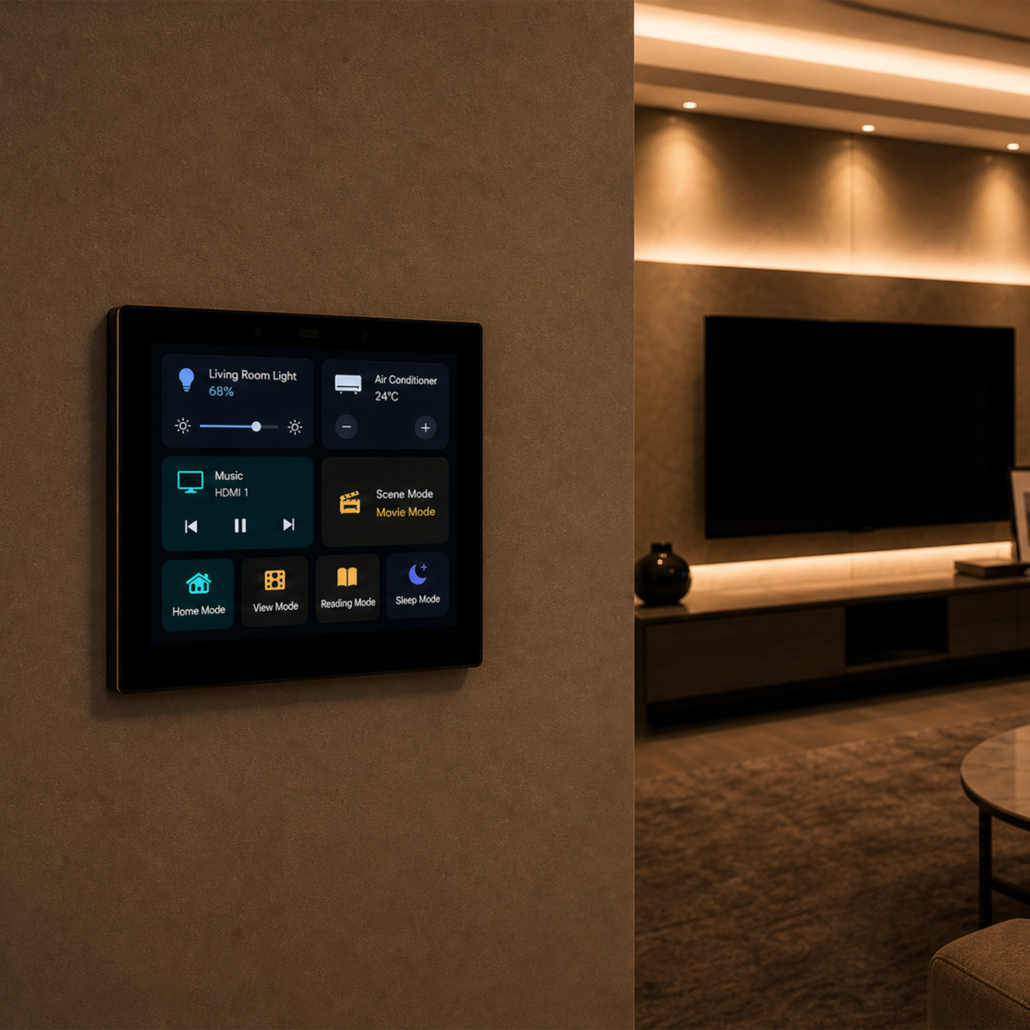

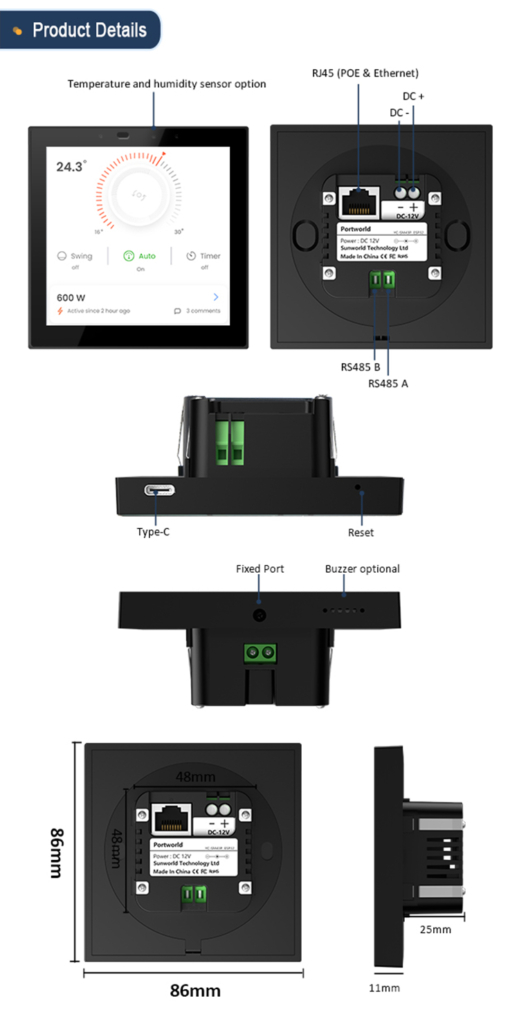

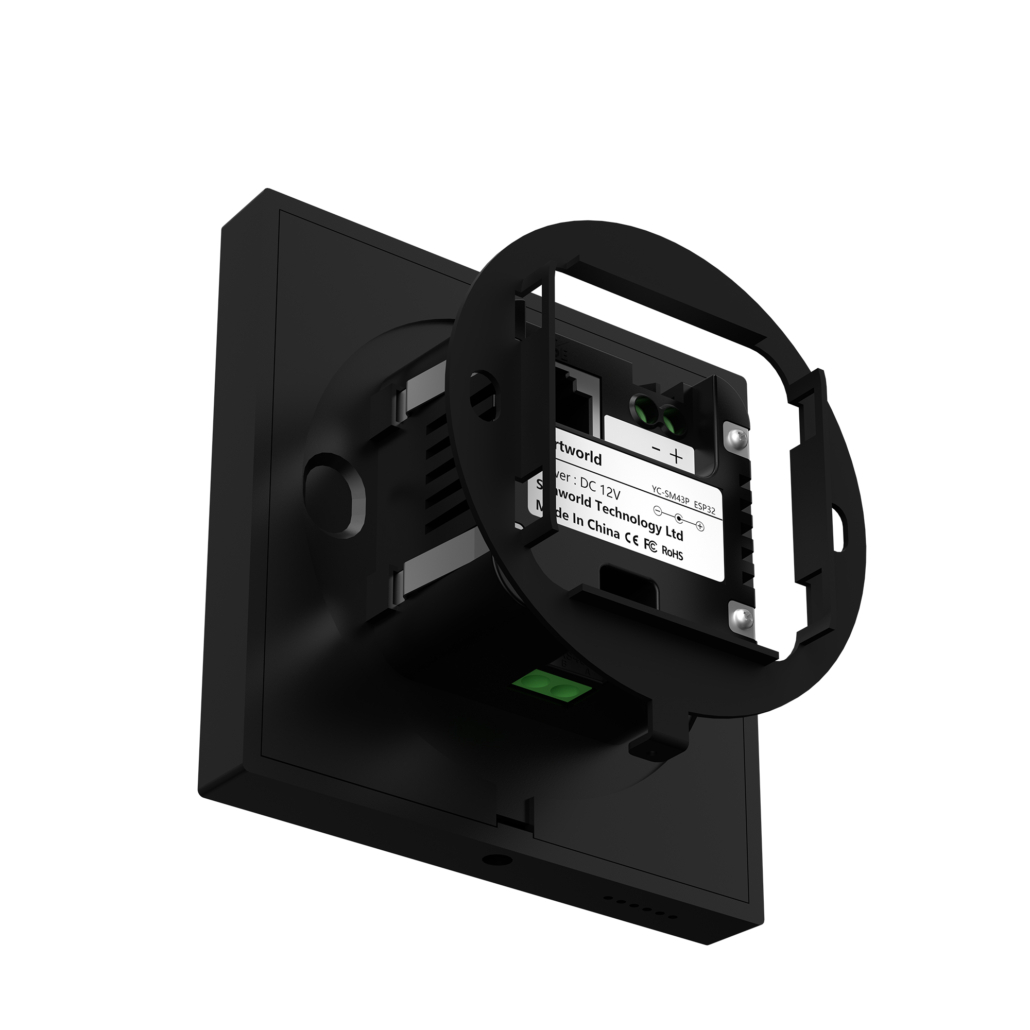

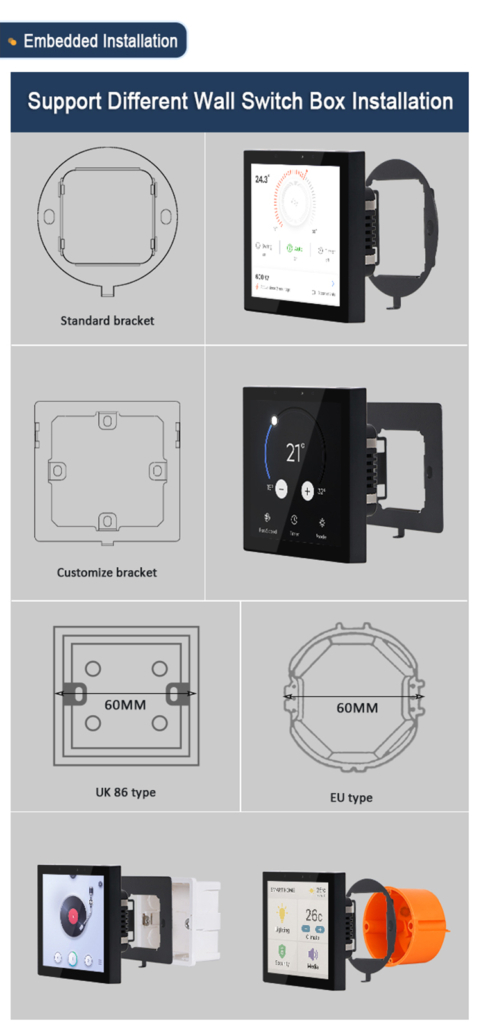

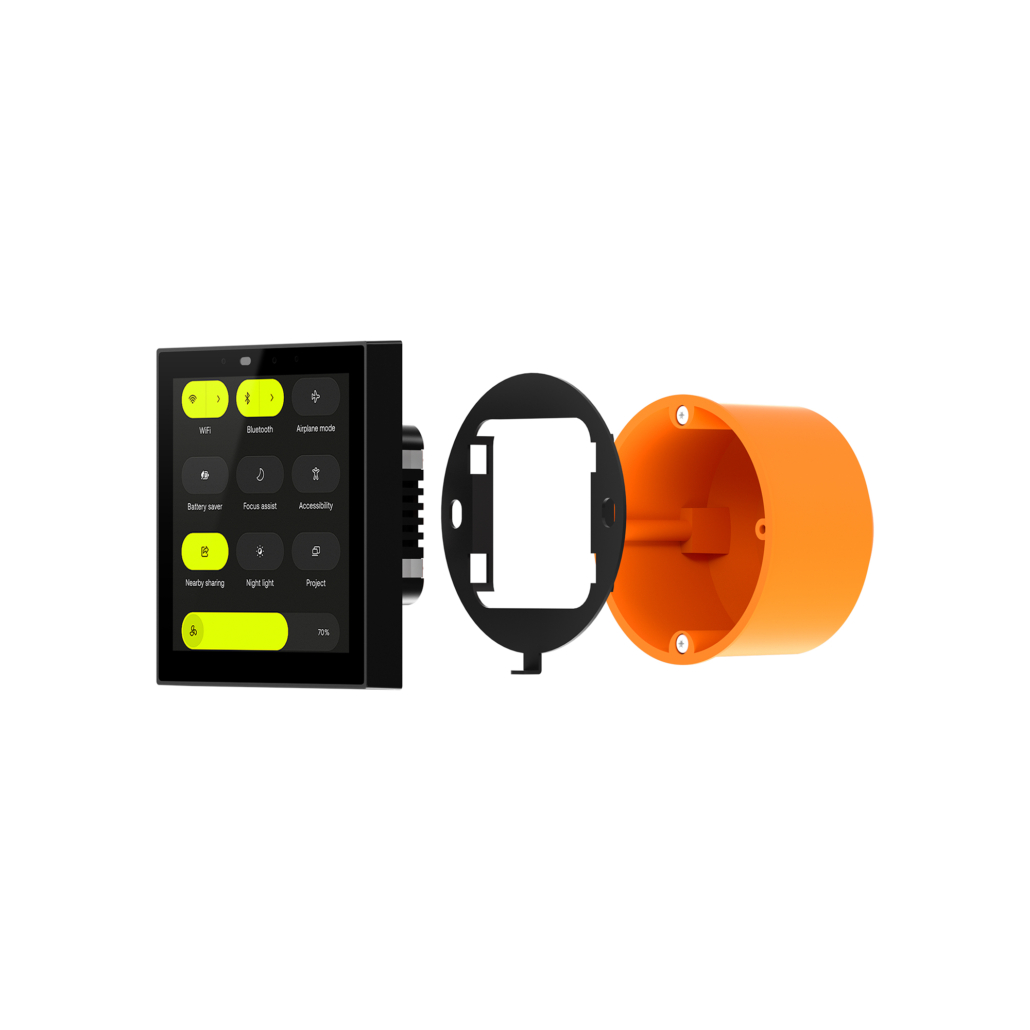

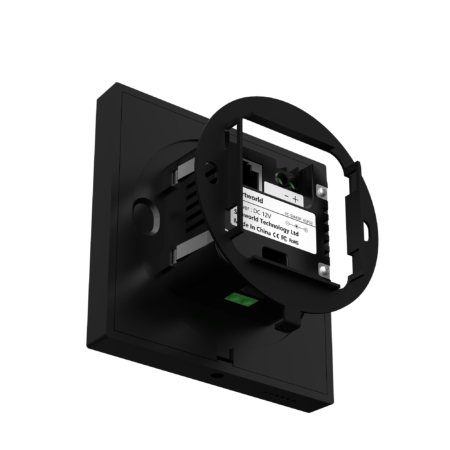

Compact Embedded Wall Installation

Designed with an 86×86mm wall-mounted structure.

Supports:

Standard wall switch boxes
UK 86 type
EU type installation
Customized mounting brackets

Suitable for modern smart buildings and home automation systems.

Easy Development & Maintenance

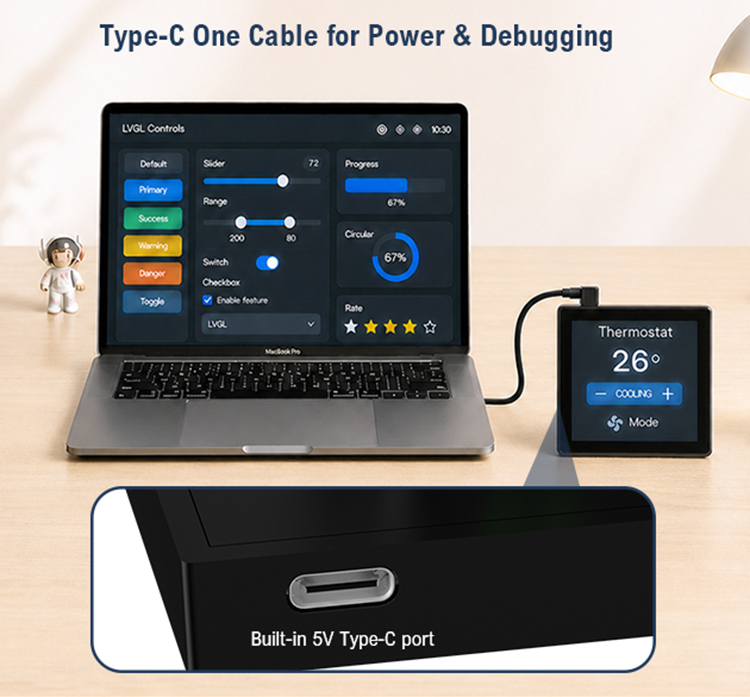

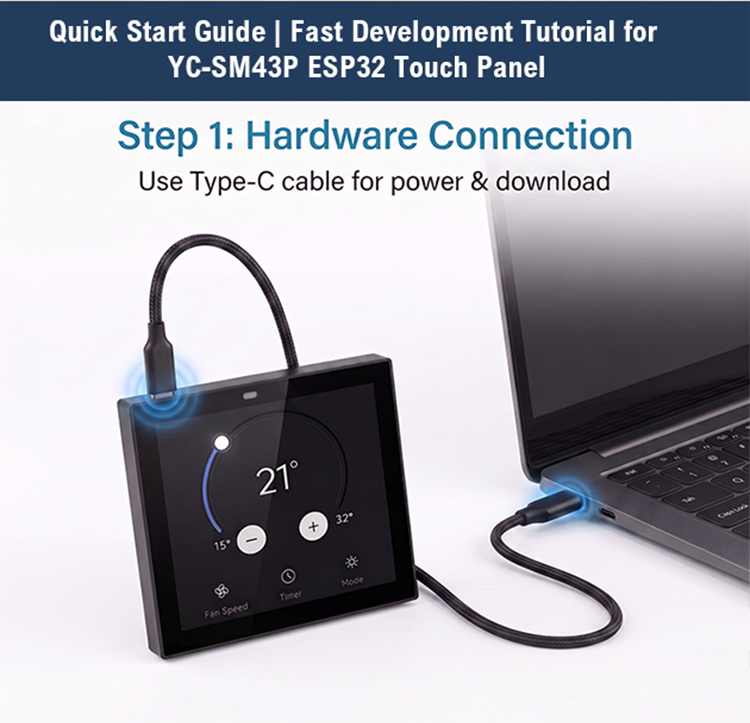

Type-C port for power supply and debugging
Optional temperature & humidity sensor
Optional buzzer
OTA remote firmware upgrade support

Enables fast deployment and convenient device management for large-scale projects.

Application Scenarios

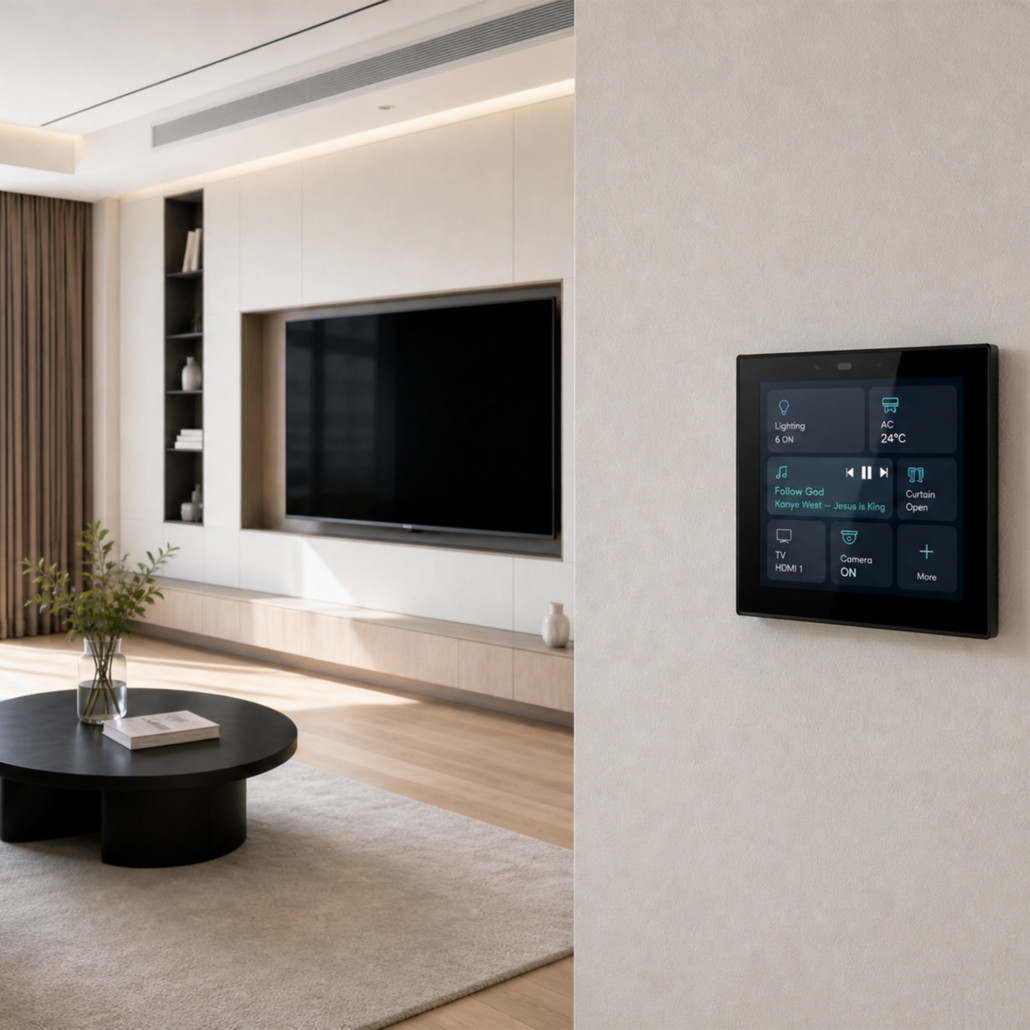

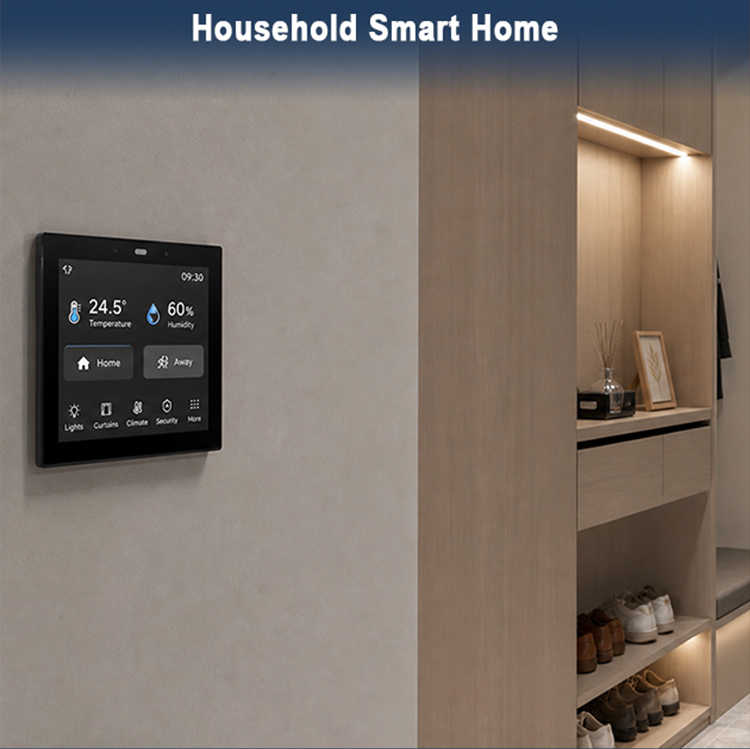

Smart Home Control

Lighting control
Air conditioning
Smart curtains
Security systems
Energy management

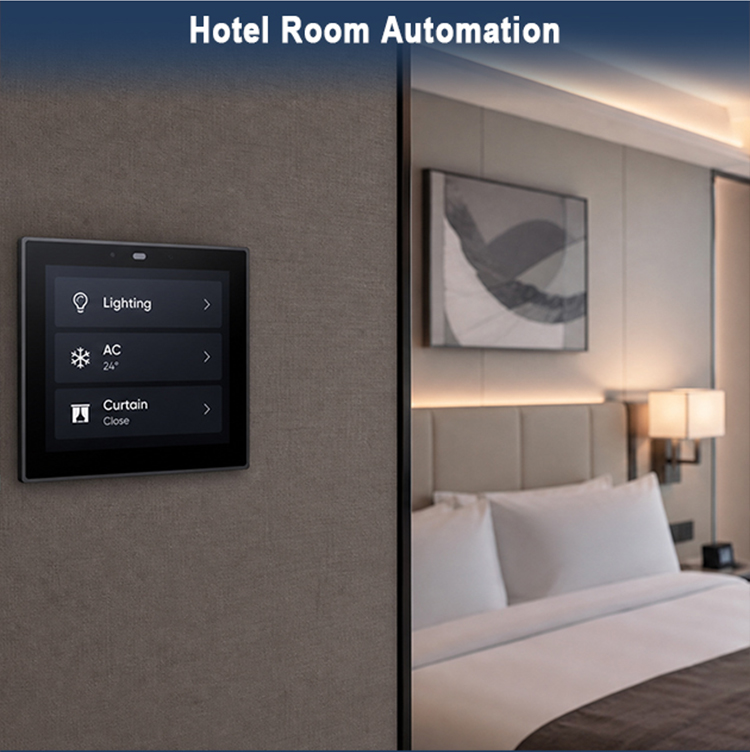

Hotel Room Automation

Room control panel
Lighting adjustment
AC control
Guest service integration

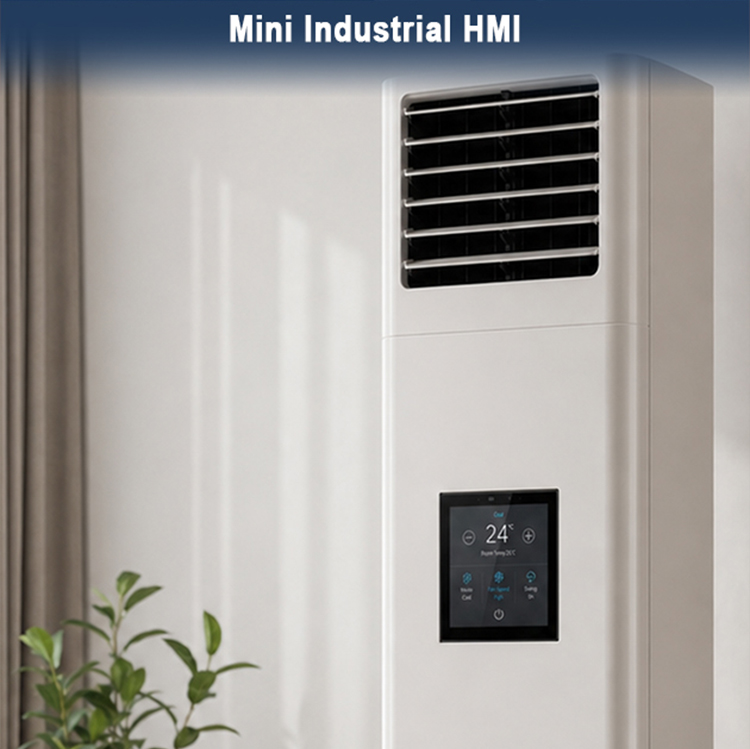

Industrial HMI

Machine control
Equipment monitoring
Data visualization
Automation systems

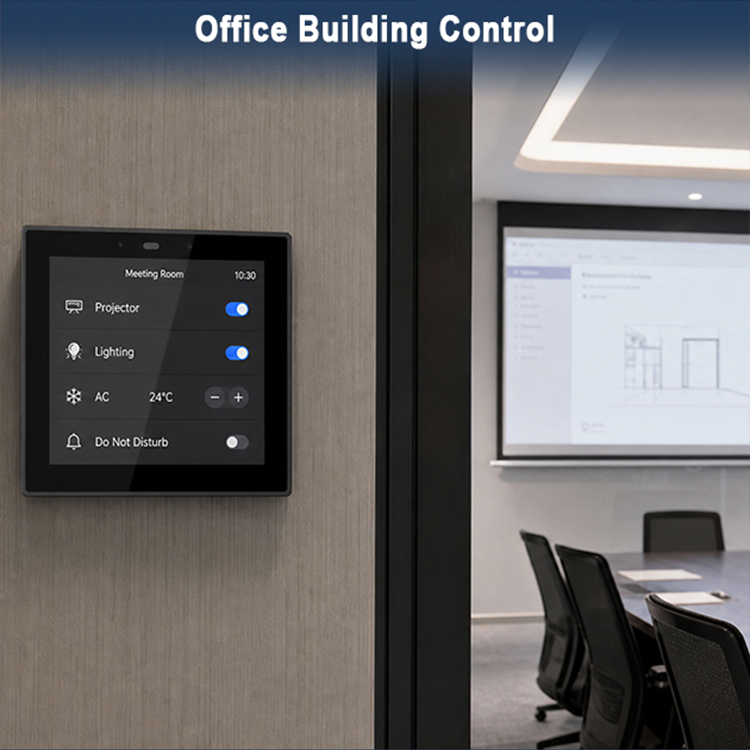

Smart Building Control

Meeting room management
Office automation
Building energy control

Robot & Medical Equipment HMI

Interactive control interface
Device status monitoring
Embedded touchscreen operation

Why Choose YC-SM43P

ESP32-S3 powered smart HMI platform
High-performance LVGL graphical interface
Industrial communication with RS485 & Ethernet
PoE support for simplified deployment
Compact wall-mounted design
Flexible OEM/ODM customization support

YC-SM43P ESP32 4″ Smart Touch Panel

Specification

Item	Specification
Model	YC-SM43P
Processor	ESP32-S3 Dual-Core Xtensa LX7
Frequency	240MHz
Memory	8MB PSRAM + 16MB Flash
Display	4-inch Capacitive Touch Screen
Resolution	480×480
Brightness	300cd/m²
Wireless	WiFi 2.4GHz + Bluetooth 5.0
Network	RJ45 Ethernet + PoE

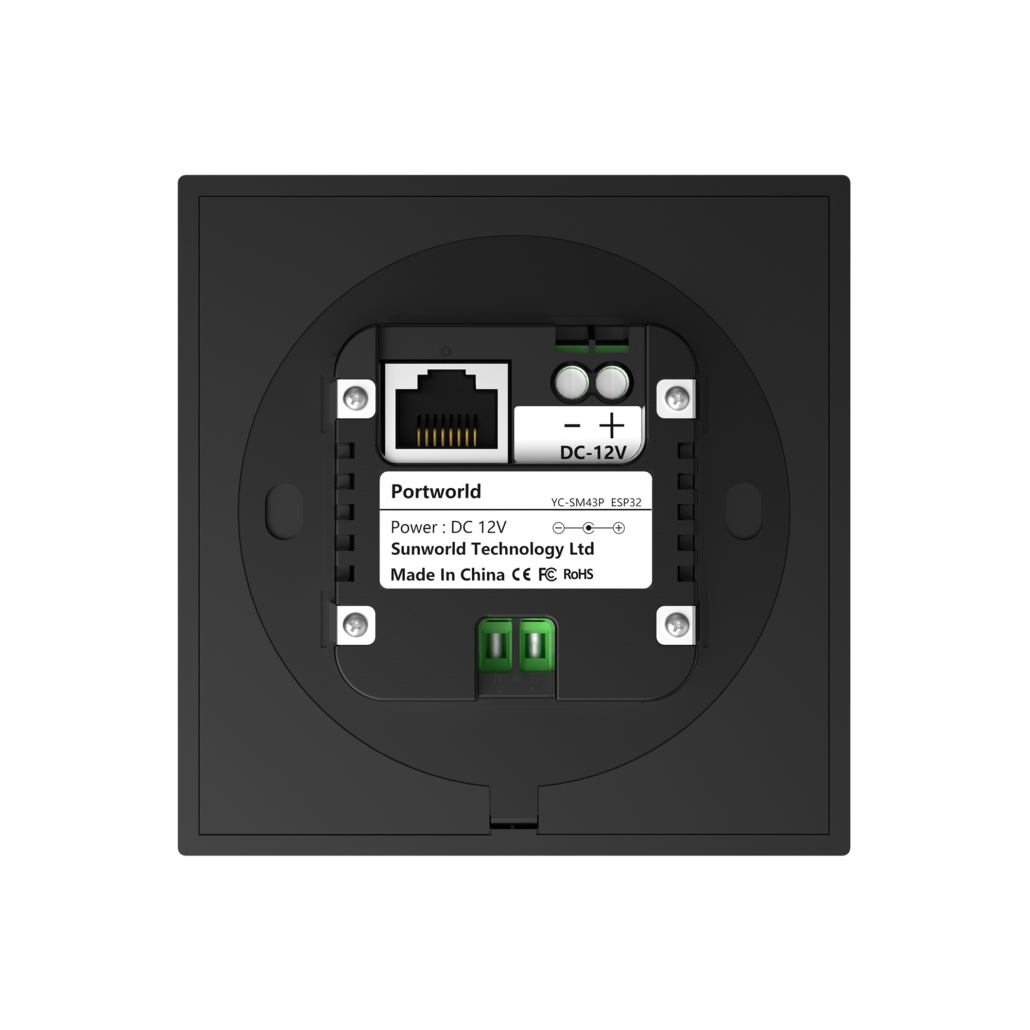

Interface	RS485, Type-C, DC 12V
GUI Support	LVGL
Development	Arduino / ESP-IDF / PlatformIO
Installation	86×86 Embedded Mount

Q&A

Q1:Does your panels support Zigbee?

A1:If you need your panels to work with Zigbee, we suggest using a Gateway. Connecting all sensors to the gateway, which is then linked to our control panel. A demonstration video illustrating this process can be found at the following link: https://youtu.be/D4vSVo23JXg

Q2:Does your panels support KNX?

A2:We are not currently a member of KNX, so we do not have authorization to include KNX protocol in our standard models. However, we offer two solutions:

1. Custom Integration: With 18 years of R&D and manufacturing experience, we can integrate KNX modules into our mainboards. We will provide a neutral Android OS, and you can handle the KNX firmware. This option allows you to create a custom model tailored to your specifications.

2. KNX IP Gateway Solution: For a quick and straightforward setup, you can use a KNX IP gateway to bridge your devices with our panel.

Q3:Can I open the box and start using the panel?

A3:All of our panels run on a neutral Android OS. They can connect wirelessly via Wi-Fi and Bluetooth. For wired connections, we offer RS485. Each panel comes with the Google Play Store, allowing you to easily install apps like Tuya and Home Assistant. Additionally, we can assist with pre-installing your APK upon request.

Q4:Does it come with POE?

A4:Yes, all our smart home control panels support PoE, adheres to the IEEE802.3af standard

Q5:What operating systems do you supply?

A5:Our smart home solutions support a variety of operating systems, including Android and Linux-based systems such as Ubuntu, Debian, and Buildroot.
