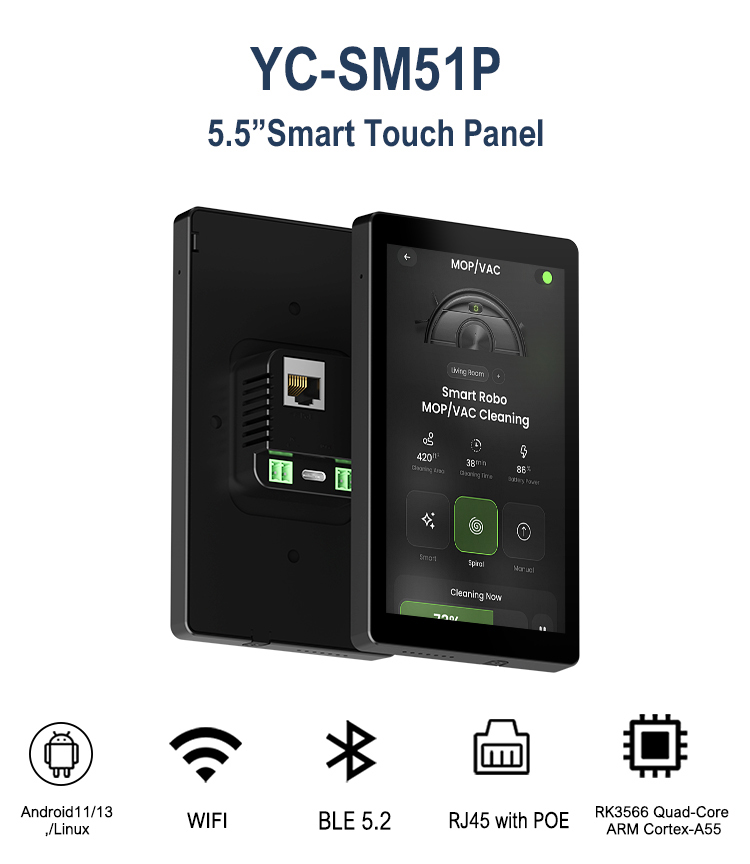

YC-SM51P 5.5 inch Smart Touch Panel

YC-SM51P

5.5 inch Smart Touch Panel

Key Features

5.5-inch IPS Capacitive Touchscreen with 720×1280 resolution and 300 nits brightness
RK3566 Quad-Core ARM Cortex-A55 / RK3506 Processor with Android 11/13 and Linux support
2GB RAM + 32GB ROM for smooth smart control applications
WiFi + BLE 5.2 + RJ45 Ethernet with PoE Support for flexible connectivity
5-Point Multi-Touch Panel supporting swipe, zoom in/out, and gesture control
Type-C Debugging Interface for easy development and maintenance
Embedded Wall-Mount Design supporting UK 86 type, EU type wall boxes, and customized brackets
OEM/ODM Customization including logo, color, packaging, and hardware customization

Overview

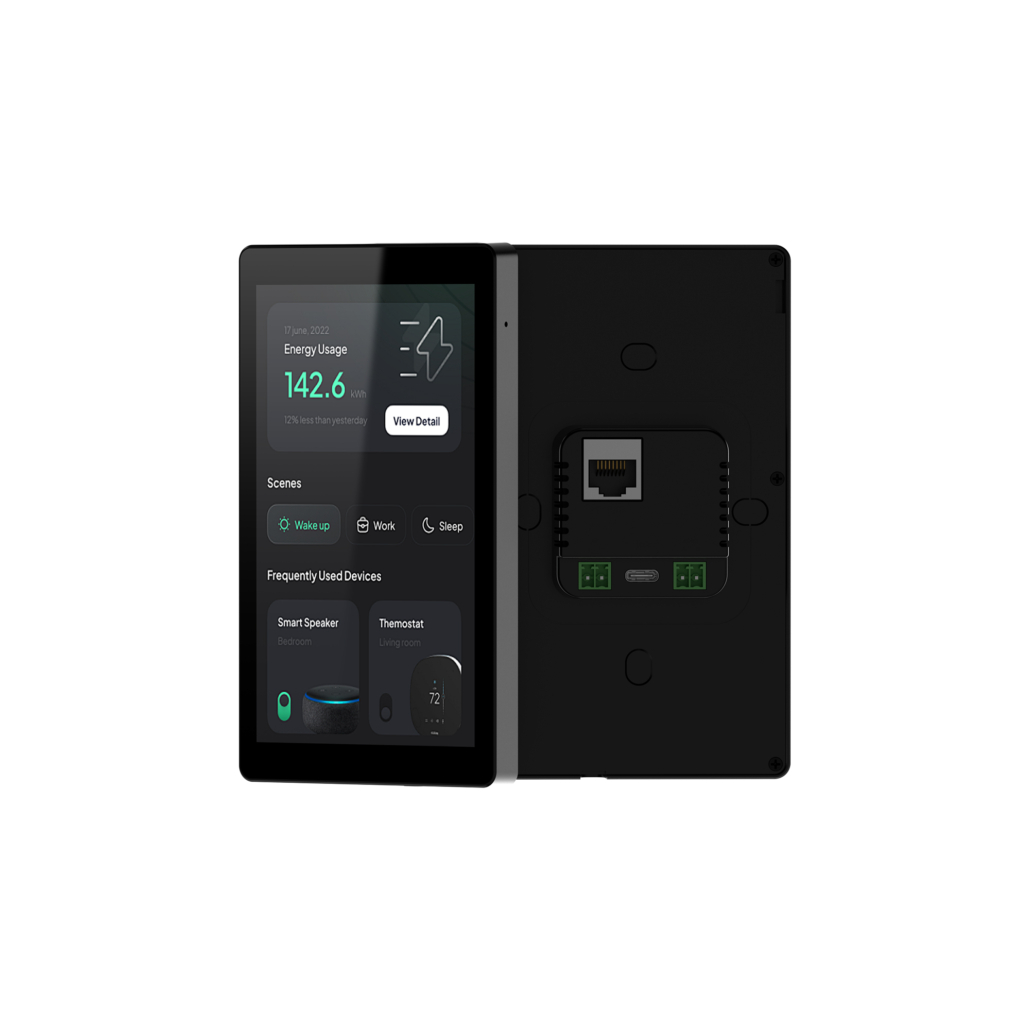

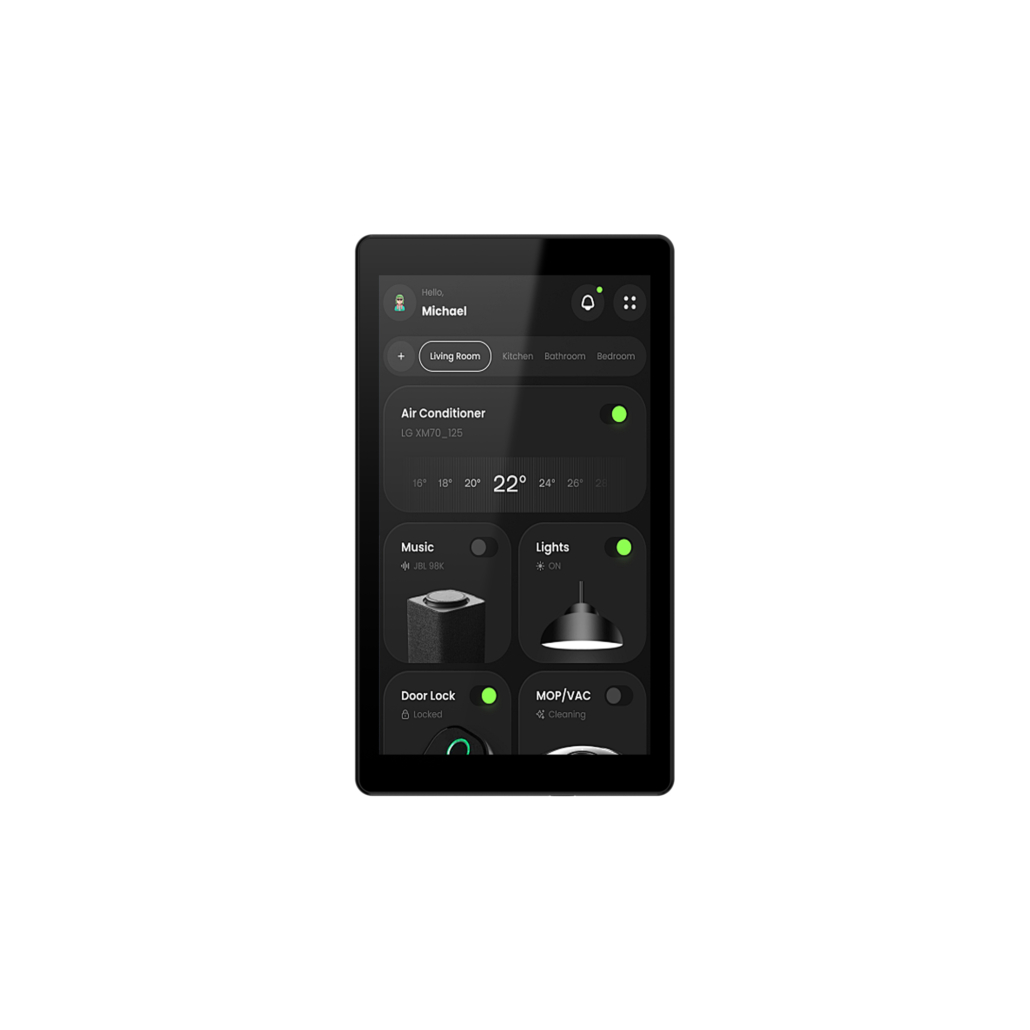

The YC-SM51P is a compact 5.5-inch smart touch control panel designed for smart home automation, hotel room control, and office building management applications. Powered by the Rockchip RK3506/RK3566 Quad-Core ARM Cortex-A55 processor, this smart touch panel provides reliable performance for running customized automation applications and intelligent control systems. Supporting Android 11/13 and Linux operating systems, the YC-SM51P offers a flexible embedded platform for different smart control projects.

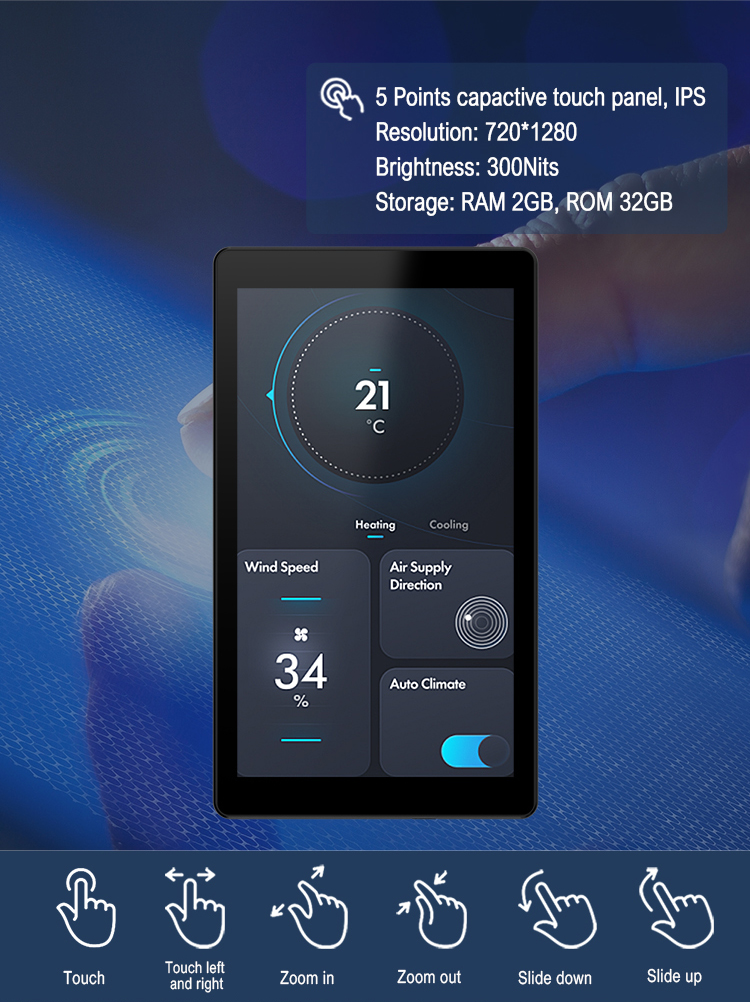

With a 5.5-inch IPS capacitive touchscreen and a resolution of 720×1280, the YC-SM51P delivers a clear and smooth visual experience with 300 nits brightness. The 5-point capacitive touch panel supports multiple touch gestures, including left and right swipe, slide up, slide down, zoom in, and zoom out, providing an intuitive and responsive interaction experience for users.

The YC-SM51P is equipped with 2GB RAM and 32GB ROM storage, offering sufficient resources for smart control applications and customized software development. It supports multiple connectivity options, including WiFi, Bluetooth 5.2, and RJ45 Ethernet with PoE support, allowing stable network communication and simplified installation through a single cable for both power and data transmission.

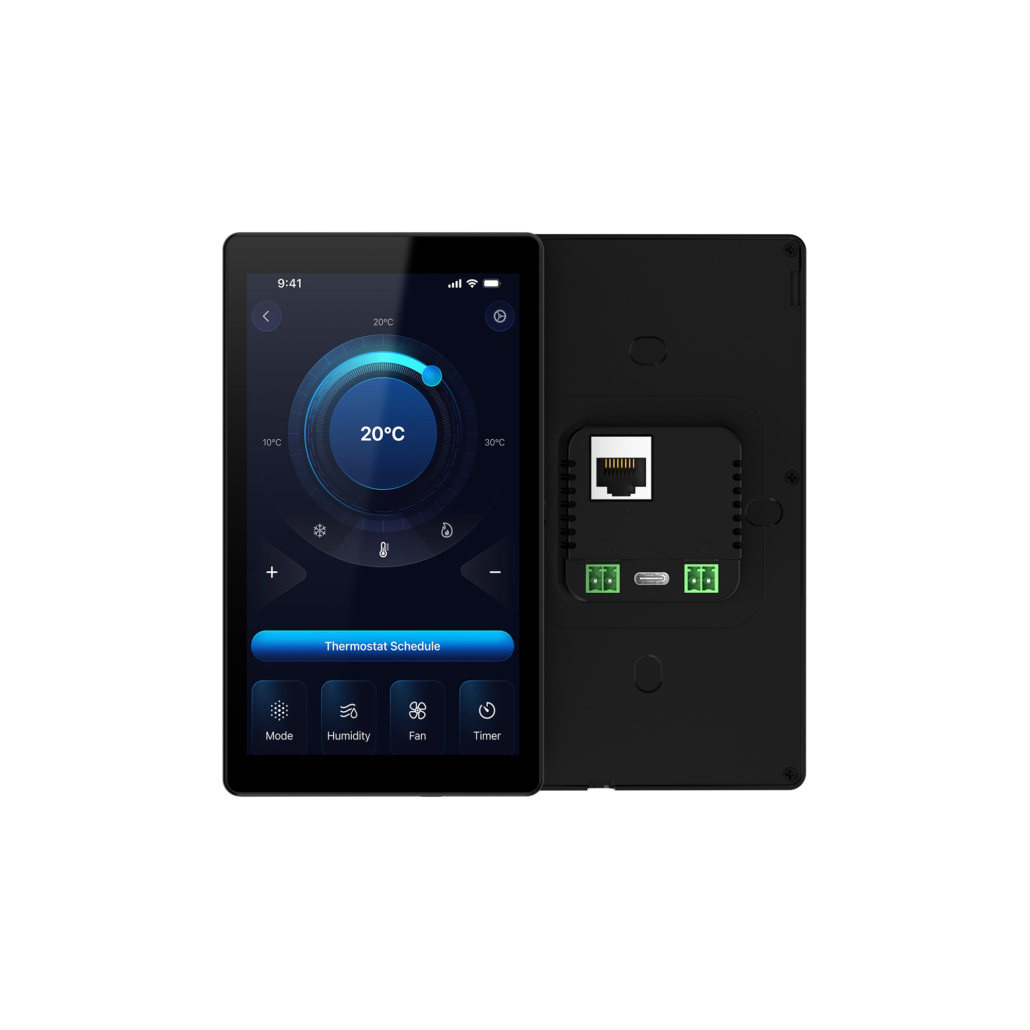

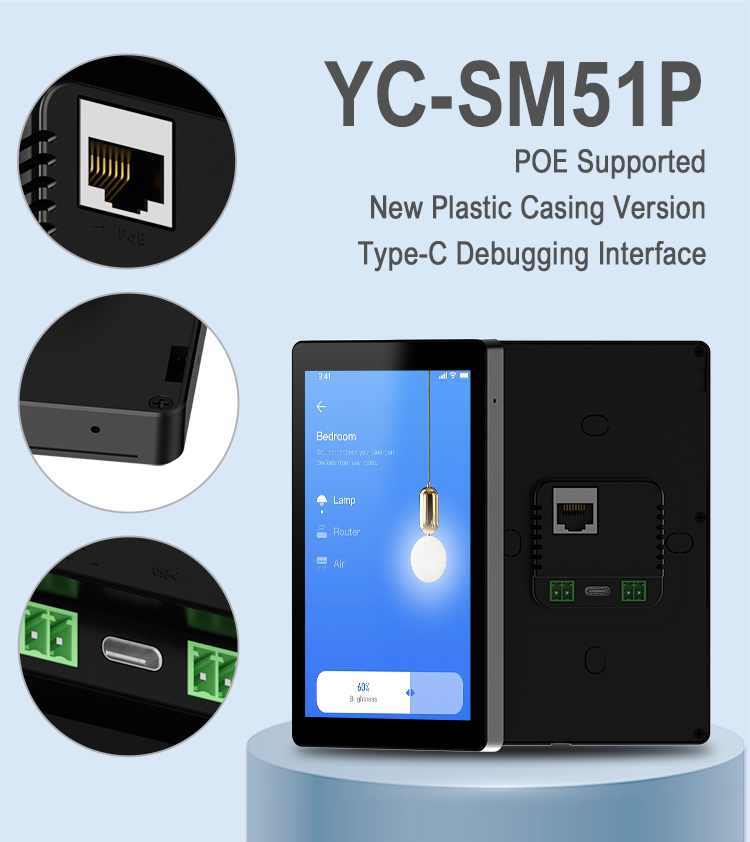

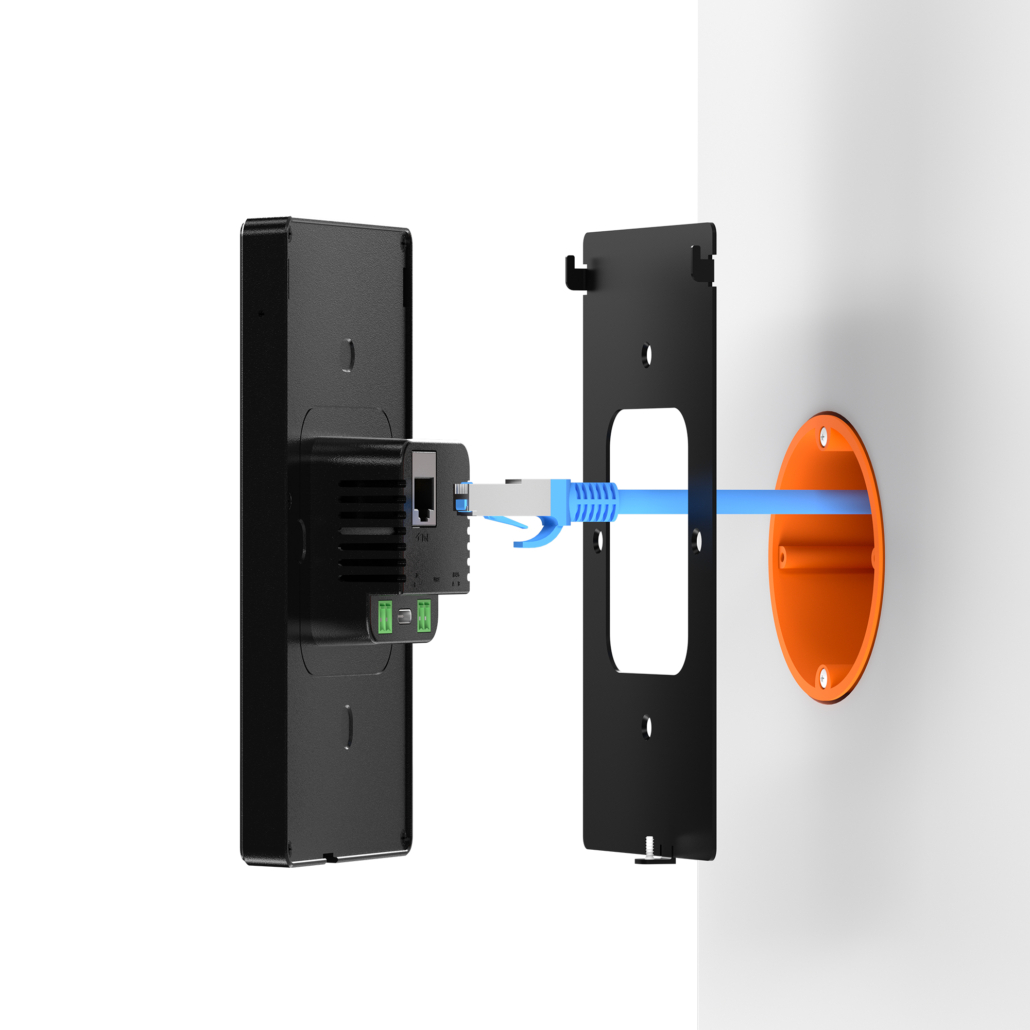

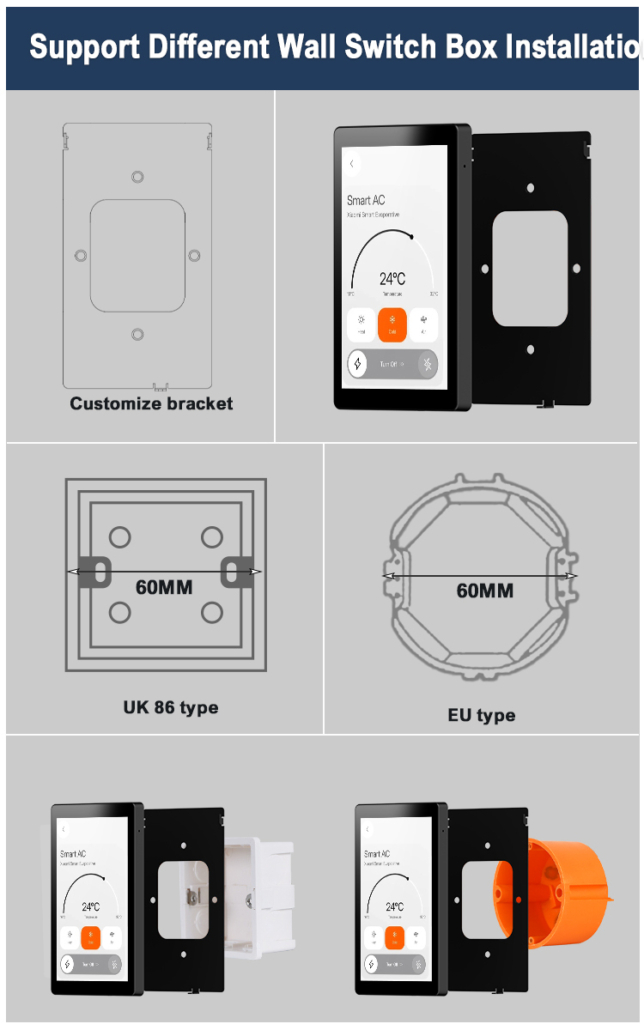

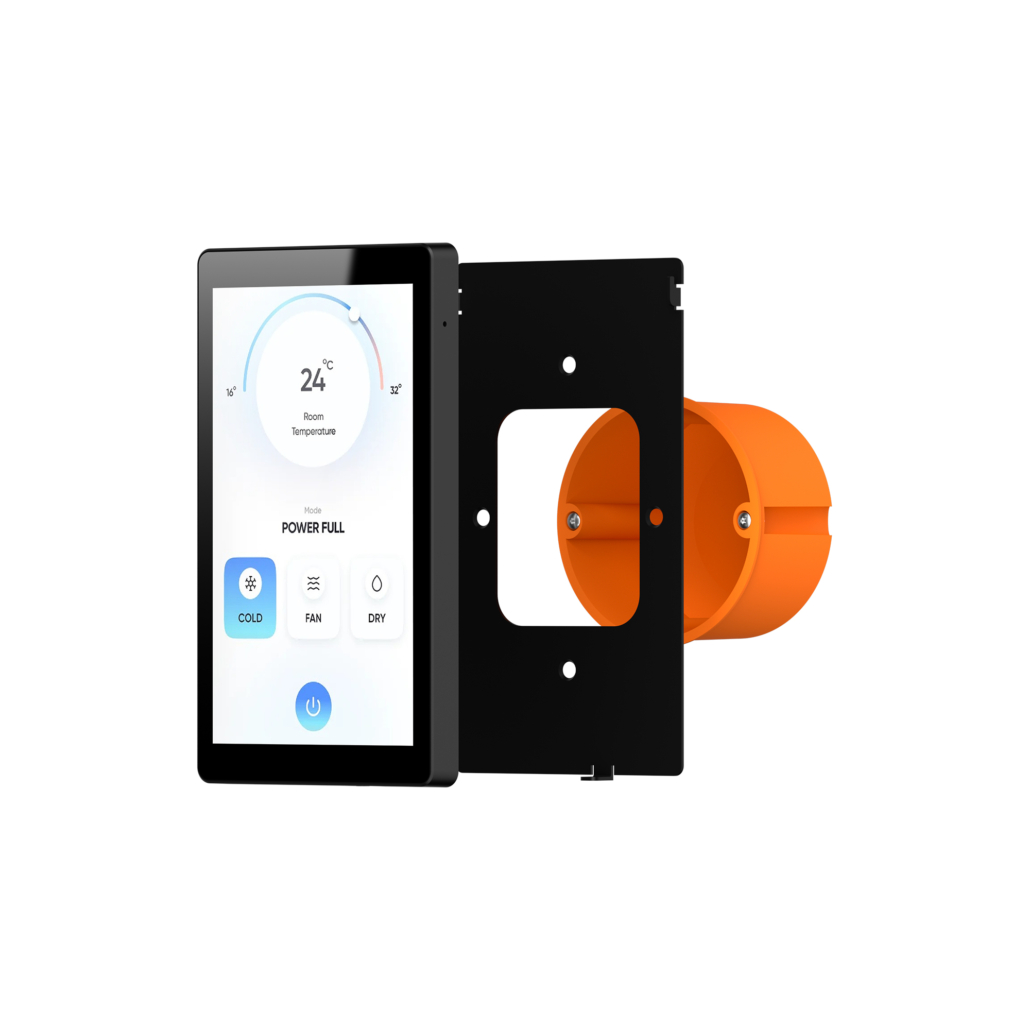

This smart control panel features a new plastic casing design and supports Type-C debugging interface for convenient development, testing, and maintenance. The YC-SM51P is designed for embedded wall installation and supports different wall switch box standards, including UK 86 type and EU type installations. Customized brackets can also be developed to meet different installation requirements.

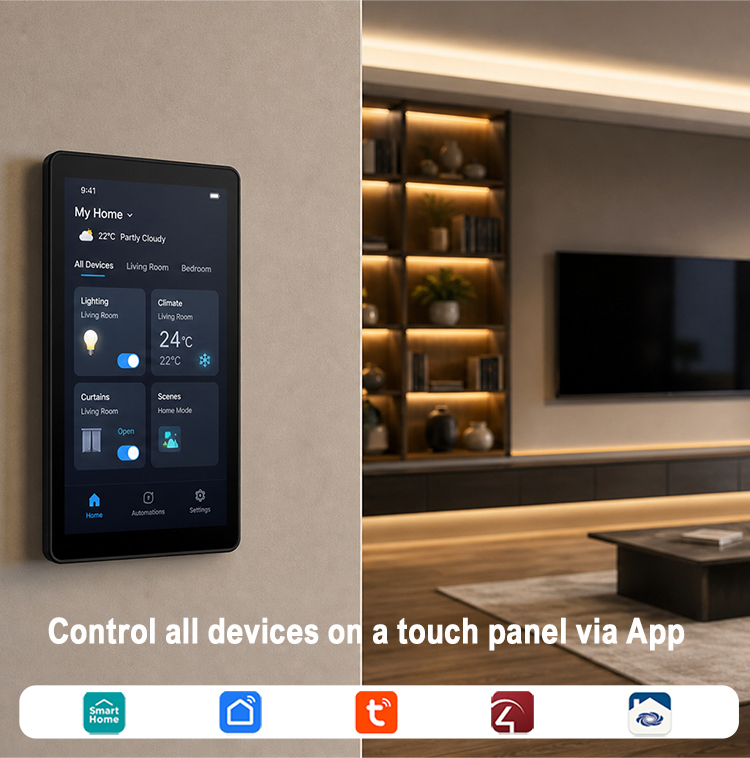

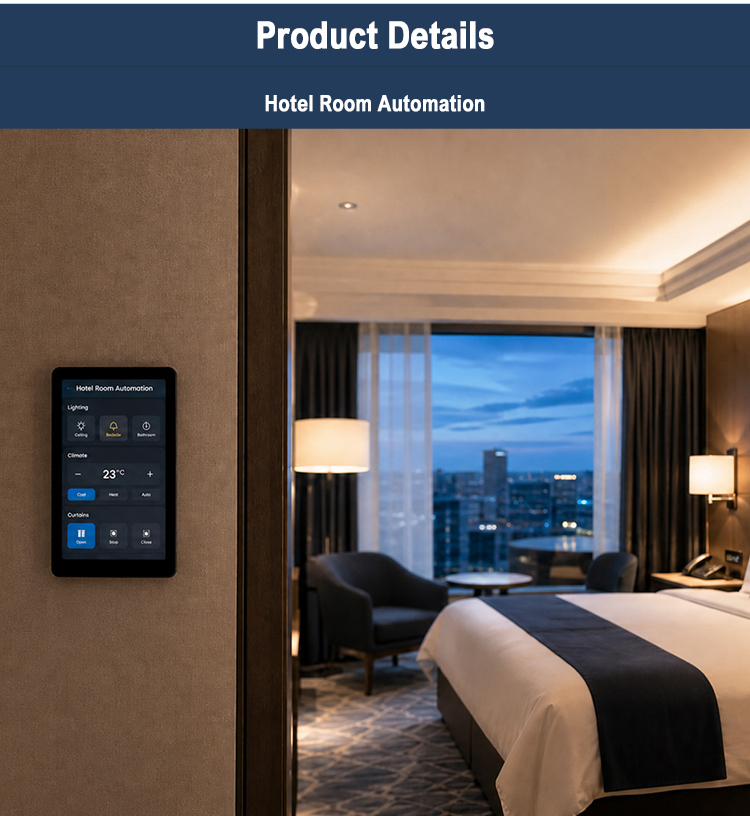

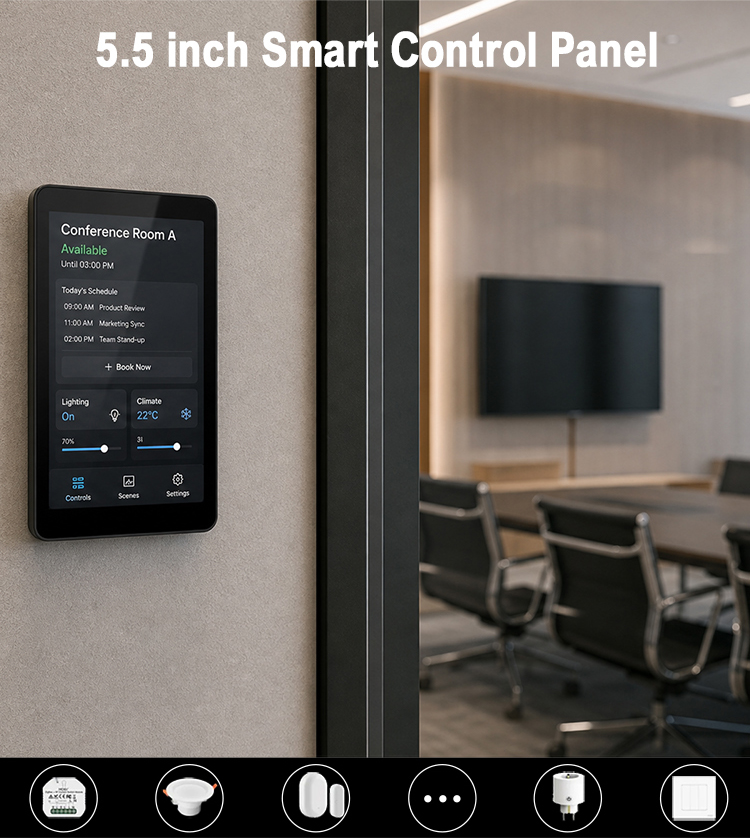

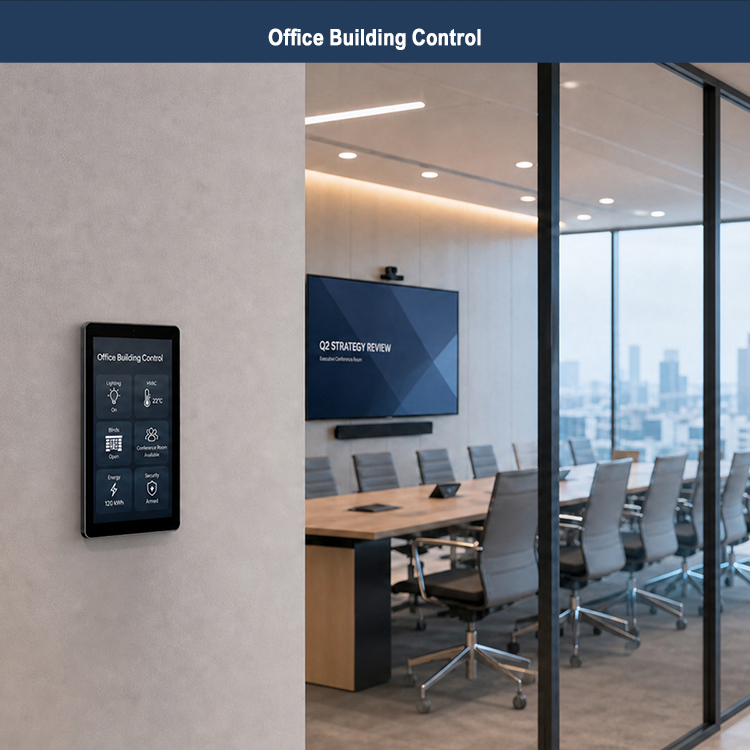

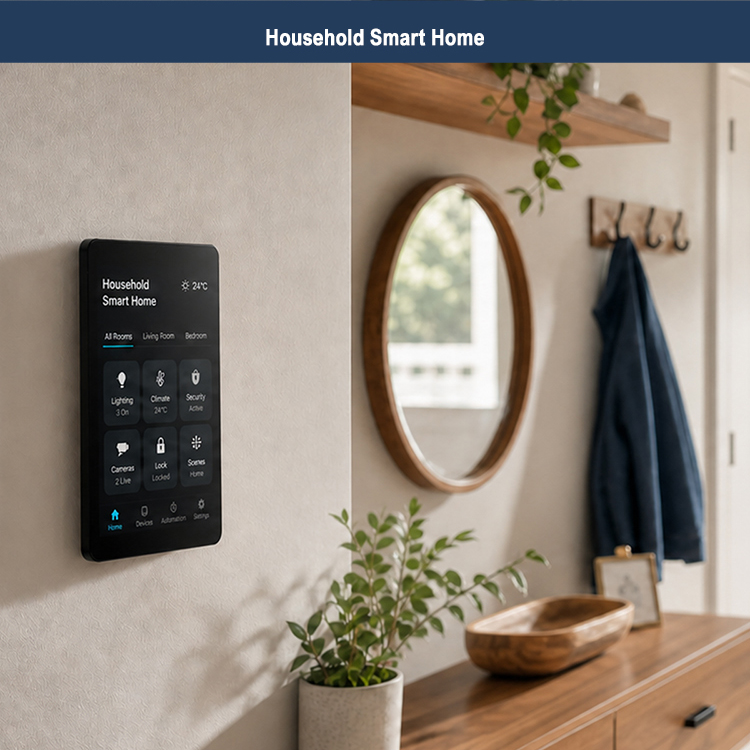

The YC-SM51P provides a sleek and efficient touchscreen control solution for various intelligent environments, including hotel room automation, household smart home systems, and office building control. It can be customized with logo printing, color options, and packaging design, making it suitable for OEM/ODM projects and large-scale commercial deployments.

OEM/ODM Customization Services

Portworld provides comprehensive OEM/ODM customization solutions for smart touch panels, helping customers create customized products for different automation applications.

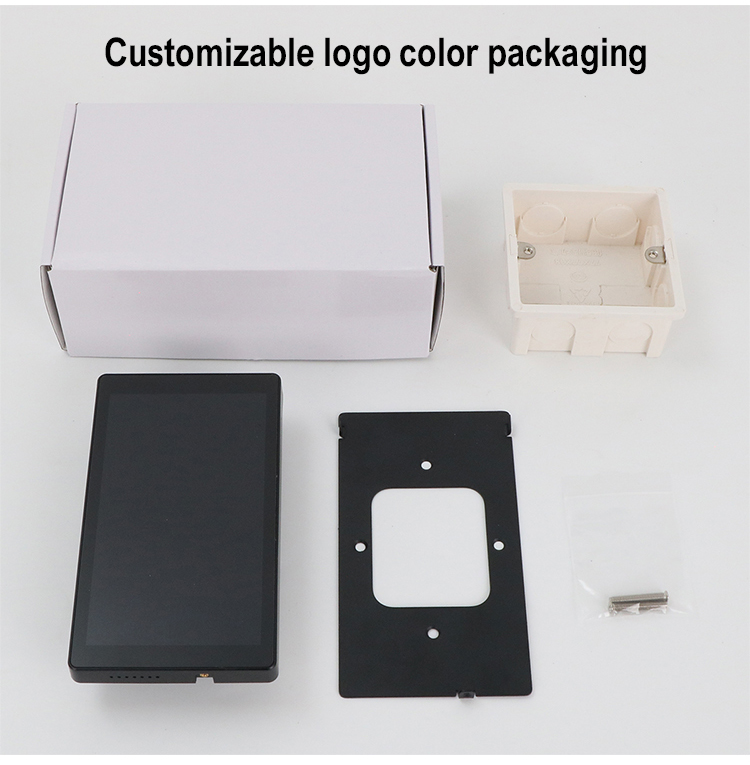

Appearance Customization: Supports customized logo, casing color, packaging design, and installation bracket solutions.
Hardware Customization: Supports processor selection, memory configuration, PCBA customization, and interface adjustments based on project requirements.
Software Customization: Supports Android/Linux system customization, UI design, firmware optimization, and application development.
Product Customization: Provides customized solutions for different industries, including smart homes, hotels, and commercial buildings.

Smart Touch Panel Solutions

Portworld manufactures a wide range of smart touch control panels in different sizes, designed for residential, hospitality, office, and commercial automation applications.

Multi-OS Compatibility: Supports Android and Linux operating systems for flexible software development.
Multiple Processor Options: Provides solutions based on Rockchip and other embedded processor platforms to meet different performance requirements.
Flexible Connectivity: Supports WiFi, Bluetooth, Ethernet, and PoE for reliable device communication.
Wide Applications: Suitable for hotel room automation, household smart home control, and office building management systems.

The YC-SM51P 5.5-inch smart touch panel combines a compact design, powerful embedded platform, and flexible customization options, providing an ideal touchscreen control solution for modern intelligent automation environments.

YC-SM51P 5.5 inch Smart Touch Panel

Specification

Category	Parameter	Value
System	Dimension	145.7mm84mm38mm
	CPU	RK3506 Triple Core Cortex-A7
	System	Android/Linux Buildroot (Offer SDK, and need to develop UI by yourself.)
	RAM	128MB
	Rom	128MB
Display	Display size	5.5inch
	Resolution	720 x 1280
	Touch Panel	5 points capacitive touch panel, IPS
	Brightness	300nit
	Active area	120.96(L)*68.04(W)mm
Network	WIFI	IEEE 802.11ax (WiFi 6)
	Bluetooth	BT 5.4
	Ethernet	10M/100M
I/O ports	RJ45	Ethernet interface input (RJ-45 cable support POE function)
	TF Card	TF Card *1
	USB Type C	Type C USB
	RS485	RS485 A,B
	Set	Built-in
	Restart	Built-in
	Power suply	DC 12V
Material	–	Plastic case + Glass touch panel
Features	Microphone	1 *Mic Built-in
	Speaker	1W*1pc
Media plays	Video	MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF / VOB
	Audio	MP3 / WMA / WAV / AAC / FLAC / OGG
	Entertainment	Video / Movie / Music / FM online
Others	Camera	No camera
	Battery	NO
	Mount	wall mounted / in wall & embedded
	Color	Silver/Black/Golden
	Working temperature	.-5°~70°
	Language	Support multi-languages
Warranty	–	12 months

Q&A

Q1:Does your panels support Zigbee?

A1:If you need your panels to work with Zigbee, we suggest using a Gateway. Connecting all sensors to the gateway, which is then linked to our control panel. A demonstration video illustrating this process can be found at the following link: https://youtu.be/D4vSVo23JXg

Q2:Does your panels support KNX?

A2:We are not currently a member of KNX, so we do not have authorization to include KNX protocol in our standard models. However, we offer two solutions:

1. Custom Integration: With 18 years of R&D and manufacturing experience, we can integrate KNX modules into our mainboards. We will provide a neutral Android OS, and you can handle the KNX firmware. This option allows you to create a custom model tailored to your specifications.

2. KNX IP Gateway Solution: For a quick and straightforward setup, you can use a KNX IP gateway to bridge your devices with our panel.

Q3:Can I open the box and start using the panel?

A3:All of our panels run on a neutral Android OS. They can connect wirelessly via Wi-Fi and Bluetooth. For wired connections, we offer RS485. Each panel comes with the Google Play Store, allowing you to easily install apps like Tuya and Home Assistant. Additionally, we can assist with pre-installing your APK upon request.

Q4:Does it come with POE?

A4:Yes, all our smart home control panels support PoE, adheres to the IEEE802.3af standard

Q5:What operating systems do you supply?

A5:Our smart home solutions support a variety of operating systems, including Android and Linux-based systems such as Ubuntu, Debian, and Buildroot.
