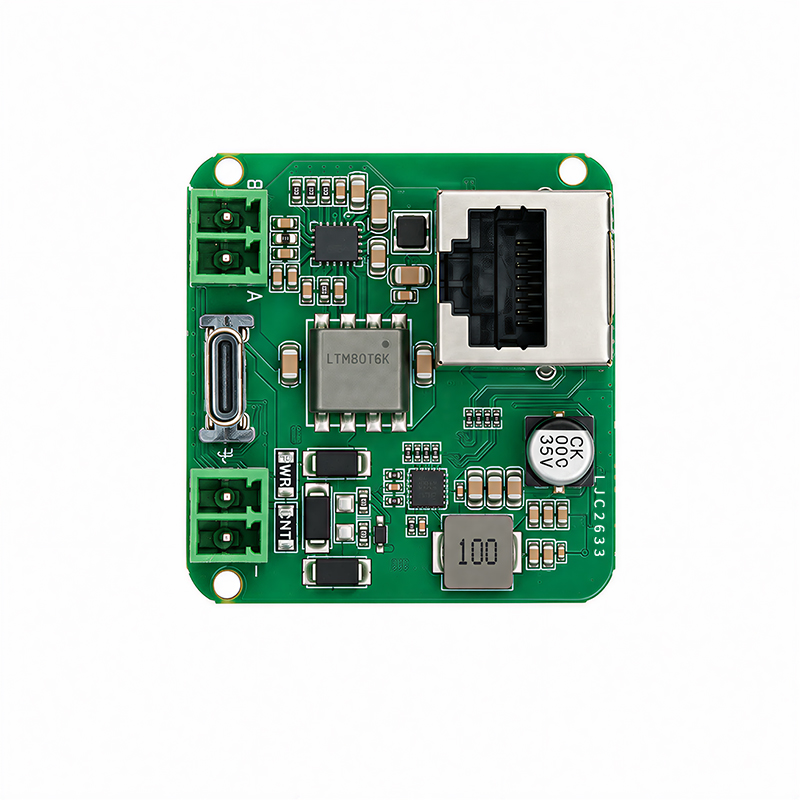

The YC-55P-POE Module is a compact and reliable PoE expansion solution designed for embedded devices, smart terminals, industrial controllers, and IoT applications.
By integrating PoE power supply, Ethernet communication, RS485 industrial communication, and system expansion interfaces, the module enables embedded products to achieve stable network connectivity and power delivery through a single Ethernet cable.
The YC-55P-POE module is designed for easy integration with smart control panels, industrial gateways, IoT terminals, and customized embedded systems, helping developers simplify hardware design and accelerate product deployment.
Compact PoE Solution for Smart Embedded Devices
Traditional embedded devices often require separate wiring for power supply and network communication, increasing installation complexity and system costs.
The YC-55P-POE module provides an efficient alternative by combining:
- Ethernet data communication
- PoE power input
- 12V power management
- RS485 industrial communication
With a compact PCB design, the module can be easily integrated into different embedded products while maintaining stable performance and flexible expansion capability.
Key Features
Integrated PoE Power & Ethernet Communication
The YC-55P-POE module supports Power over Ethernet technology, allowing devices to receive both power and network communication through a single Ethernet connection.
Benefits include:
- Reduced cable installation
- Simplified system architecture
- Improved reliability
- Easy deployment in distributed devices
This makes it suitable for smart buildings, industrial IoT, and network-connected embedded terminals.
Industrial RS485 Communication Support
The built-in RS485 interface provides reliable communication with external industrial equipment and sensors.
It can connect with:
- Industrial controllers
- Environmental sensors
- Smart meters
- Building automation systems
- Monitoring devices
RS485 communication enables stable long-distance data transmission for industrial and automation applications.
Flexible Power Supply Design
The module supports DC 12V power input, providing flexible power options for different embedded platforms.
The power design allows integration with:
- Smart control panels
- IoT gateways
- Industrial terminals
- Embedded controllers
Mainboard Expansion Interface

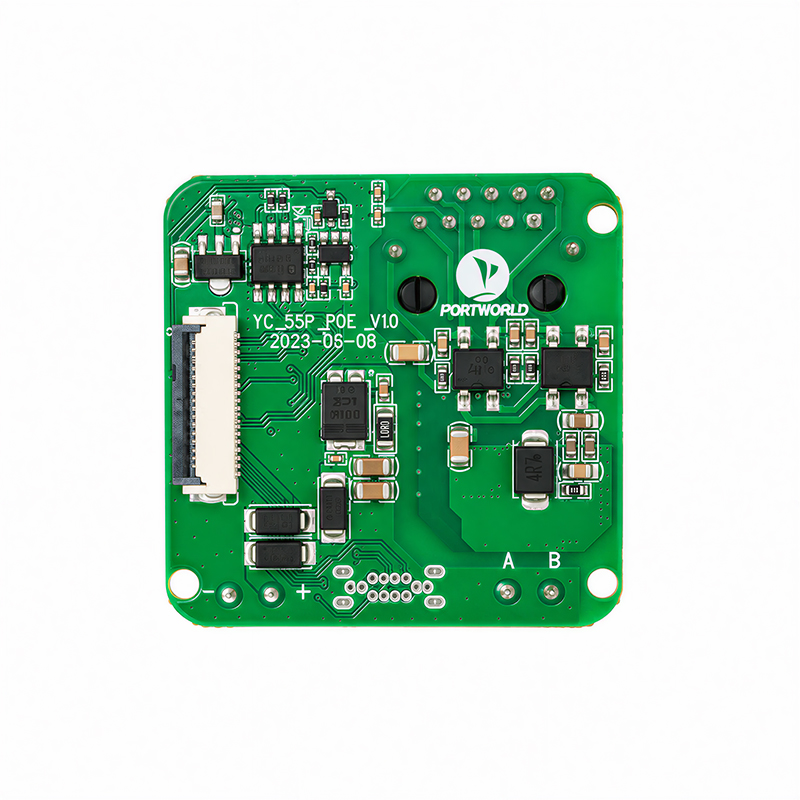

The YC-55P-POE module uses a compact FPC connection interface for easy integration with embedded mainboards.
The expansion interface provides:
- PoE Ethernet connection
- System power output
- UART communication
- USB OTG expansion
- Type-C related signals
This design simplifies the connection between the PoE module and the host motherboard.
Application Scenarios
Smart Home Control Panels
The YC-55P-POE module can add PoE capability to smart home terminals, enabling:
- One-cable installation
- Stable network connection
- Centralized device management
Applications:
- Wall-mounted smart panels
- Smart switches
- Home automation terminals
Smart Building Automation
For commercial and residential buildings, the module supports:
- Smart access control systems
- Intercom terminals
- Building management panels
- Automation gateways
PoE technology helps reduce installation complexity in large-scale deployments.
Industrial IoT Gateway
The module is suitable for industrial IoT applications requiring reliable communication and power management.
Applications include:
- Industrial data collectors
- Remote monitoring terminals
- Sensor gateways
- Automation controllers
Commercial Embedded Devices
The YC-55P-POE can be integrated into:
- Digital signage terminals
- Smart kiosks
- Network controllers
- Intelligent service devices
Designed for OEM/ODM Integration
Portworld provides complete customization support for customers developing embedded products.
Customization services include:
- PoE hardware integration
- PCB design modification
- Interface customization
- Mechanical structure adaptation
- Firmware integration
- PCBA manufacturing
The YC-55P-POE module can be customized according to different motherboard platforms and application requirements.
Why Choose YC-55P-POE Module?
- Integrated PoE power and Ethernet communication
- Compact design for embedded applications
- RS485 industrial communication support
- Flexible FPC expansion interface
- Suitable for smart home and industrial IoT products
- Supports OEM/ODM customization
Typical Applications
- Smart Home Control Panels
- Smart Building Terminals
- Industrial IoT Gateways
- Access Control Systems
- Smart Intercom Devices
- Embedded Network Controllers
- IoT Edge Devices
