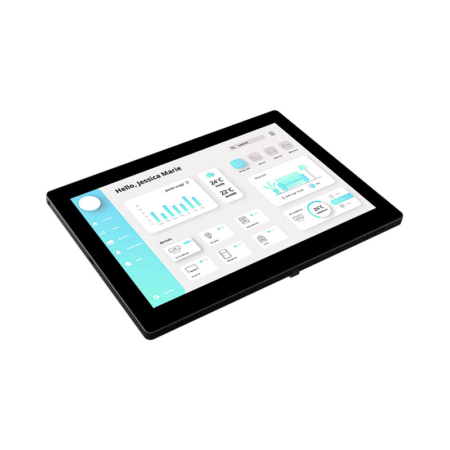

YC-SM1011 KNX 10.1 inch KNX Smart Control Panel

YC-SM1011 KNX

10.1 inch KNX Smart Control Panel

Key Features

10.1″ Capacitive Touchscreen – Smooth multi-touch with swipe & zoom gestures
Android 11/13 & Linux Debian – Dual system support
RK3566/3568 Processor – 2GB/4GB RAM + 32GB storage
Built-in KNX Protocol – Controls lighting, HVAC, security & more
WiFi, Bluetooth 5.2 & RJ45 (PoE) – Stable connectivity
Ideal for Smart Homes, Offices, Hotels
OEM/ODM by Portworld – Custom solutions & fast delivery

YC-SM1011 KNX 10.1 inch KNX Smart Control Panel Perfect for integrators who need a reliable KNX-ready device. The KNX module is hardware-ready, and firmware setup can be handled by your KNX-certified technician for full compatibility.

Send Inquiry

Overview

The YC-SM1011 is a 10.1-inch smart touch control panel engineered for powerful and intuitive smart home and commercial automation. Supporting Android 11/13 and Debian Linux, and built on high-performance Rockchip RK3566 or RK3568 processors, this wall-mounted panel integrates seamlessly with KNX systems, enabling unified control of lighting, HVAC, energy, security, and more.

Designed for performance, scalability, and customization, the YC-SM1011 is ideal for smart homes, hotels, offices, and integrated automation environments.

Key Features

Large 10.1” HD Capacitive Touchscreen

10-point precision capacitive touch
Seamless one-time calibration with ultra-smooth touch experience
Multi-gesture support: tap, slide (up/down/left/right), zoom in/out

Powerful Hardware Platform

Processor: RK3566 or RK3568
Memory: 2GB/4GB RAM + 32GB Storage
System: Android 11 / Android 13 / Debian Linux
Supports customized UI and app integration

Smart Connectivity

Wi-Fi (2.4G/5G) + Bluetooth 5.2
RJ45 Ethernet with Power over Ethernet (PoE) IEEE 802.3af
Optional Zigbee integration for extended smart home connectivity

Built-in KNX Compatibility,Control KNX-based systems including:

Security Systems
Lighting & White Goods
Fire & Smoke Detection
Blinds & Shutters
Energy Management
HVAC Control
Metering & Monitoring
Remote Access & Automation

Modern Design, Versatile Installation

Plastic housing with a sleek, modern finish
Supports various wall-mounting standards (custom brackets available)

Applications

Smart Homes – Centralized control for lighting, climate, and security
Smart Hotels – Guest room automation, scene control, and energy optimization
Commercial Buildings – Centralized monitoring and energy-saving systems
Offices – Environmental control and real-time equipment monitoring

Why Choose Portworld?

Portworld delivers more than just a control panel — we provide end-to-end smart system solutions:
✅ Custom OEM/ODM Support: Hardware & software tailored to your market
✅ Flexible Platform Options: Android/Linux/Custom UI available
✅ CKD/SKD Services: Reduce tariffs and simplify local assembly
✅ Rapid Integration: Professional support for KNX, Zigbee, and cloud platforms
✅ Global Delivery & Support: With over 17 years in embedded systems R&D
Portworld – Smart Technology. Smarter Support.
Bring your smart automation project to life with the power, flexibility, and reliability of the YC-SM1011 10.1″ Smart Touch Control Panel.

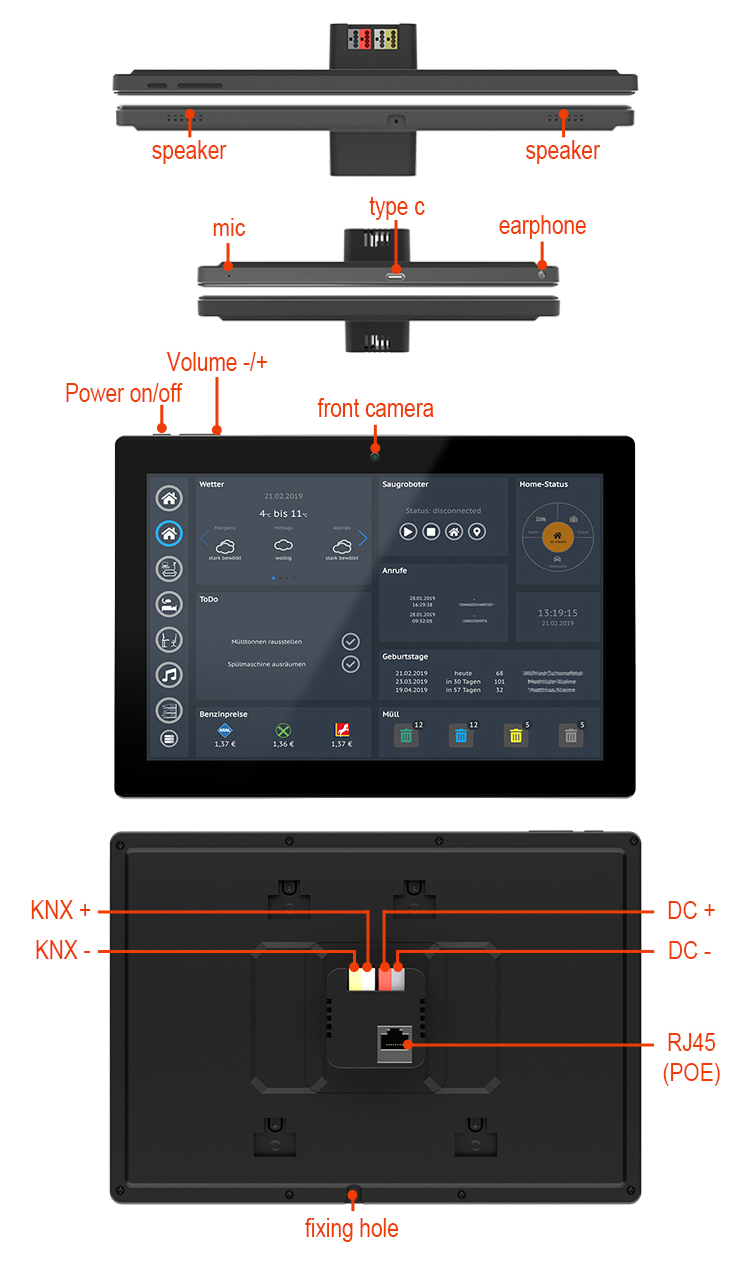

YC-SM1011 10.1” KNX Smart Touch Control Panel (2)

Specification

System	Dimension	247.1173.49.8mm
	CPU	RK3568 Quad-core Cortex-A55 up to 2.0GHz
	System	Android 11/13; Debian, Ubuntu
	RAM	2GB
	Rom	16GB
Display	Display size	10.1 inch
	Resolution	1280*800 IPS
	Touch Panel	10 points Capacitive touch panel, IPS
	Brightness	500nit
Network	WIFI	802.11b/g/n ( 5G wifi option)
	Bluetooth	BT 5.2
	Ethernet	10M/100M
I/O ports	KNX	Support , with KNX ,built in Onsemi KNX transceiver
	Power supply	DC 12V
	USB Type C	Type C *1
	Set	Built- in *1
	Restart	Built- in *1
Material	Plastic case	247.1173.49.8mm
Features	Microphone	Mic *1
	Speaker	2W Speaker *2
Media plays	Video	MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB
	Audio	MP3 / WMA / WAV / AAC / FLAC / OGG
	Entertainment	Video / Movie / Music / FM online
Others	Camera	2MP
	Mount	wall mounted / in wall & embedded
	Color	Silver
	Working temperature	.-5°~70°
	Language	Support multi-languages
Warranty	12 months

Q&A

Q1:Does your panels support Zigbee?

A1:If you need your panels to work with Zigbee, we suggest using a Gateway. Connecting all sensors to the gateway, which is then linked to our control panel. A demonstration video illustrating this process can be found at the following link: https://youtu.be/D4vSVo23JXg

Q2:Does your panels support KNX?

A2:We are not currently a member of KNX, so we do not have authorization to include KNX protocol in our standard models. However, we offer two solutions:

1. Custom Integration: With 18 years of R&D and manufacturing experience, we can integrate KNX modules into our mainboards. We will provide a neutral Android OS, and you can handle the KNX firmware. This option allows you to create a custom model tailored to your specifications.

2. KNX IP Gateway Solution: For a quick and straightforward setup, you can use a KNX IP gateway to bridge your devices with our panel.

Q3:Can I open the box and start using the panel?

A3:All of our panels run on a neutral Android OS. They can connect wirelessly via Wi-Fi and Bluetooth. For wired connections, we offer RS485. Each panel comes with the Google Play Store, allowing you to easily install apps like Tuya and Home Assistant. Additionally, we can assist with pre-installing your APK upon request.

Q4:Does it come with POE?

A4:Yes, all our smart home control panels support PoE, adheres to the IEEE802.3af standard

Q5:What operating systems do you supply?

A5:Our smart home solutions support a variety of operating systems, including Android and Linux-based systems such as Ubuntu, Debian, and Buildroot.
