YC-SM08M 8 inch Smart Home Automation Control Panel

YC-SM08M

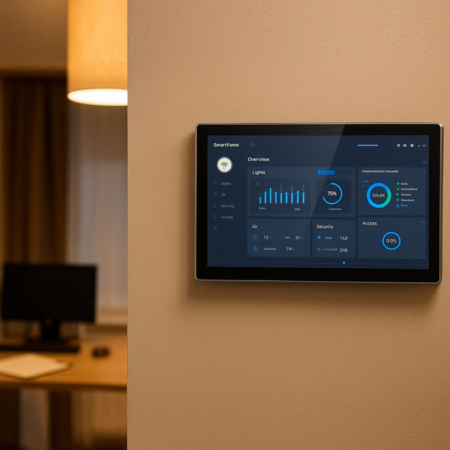

8″ PoE Smart Home Automation Touch Control Panel

Key Features

POE (Power Over Ethernet) power supply for simplified installation.
Universal bracket compatible with various wall boxes, ensuring easy setup.
Available in both white and classic black to match any decor.
Google Play Store for all your app needs.
Customization options available for OEM, including logo personalization and model number changes.

The 8″ metal SM08M Smart Home Automation Touch Control Panel features a DC+POE power supply, and each case is meticulously crafted using CNC process.

Send Inquiry

Overview

YC-SM08M – 8-Inch Smart Home Control Panel for Seamless Automation

The YC-SM08M is an 8-inch smart home control panel designed for effortless control of all your smart devices from a single screen. Powered by Android 11 and the RK3566 Quad-Core Cortex-A55 processor, this device delivers a fast, stable, and intuitive user experience for both residential and commercial applications.

Advanced Touchscreen Experience

✅ 8-inch IPS capacitive touchscreen with 5-point multi-touch, ensuring smooth and precise touch response
✅ High-sensitivity touch gestures, including swipe left/right, zoom in/out, slide up/down for an intuitive interaction
✅ One-time calibration, eliminating disconnection traces for a seamless touch experience

Powerful Hardware & Connectivity

✅ 2GB RAM + 16GB ROM, providing efficient performance for automation tasks
✅ Wi-Fi support, ensuring flexible wireless connectivity
✅ Bluetooth 5.2, offering faster and more stable device pairing
✅ RJ45 Ethernet port with PoE (Power over Ethernet) support, following IEEE 802.3 at/af standards, allowing a single cable to handle both power and data
✅ Android 11 operating system, delivering a user-friendly interface with enhanced security

One Screen to Control Everything

The YC-SM08M serves as the ultimate smart control hub, enabling seamless management of multiple devices from a single interface:
✅ Lighting Control – Easily adjust brightness and on/off settings
✅ Curtain Automation – Open and close curtains with a simple touch
✅ Temperature & Climate Control – Manage air conditioning and heating systems effortlessly
✅ Security Management – Control smart locks and monitor security devices
✅ Smart Office & Meeting Room Automation – Enhance efficiency by integrating with office equipment
✅ App Control – Synchronize with mobile applications for remote access and control

Versatile Applications & Installation

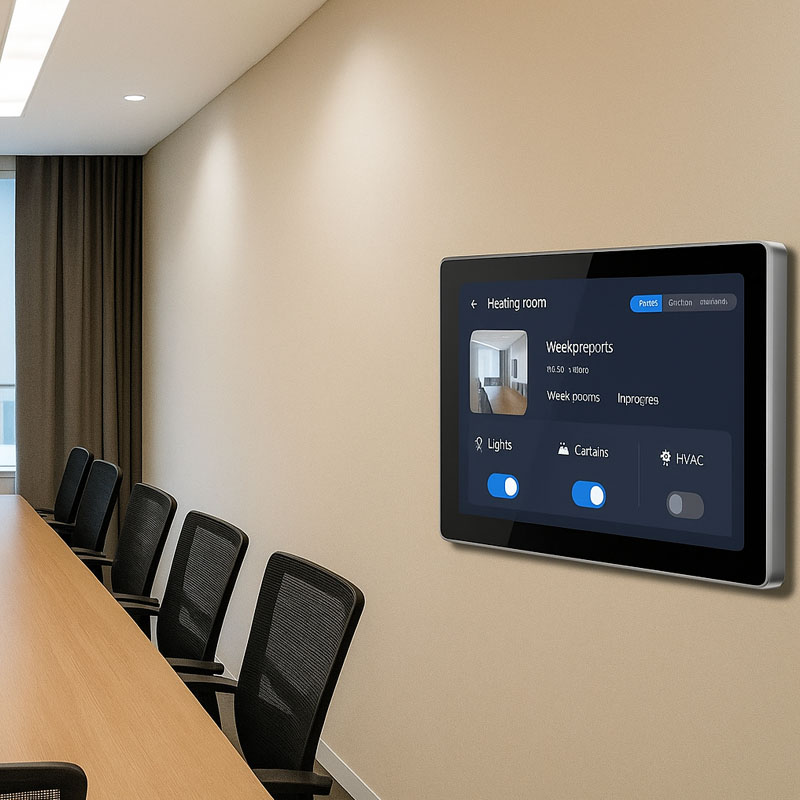

The YC-SM08M is designed for smart homes, offices, and commercial spaces, providing a sleek and professional solution for modern automation needs. The wall-mounted design ensures a clean and elegant setup, making it an ideal choice for homes, hotels, offices, and smart buildings.

Portworld provides wholesale and customized solutions, offering tailored hardware and software services to meet diverse automation needs.

Specification

System	CPU	RK3566 Quad-core Cortex-A55 up to 1.8GHz
	RAM	2GB
	ROM	32GB
	Operation System	Android 11
Display	Screen	8” IPS screen
	Touch Panel	10-Point capactive IPS touch
	Resolution	1280*800
	Brightness	300nits
	Screen Ratio	16:9
Network	WIFI	802.11b/g/n (5G WiFi optional)
	Bluetooth	BLE 5.2
	Ethernet	10M/100M
I/O Ports	RJ45	1*RJ45 Ethernet port input, support POE
	Type C	1*Type C
	DC	1*DC power input
	RS485	1*RS485 (RS232 optional)
	Set	Built-in
	Restart	Built-in
Media plays	Video	MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB
	Audio	MP3 / WMA / WAV / AAC / FLAC / OGG
	Entertainment	Video / Movie / Music / FM online
Others	Microphone	2*Mic Built-in
	Speaker	1W*2pcs
	Camera	No
	Working Temperature	-5°~70°
	Power Consumption	2*10W Max
	Language	Support multi-language
	Dimension	200.8125.311mm
	Material	Metal case cover + Glass touch panel
Accessories	Wall Box	1*86 type wall box
Accessories	Color	Silver/Black
Warranty	12 months

Tutorial

Q&A

Q1:Does your panels support Zigbee?

A1:If you need your panels to work with Zigbee, we suggest using a Gateway. Connecting all sensors to the gateway, which is then linked to our control panel. A demonstration video illustrating this process can be found at the following link: https://youtu.be/D4vSVo23JXg

Q2:Does your panels support KNX?

A2:We are not currently a member of KNX, so we do not have authorization to include KNX protocol in our standard models. However, we offer two solutions:

1. Custom Integration: With 18 years of R&D and manufacturing experience, we can integrate KNX modules into our mainboards. We will provide a neutral Android OS, and you can handle the KNX firmware. This option allows you to create a custom model tailored to your specifications.

2. KNX IP Gateway Solution: For a quick and straightforward setup, you can use a KNX IP gateway to bridge your devices with our panel.

Q3:Can I open the box and start using the panel?

A3:All of our panels run on a neutral Android OS. They can connect wirelessly via Wi-Fi and Bluetooth. For wired connections, we offer RS485. Each panel comes with the Google Play Store, allowing you to easily install apps like Tuya and Home Assistant. Additionally, we can assist with pre-installing your APK upon request.

Q4:Does it come with POE?

A4:Yes, all our smart home control panels support PoE, adheres to the IEEE802.3af standard

Q5:What operating systems do you supply?

A5:Our smart home solutions support a variety of operating systems, including Android and Linux-based systems such as Ubuntu, Debian, and Buildroot.

Q6:Portworld’s Services

A6:Portworld (Sunworld) Technology Co., Ltd is a leading provider of touch system solutions, specializing in the R&D and production of smart home tablets, PoE industrial embedded touch panels, digital signage, and touch monitors. With 18 years of R&D experience, we offer OEM/ODM customization services to meet the diverse needs of our clients.

Q7:OEM/ODM Customization Services

A7:Portworld offers comprehensive OEM/ODM solutions, allowing brands to develop customized smart control panels and touch devices that stand out in the market.

Appearance Customization: Supports size, material, casing design, and color customization to align with brand identity.
Hardware Customization: Provides PCBA design, interface configuration, camera, microphone, and speaker integration.
Software Customization: Supports Android, Linux (Ubuntu/Debian), and Windows OS customization with full SDK/BSP development support.
Branding Customization: Offers logo printing, UI design, and packaging customization for enhanced brand recognition.

Q8:Smart Home Control Panel Solutions

A8:Portworld manufactures smart home control panels in 4-inch, 5-inch, and various other sizes, suitable for homes, hotels, office buildings, and commercial automation.

Multi-OS Compatibility: Supports Android, Linux (Ubuntu/Debian), and Windows.
Multiple Processor Options: Features Rockchip, MTK, Intel, AMD, Snapdragon, and Spreadtrum chipsets for different performance needs.
Multiple Control Methods: Supports touchscreen control, mobile app remote control, and voice control (Google Assistant, Alexa).
Smart Device Integration: Connects seamlessly with smart lighting, motorized curtains, security cameras, HVAC systems, and access control.
