YC-N2401

NVIDIA Jetson Orin NX/Nano AI Edge Computing Carrier Board

Key Features

Supports NVIDIA Jetson Orin Nano / NX
Ultra-compact industrial carrier board
Dual Ethernet (1GbE + 2.5GbE)
USB 3.0 & USB Type-C expansion
M.2 Key M / Key E expansion
9.5V-30V wide voltage input
Automotive-grade power protection
Rich I/O interfaces for AI applications

Overview

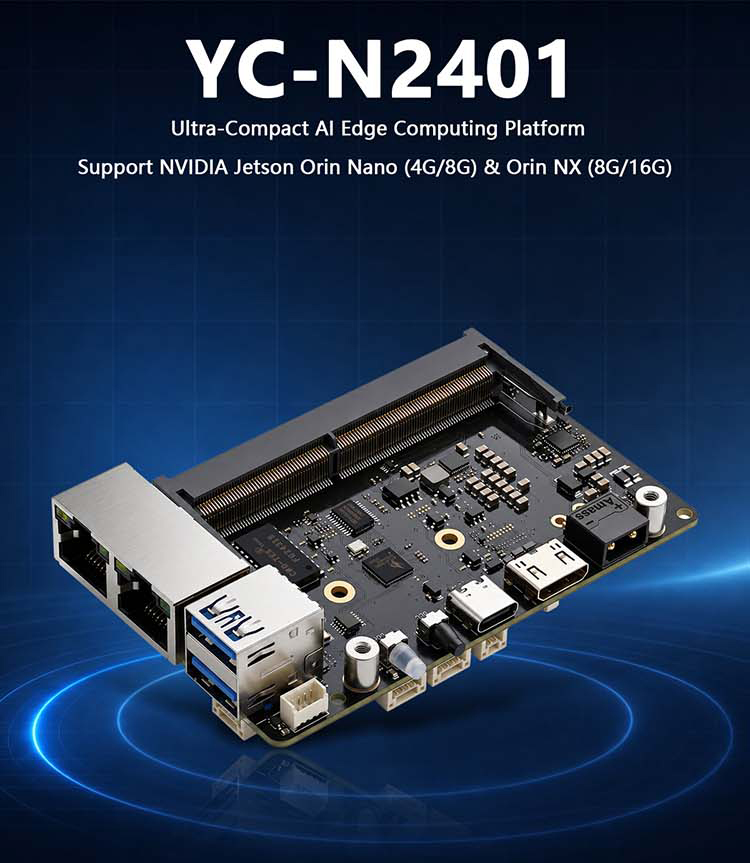

YC-N2401 NVIDIA Jetson Orin NX/Nano AI Edge Computing Carrier Board

Product Description

The YC-N2401 is an ultra-compact industrial-grade AI edge computing carrier board designed for NVIDIA Jetson Orin Nano and Orin NX modules. It provides a powerful and flexible hardware platform for deploying advanced AI applications, including robotics, autonomous systems, smart cameras, drones, and intelligent medical devices.

With a compact design, dual Gigabit Ethernet, high-speed expansion interfaces, and industrial-grade power protection, YC-N2401 enables reliable edge AI computing in demanding environments.

Key Features

Supports NVIDIA Jetson Orin Nano / NX
Ultra-compact industrial carrier board
Dual Ethernet (1GbE + 2.5GbE)
USB 3.0 & USB Type-C expansion
M.2 Key M / Key E expansion
9.5V-30V wide voltage input
Automotive-grade power protection
Rich I/O interfaces for AI applications

Hardware Highlights

Powerful AI Computing Platform

Supports NVIDIA Jetson Orin Nano (4GB/8GB) and Orin NX (8GB/16GB) modules, providing up to 157 TOPS AI computing performance for edge AI inference, computer vision, and deep learning applications.

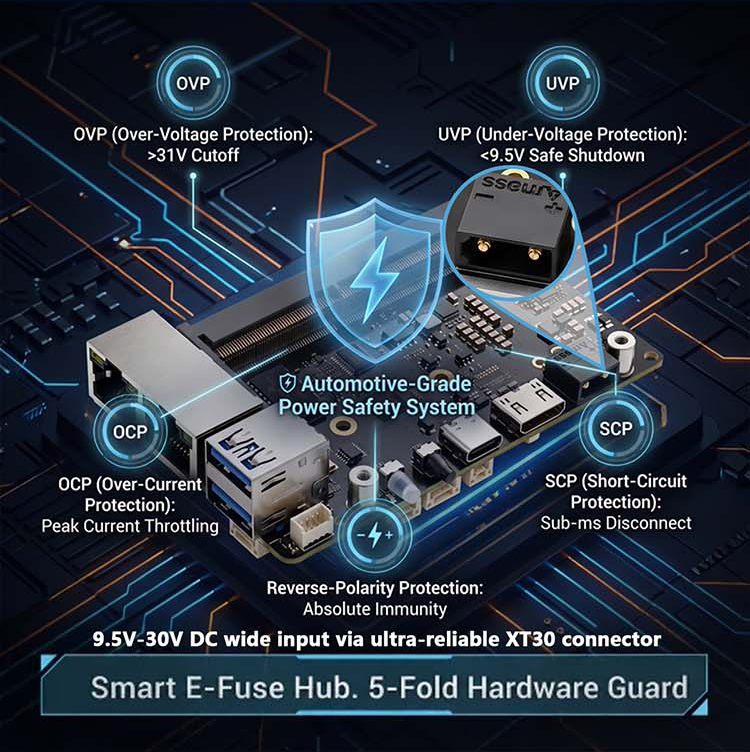

Industrial-Grade Power Protection

Equipped with a smart E-Fuse protection system supporting:

Over Voltage Protection (OVP)
Under Voltage Protection (UVP)
Over Current Protection (OCP)
Short Circuit Protection (SCP)
Reverse Polarity Protection

Ensures stable operation in industrial and mobile environments.

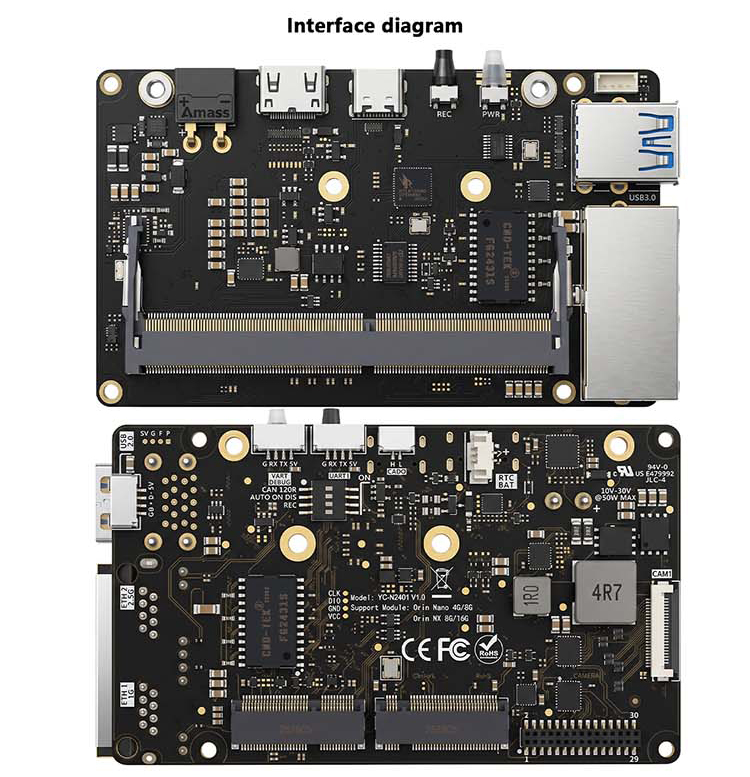

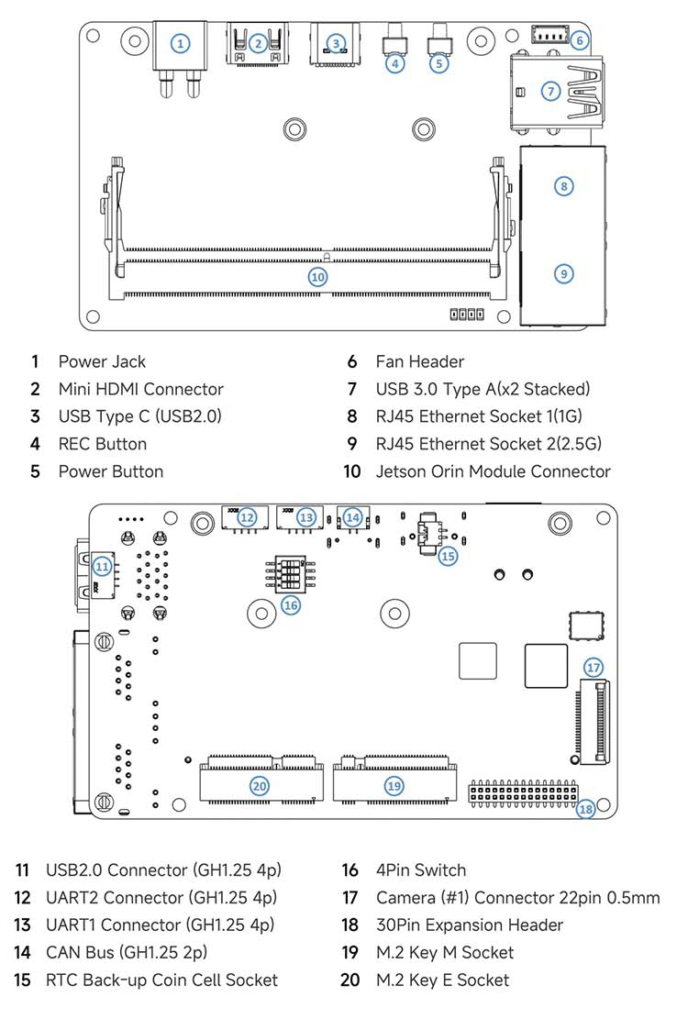

High-Speed Connectivity

Integrated interfaces include:

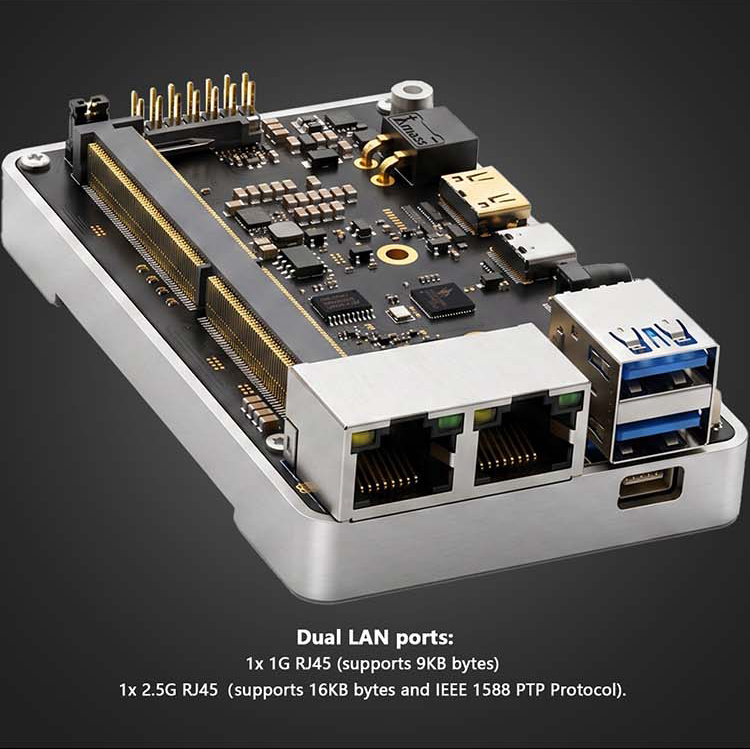

1 × Gigabit Ethernet
1 × 2.5 Gigabit Ethernet
2 × USB 3.0 Type-A
1 × USB Type-C
Mini HDMI output
CAN Bus interface
UART interfaces

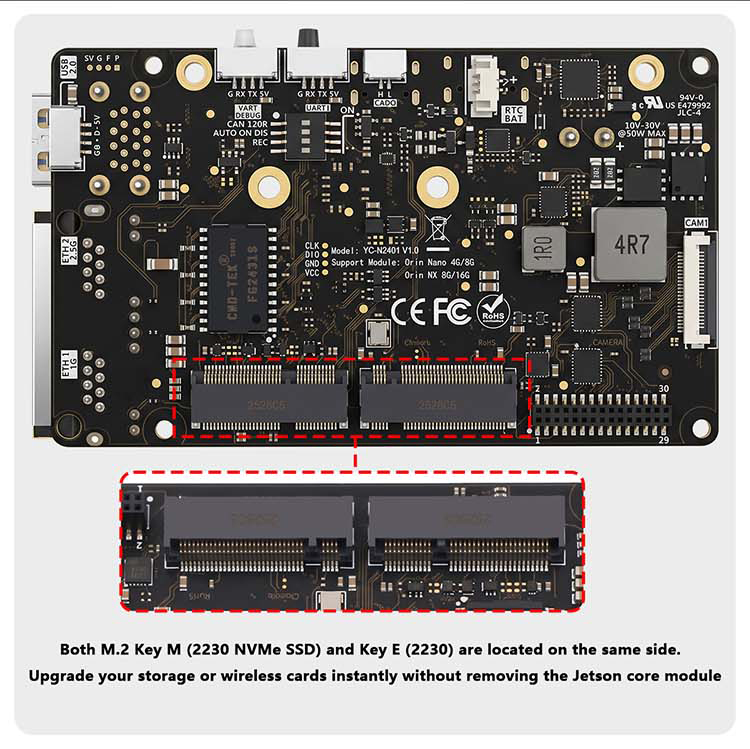

Flexible Expansion

Supports:

M.2 Key M for NVMe SSD storage
M.2 Key E for WiFi/Bluetooth modules
Camera interface
30-pin expansion header

The optimized layout allows easy upgrades without removing the Jetson module.

Compact Industrial Design

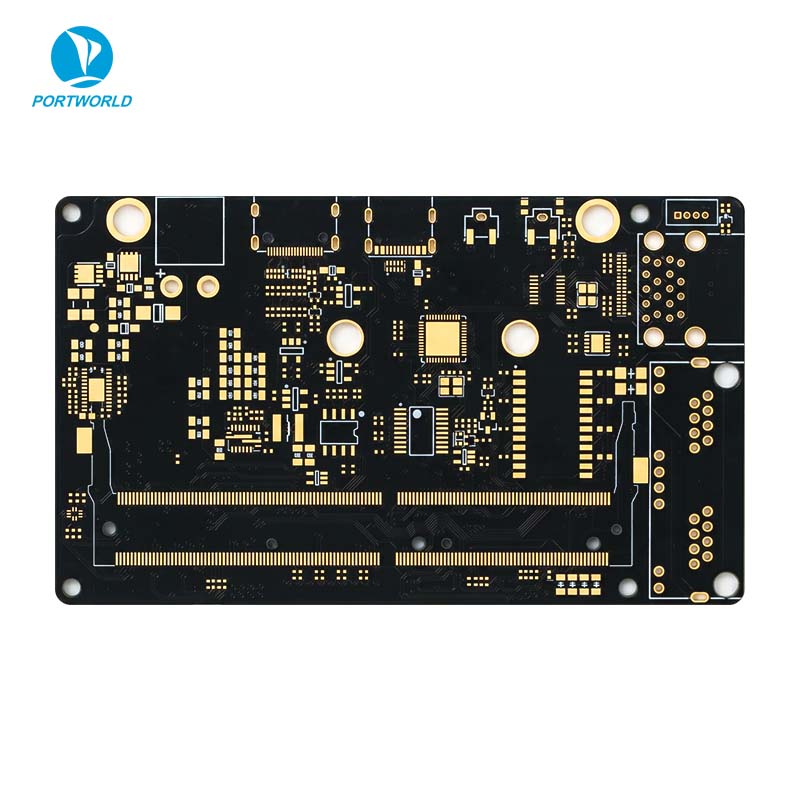

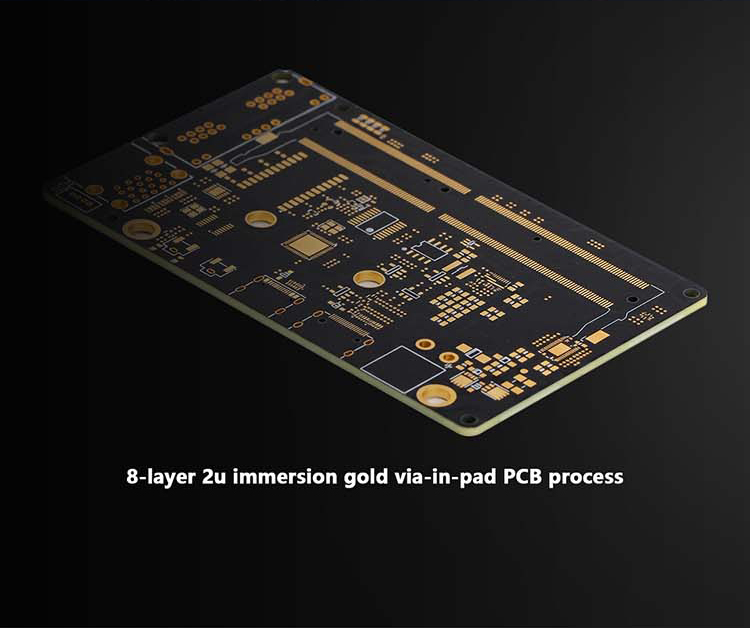

8-layer immersion gold PCB design
High reliability components

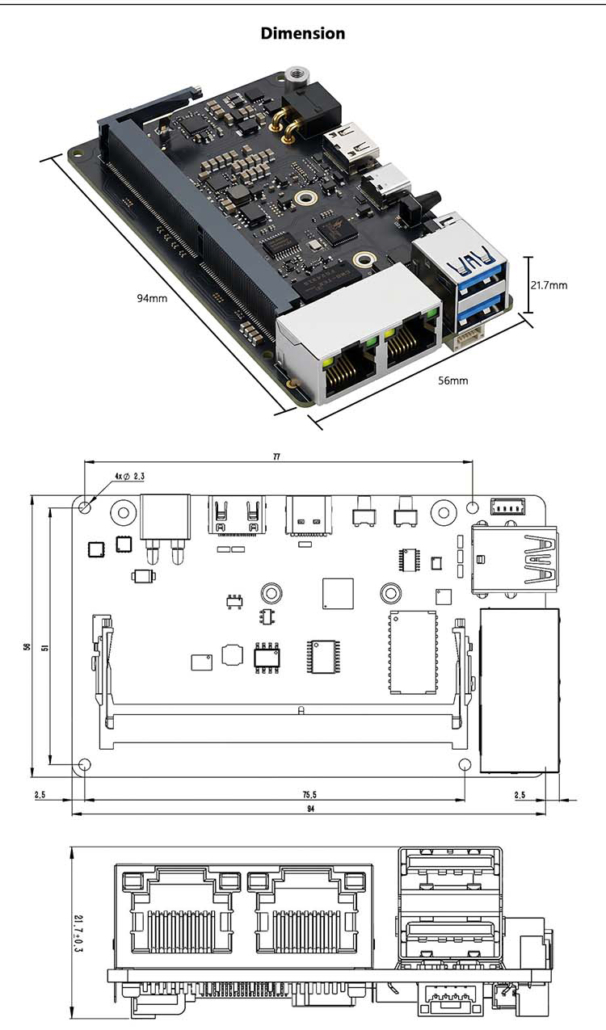

Compact size: 94 × 56 × 21.7 mm
Designed for embedded AI systems and space-limited applications

Applications

YC-N2401 is ideal for:

AI Robotics
Autonomous Vehicles
Industrial Automation
Smart Cameras
Drones
Computer Vision Systems
Medical AI Devices
Intelligent Inspection Systems

YC-N2401 NVIDIA Jetson Orin NX/Nano AI Edge Computing Carrier Board

Specification

Item	Description
Processor Support	NVIDIA Jetson Orin Nano / Orin NX
AI Performance	Up to 157 TOPS
Ethernet	1× Gigabit + 1× 2.5 Gigabit
USB	2× USB 3.0 Type-A, 1× USB Type-C
Display	Mini HDMI
Storage	M.2 Key M NVMe
Wireless Expansion	M.2 Key E
Camera	CSI Camera Interface
CAN	CAN Bus Support
Power Input	9.5V-30V DC
PCB	8-layer Immersion Gold PCB
Dimension	94 × 56 × 21.7 mm
