YC-83P 8 inch Linux Debian Wall Mounted Touch Screen Tablet

YC-83P

8 inch Linux Debian Wall Mounted Touch Screen Tablet

Key Features:

Display: 8”, 800*1280
CPU: RK3566 Quad-core 64Bits Cortex-A55 up to 2.0GHz
OS: Debian 11
RAM/ROM: 2GB RAM, 32GB ROM
I/O ports: USB, DC, RJ45
Network: WIFI, Bluetooth, Ethernet
Power supply: PoE, DC
Mounting: Vesa hole 75*75mm

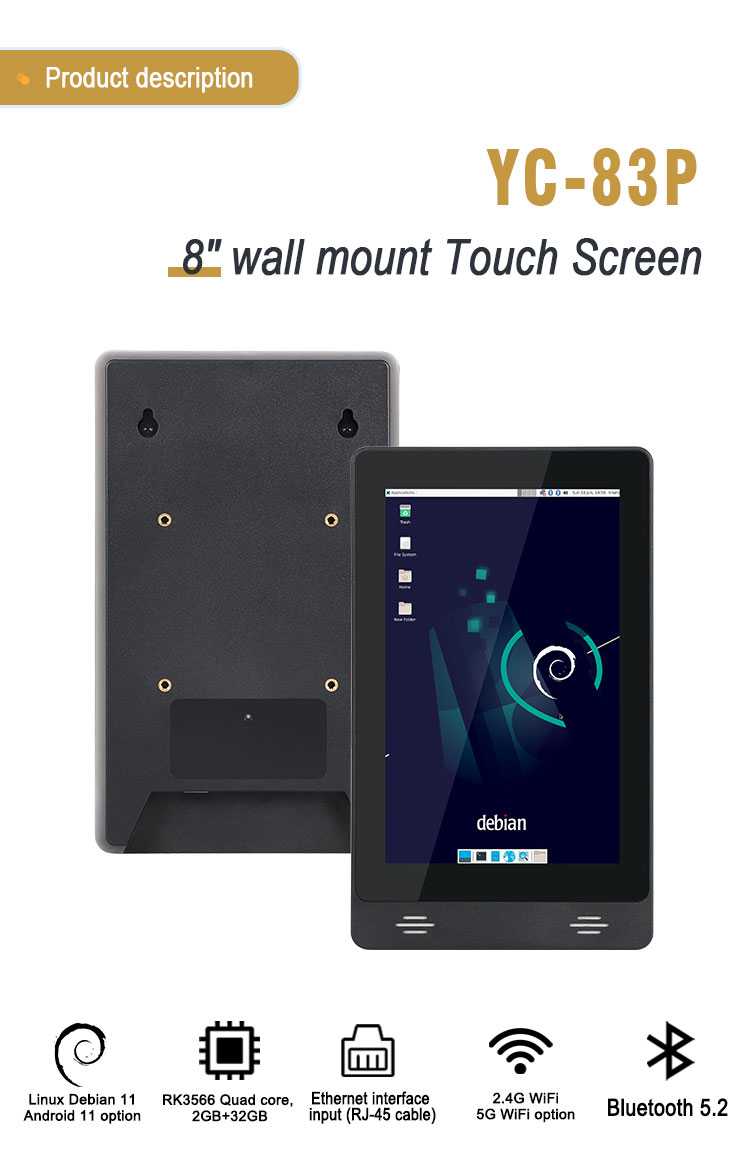

Overview

YC-83P – 8” Wall-Mount Touch Screen Panel with Linux / Android OS and PoE Support

The YC-83P is a versatile and compact 8-inch wall-mounted touch screen panel, engineered for commercial and industrial applications. Featuring multi-OS compatibility (Linux Debian 11, Android 11, Ubuntu, BuildRoot) and powered by the RK3566 Quad-core Cortex-A55 processor, this smart panel offers powerful performance, seamless touch interaction, and a clean, modern aesthetic fit for any professional environment.

Key Features

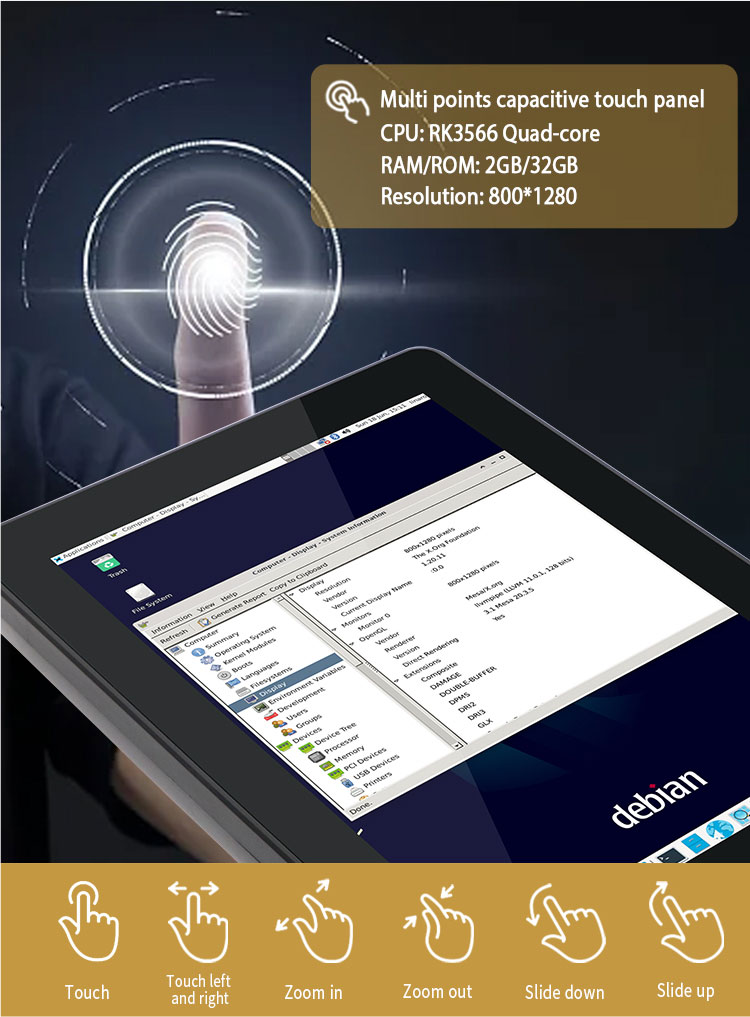

Compact & High-Definition Touch Display

8-inch IPS LCD screen
Resolution: 800×1280
Multi-point capacitive touch with support for gestures:
Zoom in/out
Slide up/down
Touch left/right

Enjoy fluid, accurate, and intuitive operation—whether you’re browsing a user interface, controlling smart devices, or operating a POS system.

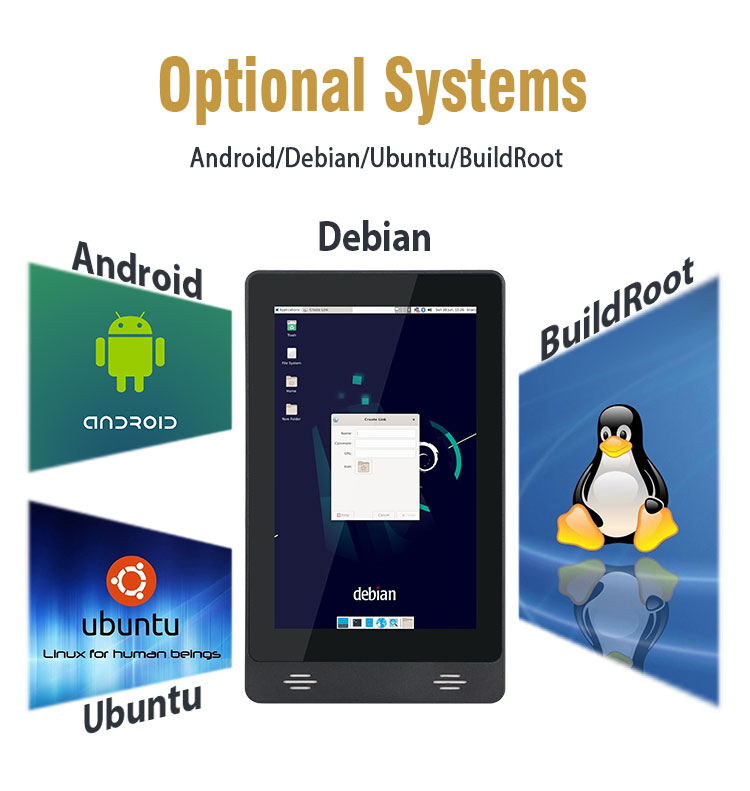

Flexible Operating System Options

Linux Debian 11
Android 11
Ubuntu / BuildRoot (optional)

Adapt the OS to your project needs—whether it’s a Linux-based kiosk, POS terminal, or Android-based smart home controller.

Efficient Quad-Core Processing

Rockchip RK3566 processor
64-bit Cortex-A55 architecture, up to 2.0GHz
2GB RAM + 32GB ROM for smooth multitasking and stable performance in embedded applications

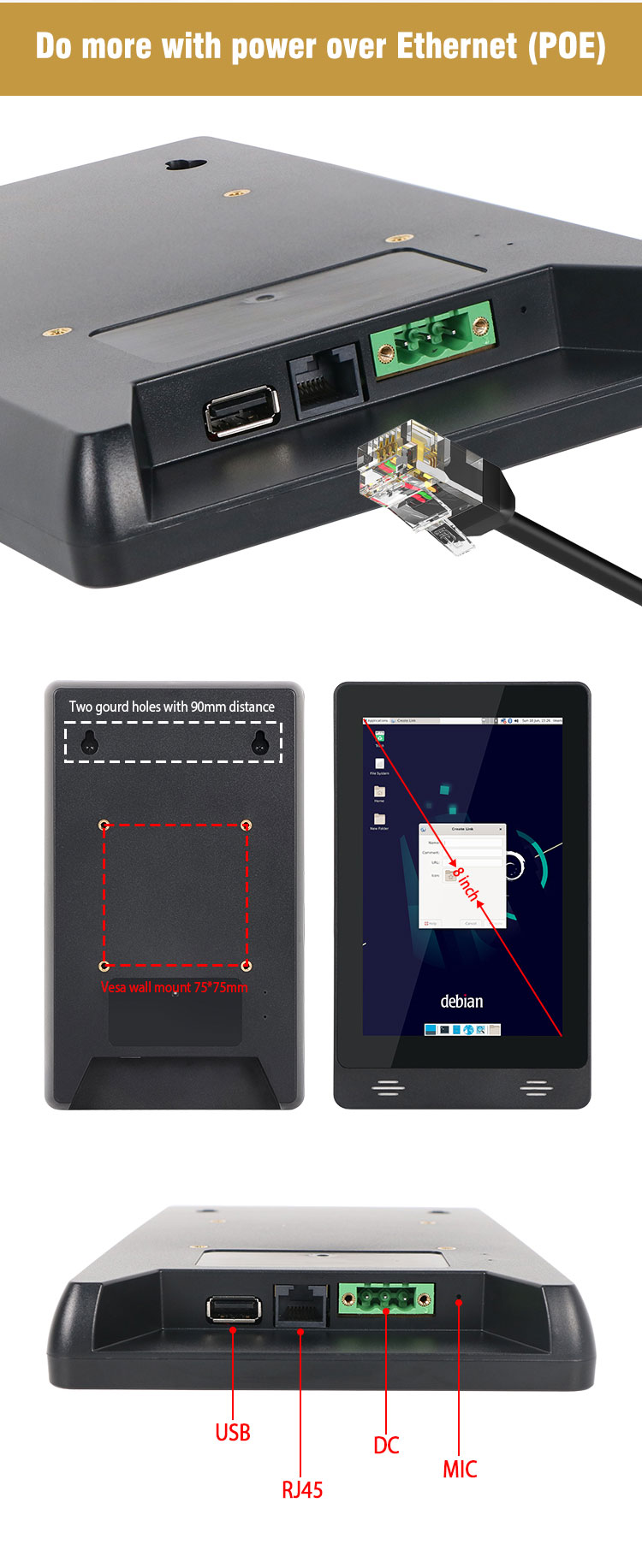

Power Over Ethernet (PoE) Support

Simplify installation and cable management with PoE, enabling data + power transmission over a single RJ45 cable—ideal for modern commercial spaces, smart offices, and retail stores.

Comprehensive Connectivity

RJ-45 Ethernet interface
2.4G + 5G dual-band WiFi (optional)
Bluetooth 5.2

Stay connected reliably whether through LAN, wireless, or Bluetooth devices like printers, scanners, and speakers.

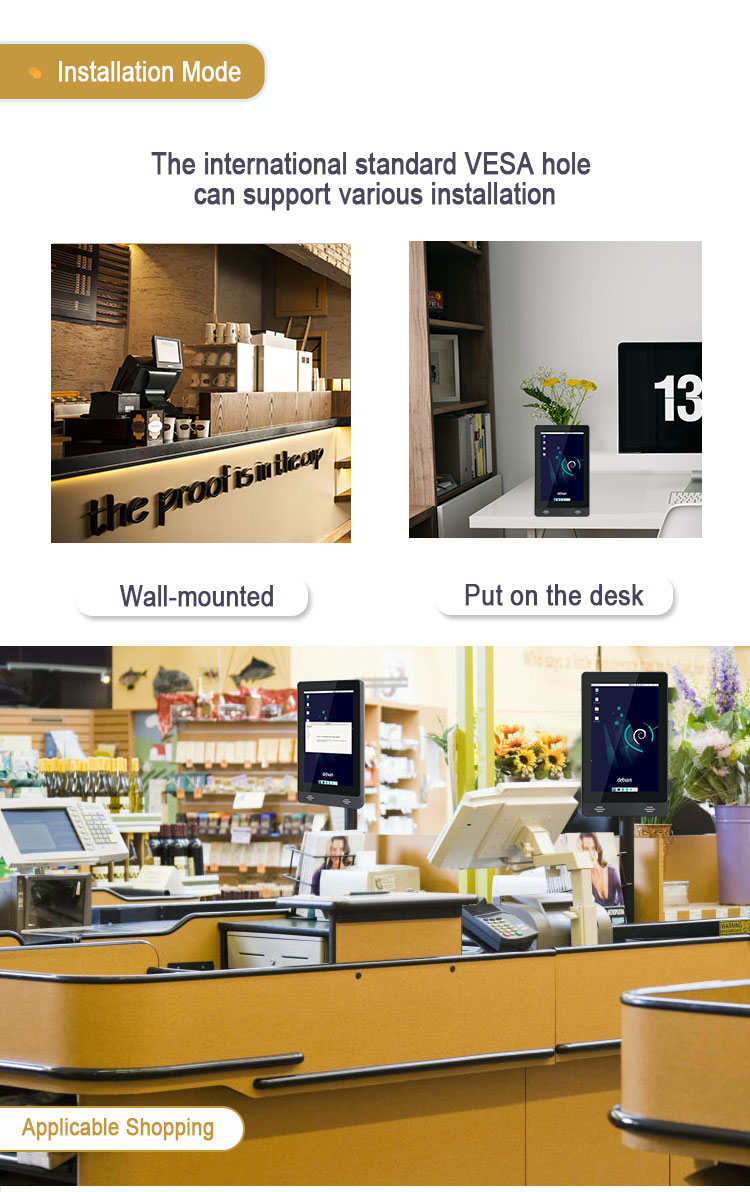

Industrial-Grade, Flexible Mounting

Supports VESA mounting standards for wall-mounted or desktop installation
Seamlessly integrates into kiosks, access control systems, smart control walls, and more

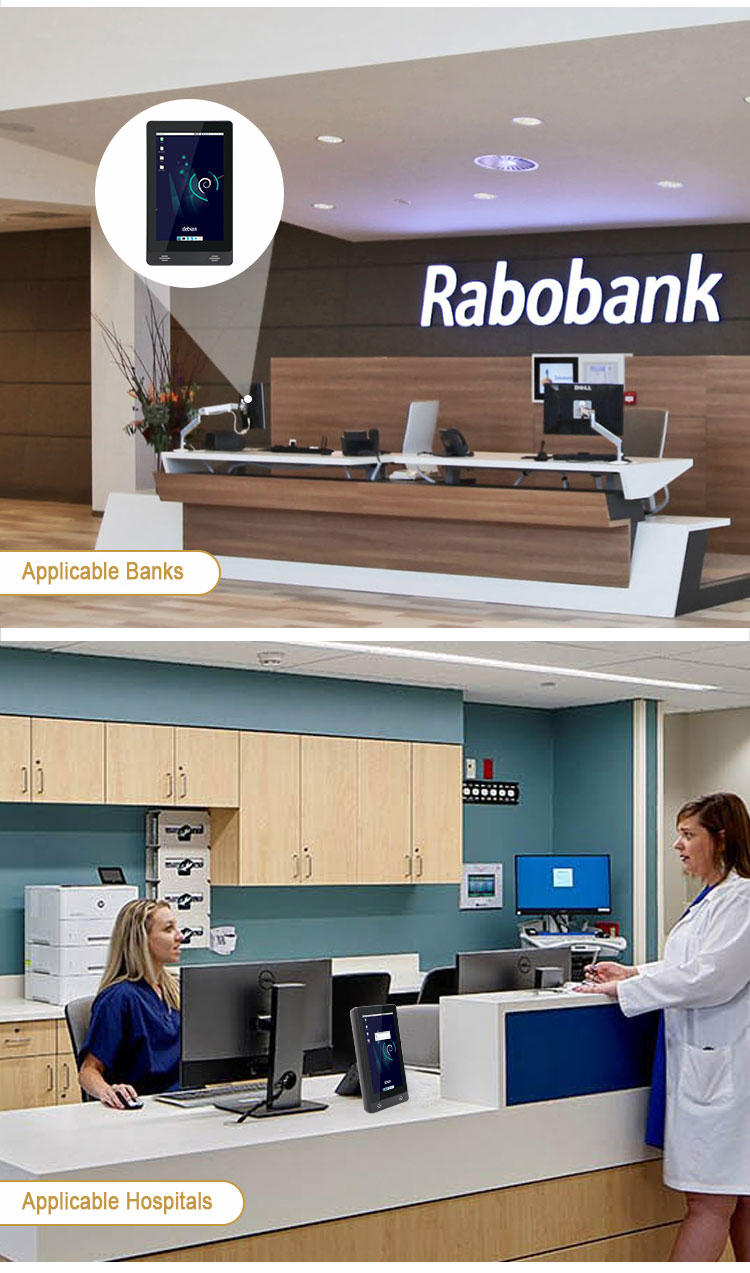

Applications

The YC-83P Smart home touch panel is purpose-built for a variety of commercial and industrial use cases:

Smart Home Control Panels

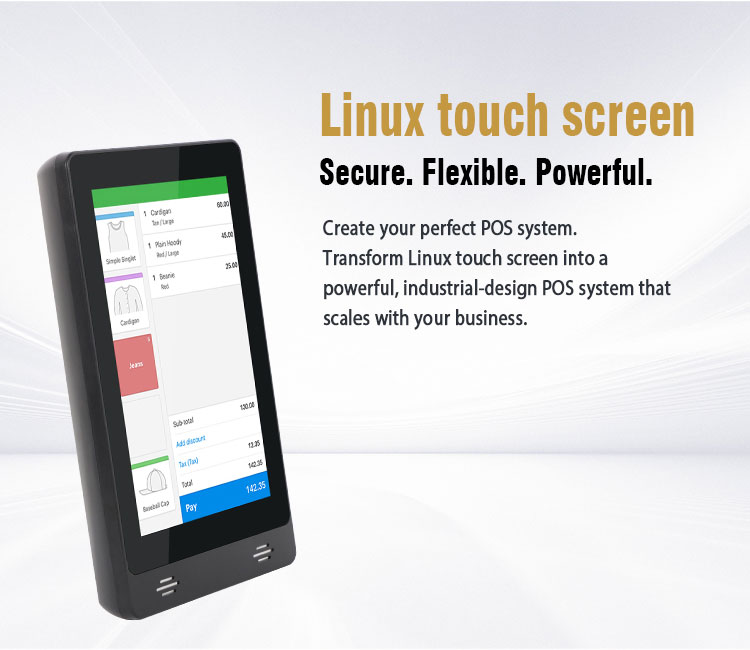

Retail & POS Systems
Access Control & Visitor Management
Medical Kiosks & Patient Check-in
Industrial Automation Dashboards
Digital Signage & Room Booking Displays
Interactive Education Displays

Why Choose YC-83P?

Scalable Design – Suitable for enterprise deployments with open-source OS flexibility
Durable & Secure – Reliable performance in continuous operation scenarios
Developer Friendly – Ideal for customization, SDK/API integration, and third-party software deployment
Clean, Modern Aesthetic – Matches modern interiors with professional-grade polish

Technical Specifications

Parameter	Details
Display	8″ IPS LCD, 800×1280 resolution
Touch	Multi-point capacitive touch, supports gestures
CPU	Rockchip RK3566 Quad-core Cortex-A55 up to 2.0GHz
RAM/ROM	2GB RAM / 32GB eMMC
OS Options	Android 11 / Linux Debian 11 / Ubuntu / BuildRoot
Connectivity	RJ45 Ethernet, WiFi 2.4G/5G (optional), Bluetooth 5.2
Power	Power Over Ethernet (PoE) supported
Mounting	VESA mount (Wall-mounted or Desktop setup)

The YC-83P 8” Touch Screen Panel is the ideal blend of compact design, industrial reliability, and multi-system compatibility, making it the go-to solution for companies building smart interfaces, commercial control panels, and embedded applications. Whether you’re creating a POS system, a smart home terminal, or a customized kiosk, this device delivers the performance, flexibility, and convenience your business demands.

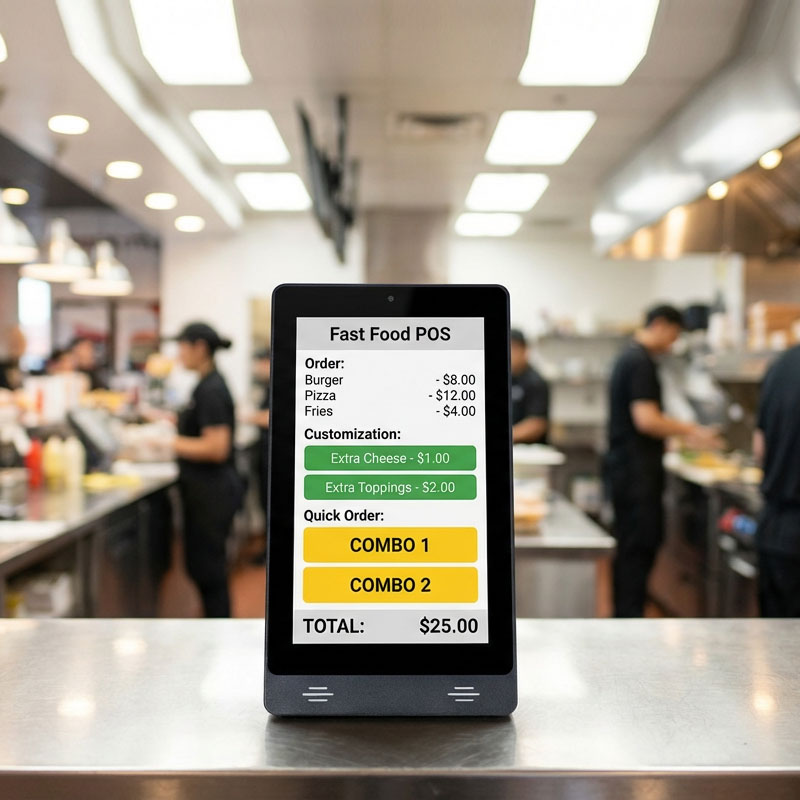

YC-83P 8 inch Linux Debian Wall Mounted Touch Screen Tablet

YC-83P 8 inch Linux Debian Wall Mounted Touch Screen Tablet2

Specification

System	CPU	RK3566 Quad-core 64Bits Cortex-A55 up to 2.0GHz
	RAM	2GB
	ROM	32GB
	Operation System	Debian 11
Display	Screen	8 inch IPS screen
	Resolution	800*1280
	Brightness(Nit)	300nits
	Touch Panel	10-point capactive touch
Network	WIFI	802.11b/g/n
	Bluetooth	BT
	Ethernet	10/100M
Interface	RJ45	1*Ethernet port, POE 48V, IEEE 802.3af/at compliant, power no less than 13W
	USB host	1*USB type A
	DC	1*DC 12V power input
Media plays	Speaker	Front speakers, 2W*2
	Microphone	Built-in
	Camera	Front camera 2MP
	Video	MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB
	Audio	MP3 / WMA / WAV / AAC / FLAC / OGG
Other	Mounting	1) Two gourd holes with 90mm distance
	Mounting	2) Wall mount with Vesa hole 75*75mm
	Application software	Video / Movie / Music / FM online
	Office software	Word, Excel, PPT, PDF, TXT, HTML, RTF, FB2, UMD
	Language	Support multi-languages
	Customized software	Boot logo/boot animation/pre-install apk etc.
Accessories	Adapter	*1
Accessories	Color	Black
