What Wall Box Standards (UK 86, EU, US) do Portworld Smart Panels Support Out of the Box?

As the global market for smart home automation continues to grow, one of the primary challenges faced by manufacturers of smart panels and system integrators lies not only in the technology embedded within the device but also in ensuring compatibility with various regional wall box standards.

Different markets often utilize distinct electrical mounting systems in their homes and buildings. Consequently, a smart touch panel engineered for a specific region may necessitate additional brackets or structural alterations when installed in another market.

For international smart home initiatives, a wall-mounted touch panel that accommodates multiple installation standards from the outset can greatly simplify the deployment process. Portworld smart touch panels are crafted with global installation requirements in consideration, supporting prevalent wall box standards such as the UK 86-type, EU-type, and select US wall box solutions, depending on the model and customization needs.

The Importance of Wall Box Compatibility for Smart Touch Panels

In contrast to conventional switches, smart control panels incorporate a greater number of components within the device, including processors, displays, communication modules, and power circuits. Thus, mechanical compatibility with the existing wall structure is of utmost importance.

For international smart home projects, installers typically need to take into account:

• Wall box dimensions
• Mounting bracket design
• Installation depth
• Power wiring method
• Cable routing space

A panel that conforms to local installation standards facilitates quicker installation and minimizes the need for additional accessories or modifications.

This consideration is particularly crucial for large-scale projects such as:

• Smart apartments
• Hotel automation systems
• Luxury villas
• Commercial buildings

UK 86-Type Wall Box Compatibility

The 86×86mm wall box standard is prevalent in numerous markets, particularly in the UK and other areas that have adopted similar square switch box configurations.

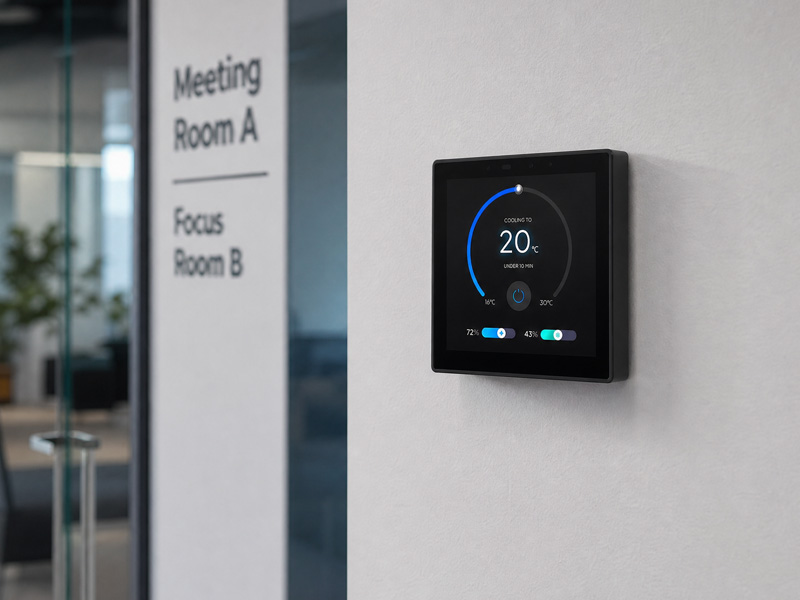

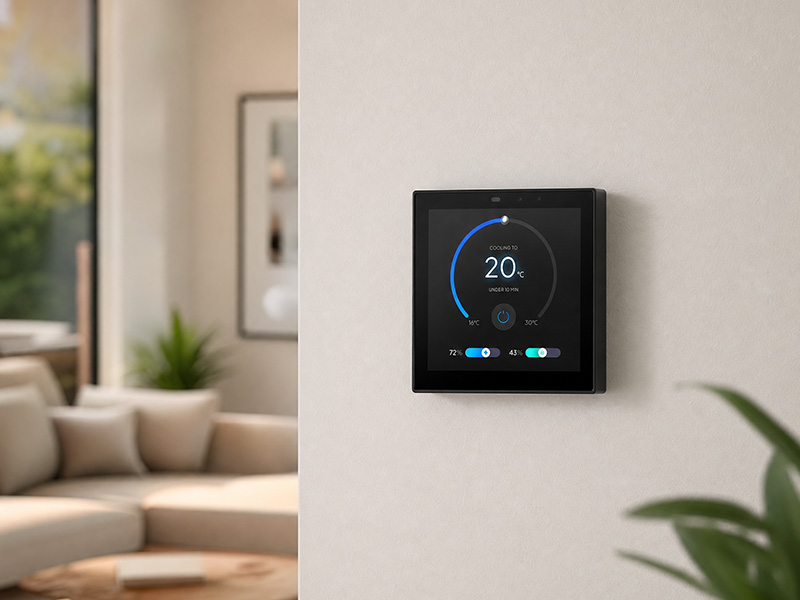

Portworld’s compact smart panels, such as the YC-SM41P 4-inch smart touch control panel, are engineered with an 86-type embedded installation framework. The dimensions of the panel and its mounting accessories enable it to fit seamlessly into standard 86-type wall box settings.

This design makes it ideal for various applications, including:

• Smart lighting control
• HVAC management

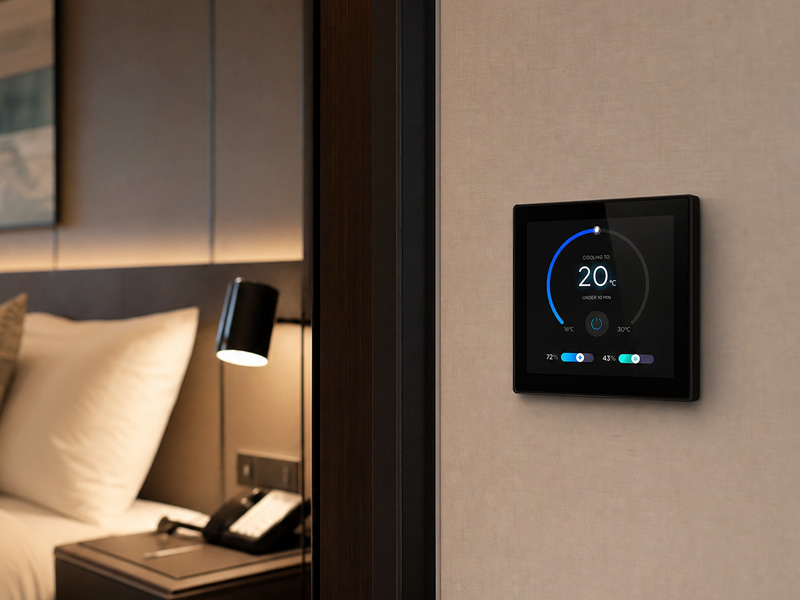

• Hotel room automation
• Home automation interfaces

Additionally, the compact design allows the panel to serve as a replacement for conventional wall switches while preserving a neat, flush-mounted look.

EU Wall Box Installation Support

In European markets, different wall installation structures are typically utilized compared to the UK-style square boxes. Many projects necessitate compatibility with EU standard mounting systems.

Portworld smart panels accommodate EU-style installation solutions through compatible brackets and mechanical designs. For instance, the YC-SM41P is designed for in-wall installation and is compatible with EU wall box applications.

This adaptability enables integrators to utilize the same smart panel platform across various residential and commercial projects throughout Europe.

Common applications include:

• Smart apartments
• Residential automation
• Hotel guest room control
• Building management interfaces

US Wall Box Compatibility

The electrical box structures utilized in the US market differ significantly from those in European markets, necessitating that smart panel manufacturers take these mounting variations into account.

For the larger models of Portworld smart panels, installation solutions are available that accommodate various regional wall box structures, including those specific to the US, through tailored mounting designs.

For projects that require deployment in the US, Portworld offers OEM/ODM customization options such as:

• Customized mounting brackets
• Modified enclosure design
• Various power solutions
• Regional installation adaptations

This flexibility enables system integrators to create products that meet the unique requirements of specific markets.

Portworld Smart Panels Designed for Global Deployment

Portworld delivers smart touch panel solutions tailored for the international smart home and building automation sectors.

An example of a compact, globally-ready panel is the YC-SM41P 4-inch smart touch control panel, which includes:

• 4-inch capacitive touchscreen
• Rockchip processor platform
• Support for Android/Linux systems
• Connectivity options including Ethernet, WiFi, and Bluetooth
• RS485 communication
• PoE power support
• Design for embedded wall installation

For larger control interfaces, Portworld also offers solutions like the YC-SM116P 11.6-inch smart touch panel, which is designed for sophisticated applications in smart homes, hotels, and commercial automation.

These platforms can be customized to accommodate:

• Different wall box standards
• Various display sizes
• Multiple communication protocols
• Different operating systems

OEM/ODM Customization for Regional Smart Home Markets

Global smart home brands frequently necessitate more than just standard hardware. Various countries may require distinct mechanical structures, software platforms, and branding solutions.

Portworld offers comprehensive OEM/ODM services, which include:

• Custom PCBA development
• Housing and bracket customization
• Android/Linux firmware customization
• UI design
• BSP development
• Logo and packaging customization

This allows partners to develop smart touch panels tailored to their specific regional markets.

Choosing the Right Smart Panel for Global Projects

In the process of selecting a smart wall panel, it is essential to consider installation compatibility alongside hardware performance and software adaptability.

A smart panel suitable for global deployment should offer:

• Support for standard wall box specifications
• Versatile mounting options
• Multiple communication interfaces
• Dependable embedded hardware
• Custom software capabilities

With compliance to UK 86-type, EU installation standards, and adaptable solutions for other regional requirements, Portworld smart panels deliver a versatile foundation for international smart home and building automation initiatives.
