ESP32 + P3506 Combo Development Board

What is ESP32?

The ESP32 is a highly versatile and powerful system on chip (SoC) developed by Espressif Systems. It is designed for a wide range of applications, particularly IoT (Internet of Things) devices, smart home solutions, and embedded systems. The ESP32 is known for its dual-core processor, integrated Wi-Fi and Bluetooth connectivity, and robust features that make it perfect for both hobbyist projects and professional-grade devices.

Key Features of ESP32:

• Dual-Core Processor: The ESP32 features a dual-core 32-bit processor, capable of running at up to 240MHz, providing powerful performance for real-time applications and multi-tasking environments.
• Wireless Connectivity: It integrates both Wi-Fi (802.11 b/g/n) and Bluetooth (Classic and BLE), enabling seamless wireless communication for IoT and connected devices.
• Memory: It supports up to 16MB Flash and 520KB SRAM, which is more than enough for most embedded systems.
• Low Power Consumption: The ESP32 is designed for low power usage, making it ideal for battery-powered or energy-efficient applications.
• Multiple I/O Options: It comes with a wide range of GPIO pins, ADC/DAC for analog I/O, SPI, I2C, UART, and more, offering flexibility for integrating sensors, displays, and other peripherals.

The ESP32 is supported by a wide range of development environments, including Arduino, MicroPython, and ESP-IDF (Espressif IoT Development Framework), making it an accessible platform for developers and engineers across various industries.

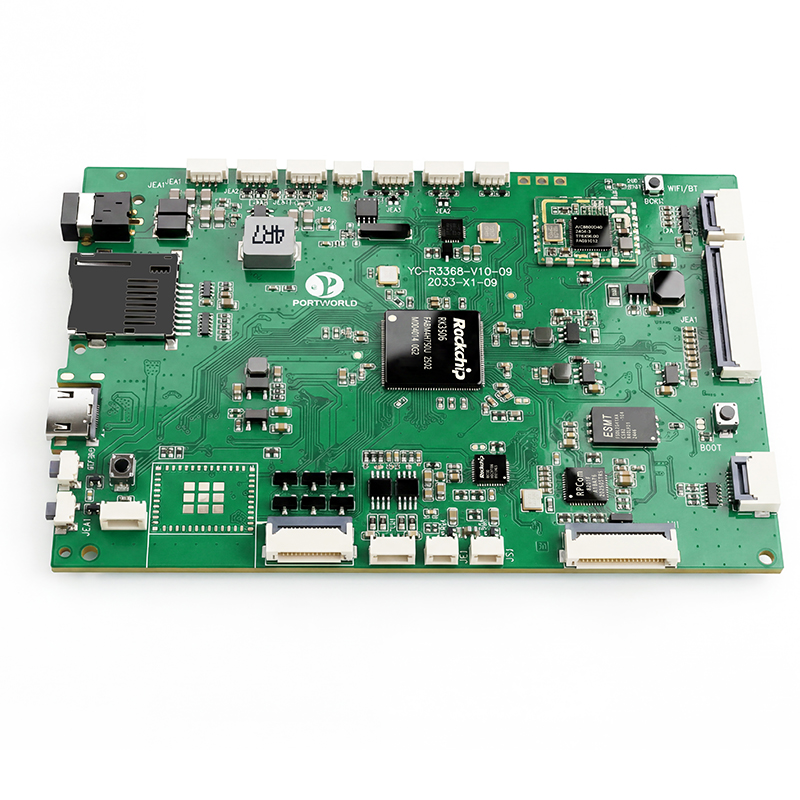

What is the P3506 Smart Mainboard?

The P3506 Smart Mainboard is an advanced embedded motherboard powered by the Rockchip RK3568 processor. It is designed to provide high-performance computing for various industrial, IoT, and smart home applications, offering robust features for edge computing, multimedia processing, and connected systems.

Key Features of the P3506 Smart Mainboard:

• Powerful Processor: Equipped with the Rockchip RK3568, a quad-core ARM Cortex-A55 processor, the P3506 provides excellent performance for handling multiple tasks simultaneously. It ensures smooth execution of both computing and multimedia applications, making it ideal for use in smart displays, IoT devices, and industrial systems.
• GPU & NPU: The P3506 features a Mali-G52 GPU for graphics processing, making it ideal for handling high-quality multimedia content, including 4K video decoding. It also includes an NPU (Neural Processing Unit) for AI-based tasks like image recognition, voice control, and real-time video analysis.
• Multiple Connectivity Options: The P3506 offers various I/O interfaces for connecting sensors, displays, and peripherals, including HDMI, MIPI DSI, USB, I2C, RS232, and more. This makes it versatile for smart control panels, digital signage, industrial automation, and more.
• Operating System Support: The board is compatible with Android, Ubuntu, Debian, and Buildroot, offering flexibility for software development. This versatility allows developers to choose the most suitable platform for their project needs, whether for embedded Linux applications or Android-based systems.
• AI-Powered Applications: With the integration of AI capabilities, the P3506 smart mainboard is well-suited for applications requiring real-time analytics, AI inference, and edge computing. The NPU accelerates tasks like face recognition, voice processing, and other AI-driven functions, making it ideal for smart security systems, AI robots, and more.

Applications of the P3506 Smart Mainboard:

• Smart Home Automation: Used in smart control panels, lighting systems, and HVAC systems.
• Industrial IoT: Ideal for industrial automation, control systems, and machine vision applications.
• Digital Signage: Used in retail displays, public kiosks, and advertising systems.
• AI Robots: Perfect for AI-powered robots and machine learning tasks.

The P3506 board brings high computing power and multimedia support to a wide variety of applications, with a focus on edge AI and real-time processing, making it a powerful solution for both consumer and industrial devices.

Combining ESP32 with the P3506 for Advanced Applications

By combining the ESP32 for wireless connectivity and low-power operations with the P3506 smart mainboard for high-performance processing and AI capabilities, you can develop advanced IoT, smart home, and industrial automation solutions. The ESP32 can handle communication and peripheral management while the P3506 provides powerful processing for AI tasks, multimedia, and real-time analytics.

For instance, in smart security systems or AI robots, the ESP32 can be used to connect to sensors and transfer data wirelessly, while the P3506 processes the data in real-time, enabling AI-powered decision-making.

Why Choose Portworld for Your Embedded System Needs?

Portworld offers a complete range of embedded systems solutions, including the P3506 mainboard, customizable PCBs, and full system integration. We specialize in delivering OEM/ODM solutions, providing tailored designs to meet the specific needs of your project, whether it’s IoT devices, industrial automation, or AI-driven smart systems.

• Customizable Hardware: Portworld offers flexible hardware configurations to match your application’s requirements, including RAM, storage, peripherals, and more.
• Comprehensive Software Support: We provide extensive SDKs, OS support, and integration resources to ensure your system runs smoothly and efficiently.
• End-to-End Solutions: From prototype development to mass production, Portworld supports all stages of product development and deployment.
• Global Reach: With our global supply chain and manufacturing capabilities, we offer timely delivery and support for projects worldwide.
