ESP32 Base Board for Home Assistant Integration

/in /by

In the realm of smart home automation, the ESP32 has emerged as one of the most favored and economical microcontroller platforms for creating both DIY and commercial IoT devices. When utilized alongside Home Assistant, it facilitates versatile management of sensors, relays, lighting systems, HVAC, and more.

A well-constructed ESP32 base board designed for Home Assistant integration serves as the cornerstone for reliable deployment, simplified wiring, and expandable smart home initiatives.

What constitutes an ESP32 Base Board for Home Assistant?

An ESP32 base board is a hardware platform centered around the ESP32 chip, offering:

  • A stable power supply design
  • Accessible GPIO interfaces
  • Ethernet / Wi-Fi connectivity
  • Expansion interfaces (RS485, I2C, UART, etc.)
  • Optional PoE (Power over Ethernet) support
  • Industrial-grade PCB layout ensuring long-term reliability

When combined with Home Assistant (typically through ESPHome or MQTT), it transforms into a robust edge controller for smart home systems.

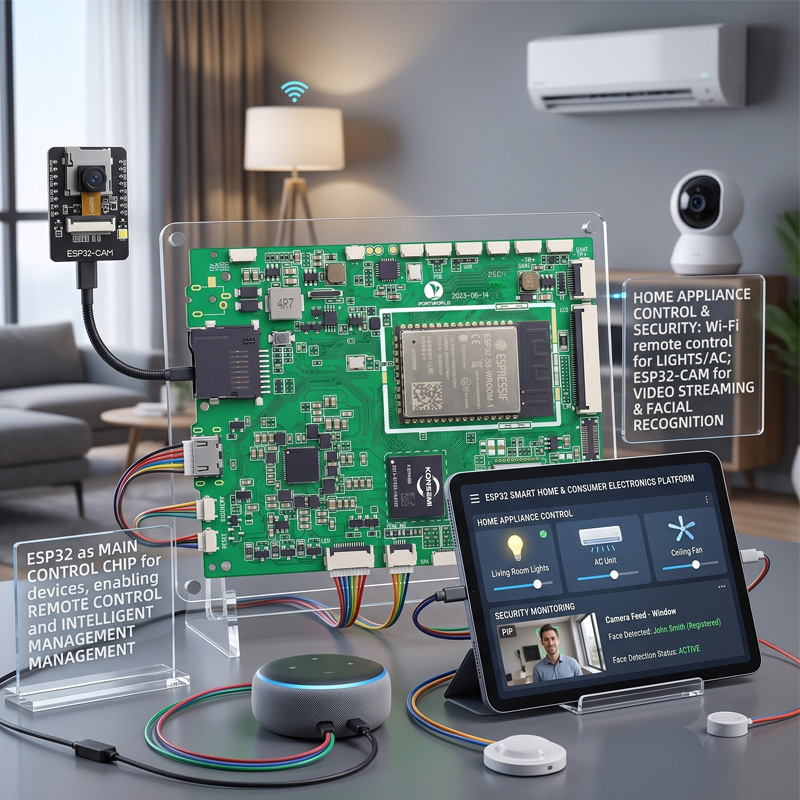

ESP32 Motherboard

ESP32 Motherboard

Key Features of an ESP32 Base Board

A professional ESP32 base board generally encompasses:

1. Stable IoT Connectivity

  • Wi-Fi (2.4GHz)
  • Bluetooth LE
  • Optional Ethernet for industrial applications
  • Seamless integration with Home Assistant through ESPHome

2. Flexible Expansion Interfaces

  • GPIO for connecting sensors, relays, and switches
  • UART / I2C / SPI for interfacing with modules
  • RS485 support for industrial automation
  • Optional integration with KNX / Zigbee gateways

3. Reliable Power Design

  • Support for 5V / 12V / 24V input
  • Optional PoE (IEEE 802.3af/at) for a tidy installation
  • Built-in safeguards for consistent 24/7 operation

4. Compact and Deployment-Friendly Design

  • Support for DIN-rail or embedded installations
  • Industrial PCB layout designed for noise resistance
  • Tailored for smart home wall panels or control cabinets

The ESP32 platform is highly regarded in Home Assistant ecosystems due to several factors:

  • Affordable pricing combined with impressive performance (dual-core up to 240MHz)
  • Integrated Wi-Fi and Bluetooth for seamless cloud and local control
  • Robust support from ESPHome for straightforward automation
  • A vast open-source community backing
  • Outstanding power efficiency for devices that require constant operation

These attributes make it perfect for creating a range of devices, from basic sensors to comprehensive home automation systems.

Portworld ESP32 Base Board Solution

Portworld offers a professional-grade ESP32 base board solution tailored specifically for Home Assistant and IoT automation applications.

Our solution is particularly suited for:

  • Smart home system
  • Hotel room management systems
  • Apartment automation
  • Industrial IoT gateways
  • Smart HVAC and lighting management

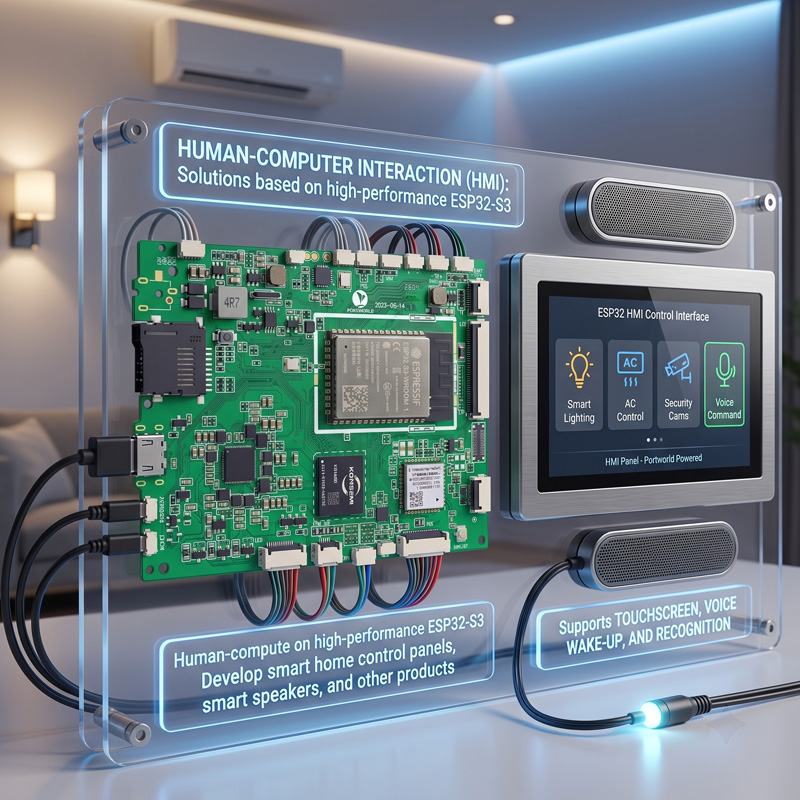

ESP32-Motherboard

ESP32-Motherboard

Reasons to select Portworld:

1. Hardware and Software Customization (ODM/OEM)

Portworld provides extensive customization services:

  • PCB / PCBA design modifications
  • Firmware adjustments (ESPHome / MQTT / custom Linux)
  • Interface modifications (RS485, KNX, Zigbee, Ethernet)
  • Branding options (logo, user interface, enclosure design)

2. Cost-Effective Solution

  • Leveraging ESP32 architecture results in low BOM costs
  • Ideal for large-scale deployment projects
  • Minimizes development time and engineering expenses

3. Flexible Integration Options

  • Native compatibility with Home Assistant
  • Supports the ESPHome ecosystem
  • MQTT-ready for integration with cloud platforms
  • Can connect with cloud dashboards or mobile applications

4. Industrial Reliability

  • Designed for stable 24/7 operation
  • Optimized for power efficiency and EMI protection
  • Suitable for use in commercial settings (hotels, offices, buildings)

Typical Application Scenarios

A base board based on the ESP32 from Portworld can be utilized in:

  • Smart lighting control panels
  • HVAC and underfloor heating systems
  • Automation of curtains and blinds
  • Smart energy monitoring systems
  • Central control units for hotel rooms
  • IoT sensor aggregation gateways

Advantages of ESP32 Base Board Solutions

In comparison to standard DIY ESP32 modules, a professional base board offers:

  • Enhanced system performance stability
  • Neater wiring and simplified deployment
  • Improved electrical protection
  • Greater integration capabilities
  • A scalable architecture suitable for mass production

An ESP32 base board designed for integration with Home Assistant serves as the fundamental component for contemporary smart home and IoT systems. It merges the affordability of microcontroller technology with versatile connectivity and robust support from the open-source ecosystem.

With Portworld’s ESP32 base board solutions, clients can advance beyond DIY prototypes towards industrial-grade, scalable, and fully customizable smart automation systems, backed by comprehensive OEM/ODM and engineering services.
