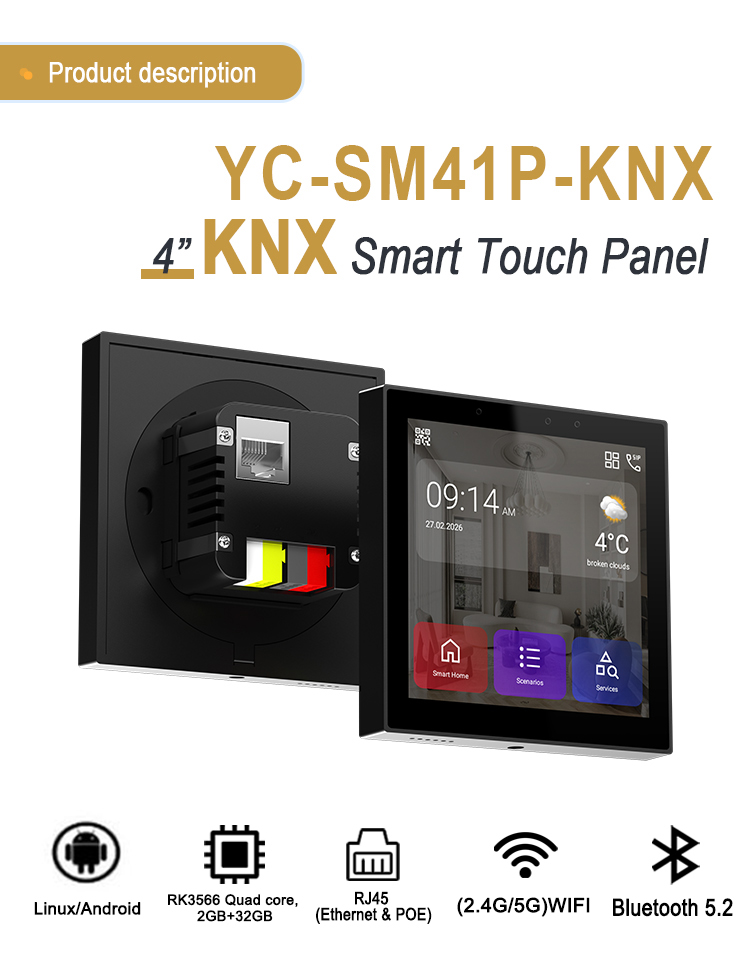

YC-SM41P-KNX 4″ KNX Smart Touch Control Panel

YC-SM41P-KNX

4″ KNX Smart Touch Control Panel

Key Features

4″ Capacitive Touchscreen (480×480, supports swipe & zoom gestures)
Dual OS Support: Android 13 or Linux
High Performance: RK3566 quad-core, 2GB RAM + 32GB storage
Built-in KNX Port: Direct KNX hardware-Integration
Flexible Connectivity: RJ45 (with PoE), dual-band Wi-Fi, Bluetooth 5.2
Universal Mounting: Supports UK 86 / EU wall boxes
Ideal For: Smart homes, hotels, offices, automation projects

Perfect for integrators who need a reliable KNX-ready device. The KNX module is hardware-ready, and firmware setup can be handled by your KNX-certified technician for full compatibility.

A compact yet powerful 4-inch smart control panel designed for KNX-based automation systems, with Android 13 or Linux OS, multi-protocol compatibility, and professional-grade sensing capabilities. Ideal for smart home, hotel, and office applications.

Send Inquiry

Overview

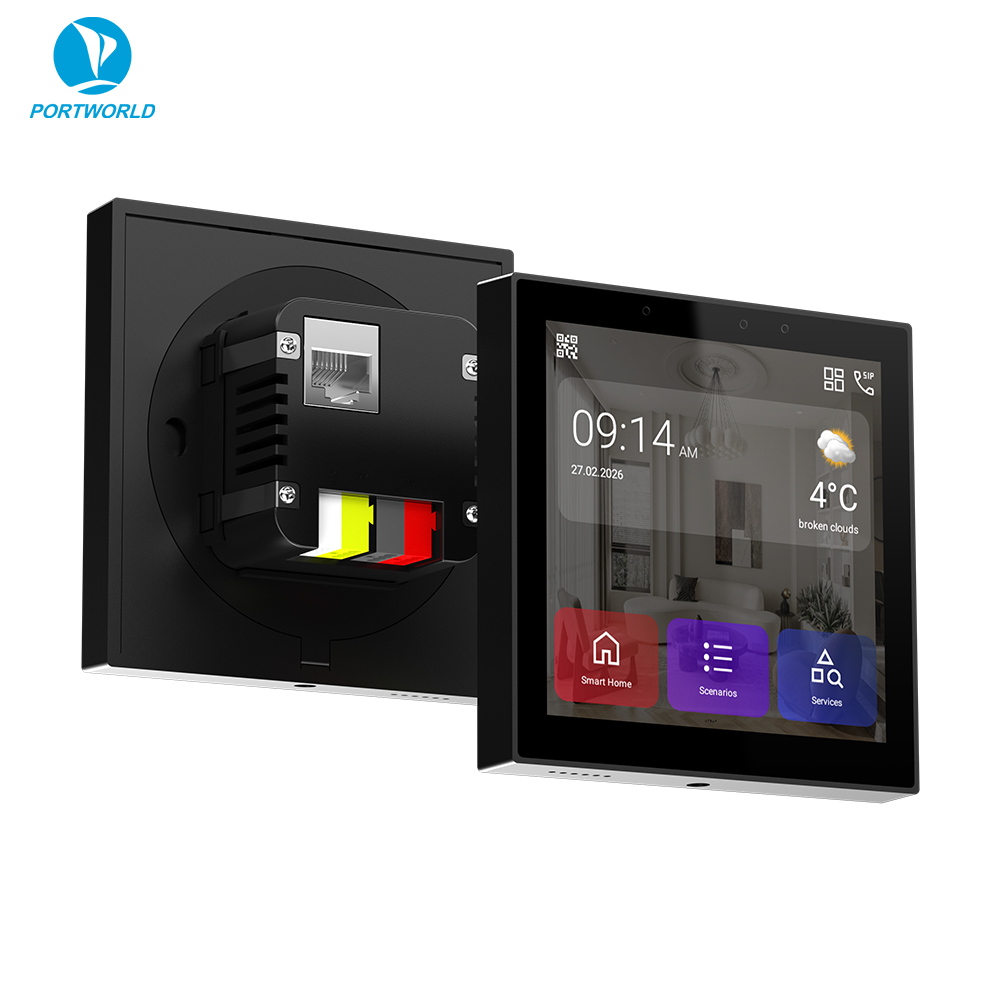

The YC-SM41P-KNX is a 4-inch KNX-compatible smart touch control panel designed to bring intelligent automation and intuitive control to homes, hotels, and offices. Built on the RK3566 quad-core processor and running Android 13 or Linux, this compact yet powerful panel is ideal for managing KNX systems, integrating Zigbee gateways, and supporting multi-platform automation.

Key Features

High-Performance Hardware
RK3566 Quad-core CPU | 2GB RAM + 32GB Storage
480×480 High-resolution Capacitive Touchscreen
Brightness: 300cd/m² | Responsive Gestures: slide, zoom, tap

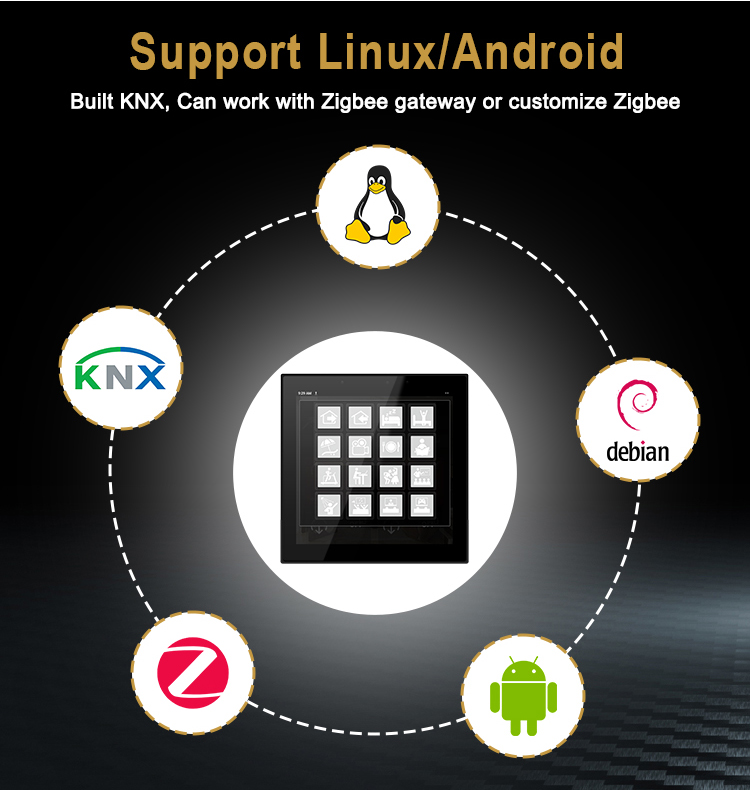

Dual OS Support
Available with Android 13 or Linux, customizable to suit diverse integration needs.
KNX Built-In Integration

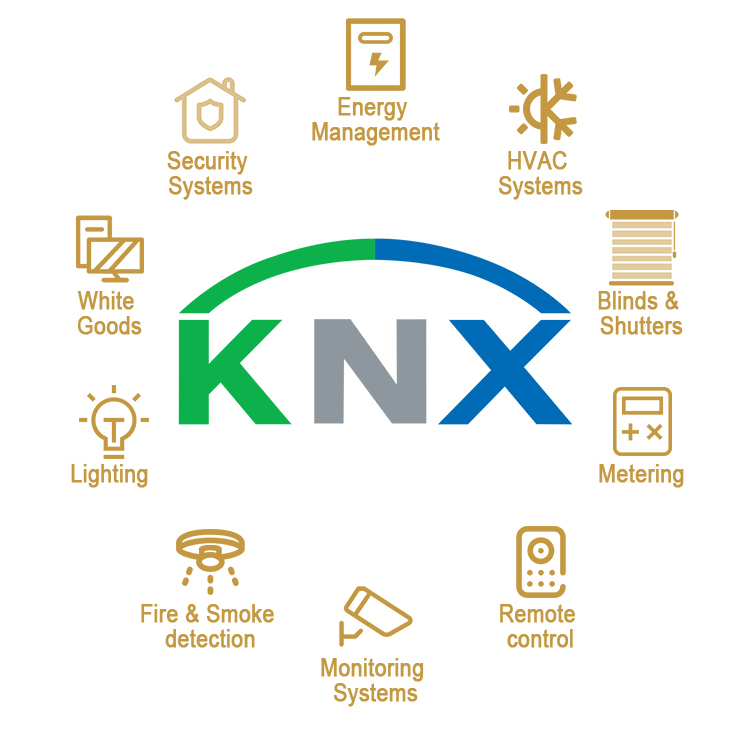

Native KNX port enables seamless control of lighting, HVAC, blinds, metering, and security devices.
Fully compatible with KNX lighting, energy, fire/smoke detection, and smart appliances.

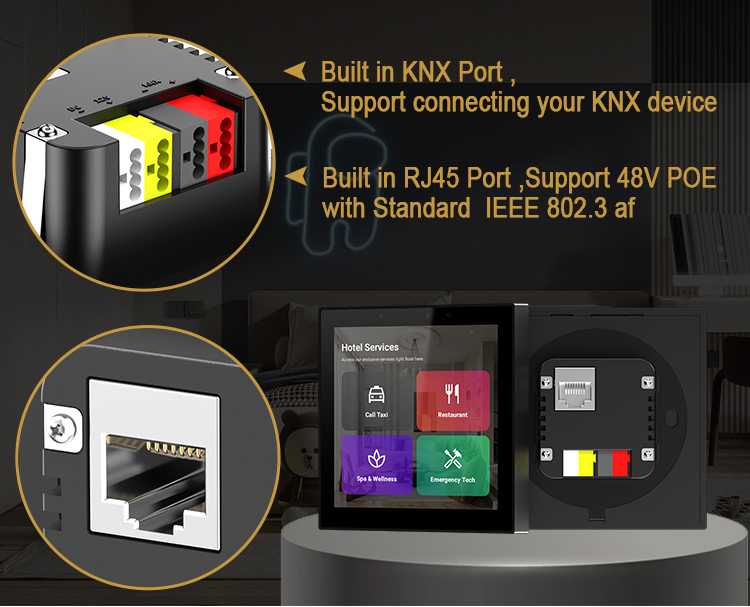

Smart Connectivity
✅ RJ45 Ethernet port with IEEE 802.3af standard PoE (48V)
✅ Dual-band 2.4G/5G WiFi and Bluetooth 5.2
✅ Supports Zigbee Gateway or customizable Zigbee protocol

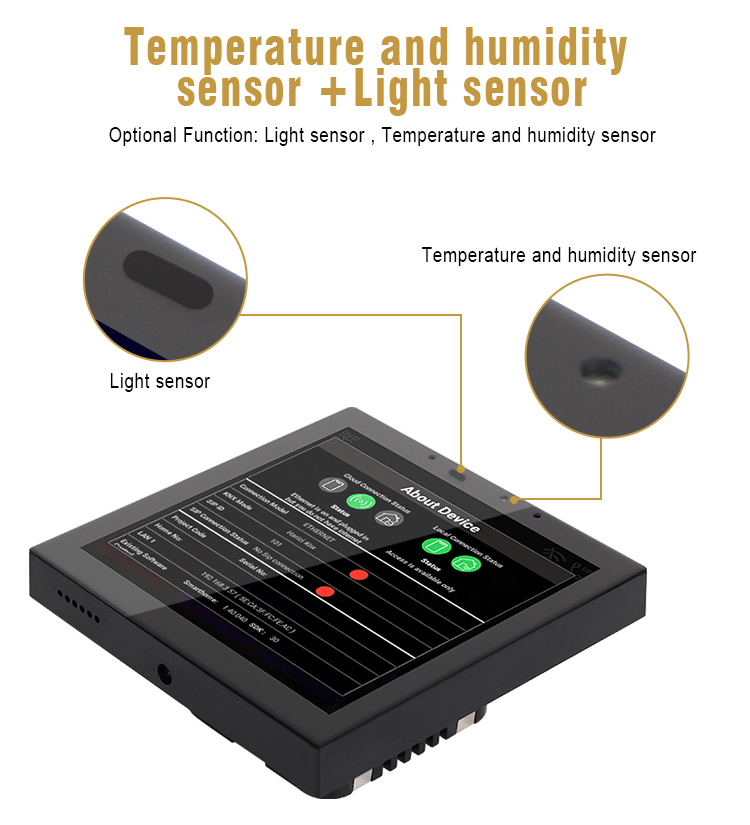

Smart Sensor Suite (Optional)
Built-in temperature & humidity sensor and light sensor for environment-aware automation.

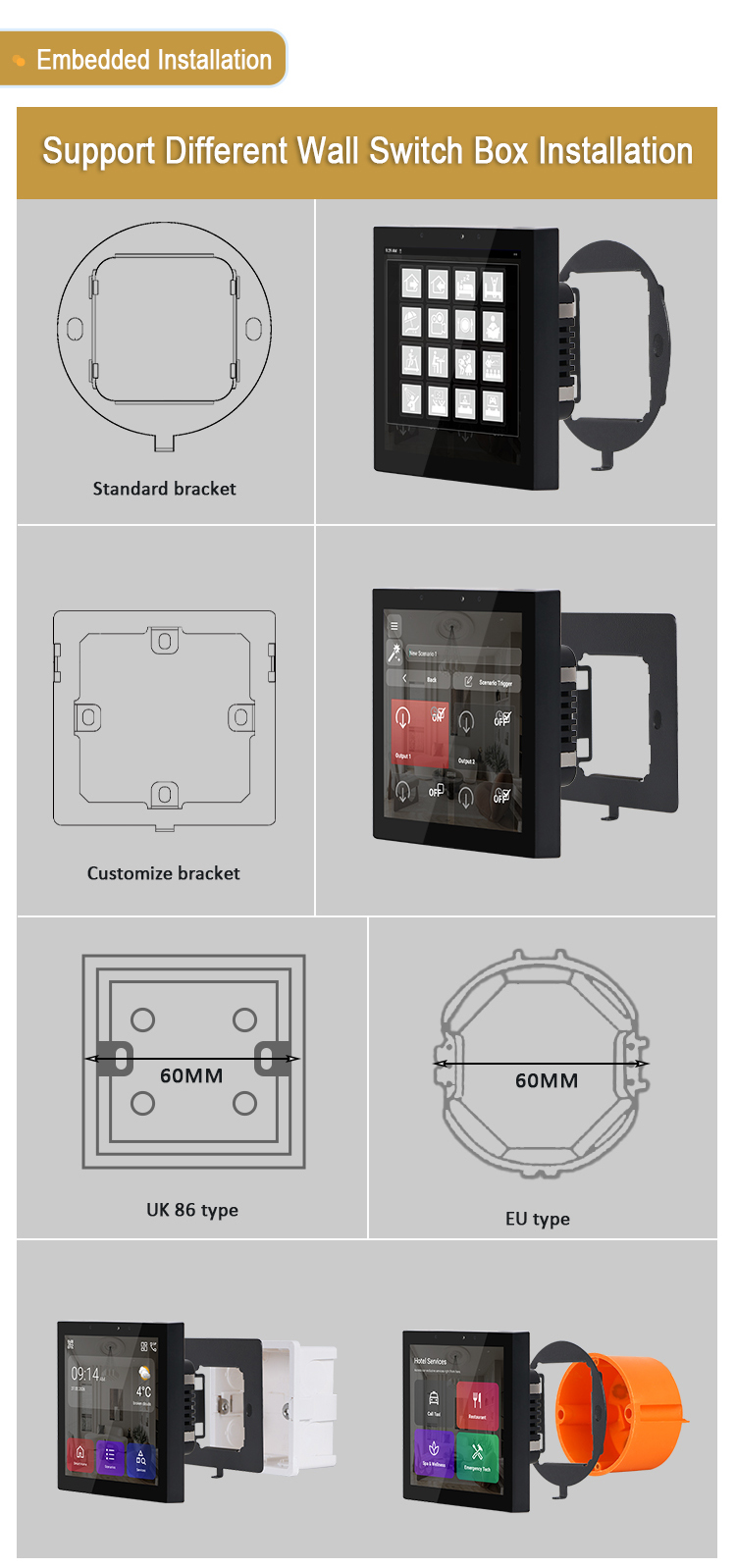

Universal Mounting Compatibility

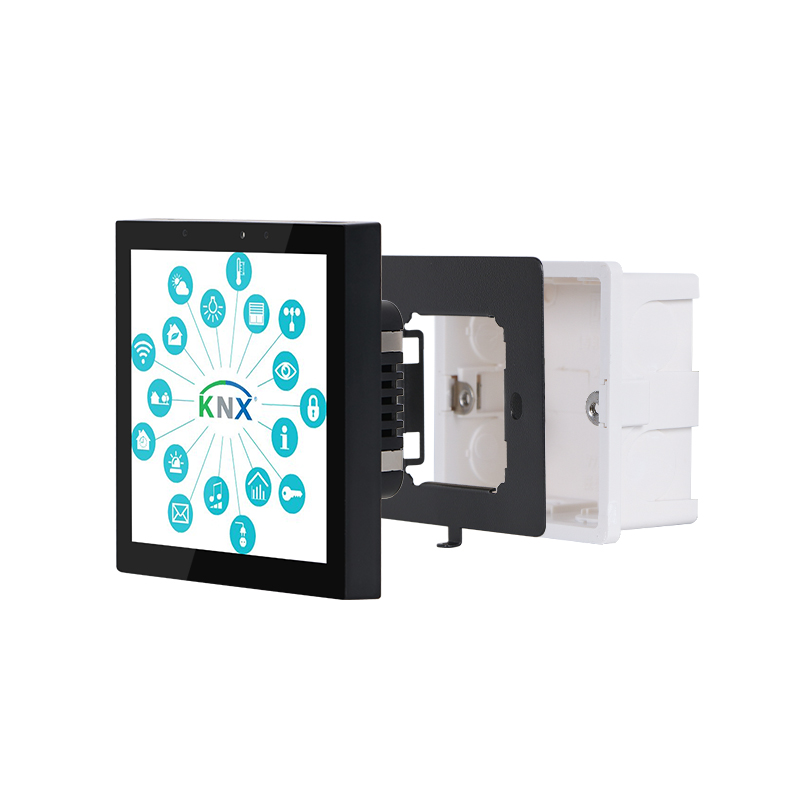

Supports UK 86-type, EU-type, standard and customized wall switch box brackets.

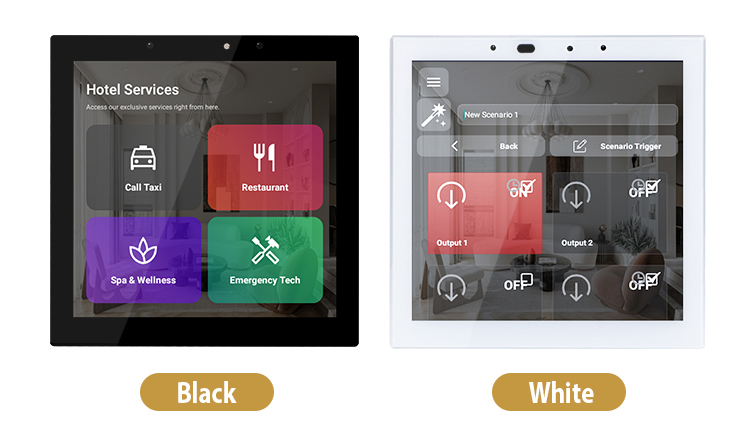

Available in Black and White to match any interior.
Multi-Touch UI
Intuitive gesture-based controls: touch left/right, zoom in/out, slide up/down.

Applications

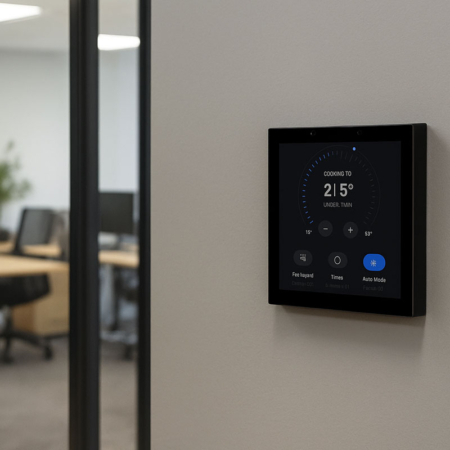

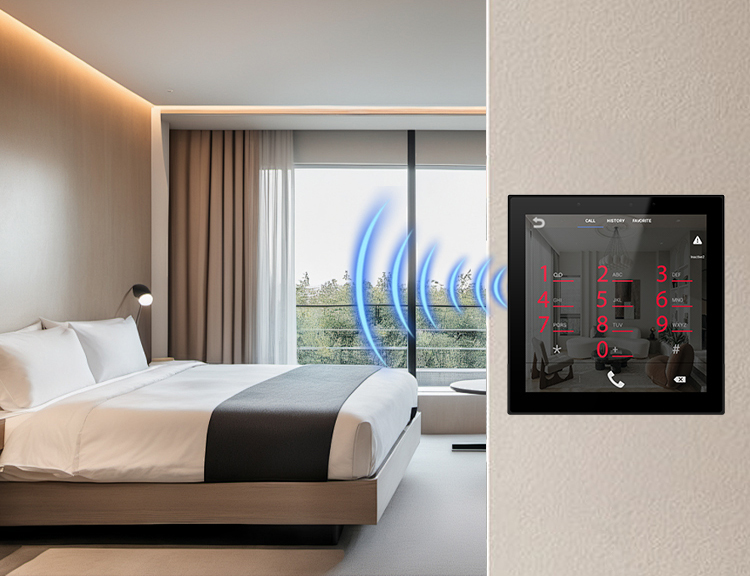

Perfect for smart hotels, residential automation, and commercial buildings requiring a powerful, sleek and centralized control interface.

Why Choose Portworld?

Portworld is a leading smart control solution provider with over 17 years of R&D experience in embedded systems and human-machine interface design. With a strong in-house software/hardware team and full OEM/ODM capabilities, we offer:

✅ Fully Customizable Software & Hardware (PCB, PCBA)
✅ Expert Support for KNX, Zigbee, Android, Linux & App Integration
✅ CKD/SKD Solutions for Cost-Efficient Local Assembly
✅ Faster Delivery with Streamlined Global Logistics
✅ Smart Panel Customization to meet your market or project needs

Portworld — Your Reliable OEM/ODM Partner for Smart Control Panels

Whether you’re building a modern smart home system or developing an intelligent hotel solution, Portworld provides professional-grade hardware and software to bring your vision to life.

YC-SM41P-KNX 4″ KNX Smart Touch Control Panel

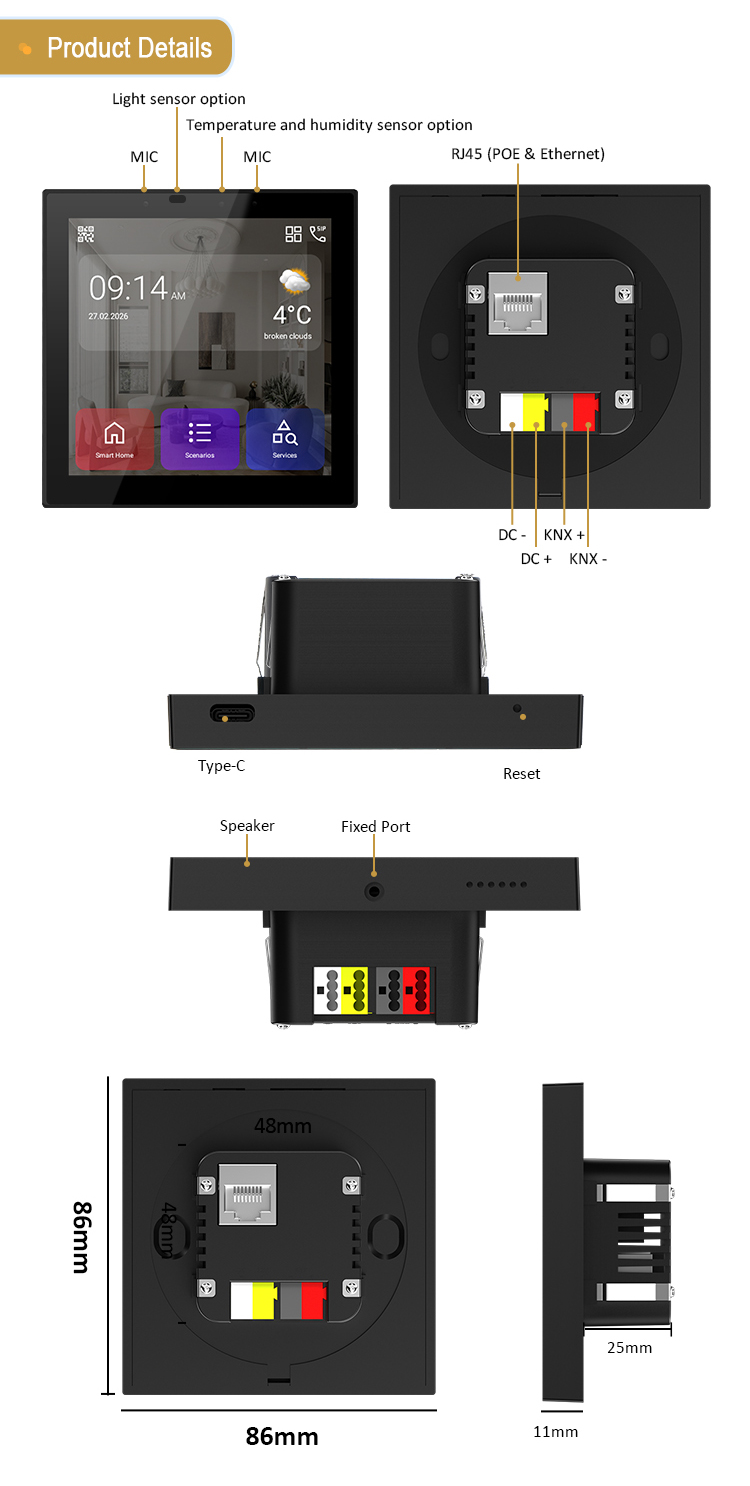

Specification

System	Dimension	868537mm
	Display size	4 inch
	CPU	RK3566 Quad-core Cortex-A55 up to 1.8GHz
	System	Android 11/13, Debian 11
	Resolution	480*480 IPS
	Touch Panel	capactive touch panel
	RAM	2G
	ROM	32G
Network	WIFI	802.11b/g/n(5G WIFI OPTION)
	Bluetooth	5.2
	Ethernet	10M/100M

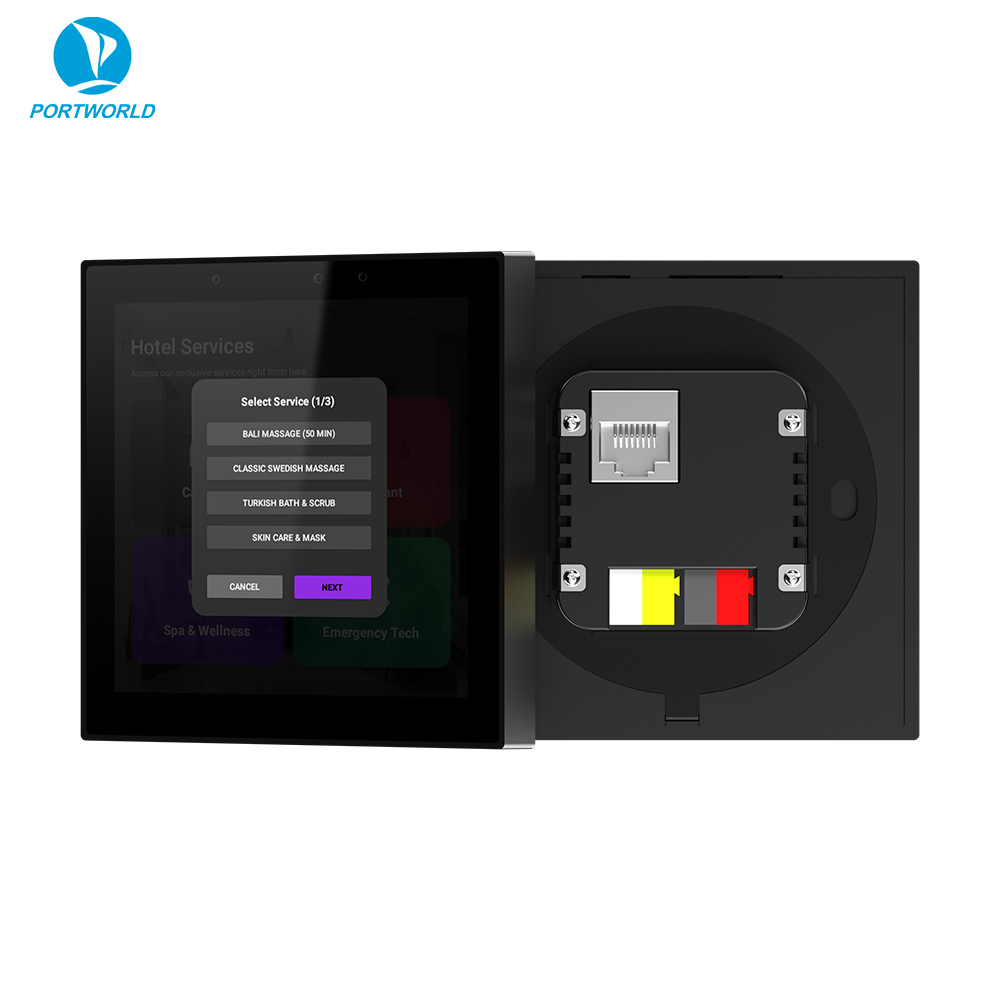

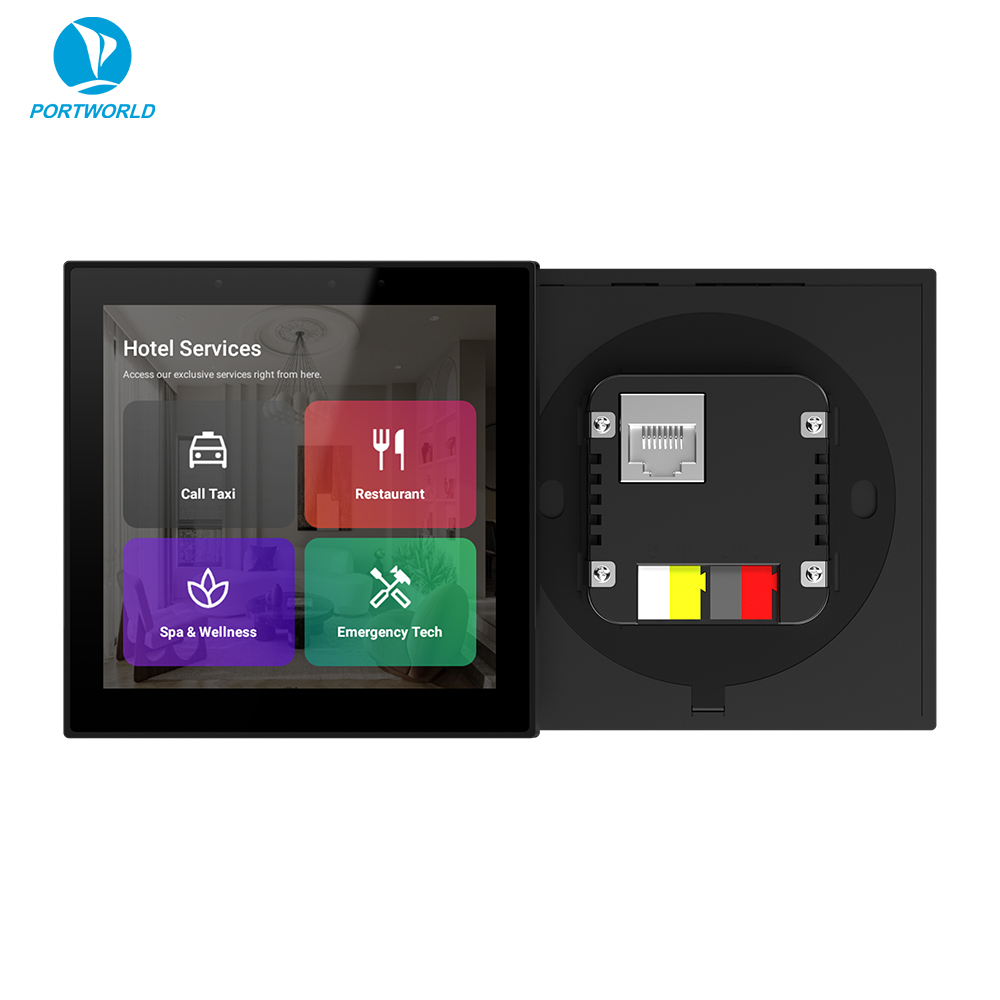

Interface	RJ45	Ethernet interface input (RJ-45 cable)
	Type C	Type C *1
	KNX	Support , with KNX ,built in Onsemi KNX transceiver
	Reset	Reset *1
	Speaker	Speaker *1
	Microphone	Microphone *2
	Power suply	POE ,IEEE802.3af
	Power suply	DC 12V
Media plays	Video	MOV / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB
	Audio	MP3 / WMA / WAV / AAC / FLAC / OGG
	Entertainment	Video / Movie / Music / FM online
Other	Install	Wall Embedded
	Color	Black color
	Working temperature	.-10°~60°
	Language	Multi-language optional

Q&A

Q1:Does your panels support Zigbee?

A1:If you need your panels to work with Zigbee, we suggest using a Gateway. Connecting all sensors to the gateway, which is then linked to our control panel. A demonstration video illustrating this process can be found at the following link: https://youtu.be/D4vSVo23JXg

Q2:Does your panels support KNX?

A2:We are not currently a member of KNX, so we do not have authorization to include KNX protocol in our standard models. However, we offer two solutions:

1. Custom Integration: With 18 years of R&D and manufacturing experience, we can integrate KNX modules into our mainboards. We will provide a neutral Android OS, and you can handle the KNX firmware. This option allows you to create a custom model tailored to your specifications.

2. KNX IP Gateway Solution: For a quick and straightforward setup, you can use a KNX IP gateway to bridge your devices with our panel.

Q3:Can I open the box and start using the panel?

A3:All of our panels run on a neutral Android OS. They can connect wirelessly via Wi-Fi and Bluetooth. For wired connections, we offer RS485. Each panel comes with the Google Play Store, allowing you to easily install apps like Tuya and Home Assistant. Additionally, we can assist with pre-installing your APK upon request.

Q4:Does it come with POE?

A4:Yes, all our smart home control panels support PoE, adheres to the IEEE802.3af standard

Q5:What operating systems do you supply?

A5:Our smart home solutions support a variety of operating systems, including Android and Linux-based systems such as Ubuntu, Debian, and Buildroot.
