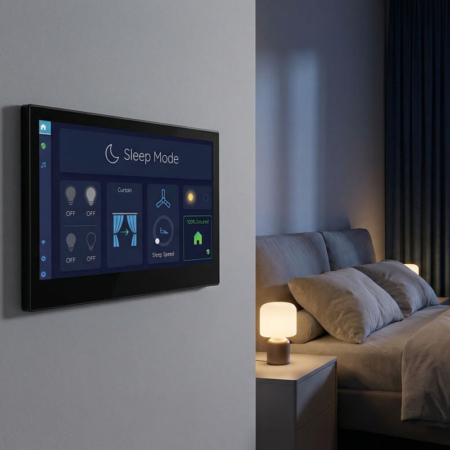

YC-SM1011

Smart Home Touch Control Panel

Key Features

The differences between SM10P and SM1011 include:
The SM1011 is a newly launched model with a metal frame and AC+POE power supply, whereas SM10P uses DC+POE power supply.
The SM1011 has better price as it is plastic case.
The SM1011 support both Android and Linux OS.

Considering some clients’ preference for a AC+POE 10.1” model with a plastic frame, we have launched the SM1011.

Send Inquiry

Overview

SM1011 Debian YC-SM1011 Smart Home Touch Control Panel

Specification

System	CPU	RK3568 Quad-core Cortex-A55 up to 2.0GHz
	RAM	2GB
	ROM	16GB
	Operation System	Android 11
Display	Screen	10” IPS screen
	Touch Panel	10-Point capactive IPS touch
	Resolution	1280*800
	Brightness	300nits
	Screen Ratio	16:9
Network	WIFI	802.11b/g/n (5G WiFi optional)
	Bluetooth	BLE 5.2
	Ethernet	10M/100M
I/O Ports	Physical Buttons	Volume+ -, Power
	RJ45	1*RJ45 Ethernet port input, support POE
	Type C	1*Type C
	RS485	RS485
	AC	AC 110V~240V input
Media plays	Video	MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB
	Audio	MP3 / WMA / WAV / AAC / FLAC / OGG
	Entertainment	Video / Movie / Music / FM online
	Microphone	Built-in
	Speaker	1W*2pcs
	Camera	Front camera 2MP (Front 5MP optional)
Others	Wireless mouse	Support
	Wireless keyboard	Support
	Installation	In-wall
	Working Temperature	-5°~70°
	Power Consumption	2*10W Max
	Language	Support multi-language
	Dimension	247.117312mm
	Material	Plastic + Glass touch panel
Accessories	Wall Box	1*86 wall box with bracket and mounting screws
Accessories	Color	Black
Warranty	12 months

Q&A

Q1:Does your panels support Zigbee?

A1:If you need your panels to work with Zigbee, we suggest using a Gateway. Connecting all sensors to the gateway, which is then linked to our control panel. A demonstration video illustrating this process can be found at the following link: https://youtu.be/D4vSVo23JXg

Q2:Does your panels support KNX?

A2:We are not currently a member of KNX, so we do not have authorization to include KNX protocol in our standard models. However, we offer two solutions:

1. Custom Integration: With 18 years of R&D and manufacturing experience, we can integrate KNX modules into our mainboards. We will provide a neutral Android OS, and you can handle the KNX firmware. This option allows you to create a custom model tailored to your specifications.

2. KNX IP Gateway Solution: For a quick and straightforward setup, you can use a KNX IP gateway to bridge your devices with our panel.

Q3:Can I open the box and start using the panel?

A3:All of our panels run on a neutral Android OS. They can connect wirelessly via Wi-Fi and Bluetooth. For wired connections, we offer RS485. Each panel comes with the Google Play Store, allowing you to easily install apps like Tuya and Home Assistant. Additionally, we can assist with pre-installing your APK upon request.

Q4:Does it come with POE?

A4:Yes, all our smart home control panels support PoE, adheres to the IEEE802.3af standard

Q5:What operating systems do you supply?

A5:Our smart home solutions support a variety of operating systems, including Android and Linux-based systems such as Ubuntu, Debian, and Buildroot.
