11.6’’ Smart Home Touch Control Panel with RK3568
Key Features
| System | CPU | RK3568 Quad-core Cortex-A55 up to 2.0GHz | |||
| RAM | 2GB (4GB optional) | ||||
| ROM | 16GB | ||||
| Operation System | Android 11 | ||||
| Display | Screen | 11.6” IPS screen | |||
| Touch Panel | 10-Point capactive IPS touch | ||||
| Resolution | 1366*768 | ||||
| Brightness | 300nits | ||||
| Screen Ratio | 16:9 | ||||
| Network | WIFI | 802.11b/g/n (5G WiFi optional) | |||
| Bluetooth | BLE 5.2 | ||||
| Ethernet | 10M/100M | ||||

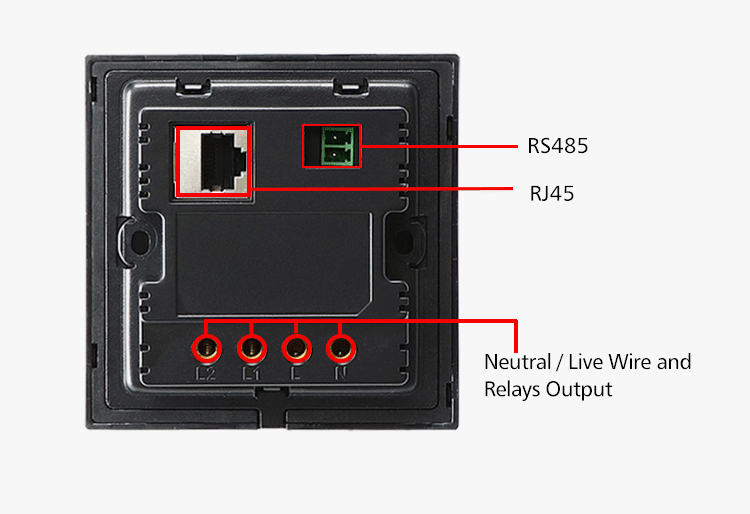

| I/O Ports | RJ45 | 1*RJ45 Ethernet port input, support POE | |||
| Type C | 1*Type C | ||||
| RS485 | RS485 A, B (RS232 optional) | ||||
| DC | 1*DC power input | ||||
| Set | *1 | ||||
| Restart | *1 | ||||
| Media plays | Video | MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB | |||
| Audio | MP3 / WMA / WAV / AAC / FLAC / OGG | ||||
| Entertainment | Video / Movie / Music / FM online | ||||
| Microphone | Built-in | ||||
| Speaker | 1W*2pcs | ||||
| Camera | No | ||||
| Others | Wireless mouse | Support | |||
| Wireless keyboard | Support | ||||
| Installation | In-wall | ||||
| Working Temperature | -5°~70° | ||||
| Power Consumption | 2*10W Max | ||||
| Language | Support multi-language | ||||
| Dimension | 282.1*179.4*11.5 mm | ||||
| Material | Metal case + Glass touch panel | ||||
| Accessories | Wall Box | 1*86 wall box with bracket and mounting screws | |||
| Color | Black | ||||
| Warranty | 12 months | ||||
