| System | Dimension | 86mm*86mm*37mm | |
| Display size | 4 inch | ||
| CPU | PX30 Quad-core cortex-A35, 1.5Ghz | ||
| System | Android 8 | ||
| Resolution | 480*480 | ||
| Touch Panel | 5 points capactive touch panel, IPS | ||
| RAM | 2G | ||
| ROM | 8G | ||
| Network | WIFI | 802.11b/g/n | |
| Bluetooth | BT 4.0 | ||
| Ethernet | 10M/100M | ||

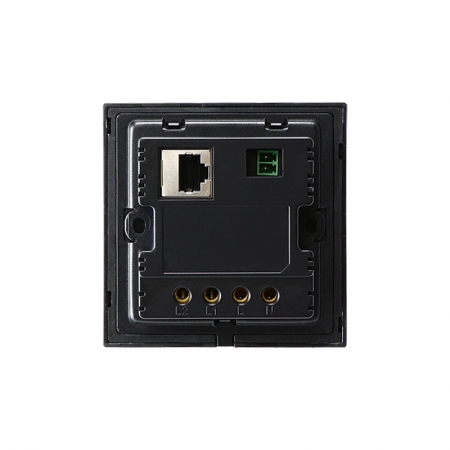

| I/O Ports | RJ45 | Ethernet interface input (RJ45 cable) | |
| RS485 | Yes, RS485 | ||
| N/L | Neutral input /Firewire input /AC 110~240V, 50HZ | ||
| L1 | Firewire output (Relay) | ||
| Features | Microphone | Dual MIC build in | |
| Speaker | Yes, built in 1W | ||
| Light-sensor | Yes | ||
| AUX | Firewire output | ||
| Alarm interface | Support | ||
| Cooling method | Air-Cooled | ||
| Media plays | Video | MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB | |
| Audio | MP3 / WMA / WAV / AAC / FLAC / OGG | ||
| Entertainment | Video / Movie / Music / FM online | ||
| Others | Camera | No | |
| Battery | No | ||

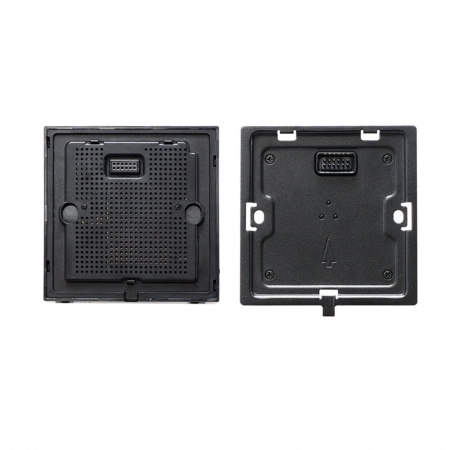

| Mount | In wall & Embedded with 86BOX | ||
| Color | Black | ||
| AC | 100-240V ,50/60Hz | ||
| Working temperature | -5°~70° | ||
| Language | Support English | ||
