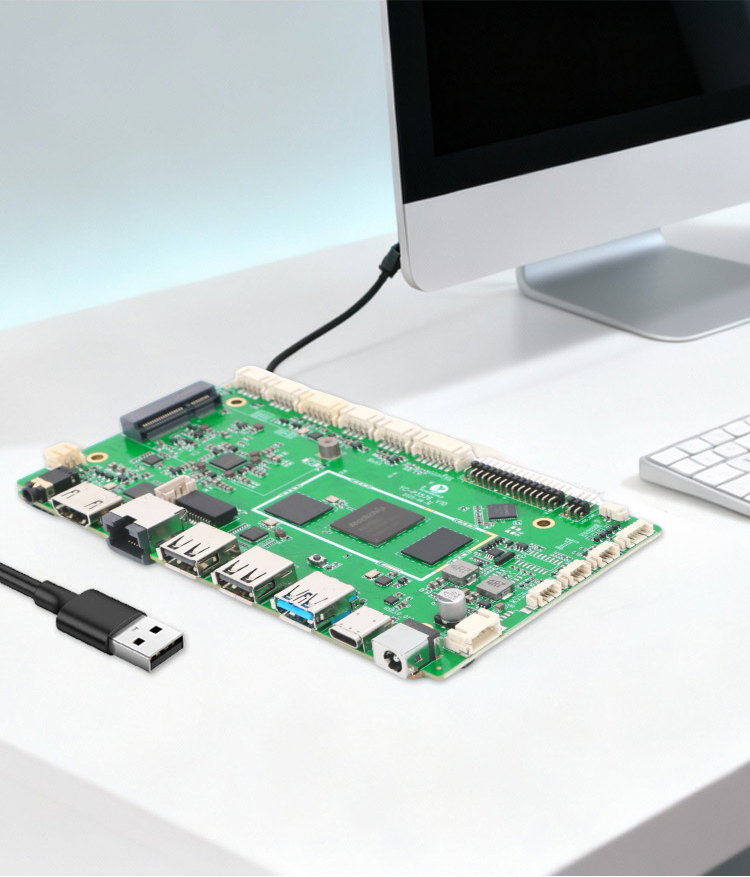

YC-P8786

Smart Mainboard

Key Features

Octa-Core AI Power: Powered by the MTK8786 64-bit CPU (up to 2.0GHz) with dedicated 2D/3D hardware acceleration.
Multi-OS Versatility: Native support for Android 12, Ubuntu, Debian OS, and Buildroot.
Robust Networking: Features dual-band Wi-Fi 5, BT 5.0, and Gigabit Ethernet with PoE capabilities.
Massive Expansion: Equipped with MIPI, LVDS, EDP, dual cameras, RS232/RS485, and extensive GPIOs.
Tailored Storage: Flexible eMMC options ranging from 16GB up to 256GB to fit your budget and data needs.
Production-Ready: Offered with full CKD/SKD manufacturing services, including source code and PCB schematics.

The P8786 Smart Mainboard is a near-flagship AIoT core solution engineered to bridge the gap between high-performance computing and superior cost-efficiency. Driven by a robust MediaTek octa-core processor, it delivers the raw processing power required for edge computing, local AI model deployment, and immersive AR/VR applications.

Send Inquiry

Overview

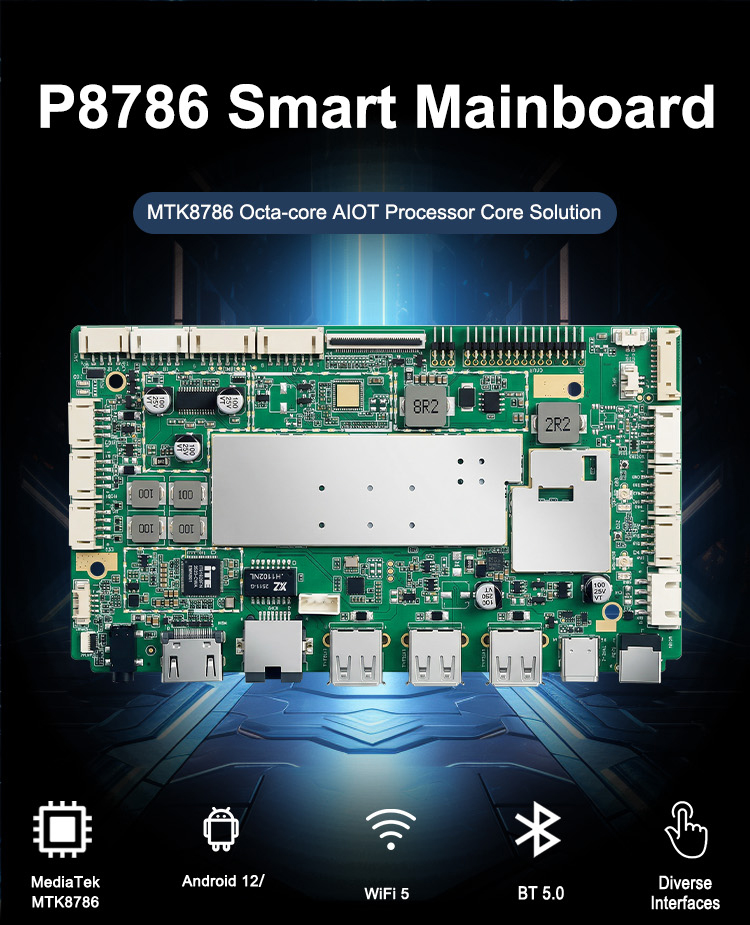

P8786 Smart Mainboard

Next-Gen AI Engine | Multi-OS Support AIoT Processor Core Solution

Product Description

The P8786 Smart Mainboard is a near-flagship AIoT core solution engineered to bridge the gap between high-performance computing and superior cost-efficiency. Driven by a robust MediaTek octa-core processor, it delivers the raw processing power required for edge computing, local AI model deployment, and immersive AR/VR applications.

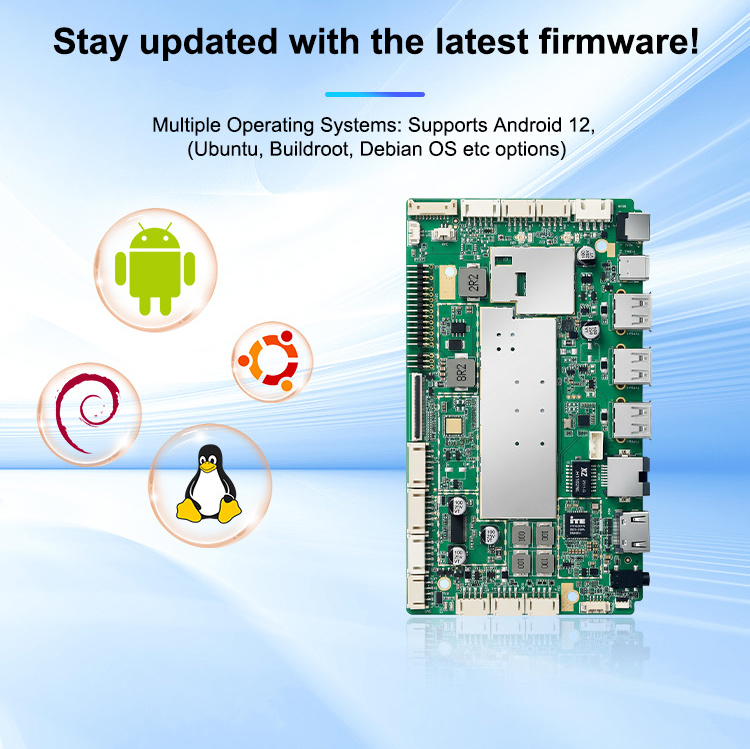

Designed with ultimate flexibility in mind, the P8786 breaks down OS barriers by seamlessly supporting Android 12 alongside major Linux distributions like Ubuntu and Debian. With its ultra-rich peripheral interface layout and industrial-grade stability, this mainboard serves as the reliable, future-proof backbone for commercial displays, industrial automation, medical equipment, and smart ecosystem hardware.

Key Features

Octa-Core AI Power: Powered by the MTK8786 64-bit CPU (up to 2.0GHz) with dedicated 2D/3D hardware acceleration.
Multi-OS Versatility: Native support for Android 12, Ubuntu, Debian OS, and Buildroot.
Robust Networking: Features dual-band Wi-Fi 5, BT 5.0, and Gigabit Ethernet with PoE capabilities.
Massive Expansion: Equipped with MIPI, LVDS, EDP, dual cameras, RS232/RS485, and extensive GPIOs.
Tailored Storage: Flexible eMMC options ranging from 16GB up to 256GB to fit your budget and data needs.
Production-Ready: Offered with full CKD/SKD manufacturing services, including source code and PCB schematics.

Technical Specifications

Component / Module	Specification Details
CPU	MediaTek MTK8786 64-bit Octa-core ( $2 \times \text{A75} + 6 \times \text{A55}$ ), max frequency 2.0GHz
GPU / NPU	Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1; built-in 2D acceleration
RAM	2GB (Standard)
Storage (ROM)	32GB eMMC (Standard); Optional 16GB / 64GB / 128GB / 256GB

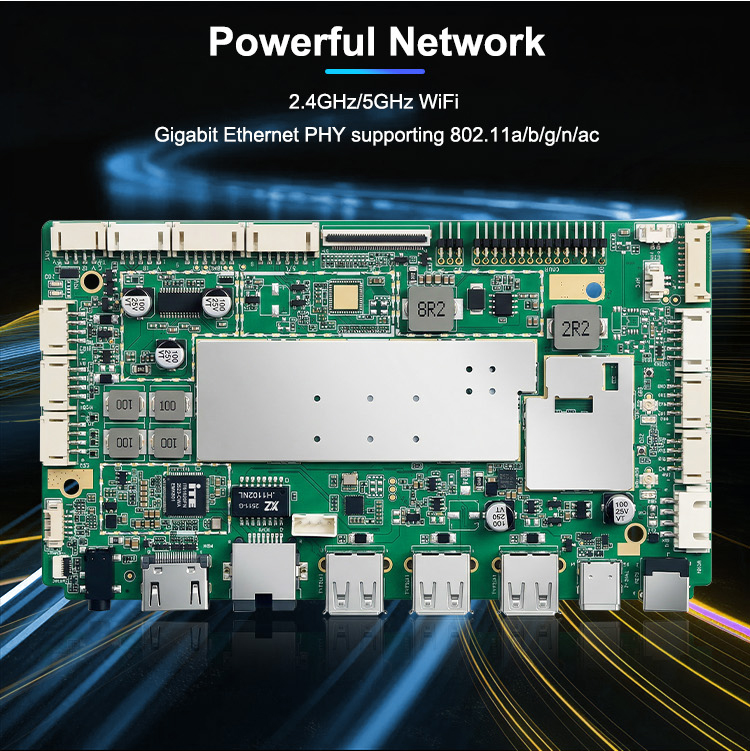

Wireless Connectivity	Dual-band Wi-Fi 5 (2.4GHz/5GHz, 802.11a/b/g/n/ac) + BT 5.0
Wired Network	Gigabit Ethernet PHY, featuring a PoE capable interface

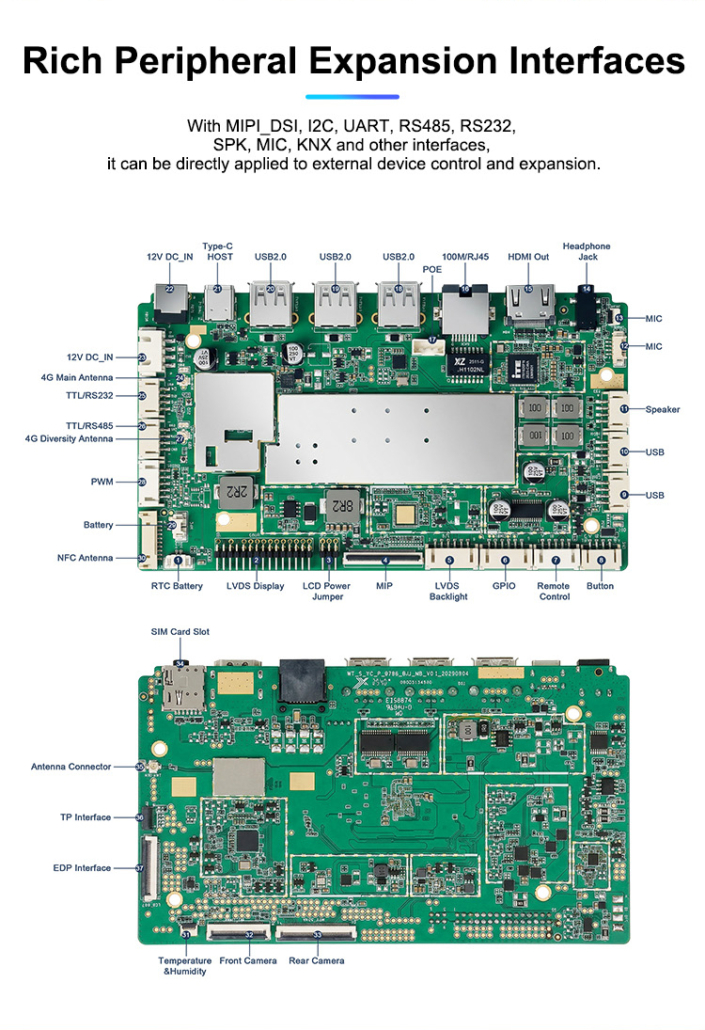

Interface Layout Breakdown

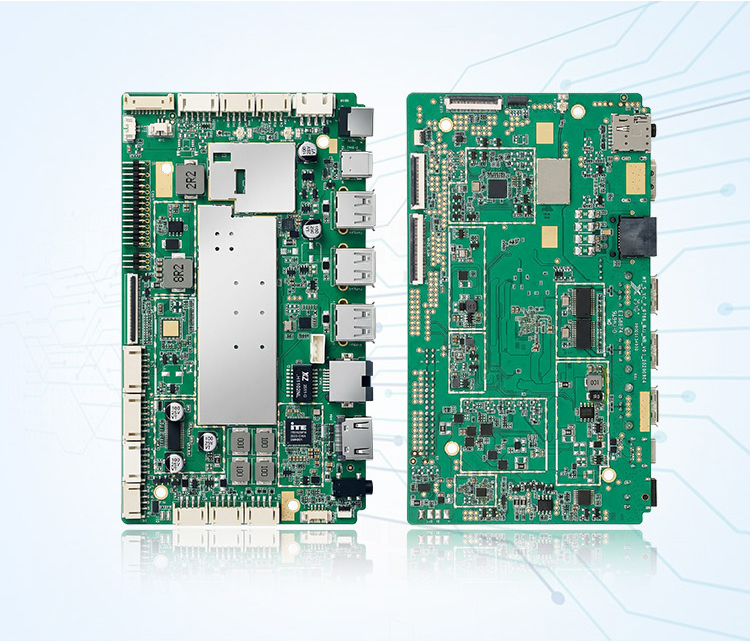

The high-density, dual-sided layout provides extensive connectivity for external device control:

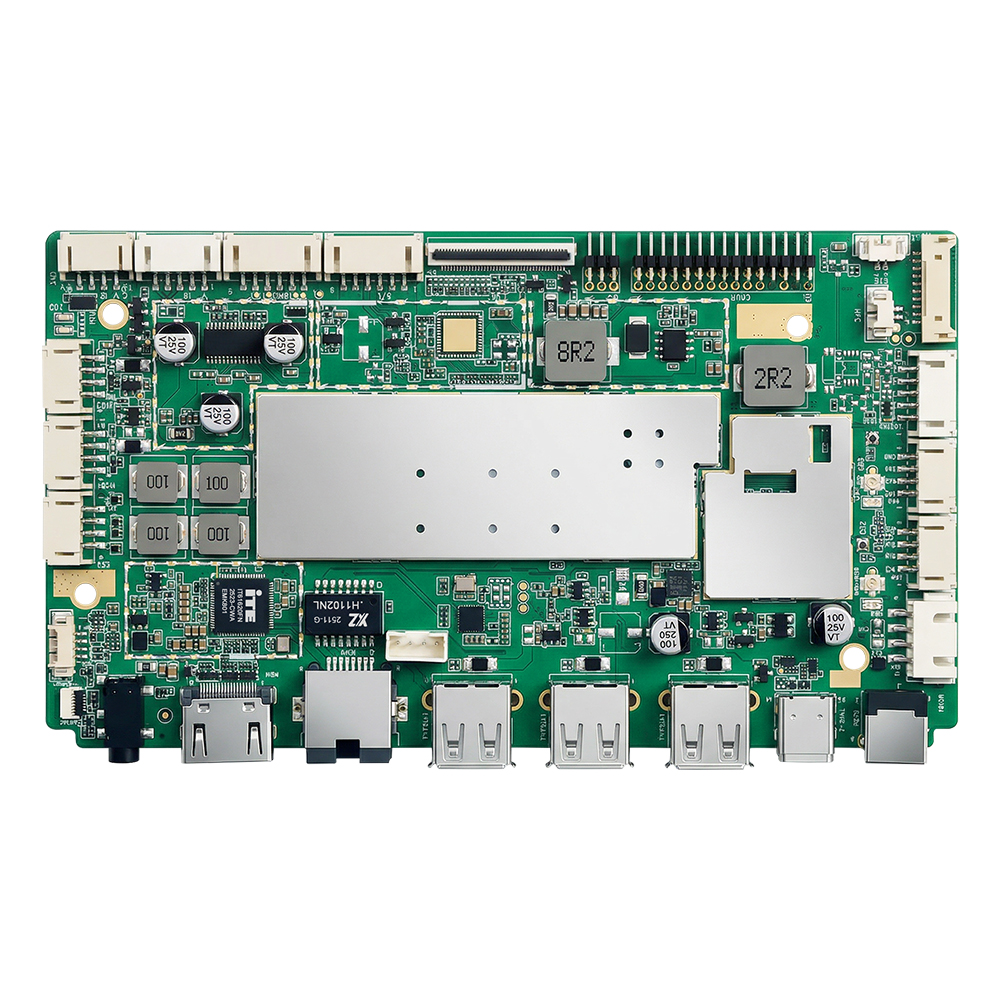

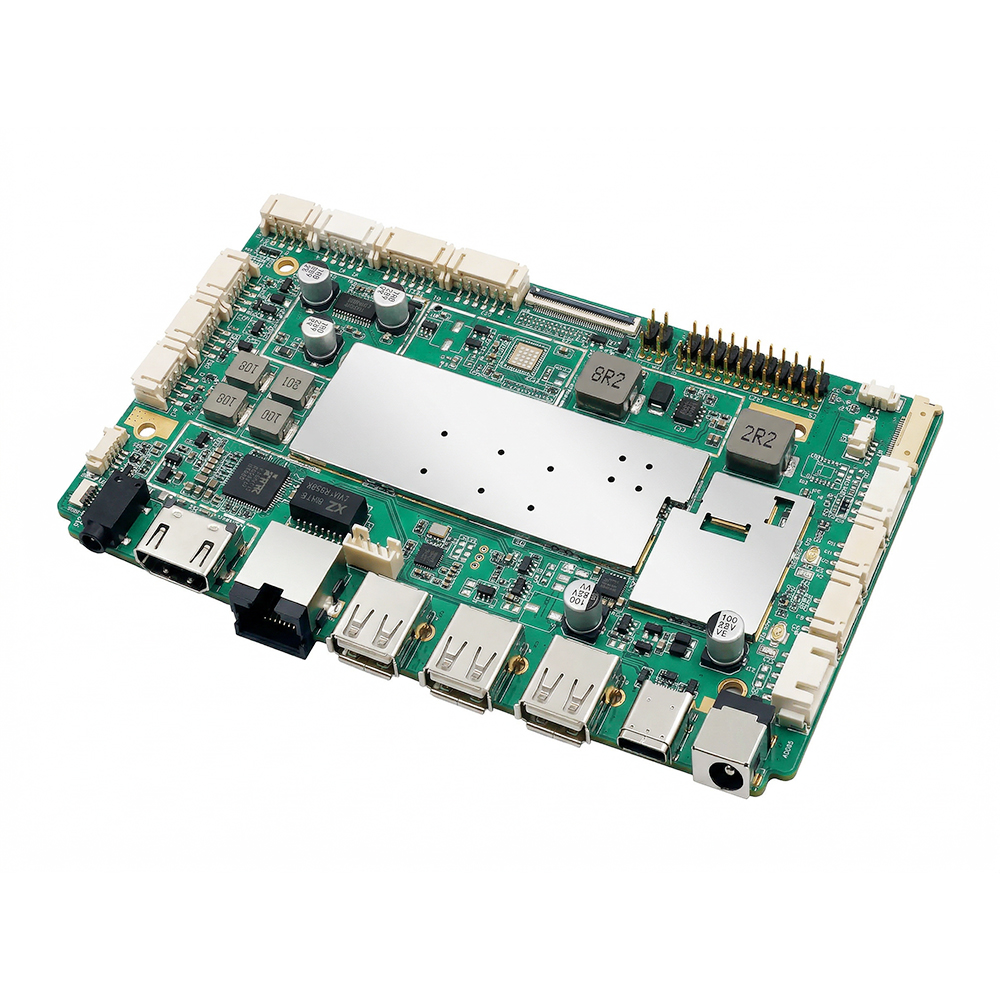

Top-Side Interfaces (Peripherals & Comms):

Data & Video: $3 \times$ USB 2.0, $1 \times$ Type-C HOST, $1 \times$ HDMI Out
Audio & Power: 3.5mm Headphone Jack, $2 \times$ MIC inputs, Speaker interface, 12V DC_IN, Battery & RTC connectors
Display & Industrial Bus: LVDS Display, MIPI, LVDS Backlight, TTL/RS232, TTL/RS485, PWM, and GPIO headers
Network & Antennas: 100M/RJ45 (PoE), 4G Main, 4G Diversity, and NFC Antennas

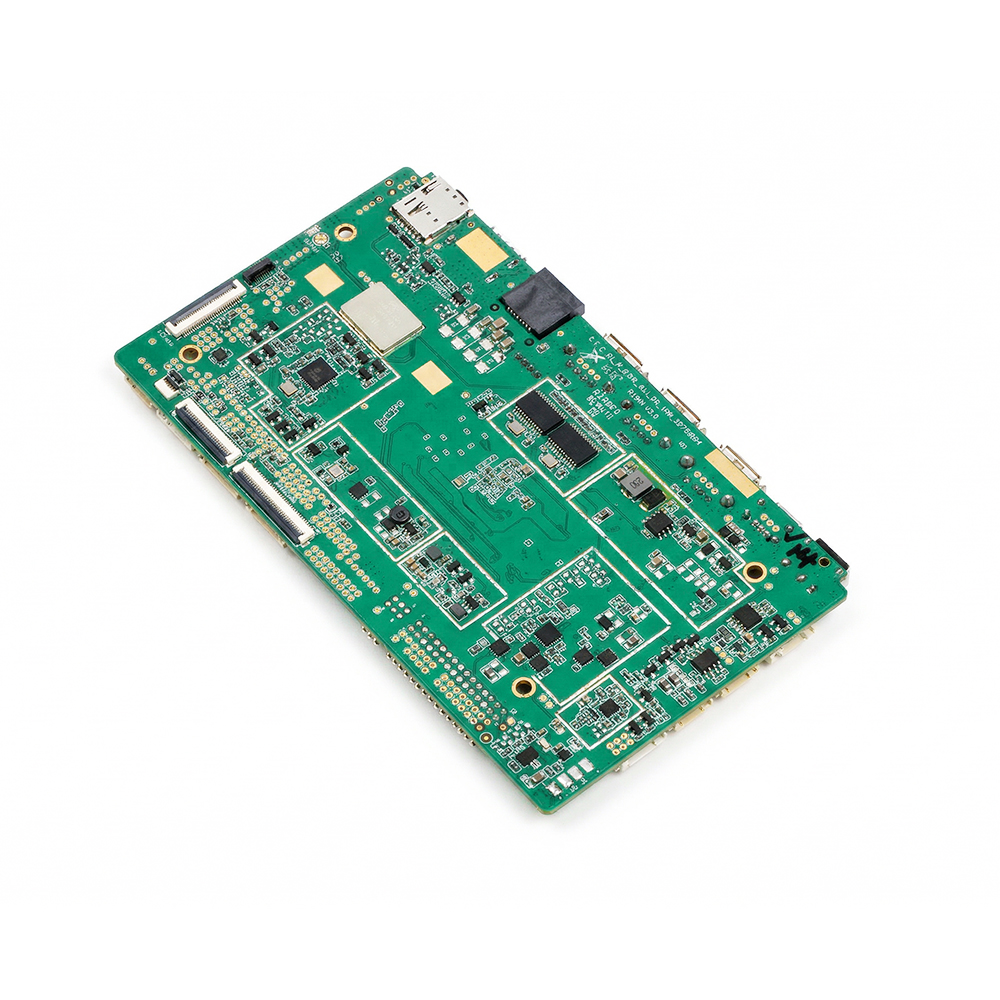

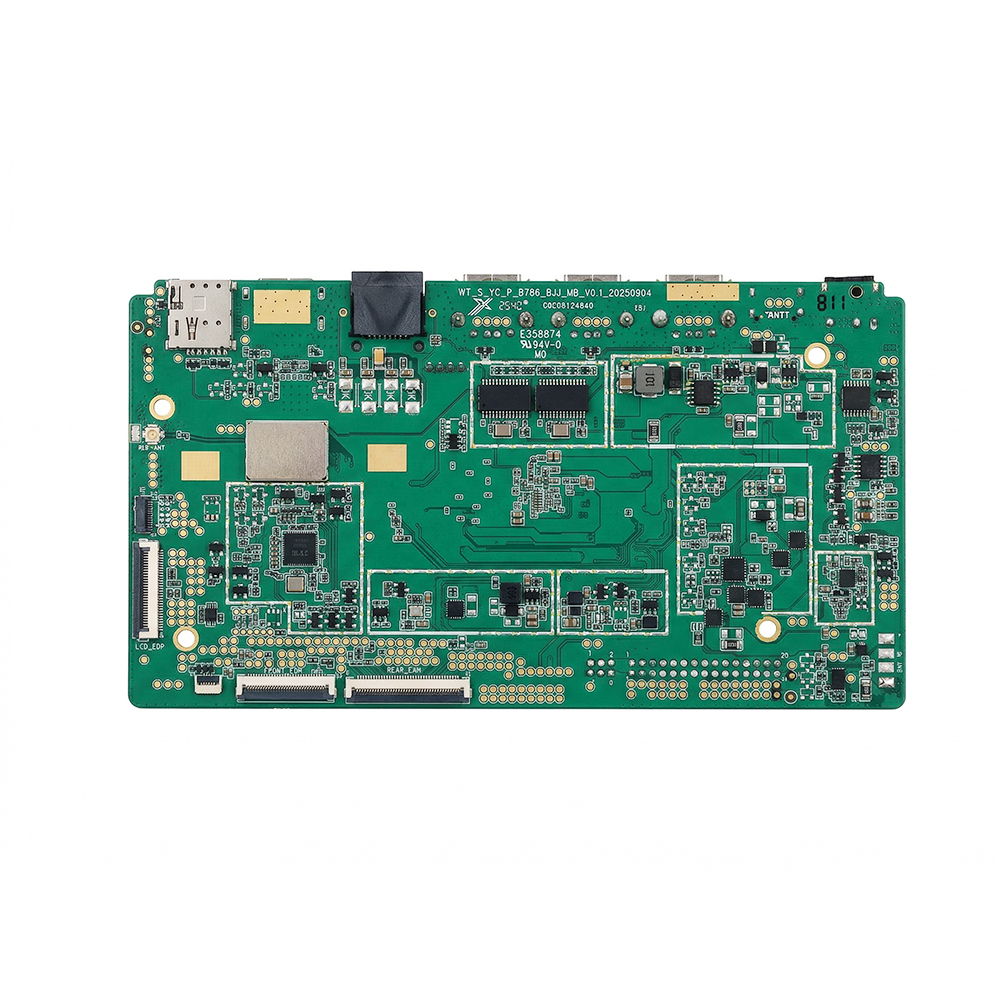

Bottom-Side Interfaces (Display & Sensing):

Cellular & Cameras: Standard SIM Card Slot, Front & Rear Camera interfaces
Display & Environment: EDP and TP (Touch Panel) interfaces, Temperature & Humidity sensor pins

Application Scenarios

Smart Environments: Smart home control panels, building intercoms, and luxury hotel control hubs.
Industrial & AI Edge: Localized large AI models, edge computing nodes, machine vision, and factory automation.
Commercial Systems: Interactive digital signage, retail kiosks, cloud terminals, medical systems, and automotive electronics.

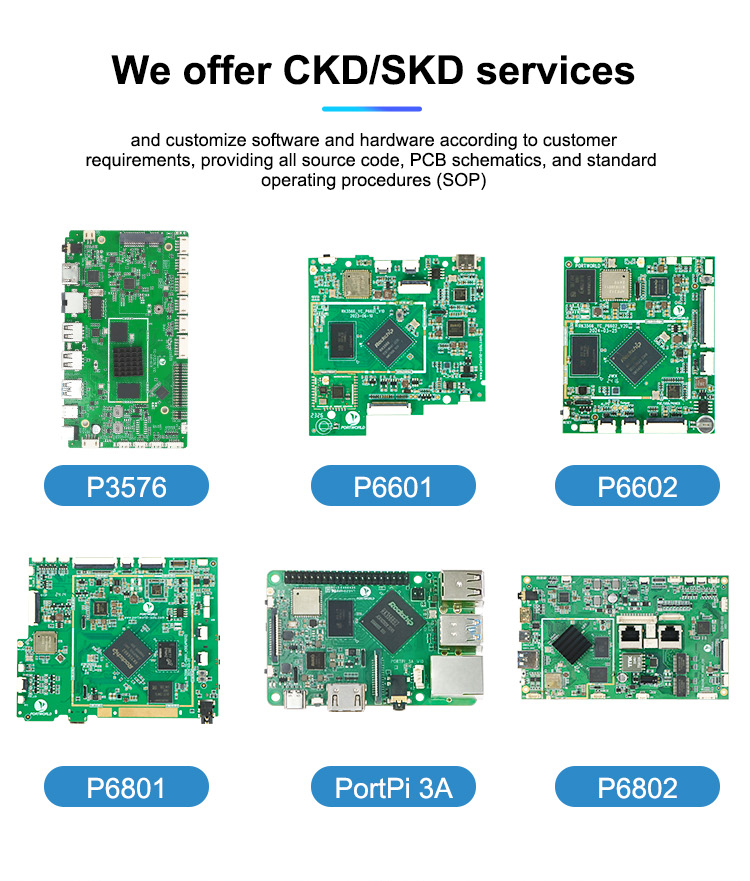

Corporate CKD/SKD Services

Accelerate your time-to-market. We offer full hardware customization and software support across our entire board lineup (P8786, P3576, P6601, P6602, P6801, PortPi 3A, P6802). Get access to full source code, schematics, and SOPs for seamless mass production.

YC-P8786 Smart Mainboard

Specifications

Specifications
Basic Parameters	SOC	MediaTek MTK8786
	CPU	Octa-core 64-bit processor (2×A75 + 6×A55), max frequency 2.0GHz
	GPU	ARM Mail-G52 MC2, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded high-performance 2D acceleration hardware
	NPU	/
	Decoding Parameters	Decoding: 2K@30fps/1080P@60fps (H.264/H.265/VP9) Encoding: 2K@30fps/1080P@60fps (H.264/H.265)
	Memory	LPLPDDR4/LPDDR4X (4GB/8GB/16GB optional) Default: 4GB
	Storage	eMMC (16GB/32GB/64GB/128GB/256GB optional) Default: 32GB
	Power	12.0V （5.5mm × 2.1mm）
	System	Android12
	Size	MIPI:10.1″ ，EDP:15.6″ ，LVDS：21.5″
	Environment	Operating temperature: -10℃~60℃; Storage temperature: -20℃~70℃; Operating humidity: 10%~90%RH (non-condensing)
Interfaces Parameters	Ethernet	1 × 100Mbps Ethernet (RJ45) with PoE Power Supply Dual-band WiFi 5 (2.4GHz/5GHz, supporting 802.11a/b/g/n/ac protocols) and Bluetooth 5.0; 4G LTE
	Video Input	1 × MIPI Camera Input 丨 USB Camera input
	Video Output	1 × eDP (1×2 lanes) 1 × MIPI-DSI DPHY (1080 ×2520\@60fps, 40Pin-0.5mm, 1×4 lanes) or dual 8-bit LVDS 1920×1080 output
	Watchdog	Software Watchdog
	USB Interface	5 × USB 2.0 Host, 1 × Type-C OTG/HOST
	Expansion Interfaces	1 × TTL Serial Ports (optional RS485/RS232, default TTL), 1 × Debug Serial Port 1 × Remote Control, 1 × Red LED, 1 × Green LED Supports speaker interface, up to two 8Ω 5W dual-channel speakers; 1 × 3.5mm audio jack (supports MIC recording, CTIA standard) Supports 1 × MIC input 4 × General-purpose GPIOs 1 × Touch Interface
