10.1-inch Android L-Shaped Vertical Display Tablet
Key Features

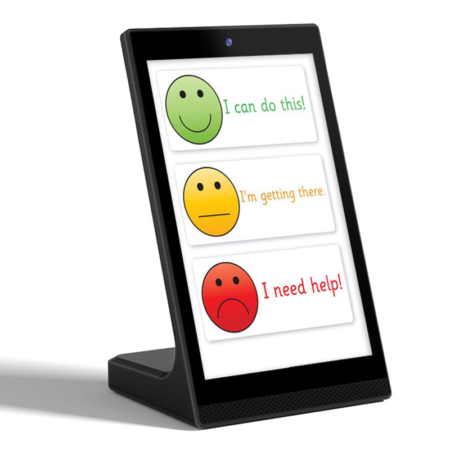

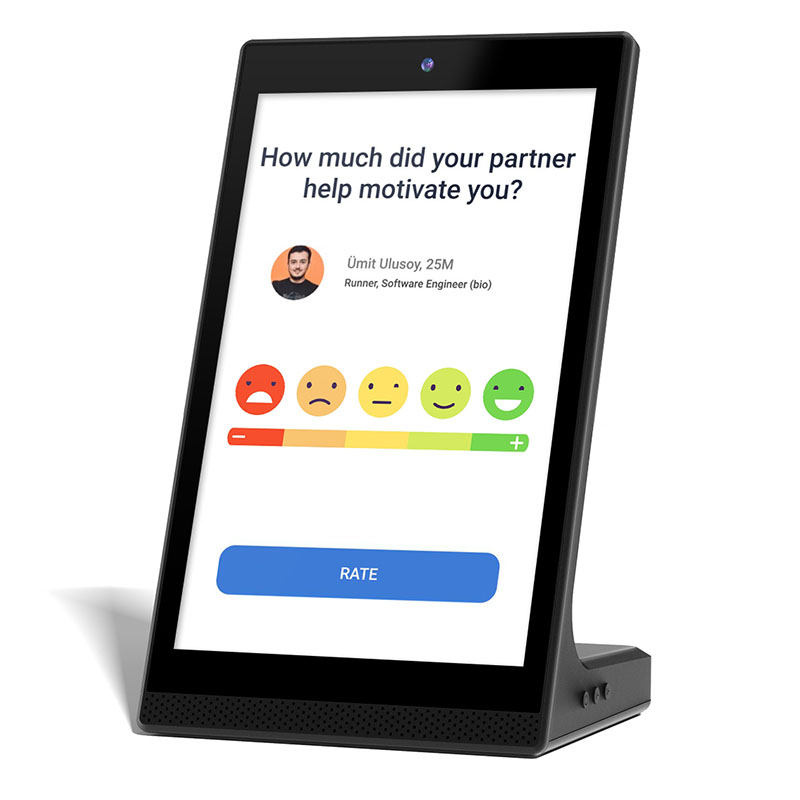

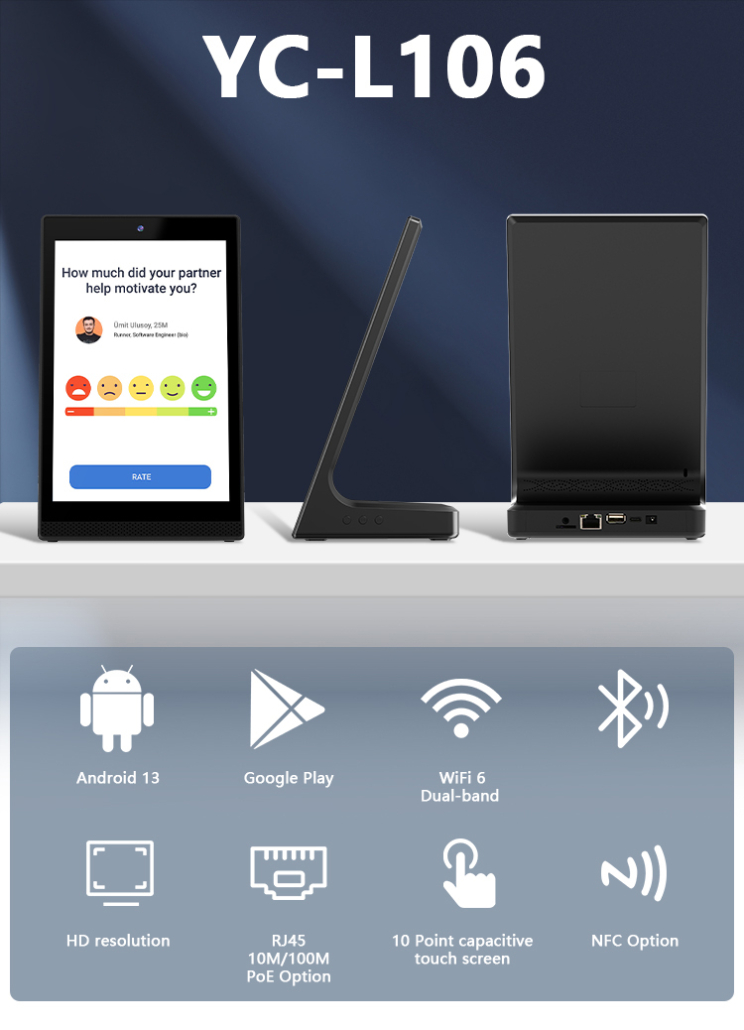

YC-L106 10.1-inch Android L-Shaped Vertical Display Tablet

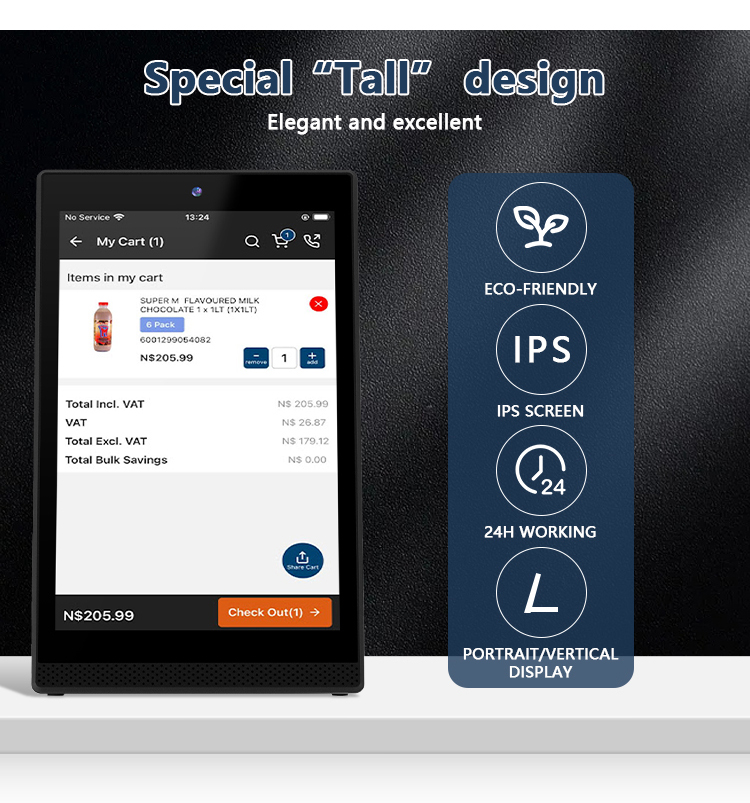

The Portworld YC-L106 is a high-performance 10.1-inch Android L-shaped vertical display tablet designed for retail, hospitality, corporate, and public environments. With its slim tall design, A+ IPS screen, and 24/7 stable operation, it delivers an elegant, eco-friendly, and interactive solution for modern businesses. Whether used for digital signage, access control, payment systems, or smart office applications, the YC-L106 provides unmatched flexibility and reliability.
Enjoy the latest Android system with seamless Google Play support, enabling easy installation of applications and flexible customization.

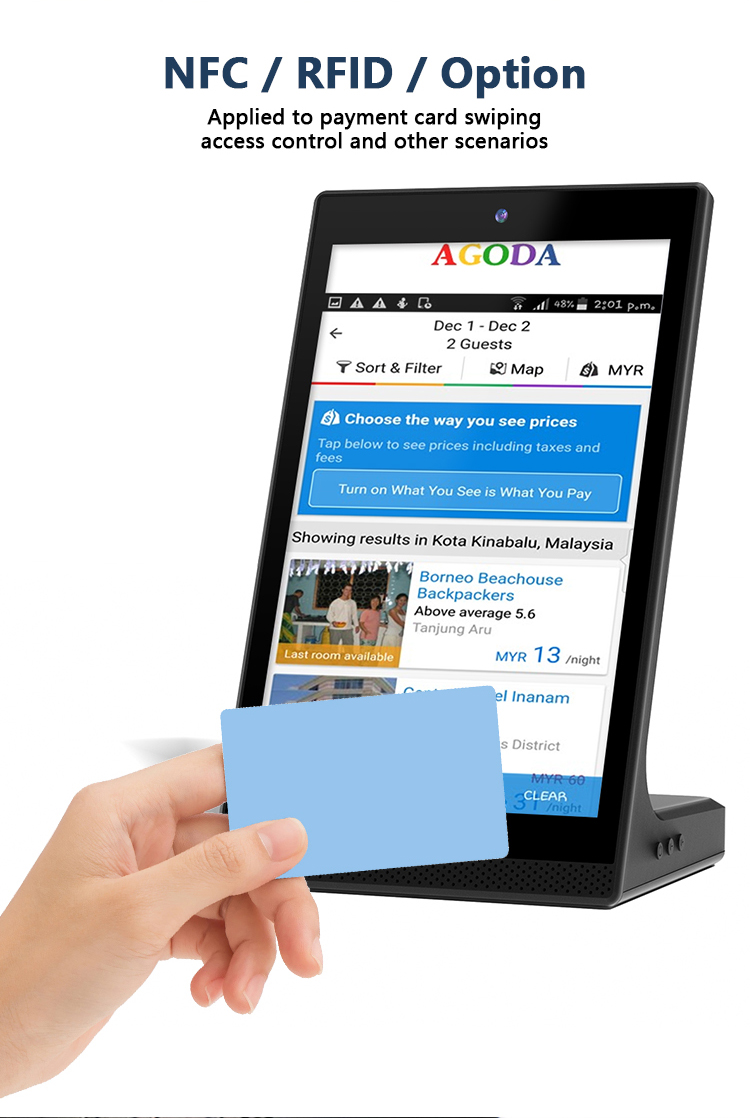

Supports card swiping, access authentication, and payment solutions—ideal for retail, hotels, and office security.
The YC-L106 combines elegant industrial design with strong performance and practical functions, making it an ideal solution for businesses that need stable operation, interactive features, and professional presentation. With optional PoE power, NFC/RFID, and camera configuration, it adapts flexibly to different industries and installation scenarios.

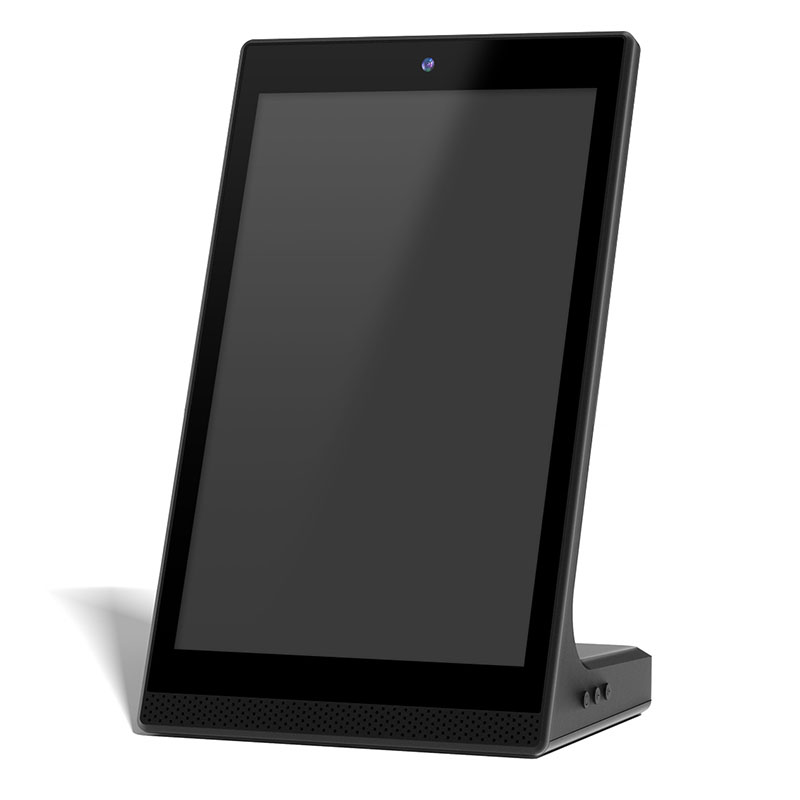

YC-L106 10.1-inch Android L-Shaped Vertical Display Tablet
YC-L106 10.1-inch Android L-Shaped Vertical Display Tablet (2)

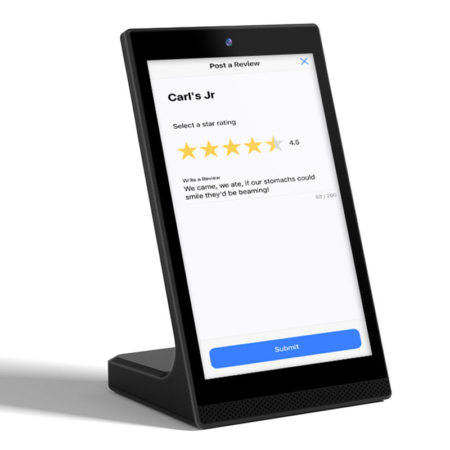

YC-L106 10.1-inch Android L-Shaped Vertical Display Tablet (3)

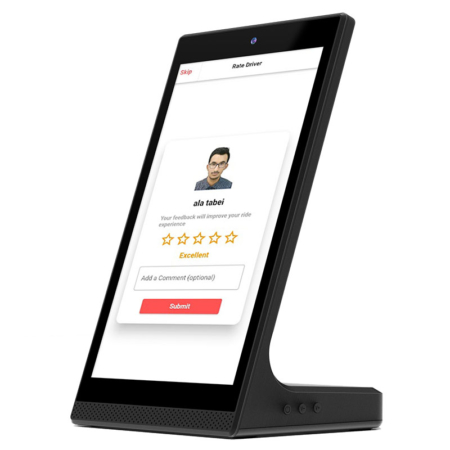

YC-L106 10.1-inch Android L-Shaped Vertical Display Tablet (4)
YC-L106 10.1-inch Android L-Shaped Vertical Display Tablet (5)
YC-L106 10.1-inch Android L-Shaped Vertical Display Tablet (6)

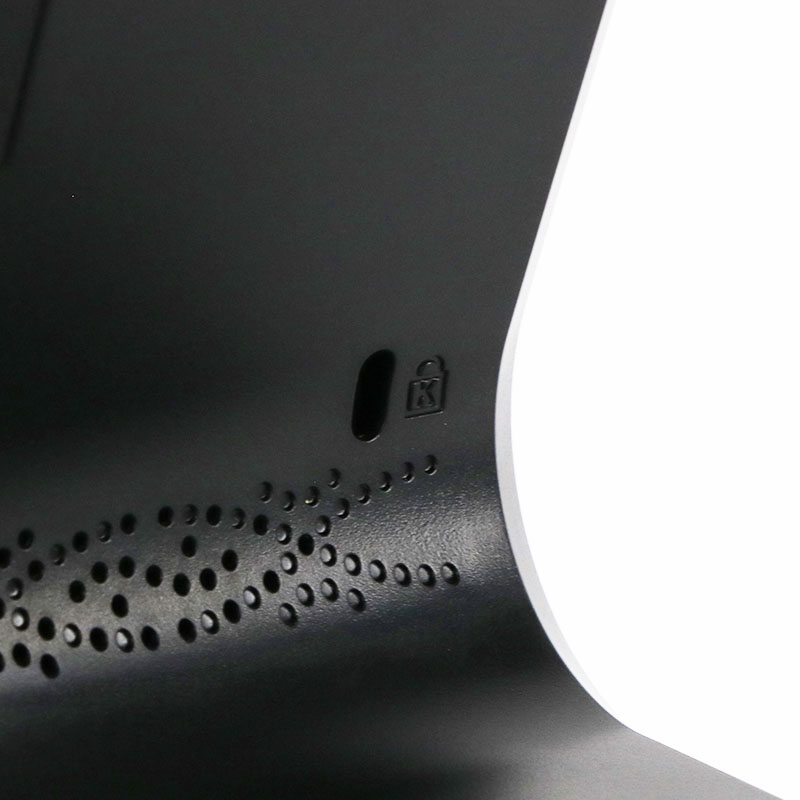

YC-L106 10.1-inch Android L-Shaped Vertical Display Tablet (7)

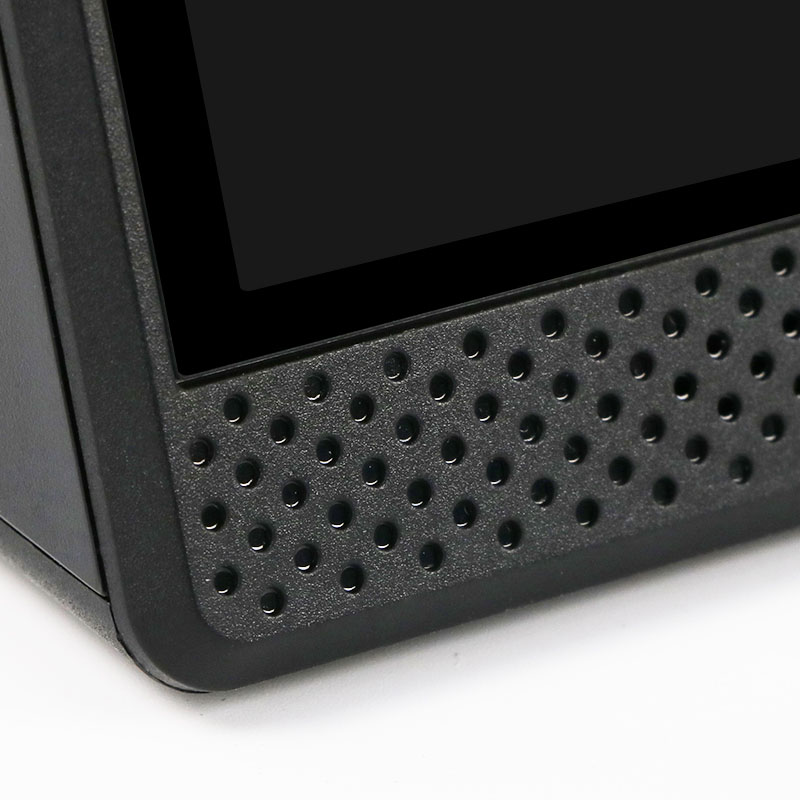

YC-L106 10.1-inch Android L-Shaped Vertical Display Tablet (8)
YC-L106 10.1-inch Android L-Shaped Vertical Display Tablet (8)
YC-L106 10.1-inch Android L-Shaped Vertical Display Tablet (8)

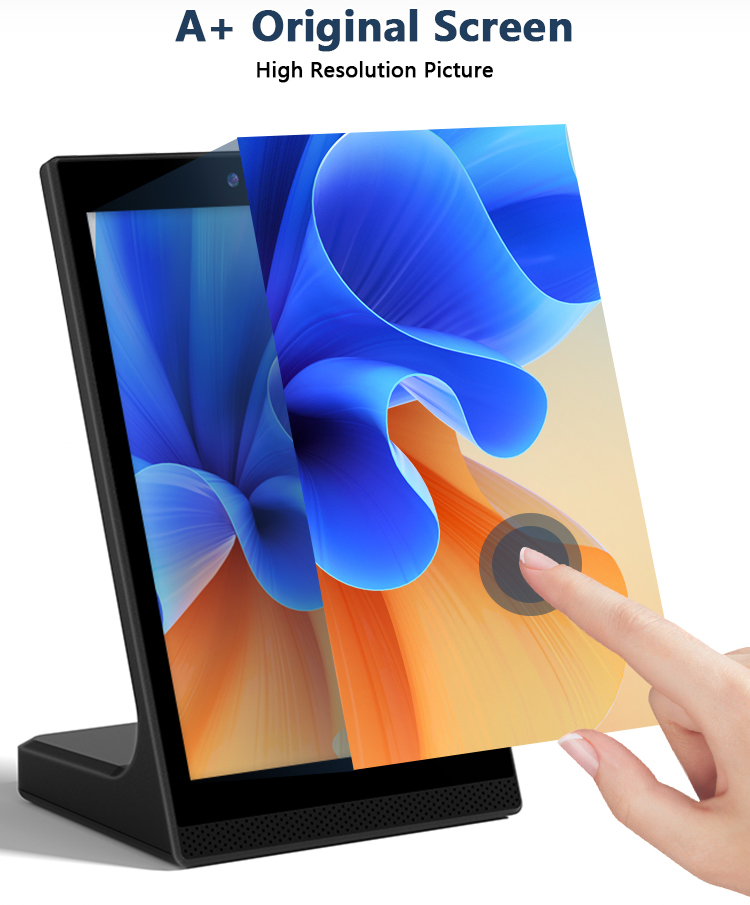

| Display | Panel | 10.1″LCD touch screen | ||||||||||||
| Resolution | 800×1280 | |||||||||||||
| Viewing angle | 85/85/85/85(L/R/U/D) | |||||||||||||
| Brightness | 300 cd/m2 | |||||||||||||
| Contrast | 1000:1 | |||||||||||||
| Screen scale/Display area | 16：10 | |||||||||||||
| System | CPU | Rockchip RK3562 Quad-core Cortex-A53 up to 2.0GHz A133 1GB+32GB ， android 10 option |
||||||||||||
| RAM | 2GB / 1GB optional | |||||||||||||
| Internal memory | 32GB | |||||||||||||
| Operation system | Android 13 /10 OS | |||||||||||||
| Touch screen | 10-Point capacitive touch | |||||||||||||
| Network | WIFI | 2.4G,5G dual-band WIFI6 | ||||||||||||
| Ethernet | 100M ethernet (1000M optional) | |||||||||||||
| Bluetooth | BT 5.2 | |||||||||||||
| 4G/5G Cellular network | Optional | |||||||||||||

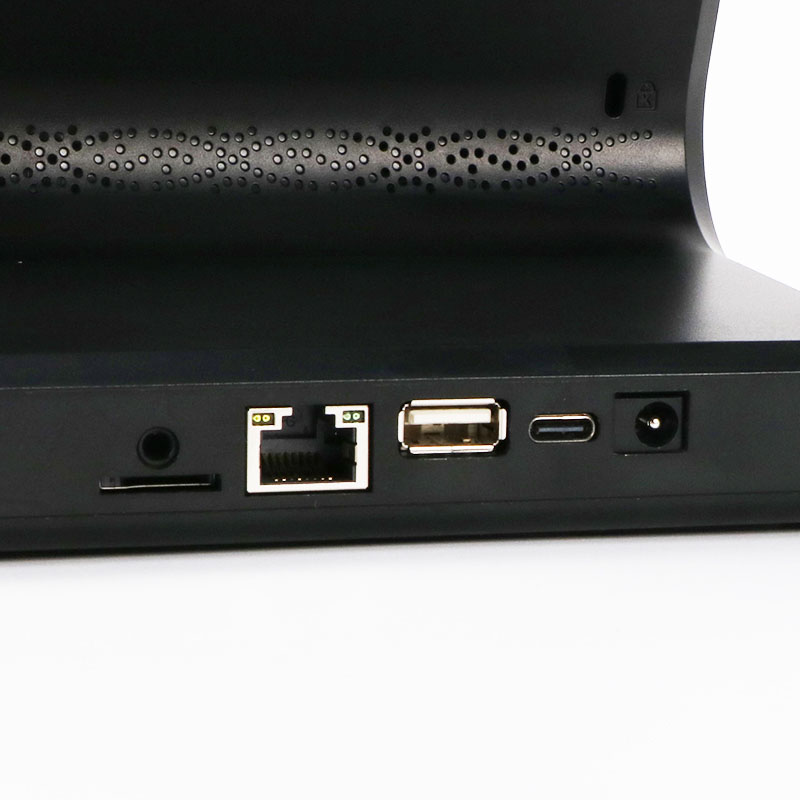

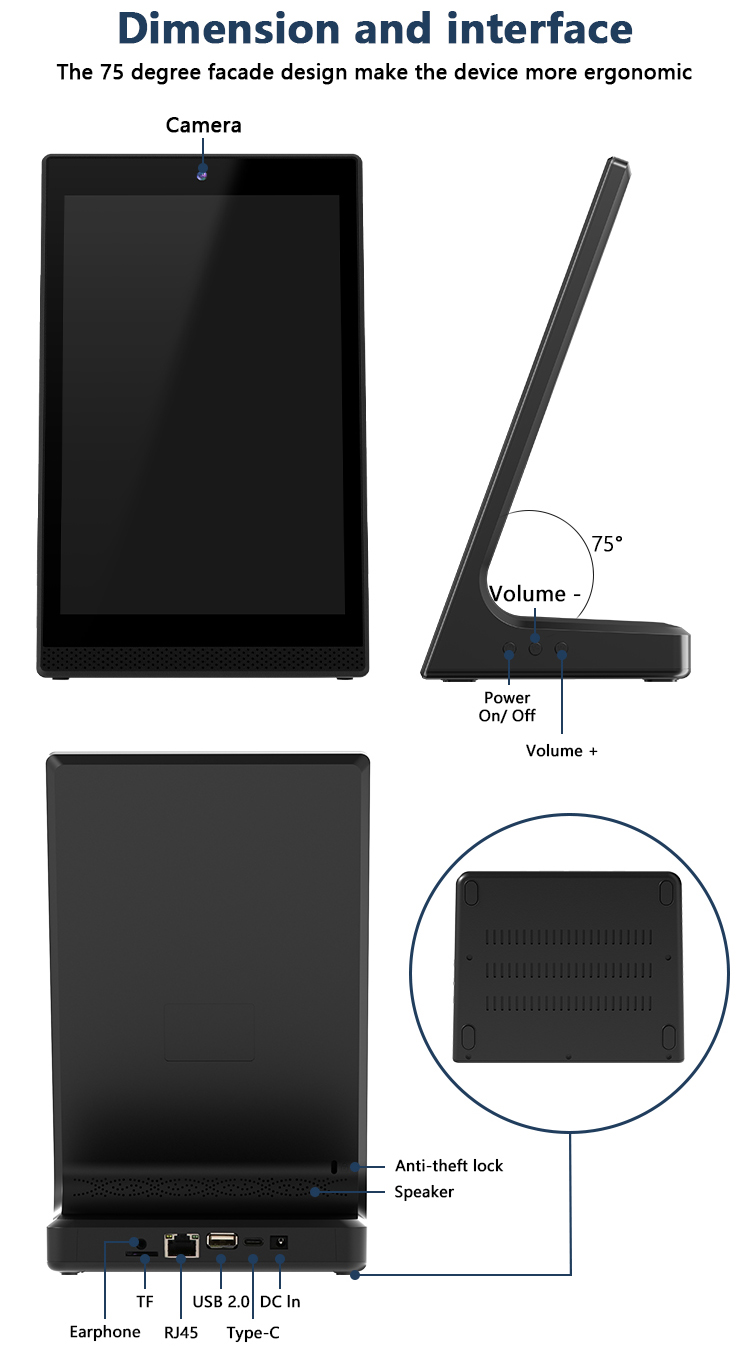

| Interface | TF | TF card slots | ||||||||||||
| USB 2.0 | 1×USB 2.0 interface (support U disk, mouse, keyboard, printer etc) | |||||||||||||
| USB 3.0 | 1×USB 3.0 interface (support U disk, mouse, keyboard, printer etc) | |||||||||||||

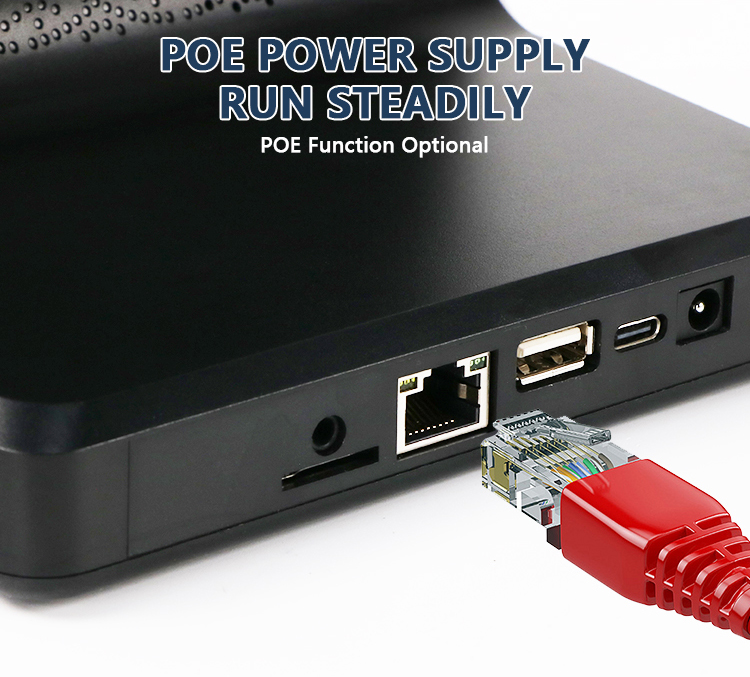

| RJ45 | Ethernet interface (POE function Optional) | |||||||||||||
| Earphone | 1×3.5mm headphone Interface | |||||||||||||
| HDMI out | 1xHDMI out | |||||||||||||
| Power | DC power input (5.5×2.1) | |||||||||||||
| Multi-Media | Video | Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P) | ||||||||||||
| Audio | Support MP3, WMA, AAC and so on | |||||||||||||
| Picture | JPEG、JPG | |||||||||||||
| Other parameters | Microphone | One microphones | ||||||||||||
| Speaker | 2×2W speakers | |||||||||||||

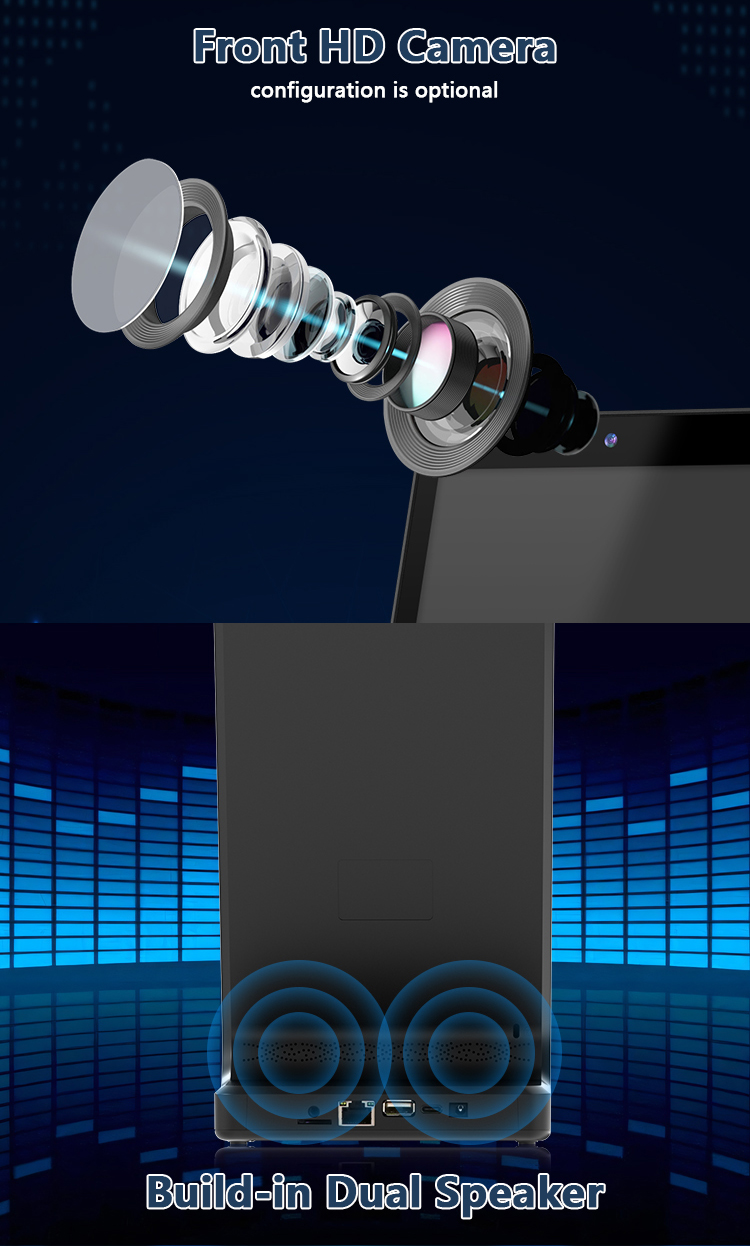

| Camera | Standard 2.0MP pixel camera (5.0MP pixel camera optional) | |||||||||||||
| Working temp | 0-50degree | |||||||||||||
| OSD language | Multi-language | |||||||||||||
| Certificates | CE， etc. | |||||||||||||
| Attachment | Adapter | One, specifications: 12V/2A | ||||||||||||
| User’s Manual | yes | |||||||||||||
