YC-3201T

32″ Wall Mounted Touch Screen Digital Signage Display

Key Features

1. 32″ IPS screen with 1920×1080 resolution
CPU options: RK3128/RK3288/RK3566/RK3568/RK3588/RK3399
RAM 1GB/2GB/4GB, ROM 8GB/16GB/32GB/64GB
Android 6.0/7.1/8.1/9/10/11 OS
Access to all available Android applications, support rooted Android system
RJ45 Ethernet port for POE function
Optional functions: front NFC, no touch, no POE

Applications: It widely applied mainly in public entertainment venues such as government administrative hall, industrial automation, smart medical, smart home, shopping malls, hotels, monopoly stores, exhibition halls, banks, hospitals, schools, bars and other large living quarters.

We support OEM ODM customized service, such as customized logos, customized packing, auto run apk, etc.

Send Inquiry

Overview

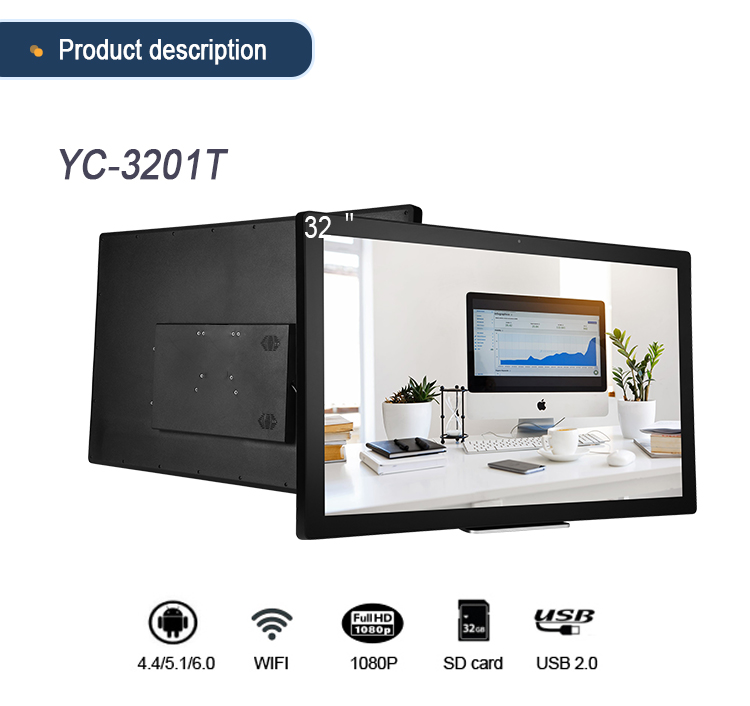

Portworld YC-3201T 32″ Wall Mounted Touch Screen Digital Signage Display

As a one-stop touch system solution provider, Portworld delivers cutting-edge technology with the YC-3201T 32-inch Wall Mounted Touch Screen Digital Signage Display, designed for 24/7 continuous operation. With exceptional performance, industrial-grade durability, and flexible installation options, this display is perfect for a wide range of commercial and industrial applications.

Superior Display & Touch Performance

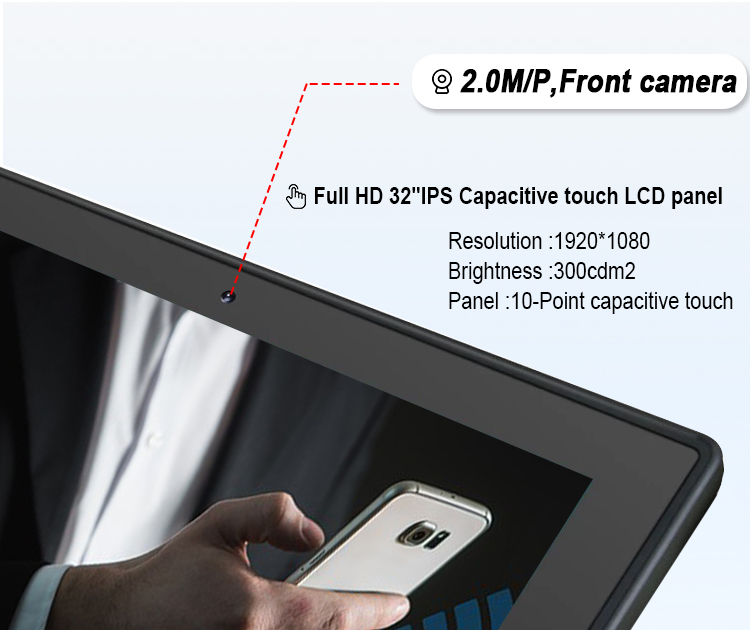

Resolution: 1920×1080 Full HD for crystal-clear, high-definition visuals
Panel Type: IPS display with accurate colors and 300cd/m² brightness
Touch Technology: 10-point capacitive touch for smooth, responsive interaction

High Performance & Reliable Operation

Processor Options: Supports Rockchip 3288/3399/PX30 for fast and efficient computing
Operating System: Compatible with Android 4.4/5.1/6.0/7.1/8.0
Connectivity: Built-in Wi-Fi support and optional PoE power supply
Continuous Operation: Designed for 24/7 use with a porous body and enhanced heat dissipation

Industrial-Grade Durability

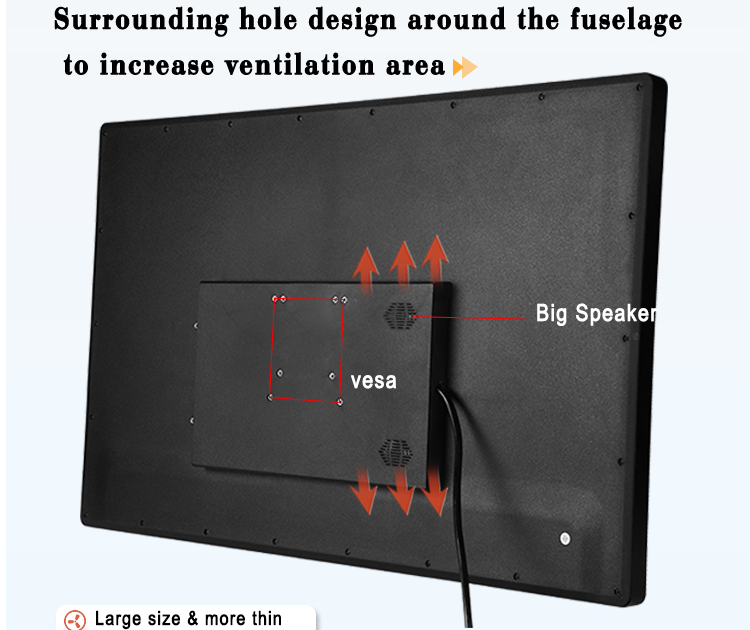

Optimized Heat Dissipation: Surrounding hole design maximizes airflow, preventing overheating
Waterproof & Dustproof Speakers: Features industrial-grade sound-transmitting material technology for clear audio
Strong Build Quality: Engineered for durability, making it ideal for demanding environments

Flexible Installation for Various Applications

Mounting Options: Supports VESA 100×100mm wall mounting and desktop bracket installation
Sleek & Ultra-Thin Design: Large screen with a modern, slim profile

Why Choose Portworld?

Portworld is more than just a hardware provider—we offer a one-stop touch system solution, ensuring:
✅ Cost Savings: CKD/SKD solutions reduce import tariffs and logistics costs
✅ Custom Engineering Support: Optimized PCBA design to lower production costs
✅ Tailored Solutions: Flexible assembly options and software customization
✅ Streamlined Logistics: Faster delivery times and supply chain efficiency

With over 17 years of R&D expertise, Portworld is dedicated to delivering high-quality, customizable, and cost-effective touch solutions for businesses worldwide. The YC-3201T is a testament to our commitment to innovation and excellence.

YC-3201T 32 inch Wall Mounted Digital Signage Display (5)

YC-3201T 32 inch Wall Mounted Digital Signage Display (2)

YC-3201T 32 inch Wall Mounted Digital Signage Display (6)

Specification

System

CPU

RK3288 quad core / RK3566/RK3568/RK3588/RK3399

RAM

2GB / 4GB

Internal memory

16GB / 32GB

Operation system

Android 7.1 / 8.1 / 9 / 10 / 11

Display

Touch screen

10-Point capacitive touch screen

Panel

32″ panel

Resolution

1920*1080

Viewing angles

85/85(H),80/80(V)

Contrast ratio

1000

Luminance

300cdm2

Aspect Ratio

16:9

Network

WiFi

2.4G wifi

3G dongle

3G USB dongle ext.

Ethernet

10M/100M Ethernet

POE

Support

Bluetooth

Interface

Card slot

SD,Support up to 32GB

USB Device

Mini USB OTG

USB Hostx3

USB Host 2.0

Power Jack

DC power input

RJ45

Ethernet

Earphone

3.5mm earphone

Media plays

Video format

MPEG-1,MPEG-2,MPEG-4,H.263,H.264,RV etc.,support up to 1080p

Audio format

MP3/WMA/AAC etc.


jpeg

Others

Power consumption

35W

Wall mounting

VESA,100x100mm

Speaker

2*5W

Camera

2.0M/P

NFC

Option

Language

Multi-language

Application

MSN/Skype/Facebook/Twitter/Youtube/E-mail/google map etc

Adapter

Adapter,12V,4A

Accessories

User manual

Adapter

Stand

SD/USB protect cover
