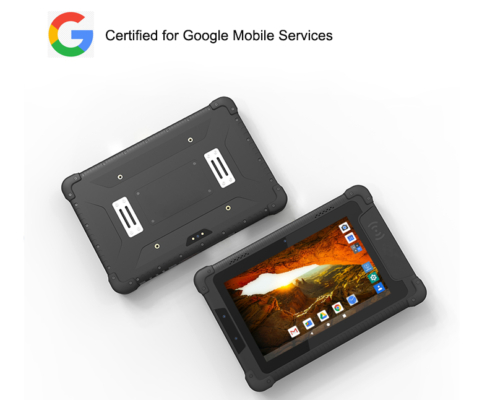

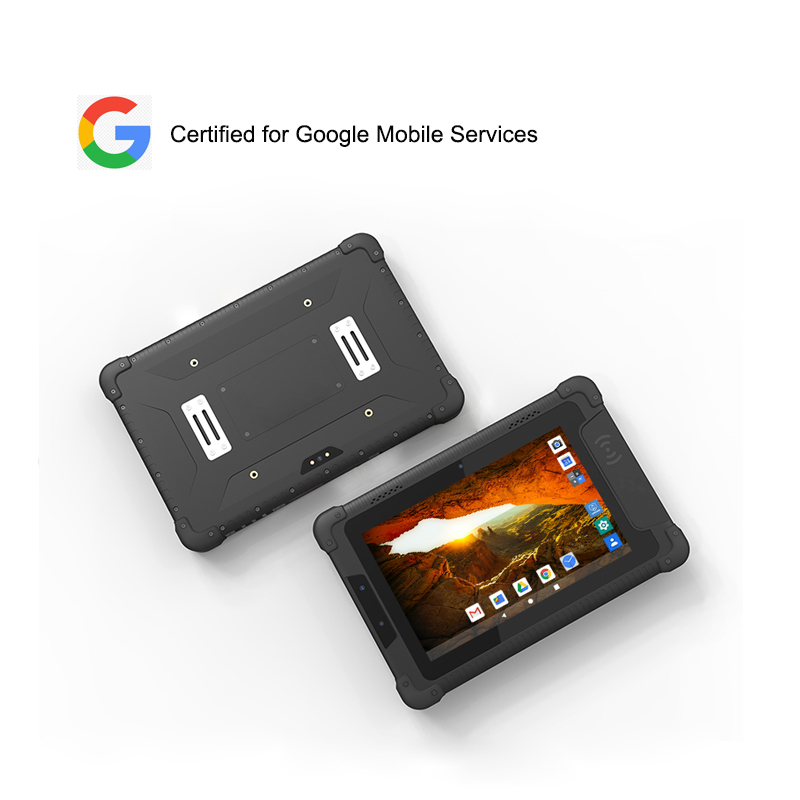

6’’ rugged android tablet pc, MSM8953, 8 core, 4G+64G, Android 8.1, WiFi, Bluetooth, 2G, 3G, 4G, GPS.
Also it widely applied mainly in warehouse management, shopping mall, express industry, pharmacy management, mobile payment, power inspection, etc.
We support OEM customized service, such as customized logos, customized package, auto run apk, etc.
| Type | Details | Standard Configuration | Optional | ||||
| Product Form | Type | Rugged Handheld Terminal | NA | ||||
| Dimension | 185*93*20.7mm | NA | |||||
| Weight | Whole unit：380g | NA | |||||
| Device Color | black+black color（bottom shell : black color, front shell: black color ） | NA | |||||
| LCD | Screen Size | 5.98″，16:9 (TP and Glass use full lamination technolog ) | NA | ||||
| Resolution | 720*1280 IPS Screen | NA | |||||
| Brightness | 300Nit | NA | |||||
| TP | Touch Panel | 5 Point Touch Capacitive，G+F，Rigidity: 7H up, Anti-scratch | NA | ||||
| Camera | Front | Front5.0MP | NA | ||||
| Rear | Rear 13.0MP,with flash and auto-focus | NA | |||||
| Speaker | Built-in | Embedded 8Ω/0.7W speaker x 1 | NA | ||||
| Mic | Built-in | Sensitivity:-42db, output resistance2.2kΩ | NA | ||||
| Earphone | Built-in | built inx 1 | NA | ||||
| Battery | type | Li_polyment, removeable battery | NA | ||||
| Capacity | 5000mHA/3.7V | NA | |||||
| Endurance | 5hrs(Default50%volumn，Default 200lumens brightness，Play1080P video) | NA | |||||
| System Hardware Configuration | |||||||
| Type | Details | Descriptions | |||||
| CPU | Type | MSM8953（8core） | NA | ||||
| Speed | 2.0GHz | NA | |||||
| GPU | Type | Adreno 506 1920 × 1200 @ 60 fps | NA | ||||
| RAM | Memory | 4GB/ LPDDR3 | NA | ||||
| ROM | storage | 64GB | NA | ||||
| P_sensor | Built-in | Proximity Sensor *1 | NA | ||||
| L-Sensor | Built-in | light Sensor *1 | NA | ||||
| Compass | Built-in | Compass Sensor *1 | NA | ||||
| Gyro Sensor | Built-in | Gyro Sensor *1 | NA | ||||
| G_sensor | Built-in | G_sensor *1 | NA | ||||
| NFC | Built-in | NFC 13.56MHz support SO/IEC 下14443A/14443B/15693/18092/mifare protocol，Card reading distance：3cm~5cm | NA | ||||
| Led Indicate | Built-in | Indicator light of charge, red light will flash when device has low power. red long light when charging, green long light when full power | NA | ||||
| Network Connections | |||||||
| Type | Details | Descriptions | |||||
| WIFI | WIFI module | WIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual band WIFI, | NA | ||||
| Bluetooth | build in | BT4.0(BLE) | NA | ||||
| 2G/3G/4G | build in | CMCC 4M： LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41 WCDMA 1/2/5/8 GSM 2/3/5/8 |
CMCC 4M： LTE B2,B4,B5,B7,B8,B17,B38,B39,B40,B41 WCDMA /2/5/8 GSM 2/3/5/8 |
||||
| NA | |||||||
| GPS | build in | support:GPS+Glonass;Capture sensitivity:-140 dBm；Cool Start Time：<50秒，Hot start time：<5秒，GPS frequency：1575.42MHz，Glonass frequency:1602MHZ | |||||
| 1D barcode scanner | Optional | NA | |||||
| 2D barcode scanner | Optional | NA | Support Honeywell3680 | ||||
| Interface Configuration | |||||||
| Type | Details | Descriptions | |||||
| TF Slot | Extensive External Memory | support TF x1 max：128G | NA | ||||
| SIM Slot | SIM Card | SIMx1 | NA | ||||
| Type-C | data&charing | x1 Type-C | NA | ||||
| Earphone Jack | Audio Output | ∮3.5mm Standard Earphone Jack x1 | NA | ||||
| System HOME Key | Home | HOME*1 | NA | ||||
| Barcode | Barcode | Barcode *2 | NA | ||||
| POGO PIN | data&charing | *1（4pin Machine Below）2in used in docking charger，2pin used in USB expand | NA | ||||
| Power on | Press Key | Power Key x1 | NA | ||||
| Volume + – | Press Key | Volume + – x2 | NA | ||||
| Standard Accessories | |||||||
| Type | Details | Description | |||||
| OTG cable | OTG cable | type-c OTG cable | NA | ||||
| type-c cable | type-c cable | type-c cable | |||||
| Power Adaptor | Standard | AC100V ~ 240V、50Hz/60Hz output DC 5V/2A USA Standard CE approval | UK standard | ||||
| EU Standard | |||||||
| Software Configuration | |||||||
| Type | Details | Description | |||||
| Operation System | OS version | Andriod 9.0 | NA | ||||
| Software Configuration | |||||||
| Type | Details | Description | |||||
| Certificate System | IP65 | IP65 Report： Water resistance：IP-X5，Dust resistance：IP-6X Report ID NO.：SET2015-07677 a.Inner Nozzle diameter：6.3mm； b. water speed：12.5±0.625L/min； c. Water Pressure：Adjust according to water volumn； d.Central part of water volumn：Diameter of 40mm, Distance from nozzle: 2.5M e.Spray time in surface of panel：About 1min；f.Test time：At least 3min； g.Distance between nozzle and panel surface：2.5～3m。 After test，there is no water leakage in sample. |
NA | ||||
| CE NB | Y | ||||||
| MIL-STD-810G | Y | ||||||
| Battery | UN38.3,MSDS,IEC62133 | ||||||
| Reliability | |||||||
| Type | Details | Descriptions | |||||
| Product Reliability | Drop Height | 1.2m Composite wood floors, in operation status | |||||
| Operate Temperature | ‘-10 °C to 50 °C | ||||||
| Store Temperature | ’-20 °C to 60 °C | ||||||
| Humidity | Humidity: 95% Non-Condensing | ||||||
Provide a perfect solution for the customer.
