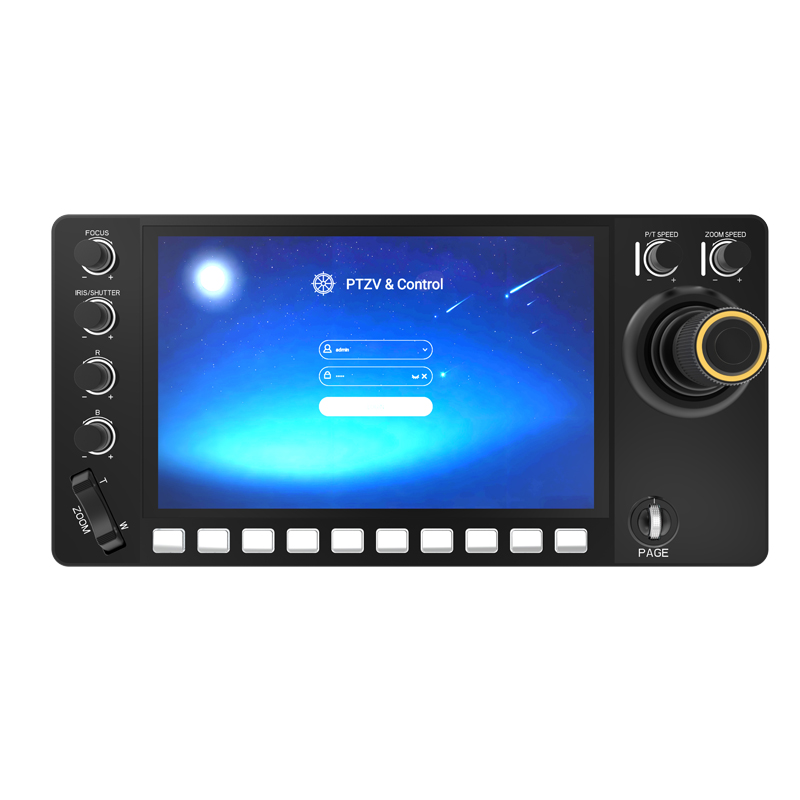

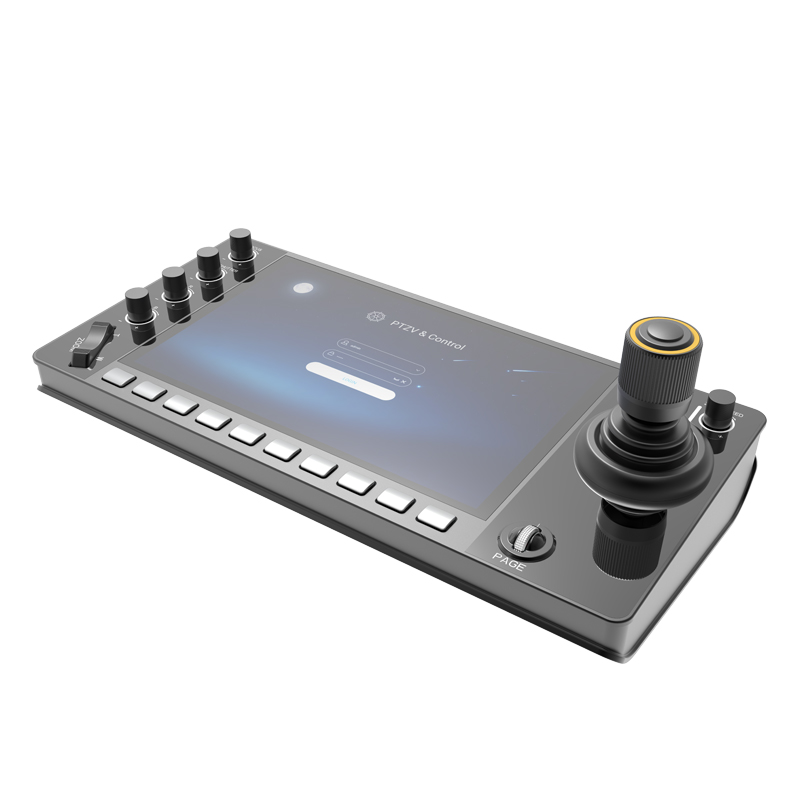

PTZ20(PRO)

PTZ camera joystick controller

Key Features

10.1″ Capacitive touchscreen
Android 11 operating system
H.264/H.265 compression
Live view up to 9 RTSP or NDI HX streams directly on the device
RTSP or ND HX to RTMP.
Display up to 9 live streams when a monitor is connected through HDMI
Ability to be control with connected mouse and keyboard
PTZ control including presets, focus, zoom, exposure, and more
Photo and video capture directly on the controller
Integrated search functions to assist in easily adding cameras
Most popular control protocols supported: VISCA (TCP/UDP/UART), Pelco-P, Pelco-D, ONVIF, and NDI HX
Add up to 2048 devices
Easily upgradable using USB or Micro-SD
Connect up to 1 RS422/485 cameras directly
1 RS232 port to support legacy systems

Overview

PTZ20(PRO) PTZ camera joystick controller

The PTZ20(PRO) is a powerful PTZ camera joystick controllerwith a 10.1″ touch screen that allows for real-time video previews. The Controller Pro is versatile with its Android 11 operating system and H.265/H.264 decoding with up to nine screen splits. Create and output a 2×2 or 3×3 video wall via connected cameras RTSP or NDI HX streams. It also features HDMI projection for monitoring and total PTZ control including preset points, focus, zoom, and exposure. The unit is highly customizable with the ability to add and control over 2000 devices. RTSP or ND HX to RTMP.

Feature
10.1″ Capacitive touchscreen
Android 11 operating system
H.264/H.265 compression
Live view up to 9 RTSP or NDI HX streams directly on the device
RTSP or ND HX to RTMP.
Display up to 9 live streams when a monitor is connected through HDMI
Ability to be control with connected mouse and keyboard
PTZ control including presets, focus, zoom, exposure, and more
Photo and video capture directly on the controller
Integrated search functions to assist in easily adding cameras
Most popular control protocols supported: VISCA (TCP/UDP/UART), Pelco-P, Pelco-D, ONVIF, and NDI HX
Add up to 2048 devices
Easily upgradable using USB or Micro-SD
Connect up to 1 RS422/485 cameras directly
1 RS232 port to support legacy systems

Specification

Technical Specifications
Operating System	Android 11
Screen Size	10.1” capacitive touchscreen / resolution 1280×800
Video Output	HDMI 4K@30Hz
Video Output Connectors	1x HDMI Type A, 19-pin, female
Audio Output Connectors	1x 3.5mm stereo jack (L/R)
Decoding	1. Supports H264/H265 2. Max supported H264: 4x1080p@30fps 3. Max supported H264: 16x720p@30fps 4. Max supported H266: 1x4K@60fps
Protocols	ONVIF,VISCA+IP,VISCA, Pelco-P, Pelco-D, NDI HX, RTMP, RTMPS
Power	Standard 5.5/2.1 power interface, DC 12V2A±10%
Interface Ports	1. 1x RJ45 (Network) 2. 1x RS485RS422 3. 1x RS232 4. 1x HDMI output 5. 1x 3.5MM MIC 6. 1x USB-HOST 2.0 7. 1x USB-OTG 2.0 8. 1x Micro-SD card slot 9. 1x standard 3.5MM headphone jack

Mechanical Specifications
Power Consumption	<1.5W
Working Humidity	10%-90% RH(no frost)
Working Temperature	-10°C – 50°C
Storage Temperature	-40°C – 60°C
Dimensions	360 * 177 * 121 mm
Weight	1.652 kg
