YC-SM14P 14 inch Smart Home Touch Control Panel

YC-SM14P

14″ Smart Home Automation Android Touch Panel with POE

Key Features

Screen size: 14″, 1920*1080, IPS capacitive touch
CPU: RK3568 Quad-core Cortex-A55 up to 2.0Ghz
Operating System: Android 11 / Linux
Internal Storage: 2GB/4GB RAM + 16GB/32GB ROM
Resolution: 1920*1080
Network: Ethernet, Bluetooth, WIFI

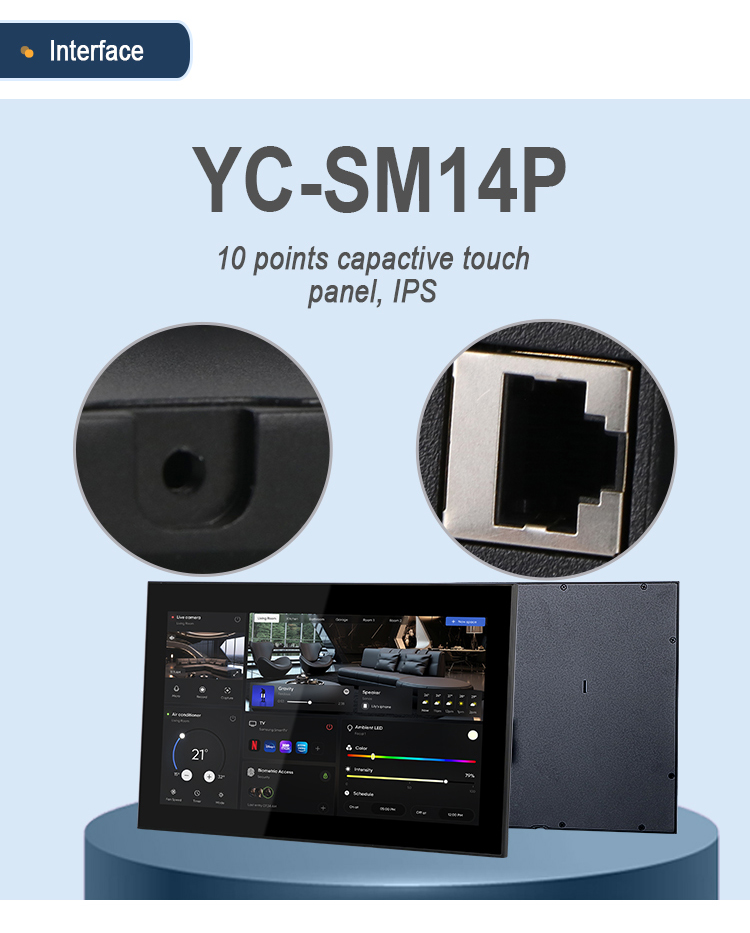

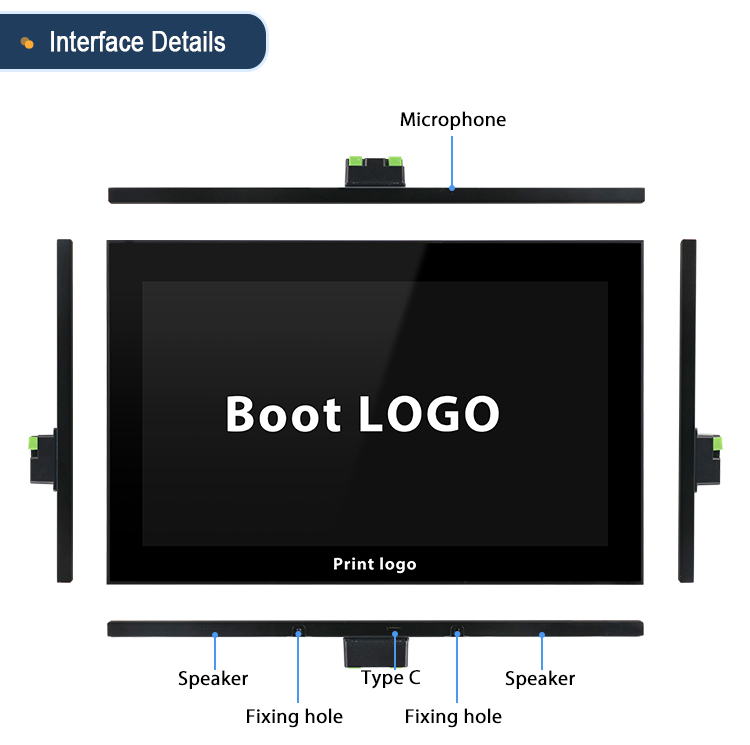

Interface: RJ45, Type-C, RS485, DC
Application: Smart home, smart building, smart hotel, smart city, etc.
Power supply: DC, POE

Overview

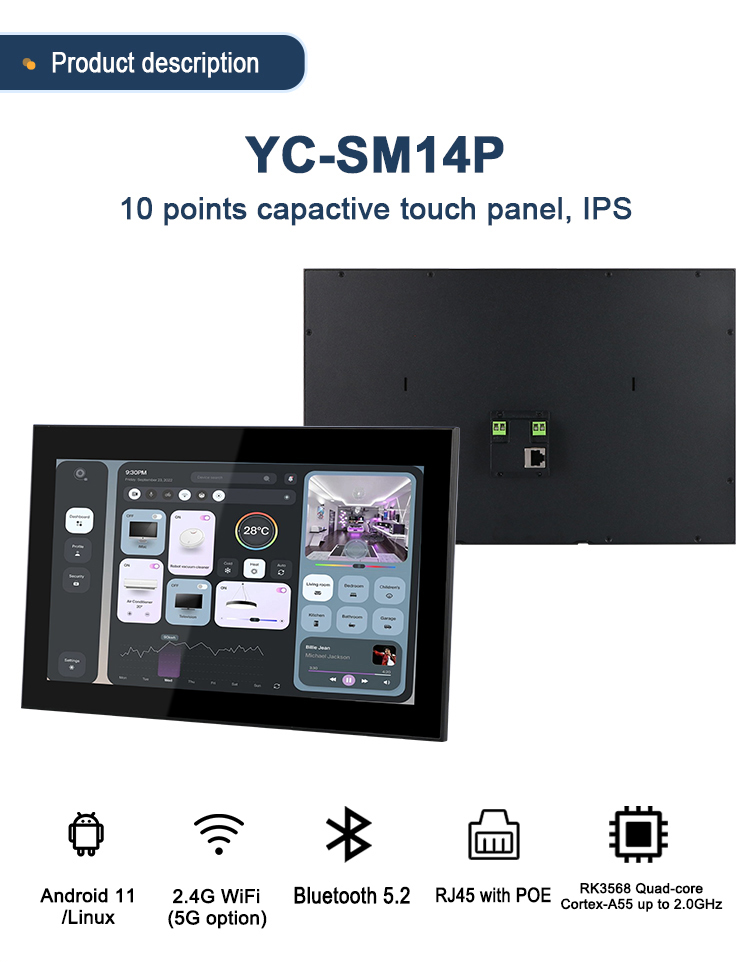

YC-SM14P – 14-Inch Smart Touch Control Panel for Enhanced Automation

The YC-SM14P is a cutting-edge 14-inch smart touch control panel designed for modern smart homes and offices. With its 10-point capacitive IPS touch panel, RK3568 Quad-Core Cortex-A55 processor, and powerful connectivity options, this panel provides a seamless control interface for managing multiple devices and systems with ease. Whether you need to control lighting, security systems, or HVAC, the YC-SM14P offers a centralized solution for all your smart device needs.

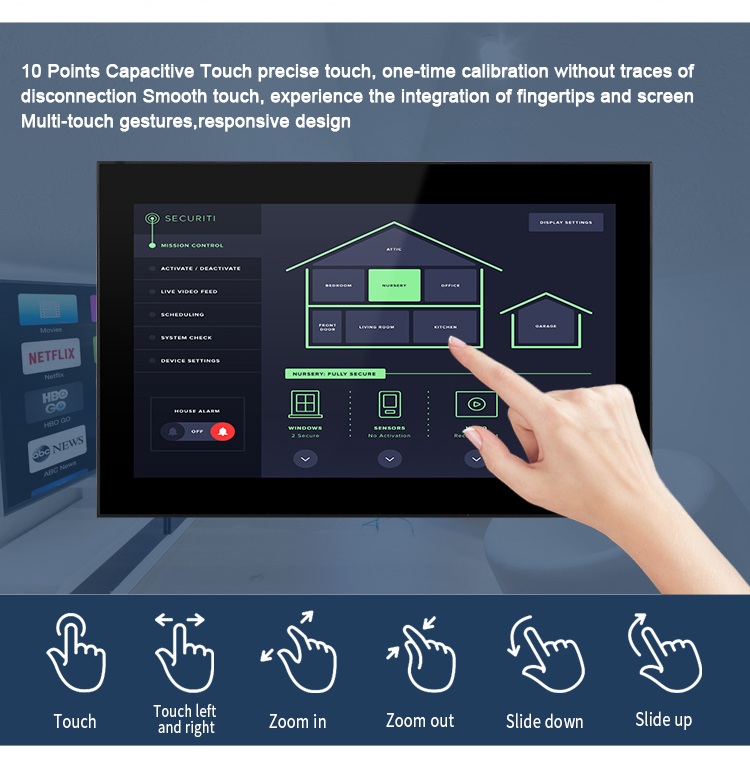

Immersive Touch Experience

✅ 10-point capacitive touch panel with IPS technology for precise touch response and vibrant display
✅ One-time calibration for flawless touch accuracy with no traces of disconnection
✅ Smooth touch experience with multi-touch gestures such as touch, swipe left/right, zoom in/out, slide up/down, providing intuitive control
✅ Responsive design, allowing effortless integration of fingertips and screen for a user-friendly interface

Powerful Performance & Connectivity

✅ RK3568 Quad-Core Cortex-A55 processor, capable of up to 2.0GHz, ensuring fast processing for smooth performance
✅ 2.4G Wi-Fi with the option for 5G Wi-Fi for faster wireless data transfer and enhanced connectivity
✅ Bluetooth 5.2, allowing for stable connections with Bluetooth-enabled devices
✅ RJ45 with PoE (Power over Ethernet), complying with IEEE 802.3 at/af standards, providing both power and data over a single Ethernet cable
✅ Operating systems available: Android 11, Linux, Debian, Ubuntu, and BuildRoot, offering flexibility for various use cases

Flexible Installation & Compatibility

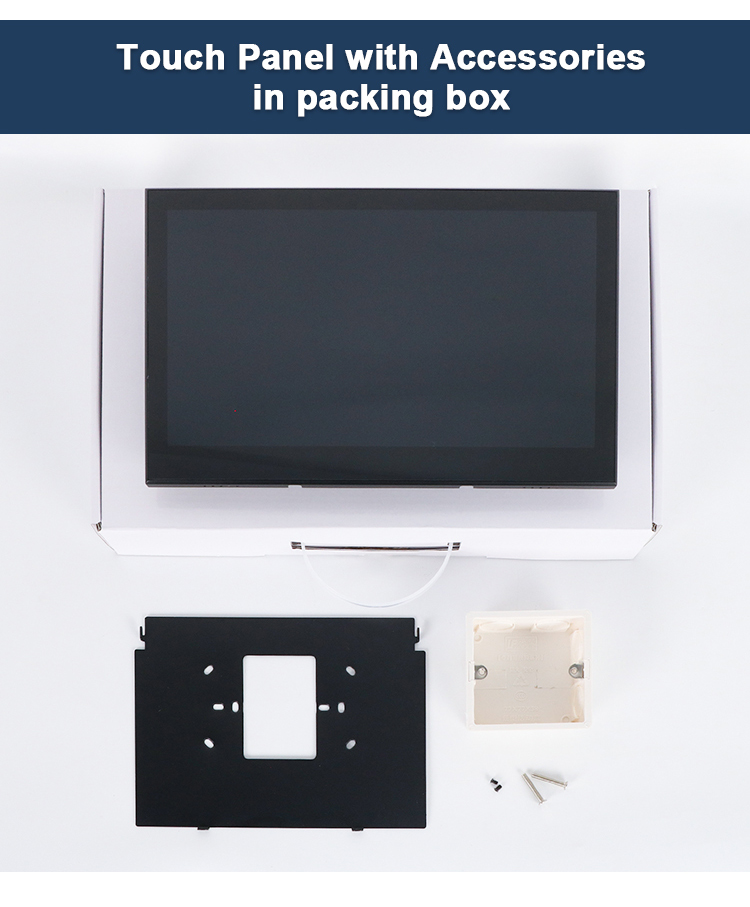

✅ The YC-SM14P comes with accessories included in the packing box, making installation easy and hassle-free

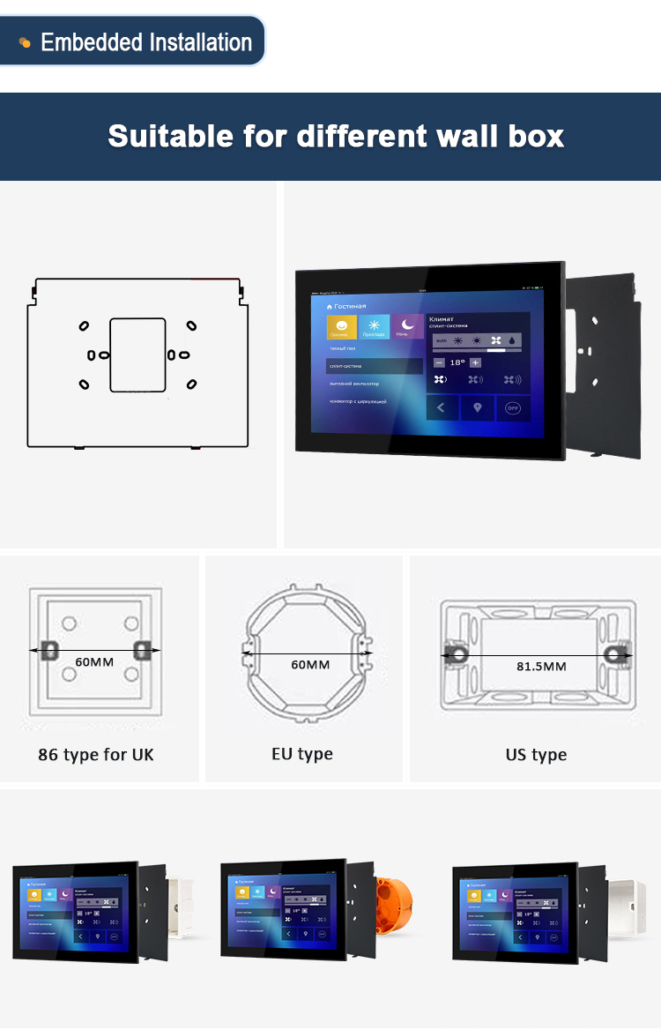

✅ Compatible with a wide range of wall box types:

86-type wall box (for the UK)
EU-type wall box
US-type wall box

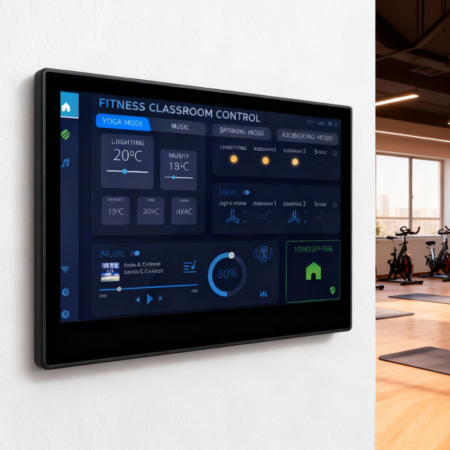

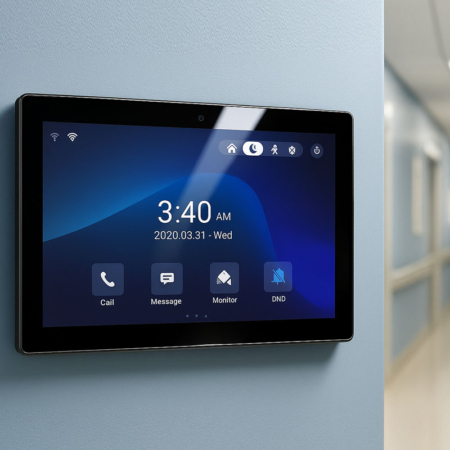

✅ Perfect for embedded installations in smart homes, meeting rooms, and offices

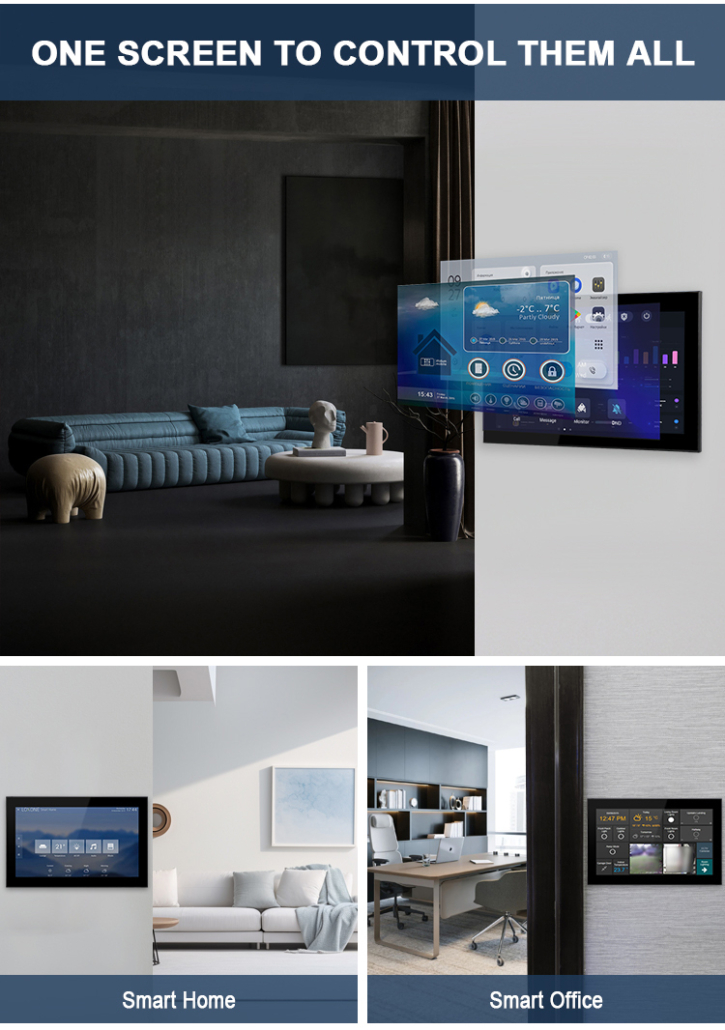

One Screen to Control Everything

✅ The YC-SM14P is designed to be an all-in-one control hub, allowing users to manage multiple smart devices and systems via a single touch panel:

Lighting Control – Manage lighting and adjust brightness with ease
Climate Control – Control air conditioning, heating, and ventilation systems
Curtain Automation – Control curtains to optimize lighting and energy efficiency
Security Integration – Manage smart locks, security alarms, and other devices
Smart Office & Meeting Room Control – Streamline device management in office or conference settings
✅ App Control – Seamlessly control all devices via mobile app from anywhere

Portworld offers tailored solutions with customizable hardware and software, providing both wholesale and personalized services to meet the needs of smart homes, offices, and commercial spaces.

SM116 Debian -Smart-home -control-panel(1)

Specification

System	CPU	RK3566 Quad-core ARM Cortex-A55,up to 2.0GHz
	RAM	2GB/4GB
	ROM	16GB/32GB
	System	Android 11/Debian
Touch Panel	Screen	14″ IPS screen
	Touch Panel	10 points capactive touch panel
	Resolution	1920*1080
	Brightness	300Nits
Network	WIFI	2.4G WiFi/(5G WiFi optional)
	Bluetooth	BlE 5.2
	Ethernet	10M/100M

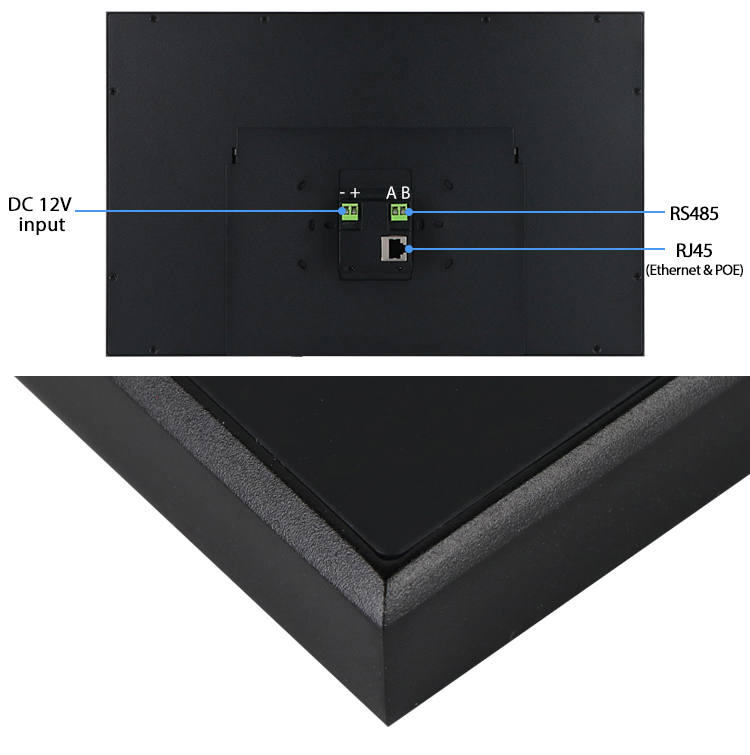

Interface	RJ45	Ethernet interface input(RJ45 cable),Support POE
	Type C	Type C*1
	Reset	1*Reset hole
	Restart	1*Restart hole
	DC	DC 12V/24V input
	RS485	RS485
Media plays	Speaker	2W*2pcs
	Video	MOV 1080P/AVI/WMV/RM/RMVB/3GP/MKV/MP4/ASF/VOB
	Audio	MP3/WMA/WAV/AAC/FLAC/OGG
	Entertainment	Video/Movie/Music/FM online
Others	Battery	No
	Installation	In wall,suitable for EU/US/86 Type wall box
	color	Silver,Black,OEM
	Working temperature	Working temperature
	language	Support Multi-language
Accessories	Bracket	1*Bracket for installation
	Wall box	1*86 wall box
	Screw	2*Screws for installation
Warranty	12 months

Q&A

Q1:Does your panels support Zigbee?

A1:If you need your panels to work with Zigbee, we suggest using a Gateway. Connecting all sensors to the gateway, which is then linked to our control panel. A demonstration video illustrating this process can be found at the following link: https://youtu.be/D4vSVo23JXg

Q2:Does your panels support KNX?

A2:We are not currently a member of KNX, so we do not have authorization to include KNX protocol in our standard models. However, we offer two solutions:

1. Custom Integration: With 18 years of R&D and manufacturing experience, we can integrate KNX modules into our mainboards. We will provide a neutral Android OS, and you can handle the KNX firmware. This option allows you to create a custom model tailored to your specifications.

2. KNX IP Gateway Solution: For a quick and straightforward setup, you can use a KNX IP gateway to bridge your devices with our panel.

Q3:Can I open the box and start using the panel?

A3:All of our panels run on a neutral Android OS. They can connect wirelessly via Wi-Fi and Bluetooth. For wired connections, we offer RS485. Each panel comes with the Google Play Store, allowing you to easily install apps like Tuya and Home Assistant. Additionally, we can assist with pre-installing your APK upon request.

Q4:Does it come with POE?

A4:Yes, all our smart home control panels support PoE, adheres to the IEEE802.3af standard

Q5:What operating systems do you supply?

A5:Our smart home solutions support a variety of operating systems, including Android and Linux-based systems such as Ubuntu, Debian, and Buildroot.
