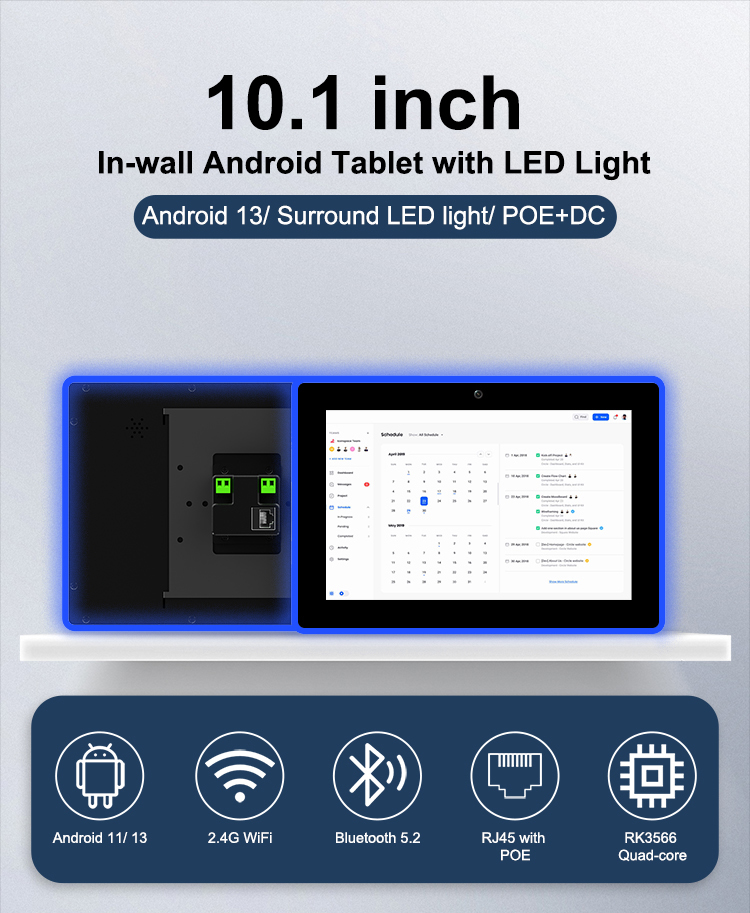

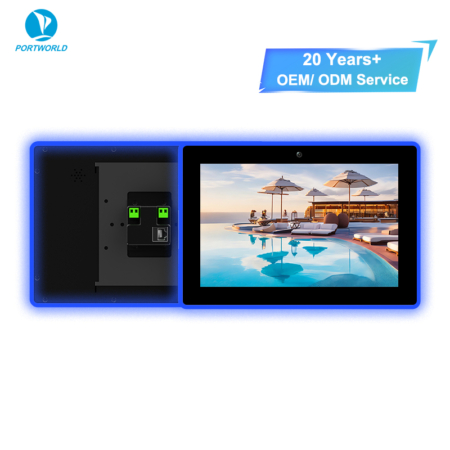

YC-LE101T 10 inch In-wall Android Tablet with LED Light

YC-LE101T

10 inch In-wall Android Tablet with LED Light

Key Features

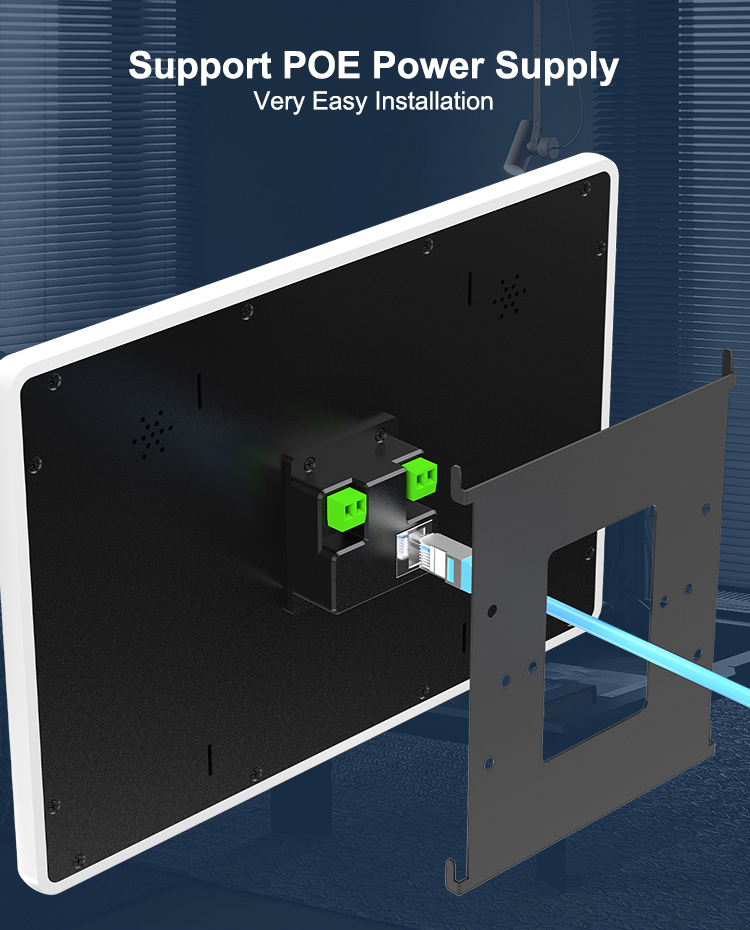

Easy Installation: Supports PoE power supply, enabling a simple, one-cable setup for power and data.
LED Lighting Control: Freely control RGB LED light colors using an API, providing customizable lighting effects for different scenarios.
Powerful Performance: Powered by the RK3566 Quad-core processor, ensuring efficient multitasking and smooth operation.
Space-Saving Design: Ultra-thin and designed to sit flush with the wall, this tablet saves space and provides a clean, modern aesthetic.

Overview

The YC-LE101T 10 inch In-wall Android Tablet with LED Light is a cutting-edge, ultra-thin touchscreen device designed for seamless integration into walls for smart environments like classrooms, meeting rooms, hotels, offices, and more. Offering a combination of sleek design and powerful performance, this device provides interactive control for smart home integration, meeting room management, and more.

General Specifications

Model: Not specified (likely a Sunworld product)
Display Size: 10.1 inches

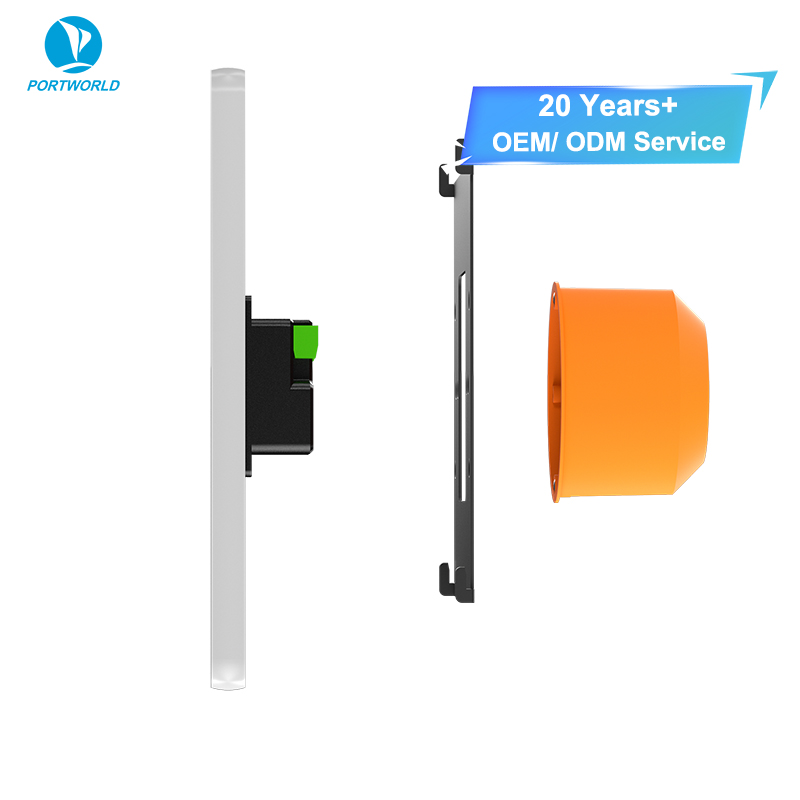

Installation Type: In-wall mounting
Thickness: Ultra-thin design, only 10mm thick, flush with the wall surface

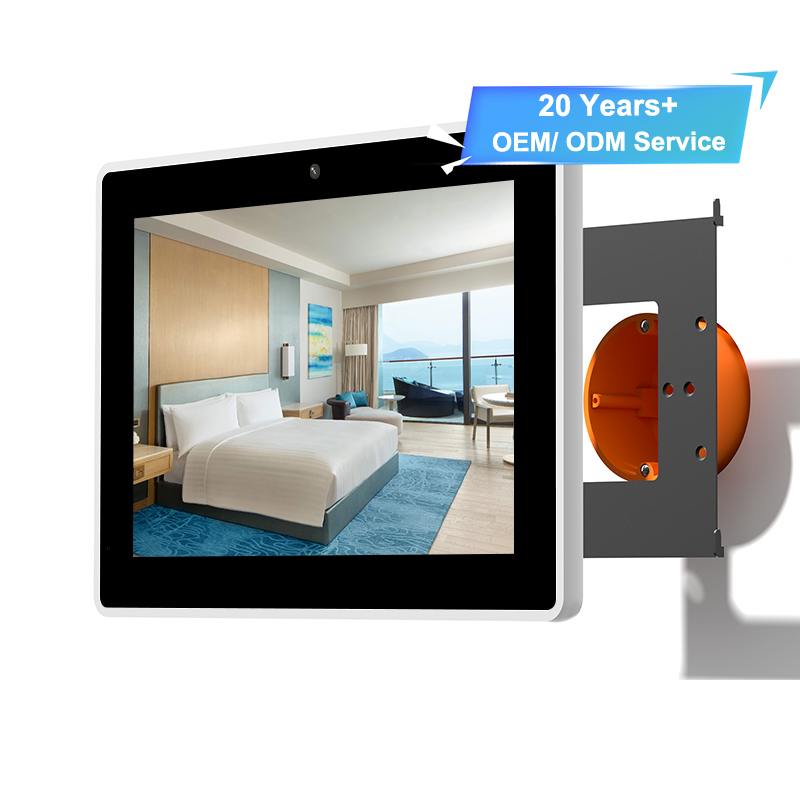

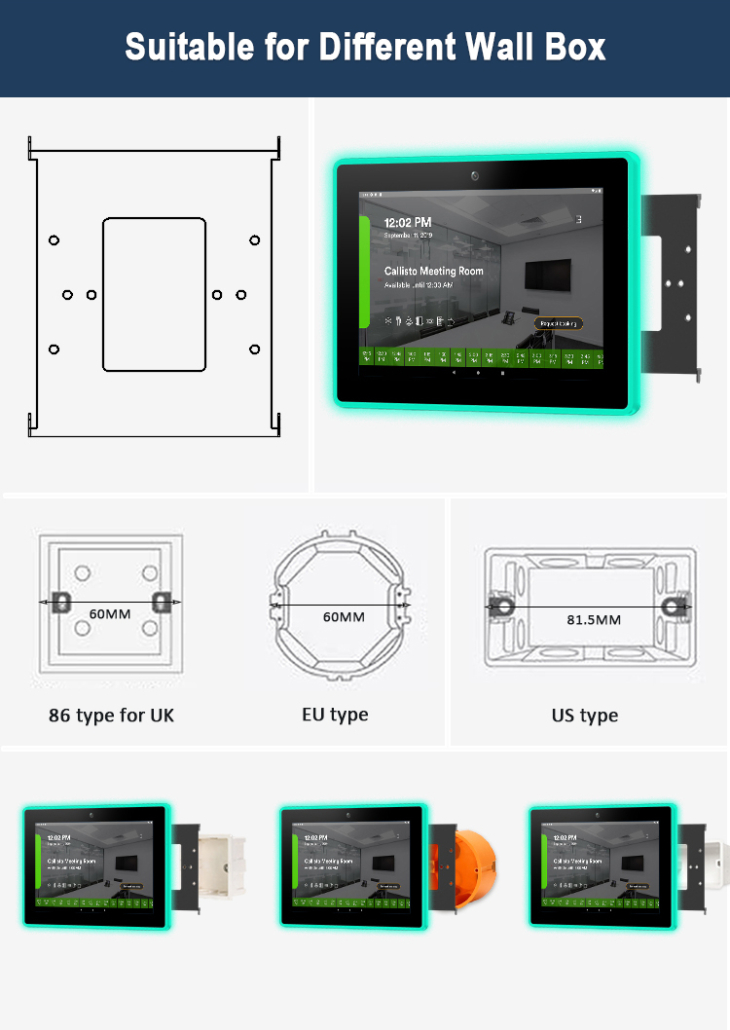

Wall Box Compatibility: Suitable for various wall box types (EU / US standards)

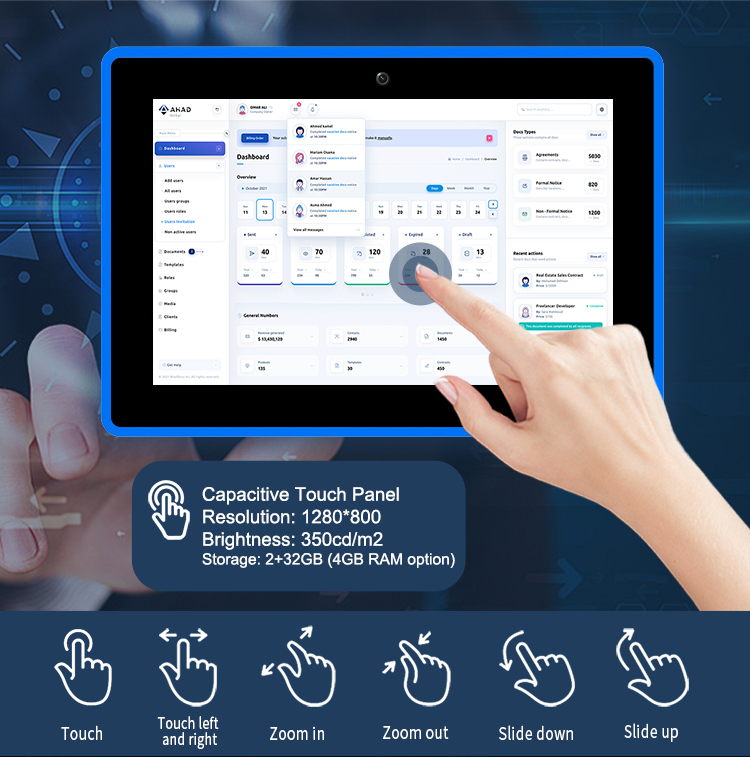

Screen Type: Capacitive Touch Panel
Resolution: 1280 × 800
Brightness: 350 cd/m²

Hardware Specifications

Processor: RK3566 Quad-Core ARM Cortex-A55, up to 1.8GHz, providing smooth operation for multi-tasking and interactive apps
RAM: 2GB (optional 4GB) for enhanced performance
Storage: 32GB, providing ample space for apps, media, and data storage

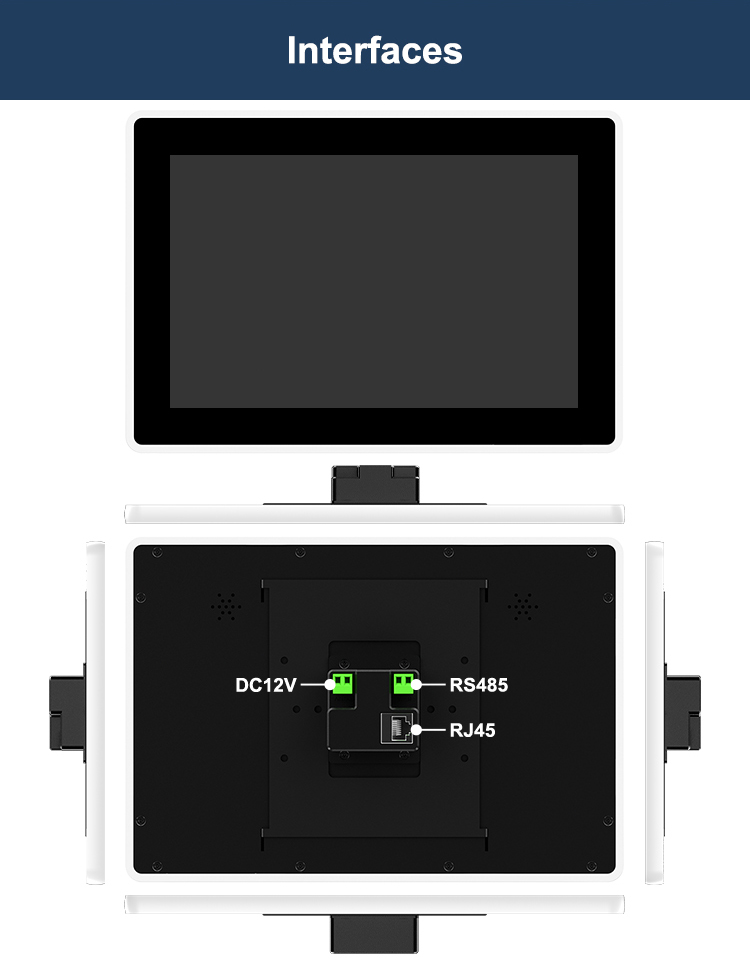

Connectivity & Interfaces

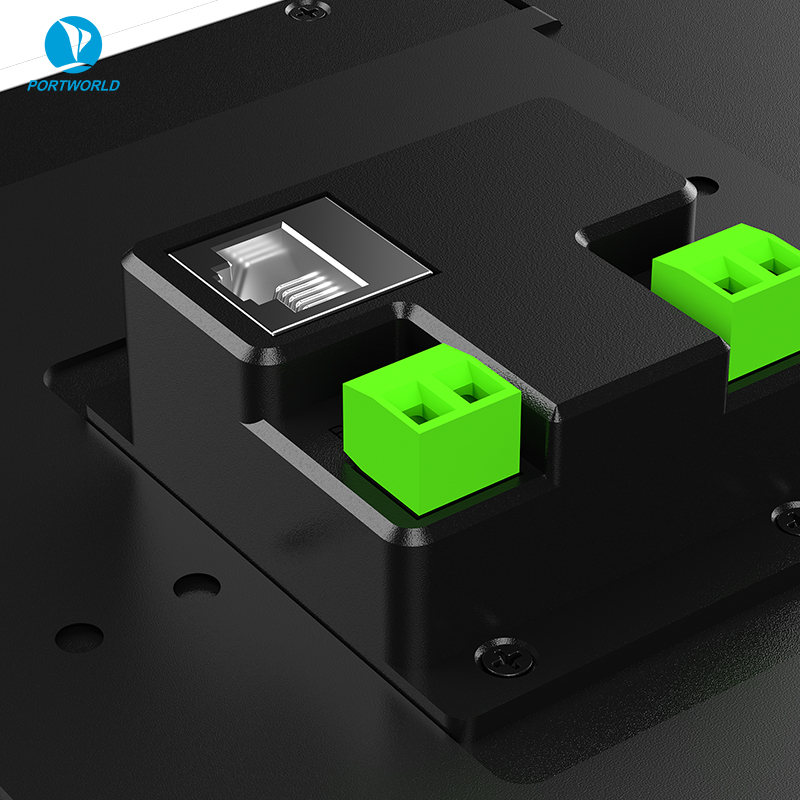

Power Input: DC12V / Optional PoE (Power over Ethernet) support for easy power and data integration
Network: RJ45 Ethernet with PoE capability and 2.4G WiFi for flexible connectivity
Wireless: Bluetooth 5.2 for peripheral connection
Other Interfaces: RS485 for serial communication

Optional Features

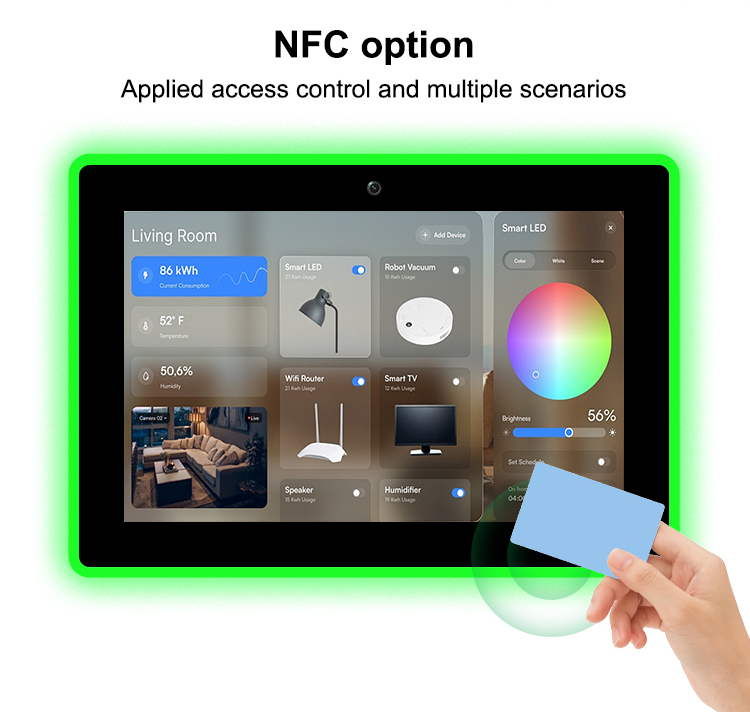

NFC Module: For access control and smart system integration, ideal for secure applications

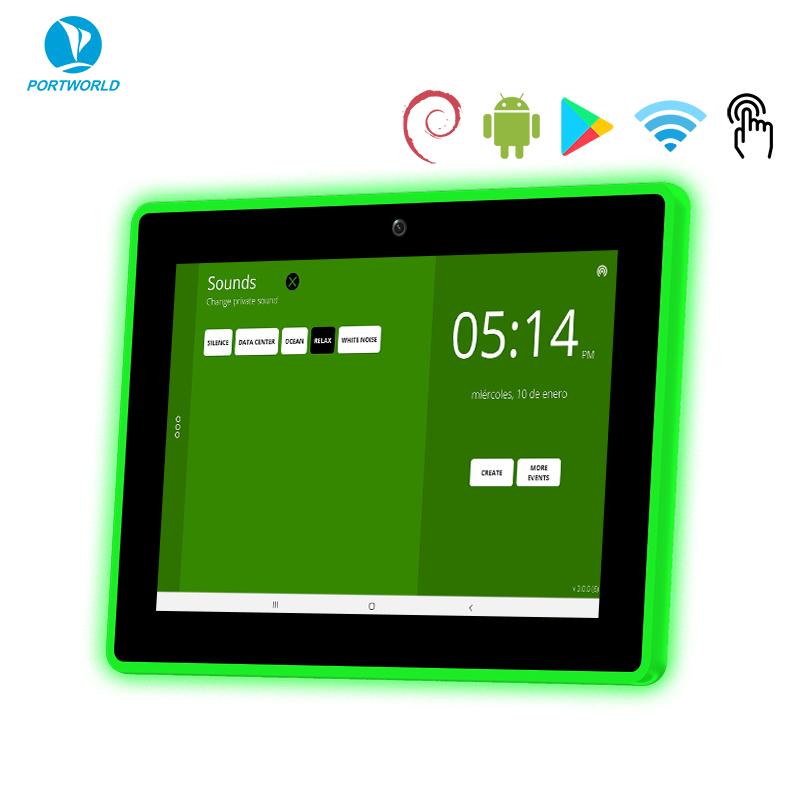

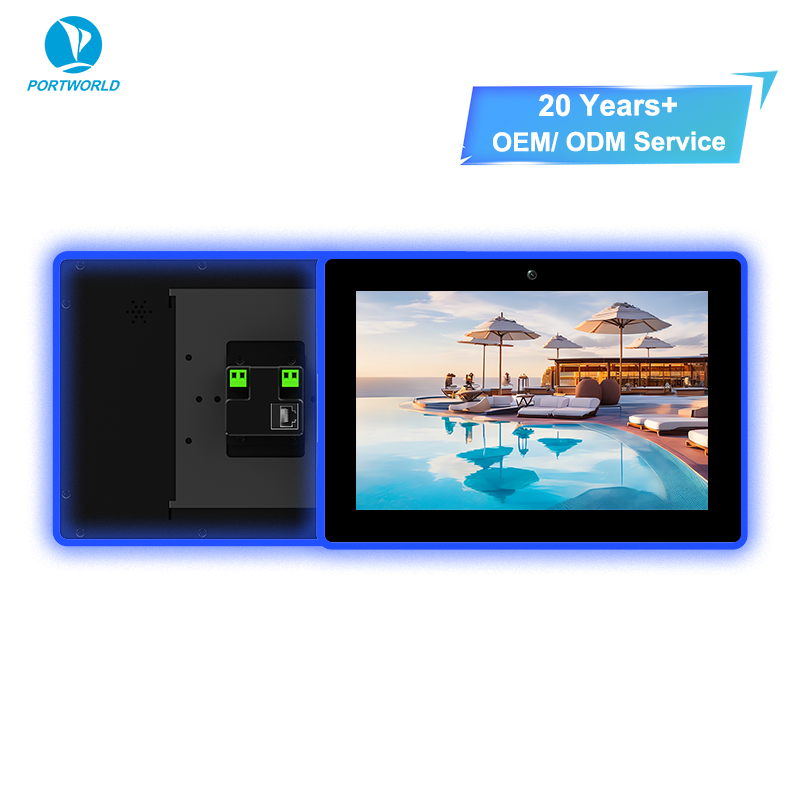

LED Status Lights: Edge-surrounding RGB LEDs with customizable control via an API (can be turned off if not needed)

Software & OS

Operating System: Android 11 / 13 for a smooth, modern user interface and compatibility with a wide range of apps
Touch Gestures:
Left/Right swipe
Zoom in/out
Slide up/down for intuitive user interaction

Key Features

Easy Installation: Supports PoE power supply, enabling a simple, one-cable setup for power and data.
LED Lighting Control: Freely control RGB LED light colors using an API, providing customizable lighting effects for different scenarios.
Powerful Performance: Powered by the RK3566 Quad-core processor, ensuring efficient multitasking and smooth operation.
Space-Saving Design: Ultra-thin and designed to sit flush with the wall, this tablet saves space and provides a clean, modern aesthetic.

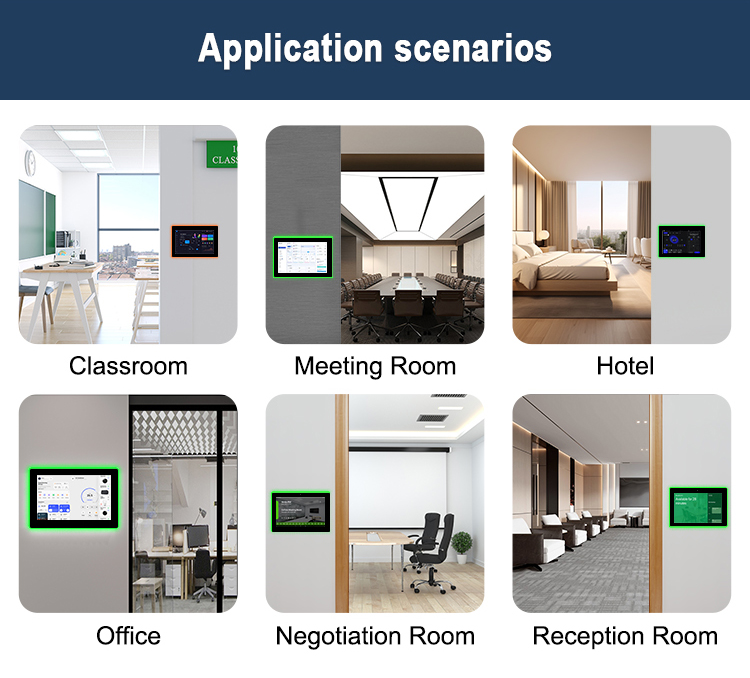

Application Scenarios

Ideal for a wide range of smart environments, including:

Classrooms: Manage smart teaching tools, presentations, and communication.
Meeting Rooms: Display real-time schedules, booking information, or control smart room settings.
Hotels: Offer guest services, room control, and information display.
Offices: Optimize conference room management, office communications, and meeting scheduling.
Negotiation Rooms: Secure, easy access control, and room booking management.
Reception Rooms: Welcome guests, display relevant information, and manage schedules.

Smart Home Integration Example

The In-wall Android Tablet with LED Light can be integrated with:

Smart LED lighting (adjustable via tablet control)
Robot vacuum control
Smart TV integration
Humidifier control
Energy monitoring (track water/electricity usage)
Environmental controls (temperature, brightness, etc.)

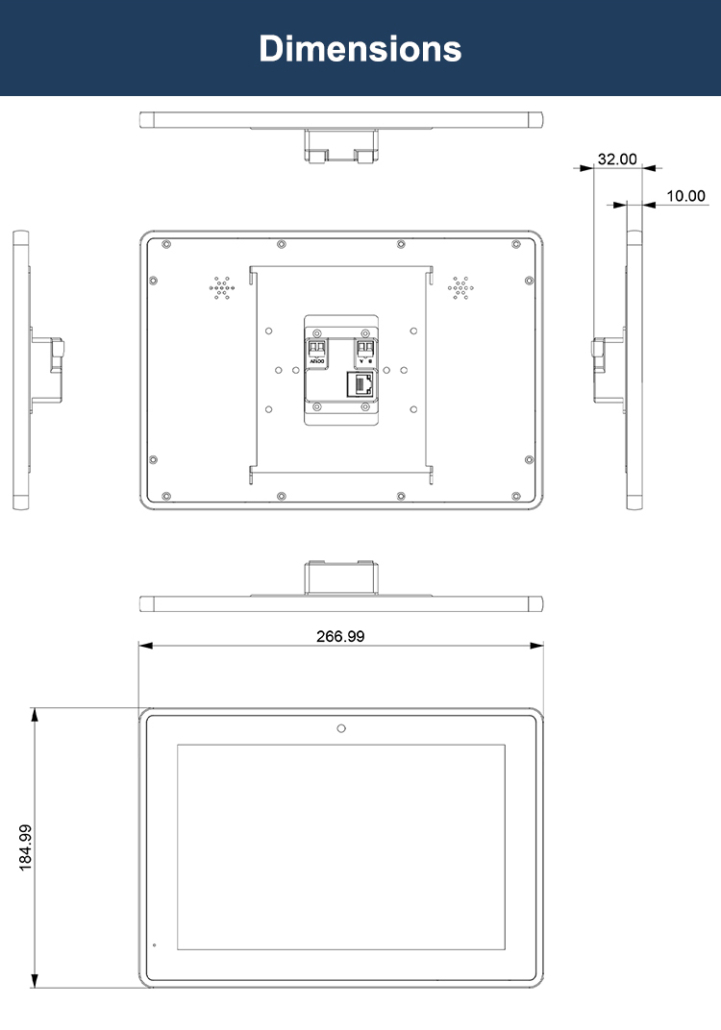

Physical Dimensions (in mm)

Height/Width: 266.99 x 184.99
Depth: 32.00
Thickness: 10.00

UI Display Example

Time: 12:02 PM
Room Status: “Callisto Meeting Room – Available until 4:00 AM”
Energy Display: 8.3 LPS Exclusive for energy monitoring in the environment

This In-wall Android Tablet with LED Light is the perfect solution for any smart environment, offering a combination of sleek design, powerful performance, and advanced functionality. With easy installation, customizable lighting, and integration with various smart devices, it enhances efficiency and convenience in commercial, educational, and residential spaces. Whether for meeting room management, smart home control, or digital signage, this device provides a modern, interactive experience for users.
