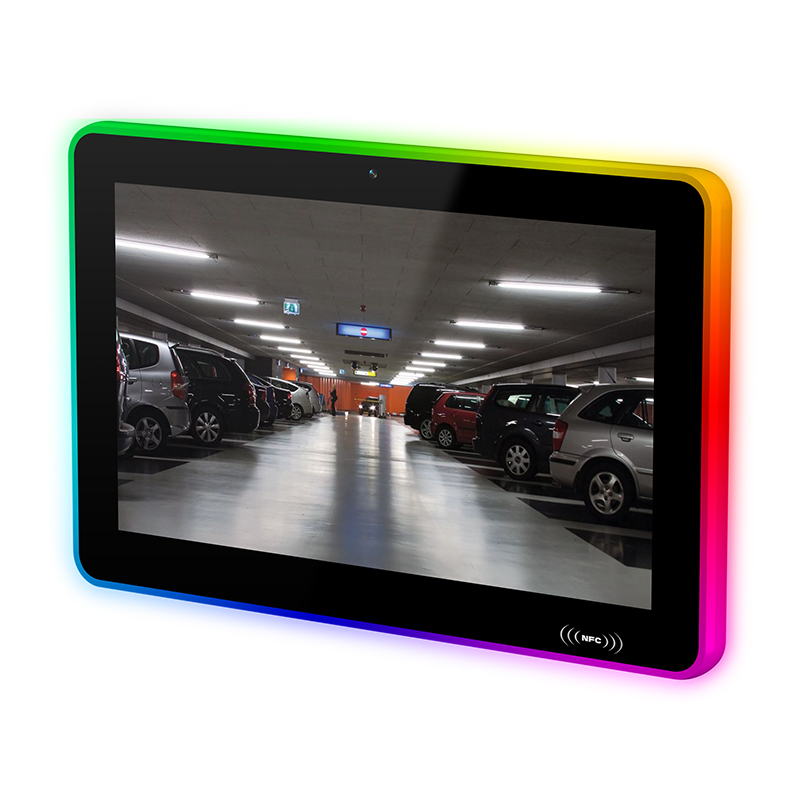

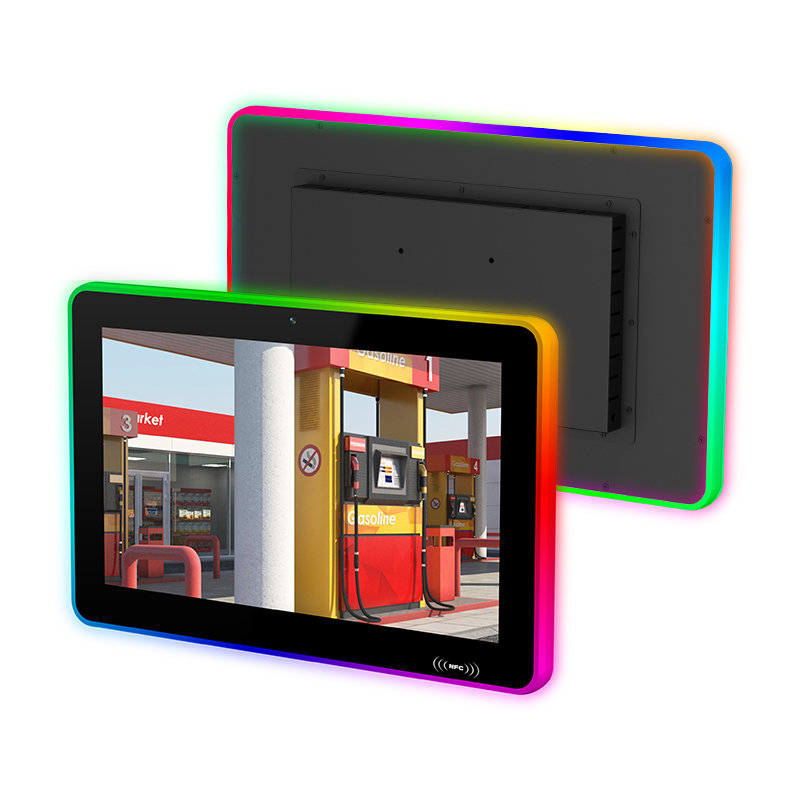

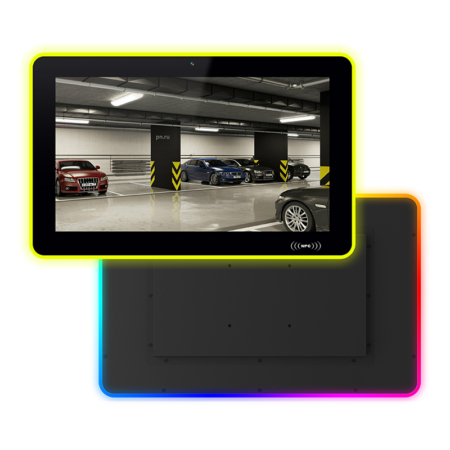

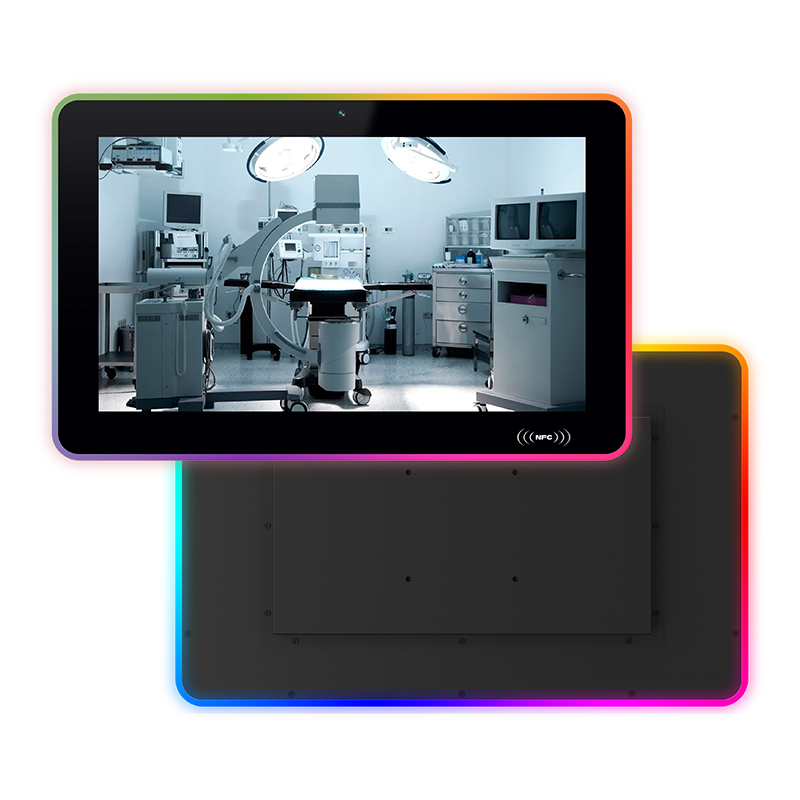

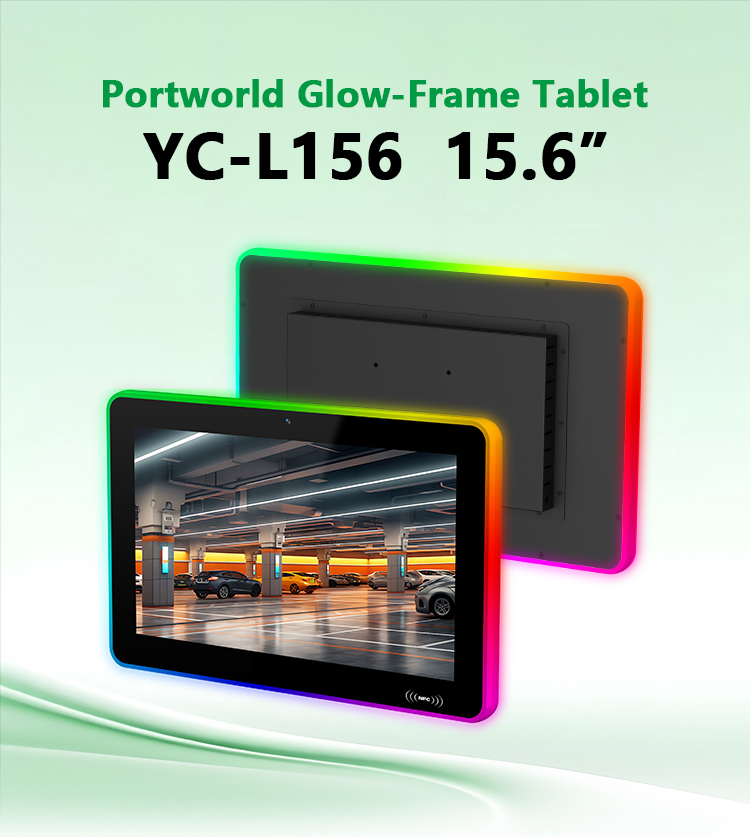

YC-L156 15.6″ Glow-Frame Tablet

YC-L156

15.6″ Glow-Frame Tablet

Key Features

Display: 15.6″ Full HD IPS screen, 1920×1080 resolution
Brightness: Standard 300cd/m² (Optional 500nits or 1000nits for bright environments)

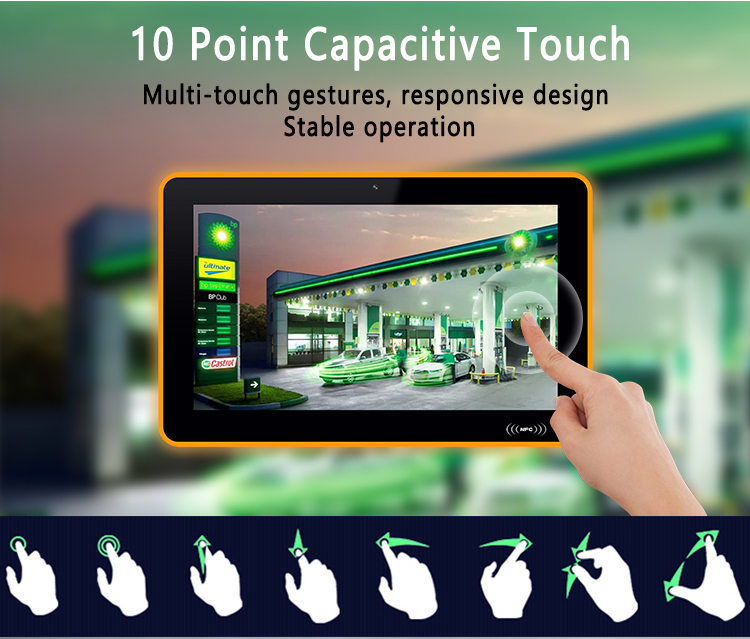

Touchscreen: 10-point capacitive touch for responsive multi-touch gestures
Power: POE (Power over Ethernet) optional – simplified cabling with power and data over a single line

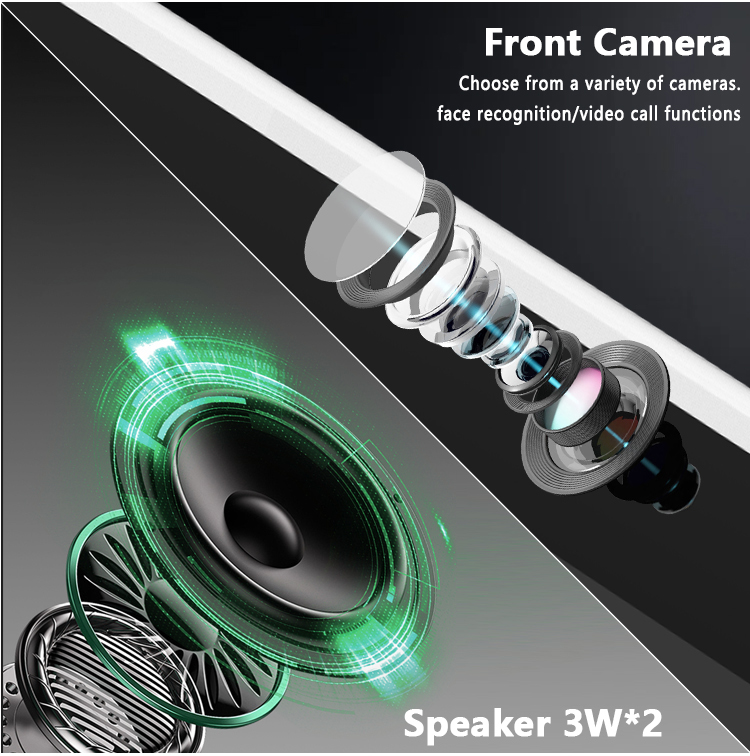

Camera: Optional 2MP or 5MP front camera for facial recognition or video calls

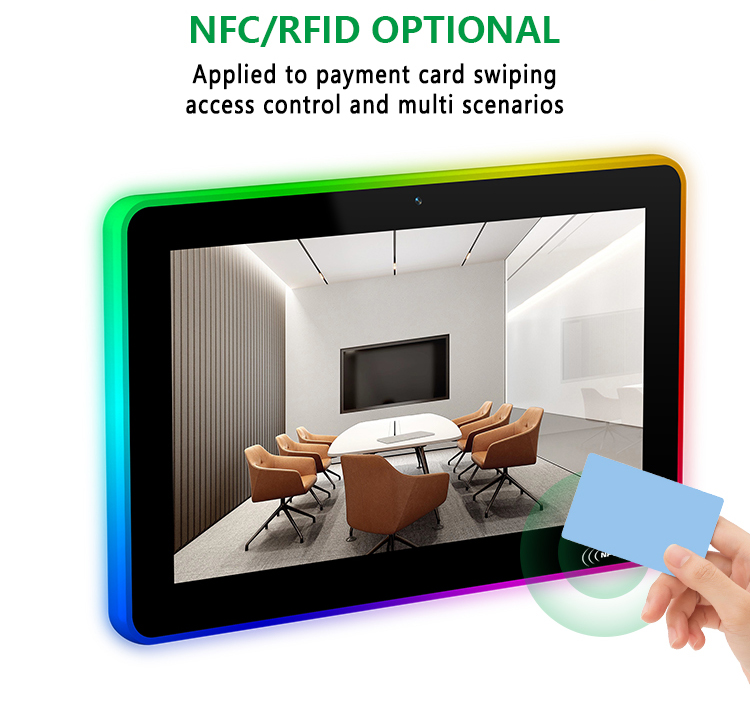

NFC/RFID (Optional): Enables card-based access, payments, and identification
Speakers: Dual 3W stereo speakers
RGB LED Lighting: Programmable full-border ambient lighting, controlled via Open API
Design: Elegant acrylic crystal frame with modern glow-effect edges
Operating System: Compatible with Android, Ubuntu, Debian, Buildroot, and other Linux variants

Overview

YC-L156 Glow-Frame Tablet, a high-performance 15.6-inch touch tablet designed for smart commercial and industrial applications. Whether you’re enhancing a smart retail shelf, managing room bookings, or deploying an interactive access control system, the YC-L156 offers the flexibility, aesthetics, and functionality you need.

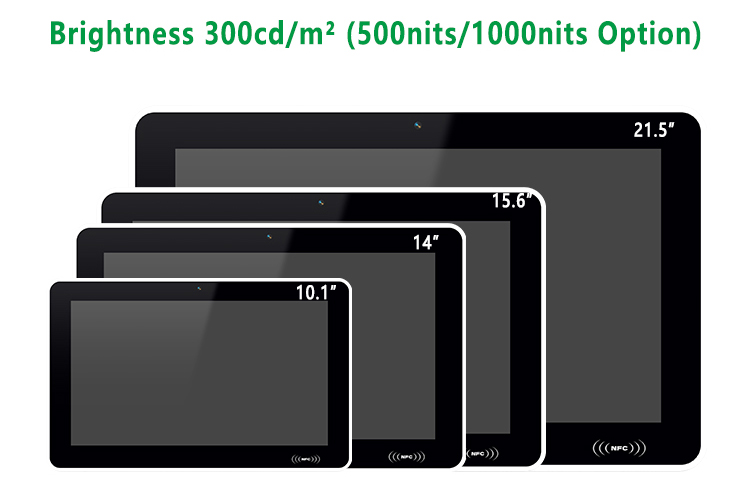

Available in multiple screen sizes — 10.1″, 14″, 15.6″, and 21.5″ — the Glow-Frame series meets a wide range of spatial and functional needs across industries.

Key Features at a Glance

Display: 15.6-inch IPS full HD screen with 1920×1080 resolution for sharp visuals and vibrant colors
Brightness: 300cd/m² standard (optional 500/1000nits high-brightness versions for outdoor/semi-outdoor use)
Touchscreen: 10-point capacitive multi-touch, supporting smooth and responsive gesture control

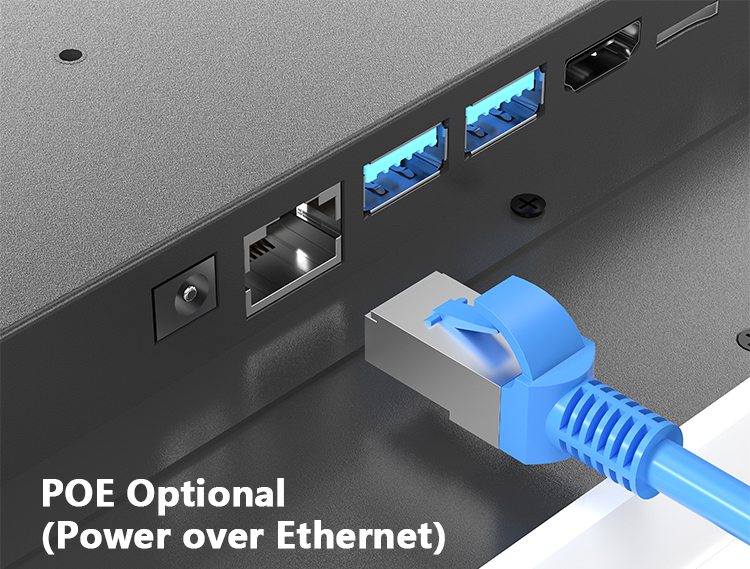

POE Optional: Power over Ethernet simplifies deployment with single-cable connectivity for both power and data
Camera Options: Integrated 2MP or 5MP front camera for face recognition, video calls, or AI-enabled applications
NFC/RFID (Optional): Ideal for secure access control, payment, and authentication scenarios
Audio: Built-in 3W x 2 stereo speakers for interactive voice guidance and media playback

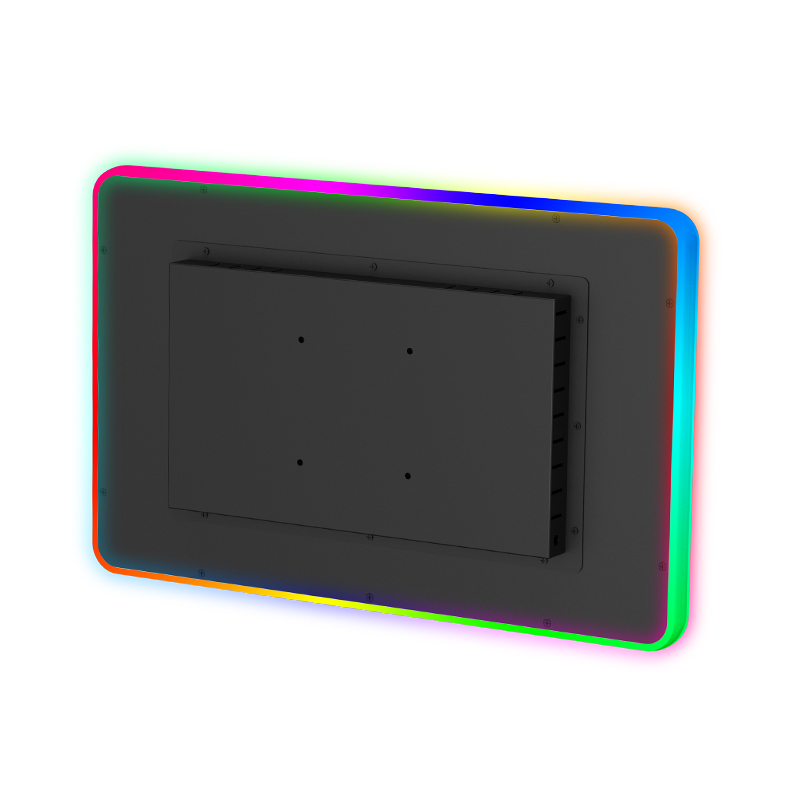

Multicolor LED Frame: Full-border RGB ambient lighting with customizable open API, ideal for visual indicators in retail and enterprise use

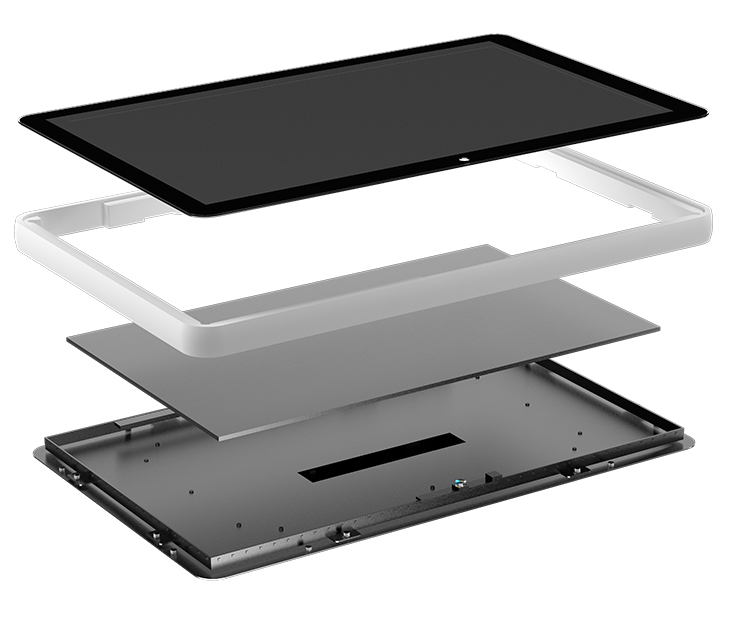

Design: Premium acrylic crystal frame with glowing LED edges for an eye-catching, futuristic aesthetic

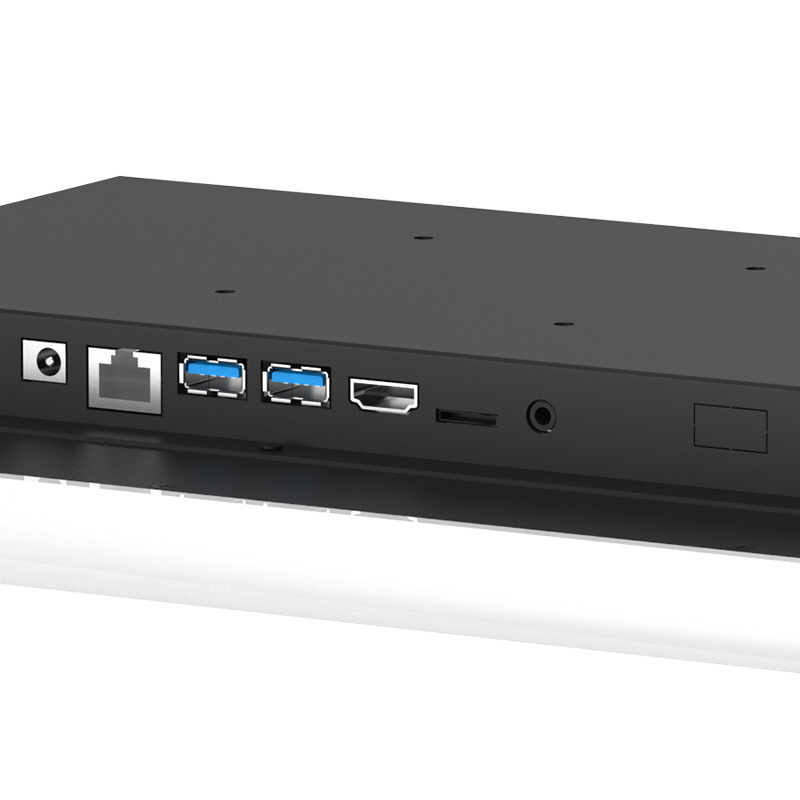

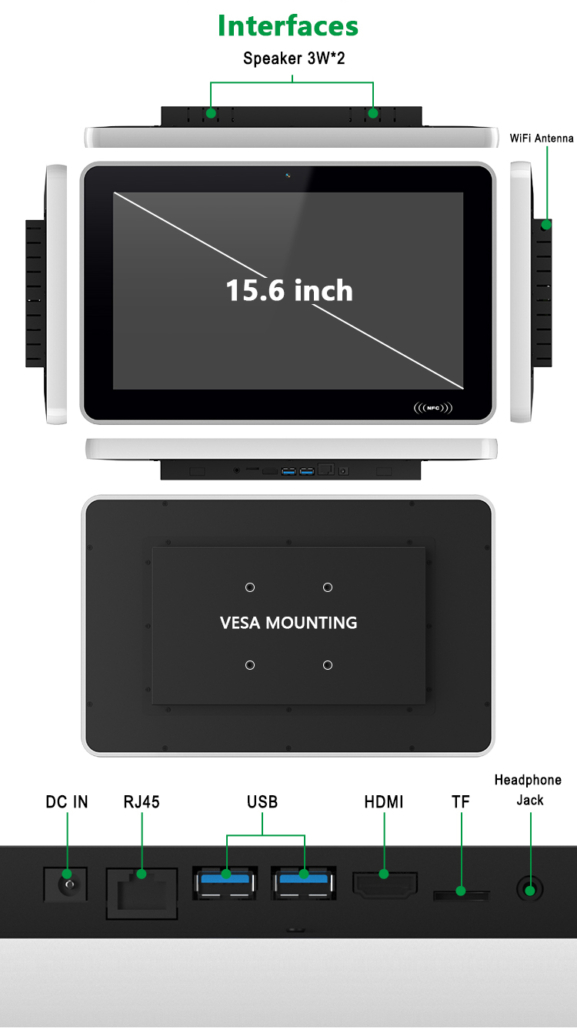

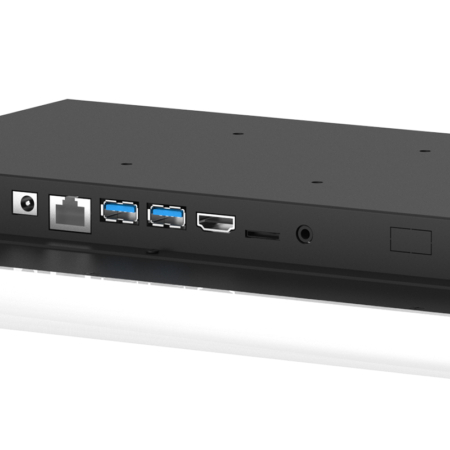

Interfaces (rear side):

Headphone Jack
DC IN
RJ45 Ethernet
USB
HDMI
TF Card Slot
WiFi Antenna

Smart Application Scenarios

The YC-L156 tablet is widely suitable for multiple verticals:

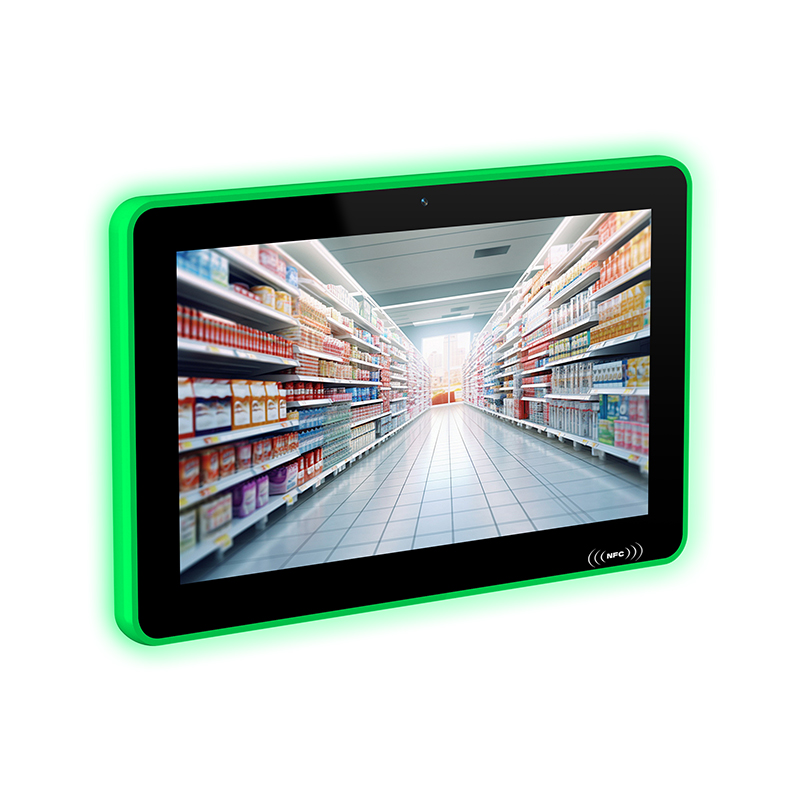

Smart Retail Shelf Displays
Highlight products, interact with customers, and display digital signage with dynamic lighting effects.

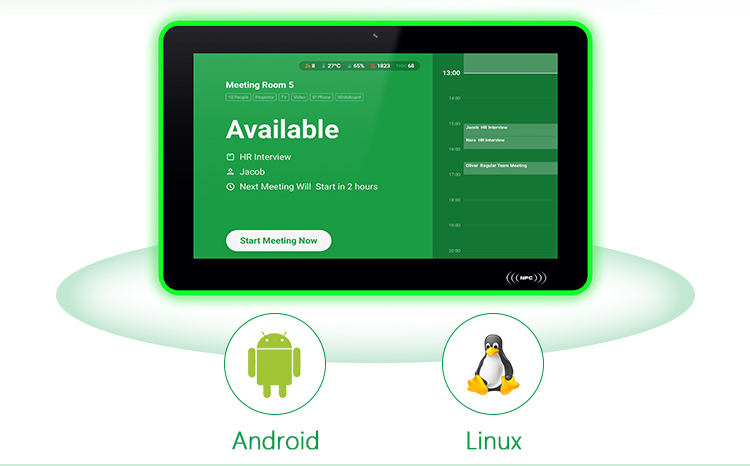

Meeting Room Booking Systems
Visually indicate room status using multicolor LED strips, enable user check-in with NFC/RFID, and display real-time schedules.
Access Control & Identification
Integrate with face recognition or card-based systems using the front camera and RFID reader.

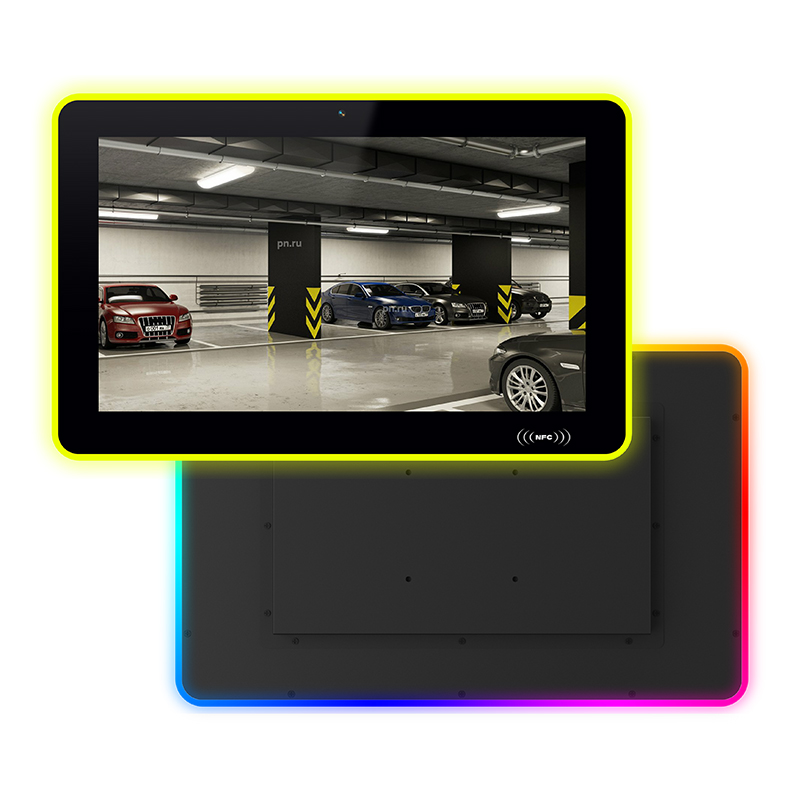

Parking Lot Kiosks & Gas Stations
Reliable operation with sunlight-readable screen options and POE support for easy network integration.
Gaming and Casino Terminals
A vibrant, durable touch display solution designed to blend seamlessly into high-traffic environments.

Customization & Manufacturing Services

As a manufacturer with extensive R&D and production capabilities, Portworld offers full-spectrum customization and delivery support to global partners, including:

OEM / ODM Customization: Hardware modifications, software integration (Android/Linux), and housing design tailored to your brand and application.
CKD / SKD Supply Models: Ideal for local assembly or integration partners. We provide complete kits (CKD) or semi-knocked down units (SKD) for flexible deployment.
Software Customization: APIs, SDKs, UI customization, and third-party system integrations (e.g., booking platforms, smart retail systems).
BSP/SDK Development: Portworld supports system-level software adaptation for Android, Linux (Debian/Ubuntu), and other embedded platforms.

Why Choose Portworld?

With over a decade of experience in embedded solutions, Portworld stands out as a reliable partner for:

High-quality manufacturing
Agile OEM/ODM development cycles
Global logistics and compliance expertise
Robust after-sales technical support

YC-L156 15.6″ Glow-Frame Tablet

Specification

System	CPU	RK3566 quad-core Cortex-A55
	System option	Android 11
	RAM	2GB
	Rom	32 GB
Display	Display size	15.6 inch, G+G
	Touch screen	10-Point capacitive touch
	Resolution	1920*1080 IPS
	Brightness	300 Nits
	Camera	Front 2MP
Connectivity	WIFI	2.4G 802.11a/b/g/n WLAN (WiFi 6 option)
	Bluetooth	BT5.2
	Network	10M/100M ethernet
Interface	RJ45	1*RJ45 (POE Option)
	HDMI	1*HDMI out
	USB	2*USB
	Earphone	1*Earphone
	TF	1*TF card slot
	DC	1*DC 12V IN
	NFC	Option (13.56 Mhz read&write)

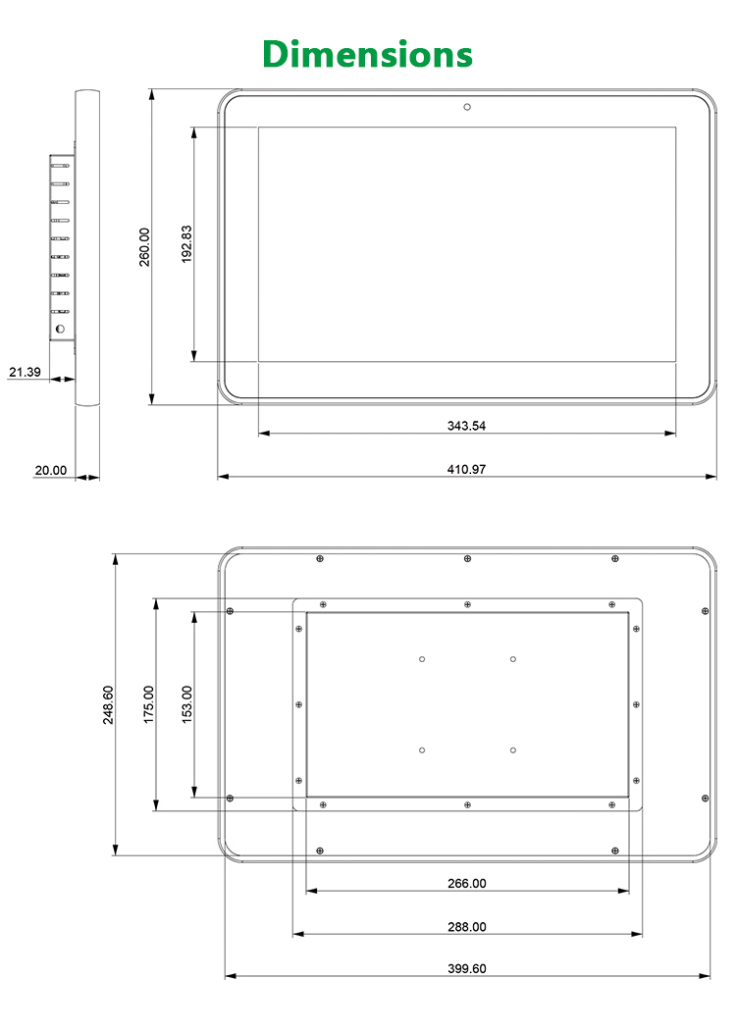

Installation	Install way	Wall Mounted, Vessa 100*100 mm
Accessories	Color	Black
	Adapter	1*Adapter
	Bracket	1*Wall mount bracket
	Language	support multi-lanugage
Warranty	12 months
