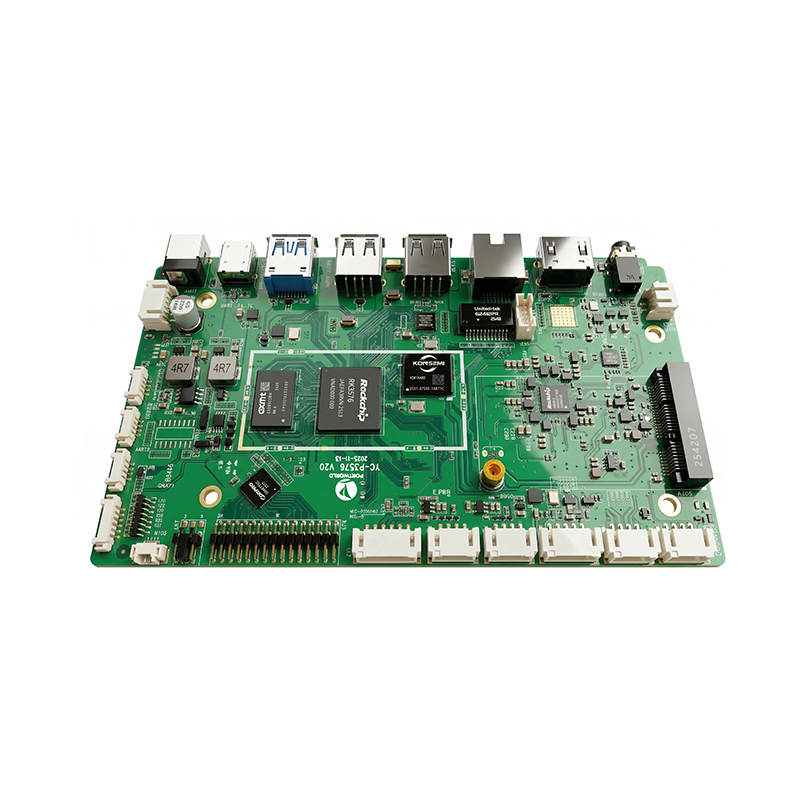

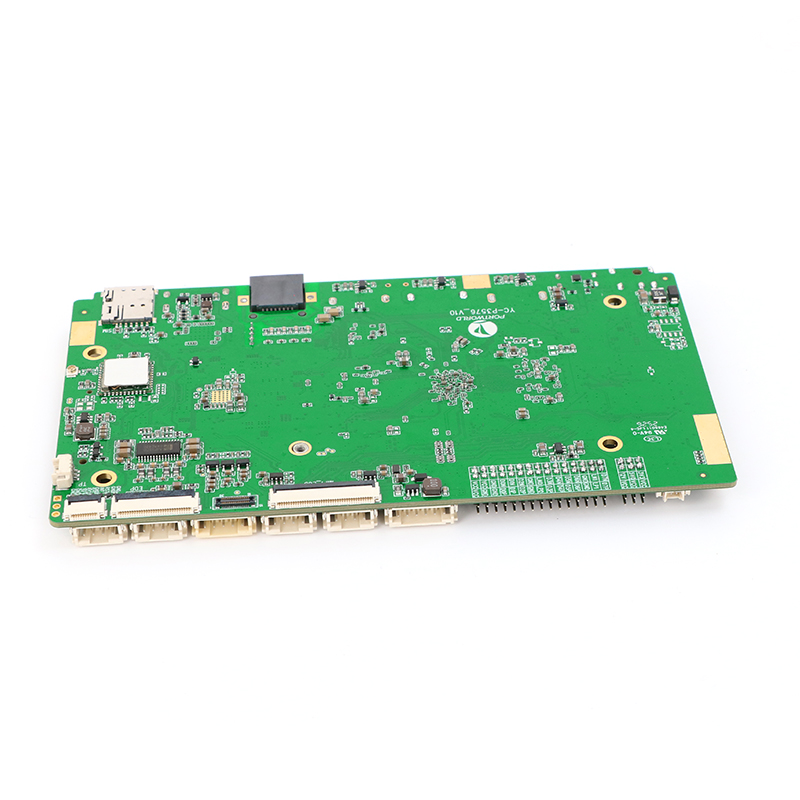

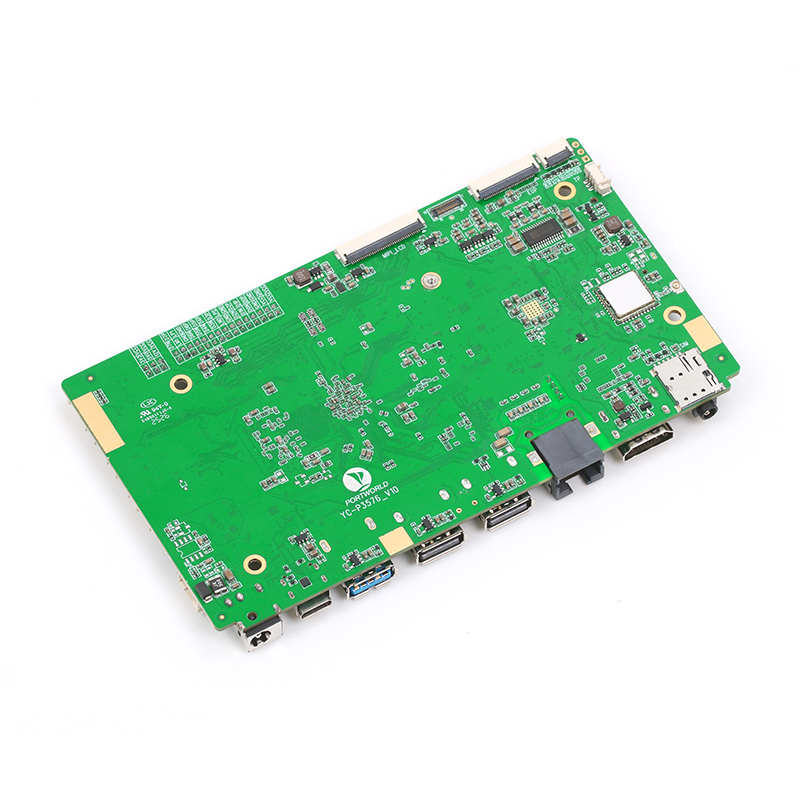

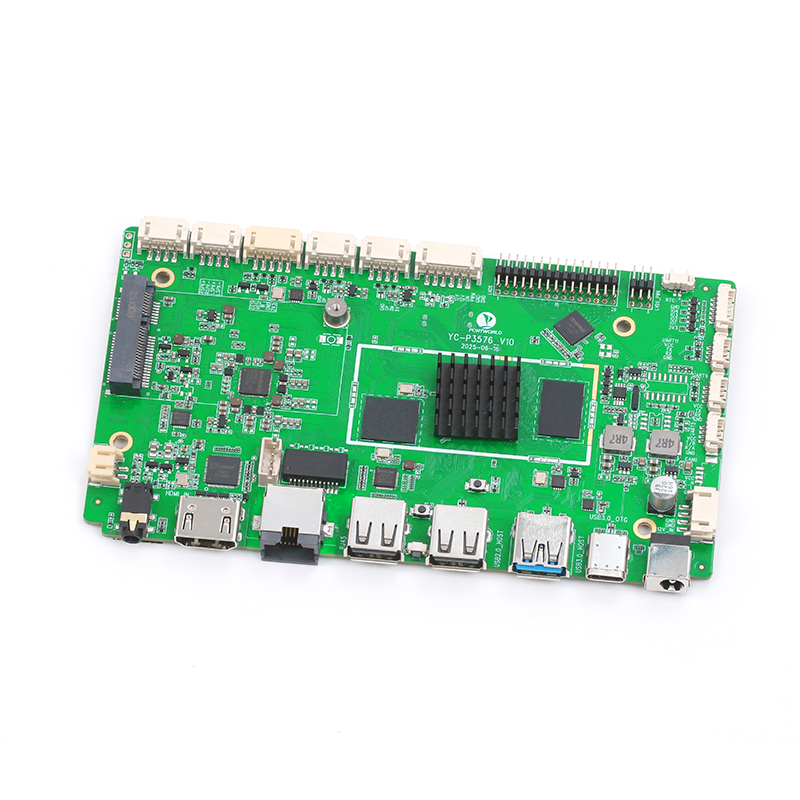

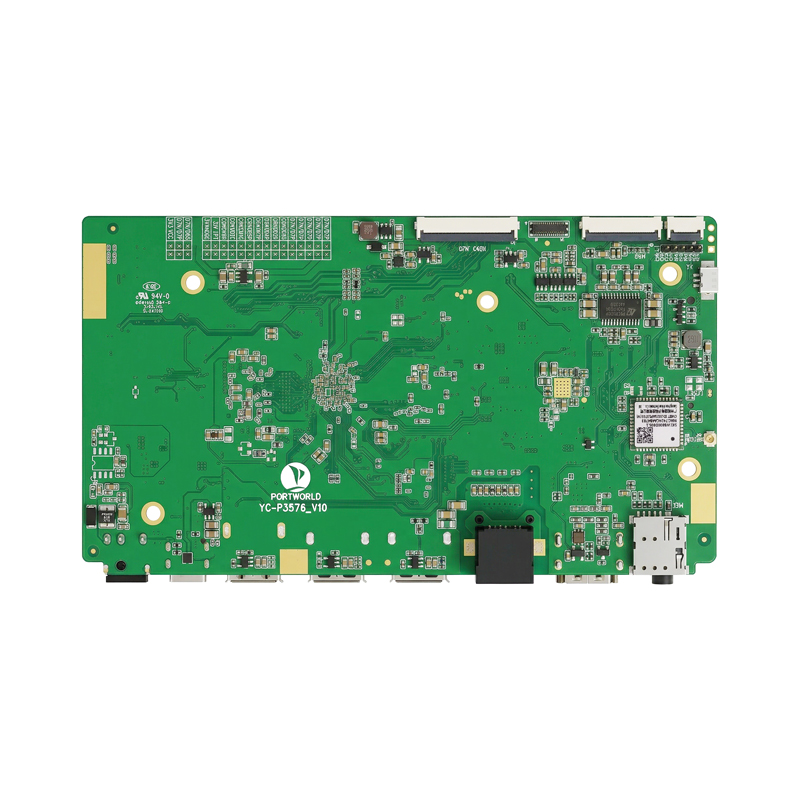

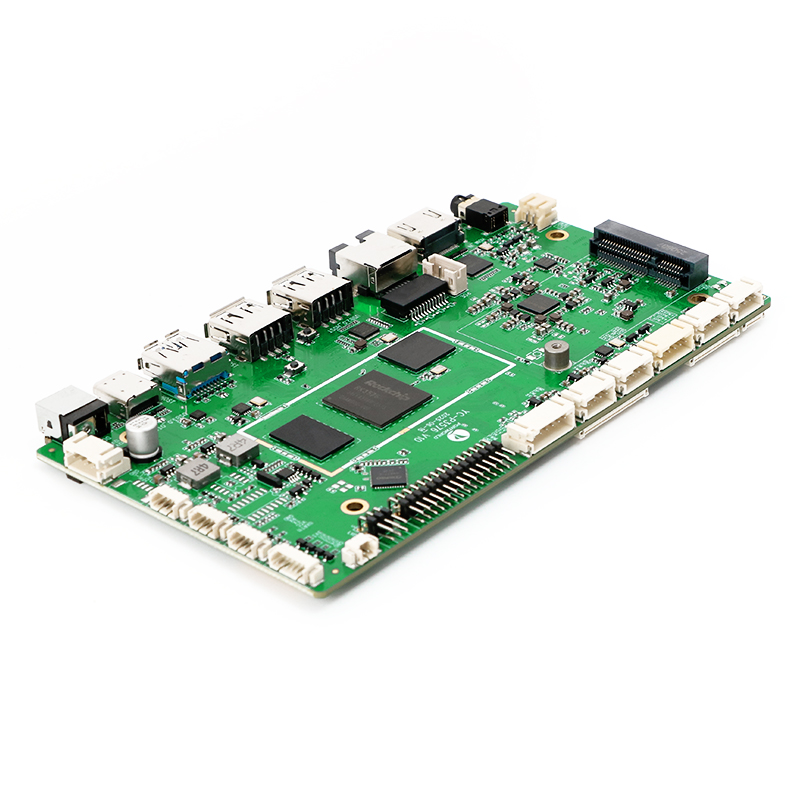

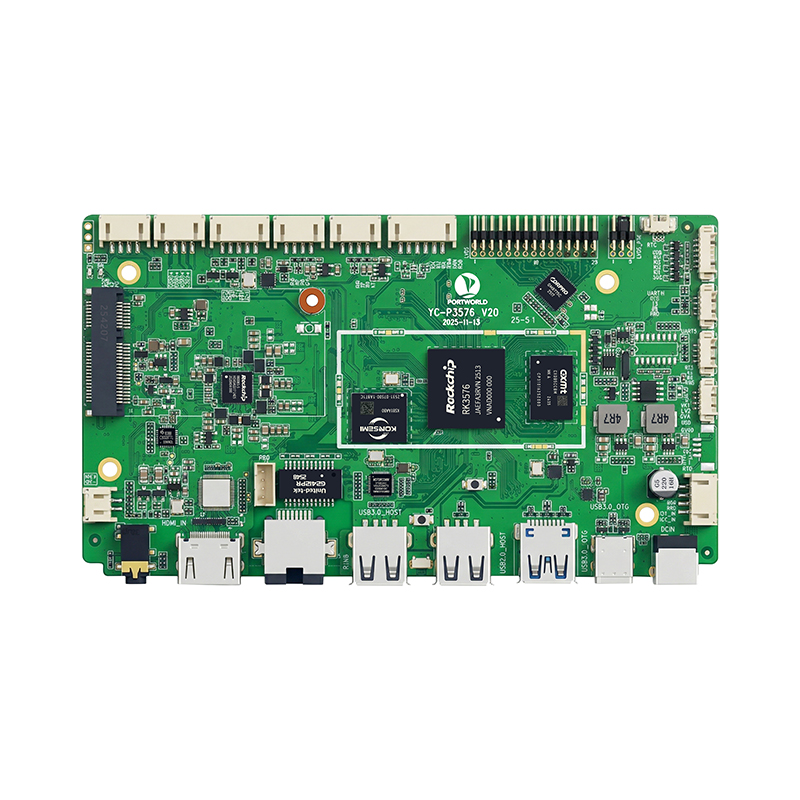

P3576 Smart Mainboard

Key Features:

Powerful Processor: The RK3576 features an octa-core CPU (4×A72 + 4×A53), clocked at up to 2.2GHz, providing excellent processing power.
Built-In GPU/NPU: A 6 TOPS NPU enables powerful AI capabilities, ideal for edge computing and smart applications.
RAM & Storage: With 4GB LPDDR4 (expandable to 8GB/16GB) and 32GB eMMC (expandable to 128GB/256GB), it offers ample memory for demanding applications.
Multiple OS Support: The board is compatible with Android 14, Ubuntu, Buildroot, and Debian, offering flexibility in operating system choices.
WiFi 6 & Networking: Supports 2.4GHz/5GHz WiFi 6 for high-speed connectivity and Gigabit Ethernet PHY for enhanced networking performance.

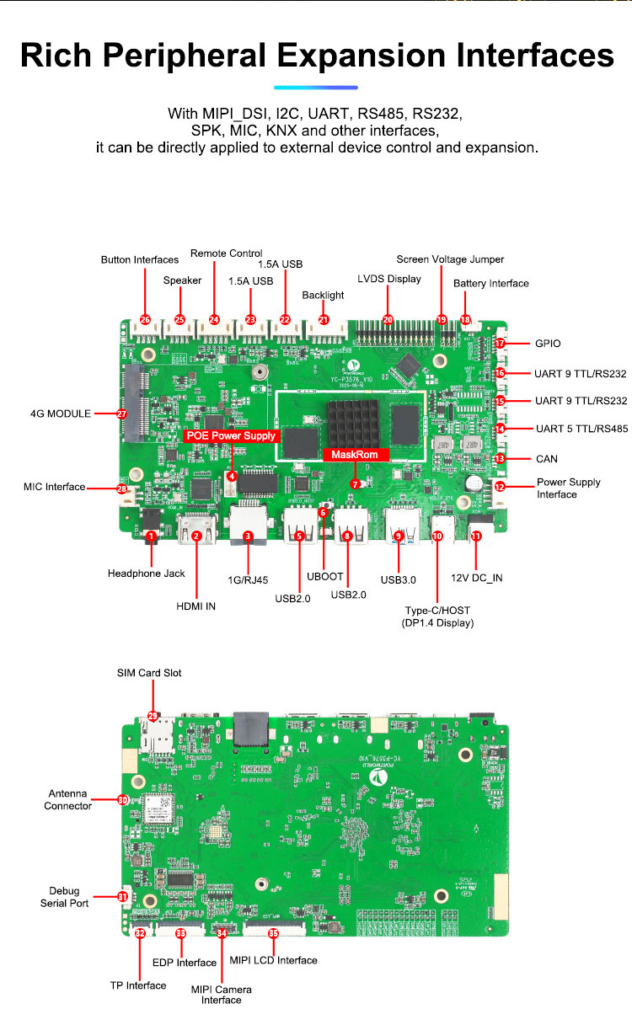

Versatile Interfaces: It features a range of interfaces including MIPI_DSI, I2C, UART, RS485, RS232, SPK, MIC, and KNX, providing excellent options for peripheral device control and expansion.

Overview

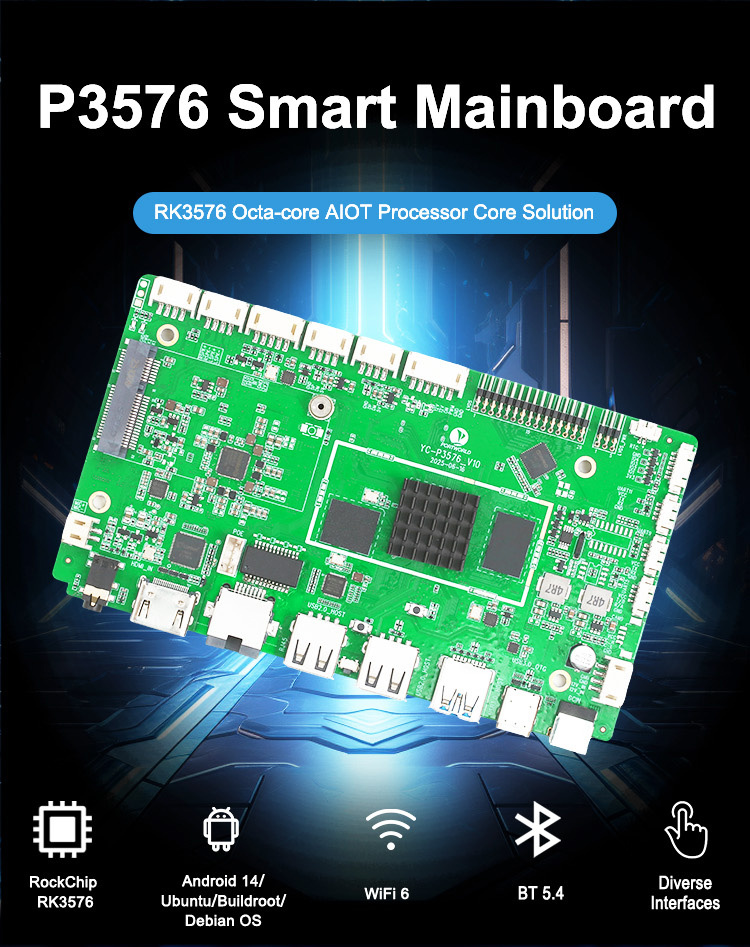

The P3576 Smart Mainboard is an advanced solution equipped with the RockChip RK3576 Octa-core AIOT Processor, offering impressive AI, AR, and VR performance. Here’s an overview of its features:

Key Features:

Powerful Processor: The RK3576 features an octa-core CPU (4×A72 + 4×A53), clocked at up to 2.2GHz, providing excellent processing power.
Built-In GPU/NPU: A 6 TOPS NPU enables powerful AI capabilities, ideal for edge computing and smart applications.
RAM & Storage: With 4GB LPDDR4 (expandable to 8GB/16GB) and 32GB eMMC (expandable to 128GB/256GB), it offers ample memory for demanding applications.
Multiple OS Support: The board is compatible with Android 14, Ubuntu, Buildroot, and Debian, offering flexibility in operating system choices.
WiFi 6 & Networking: Supports 2.4GHz/5GHz WiFi 6 for high-speed connectivity and Gigabit Ethernet PHY for enhanced networking performance.
Versatile Interfaces: It features a range of interfaces including MIPI_DSI, I2C, UART, RS485, RS232, SPK, MIC, and KNX, providing excellent options for peripheral device control and expansion.

Applications:

Smart Home Devices: Perfect for home automation, IoT integration, and smart displays.
Smart Healthcare: Utilized in healthcare systems for enhanced device interconnectivity and smart care.
Industrial Automation: Ideal for use in factories, machine vision, and other industrial control scenarios.
Commercial Displays: Used in smart commercial signage and retail display solutions.
Automotive Electronics: Provides the performance needed for automotive embedded systems and advanced controls.

Customization and Support:

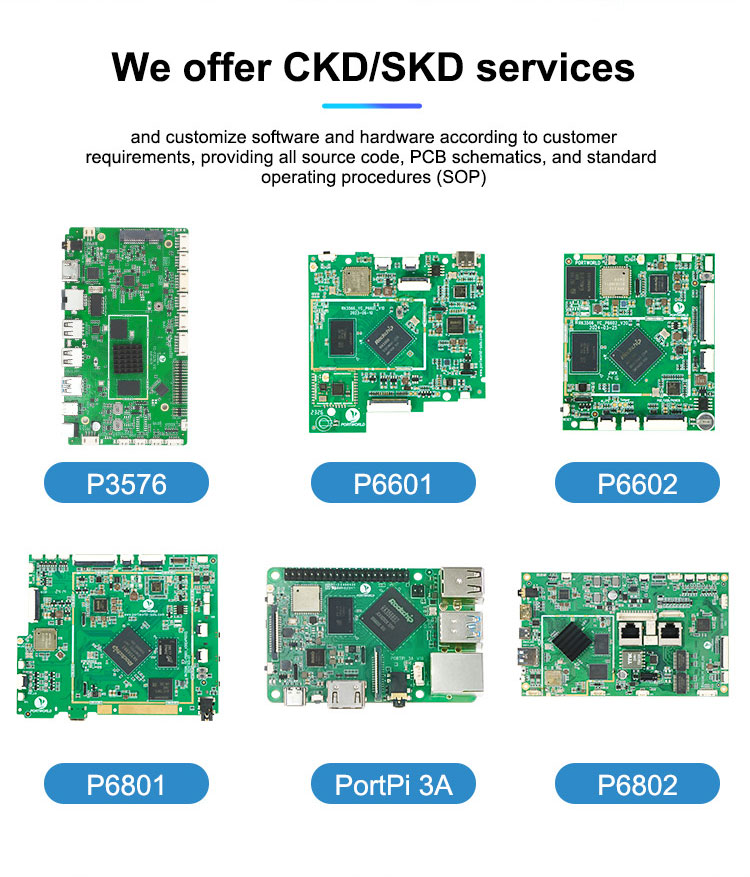

Portworld offers CKD/SKD services, allowing customization of both hardware and software to meet specific needs. They also provide all source code, PCB schematics, and standard operating procedures (SOP) for seamless integration.

The RK3576-P3576 Smart Mainboard stands out with its high-end processor, powerful NPU, and extensive interface options, making it an ideal choice for a variety of advanced IoT, smart building, industrial, and healthcare applications.

P3576 Smart Mainboard

P3576 Smart Mainboard-P_02

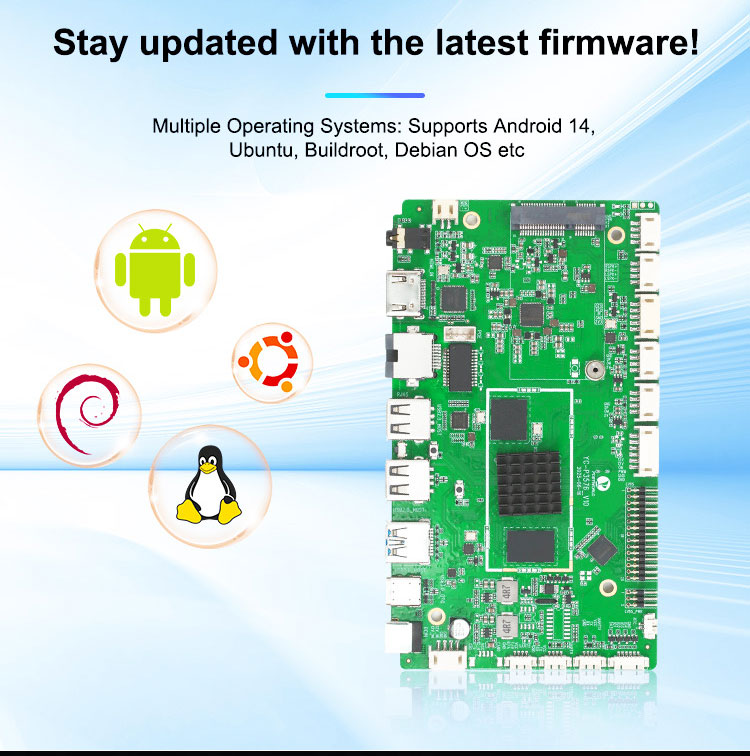

P3576 Smart Mainboard-P_03

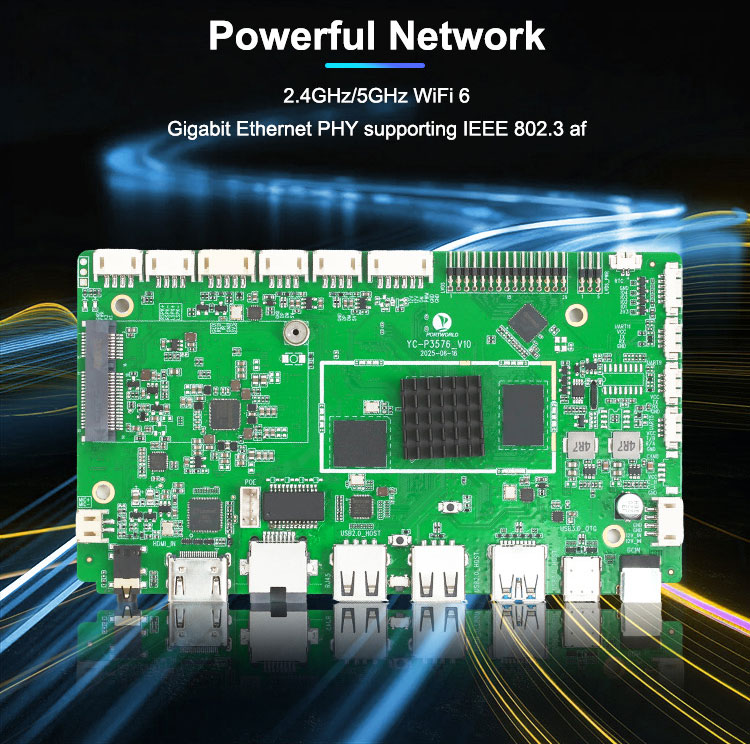

P3576 Smart Mainboard-P_04

P3576 Smart Mainboard-P_05

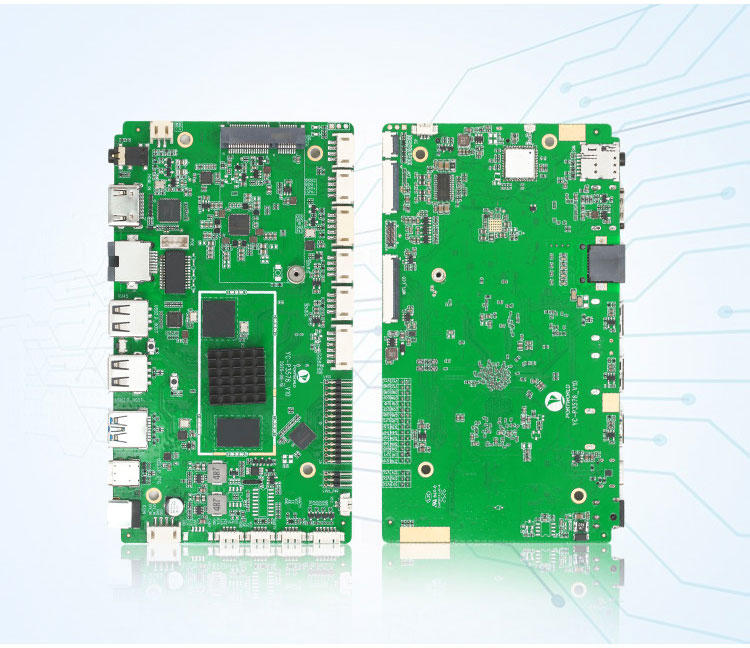

P3576 Smart Mainboard-P_06

P3576 Smart Mainboard-P_07

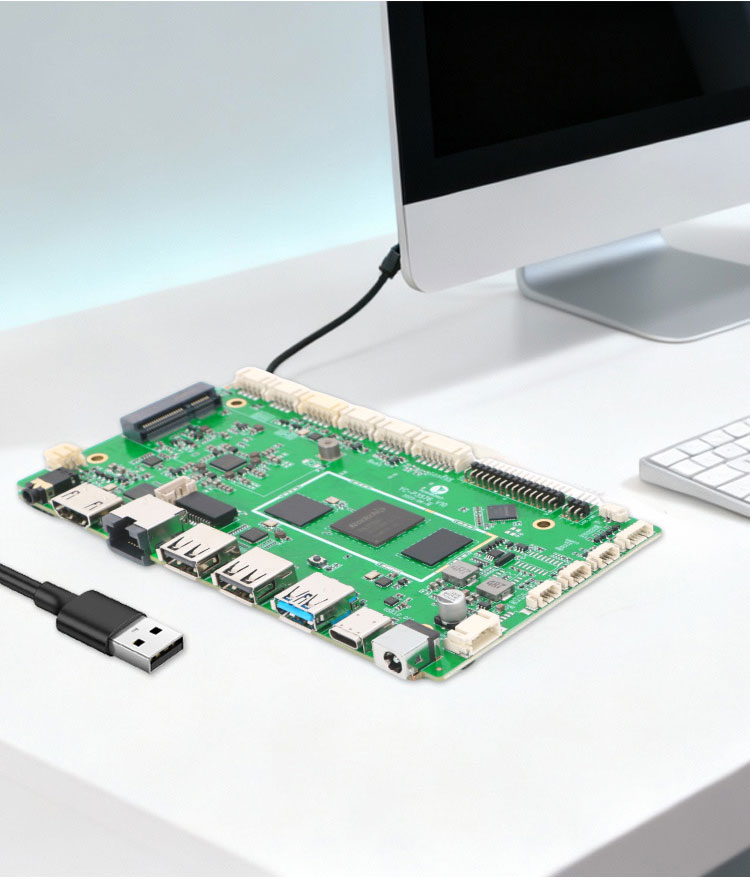

P3576 Smart Mainboard-P_08

P3576 Smart Mainboard-P_09

P3576 Smart Mainboard-P_10

Specification

Basic Parameters	SOC	Rockchip RK3576
	CPU	Octa-core 64-bit processor (4×A72 + 4×A53), 8nm advanced process, max frequency 2.2GHz
	GPU	GS2 MC3 @ 1GHz, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded high-performance 2D acceleration hardware
	NPU	6 TOPS NPU, supports INT4/INT8/INT16/FP16/BF16/FP32 mixed operations
	Decoding Parameters	Decoding: 8K@30fps/4K@120fps; H.265/HEVC, VP9, AVS2, AV1; 4K@60fps; H.264/AVC Encoding: 4K@60fps; H.265/HEVC, H.264/AVC
	Memory	LPLPDDR4/LPDDR4X (4GB/8GB/16GB optional) Default: 4GB
	Storage	eMMC (16GB/32GB/64GB/128GB/256GB optional) Default: 32GB
	Power	9-12.0V （5.5mm × 2.1mm）
	System	Android14、Ubuntu、Buildroot、Debian, etc
	Size	85mm ×150mm
	Power Consumption	Typical: 1.2W (12V/100mA) Max: 8.4W (12V/700mA) Min: 0.096W (12V/8mA)
	Environment	Operating temperature: -10℃~60℃; Storage temperature: -20℃~70℃; Operating humidity: 10%~90%RH (non-condensing)
Interfaces Parameters	Ethernet	1 × 1000Mbps Ethernet (RJ45) with PoE Power Supply Dual-band WiFi 6 (2.4GHz/5GHz, supporting 802.11a/b/g/n/ac/ax protocols) and Bluetooth 5.4 Expandable 4G LTE via Mini PCIe
	Video Input	1 × MIPI-CSI DPHY（1×4lanes） HDMI 2.0 IN input
	Video Output	1 × eDP (1×2 lanes) 1 × DP 1.4 (4K\@120fps) 1 × MIPI-DSI DPHY (2560×1600\@60fps, 40Pin-0.5mm, 1×4 lanes) or dual 8-bit LVDS 1920×1080 output
	Watchdog	Software Watchdog
	USB Interface	4 × USB 2.0 Host, 1 × USB 3.0, 1 × Type-C OTG/HOST supporting DP 1.4 display output
	Expansion Interfaces	3 × TTL Serial Ports (optional RS485/RS232, default TTL), 1 × Debug Serial Port
		1 × Remote Control, 1 × Red LED, 1 × Green LED
		Supports speaker interface, up to two 8Ω 5W dual-channel speakers;
		1 × 3.5mm audio jack (supports MIC recording, CTIA standard)
		Supports 1 × MIC input, 1 × Headphone with audio input, 1 × Audio output
		4 × General-purpose GPIOs
		1 × Touch Interface
		Reserved 1 × CAN Interface
