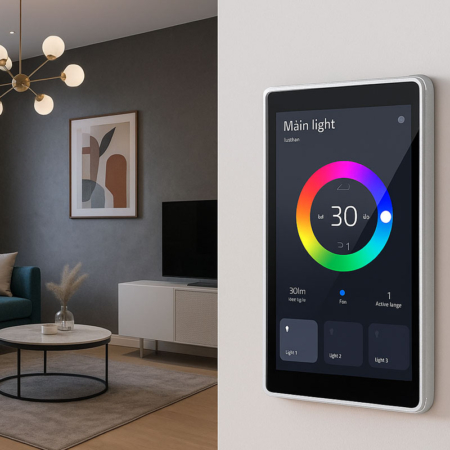

YC-SM55P

5.5’’ Smart Home Touch Control Panel

Key Features:

POE (Power Over Ethernet) power supply for simplified installation.
Universal bracket compatible with various wall boxes, ensuring easy setup.
Available in both silver and classic black to match any decor.
Google Play Store for all your app needs.
Customization options available for OEM, including logo personalization and model number changes.

SM55P Smart Touch Control Panel is a model we are using to focus on the high-end market. Each metal case is made by CNC, which can offer a sleek and modern look, especially if the finish has a brushed or polished texture.

Send Inquiry

Overview

Specification

System	CPU	RK3566 Quad-core ARM Cortex-A55,up to 1.8GHz
	RAM	2GB
	ROM	16GB
	System	Android 11
Touch Panel	Display size	5.5 inch
	Resolution	720*1280 IPS
	Touch Panel	5 points capactive touch panel,IPS
	Brightness	300Nits
	Active area	120.96(L)*68.04(W)mm
Network	WIFI	2.4G WiFi (5G WiFi optional)
	Bluetooth	Bluetooth 4.0
	Ethernet	10M/100M
Material	Metal case	Metal case(Size:145.78411mm)
Interface	RJ45	Ethernet interface input(RJ45 cable),support POE
	DC	12V/24V input
	Type C	Type C*1
	Reset hole	Reset*1
	Restart hole	Restart*1
	Mic	Mic*2
	RS485	Yes
Bracket	Metalbracket	Material:Aluminum
Media plays	Camera	No
	Speaker	Speaker*1W
	Video	MOV 1080P/AVI/WMV/RM/RMVB/3GP/MKV/MP4/ASF/VOB
	Audio	MP3/WMA/WAV/AAC/FLAC/OGG
	Entertainment	Video/Movie/Music/FM online
Others	Battery	No
	Mount	In wall
	color	Silver/Black
	language	Multi language

Q&A

Q1:Does your panels support Zigbee?

A1:If you need your panels to work with Zigbee, we suggest using a Gateway. Connecting all sensors to the gateway, which is then linked to our control panel. A demonstration video illustrating this process can be found at the following link: https://youtu.be/D4vSVo23JXg

Q2:Does your panels support KNX?

A2:We are not currently a member of KNX, so we do not have authorization to include KNX protocol in our standard models. However, we offer two solutions:

1. Custom Integration: With 18 years of R&D and manufacturing experience, we can integrate KNX modules into our mainboards. We will provide a neutral Android OS, and you can handle the KNX firmware. This option allows you to create a custom model tailored to your specifications.

2. KNX IP Gateway Solution: For a quick and straightforward setup, you can use a KNX IP gateway to bridge your devices with our panel.

Q3:Can I open the box and start using the panel?

A3:All of our panels run on a neutral Android OS. They can connect wirelessly via Wi-Fi and Bluetooth. For wired connections, we offer RS485. Each panel comes with the Google Play Store, allowing you to easily install apps like Tuya and Home Assistant. Additionally, we can assist with pre-installing your APK upon request.

Q4:Does it come with POE?

A4:Yes, all our smart home control panels support PoE, adheres to the IEEE802.3af standard

Q5:What operating systems do you supply?

A5:Our smart home solutions support a variety of operating systems, including Android and Linux-based systems such as Ubuntu, Debian, and Buildroot.
