YC-SM116P(Android 11 / Linux)

11.6 Smart Home Automation Touch Control Panel

Key Features:

POE (Power Over Ethernet) for simplified installation.
Universal bracket compatibility with various wall boxes, ensuring easy setup.
Available in silver and classic black to complement any decor.
Access to the Google Play Store for all your app needs.
Customization options are available for OEM, including logo personalization and model number changes.

The SM116P Smart Home Automation Control Panel is our premium offering designed for the high-end market, featuring the same exceptional quality as the SM10P, but with a larger 11.6” display. Each metal case is crafted using CNC technology, providing a sleek and modern look, particularly enhanced by a brushed or polished finish.

Send Inquiry

Overview

Specification

System	CPU	RK3568 Quad-core Cortex-A55 up to 2.0GHz
	RAM	2GB (4GB optional)
	ROM	16GB
	Operation System	Android 11
Display	Screen	11.6” IPS screen

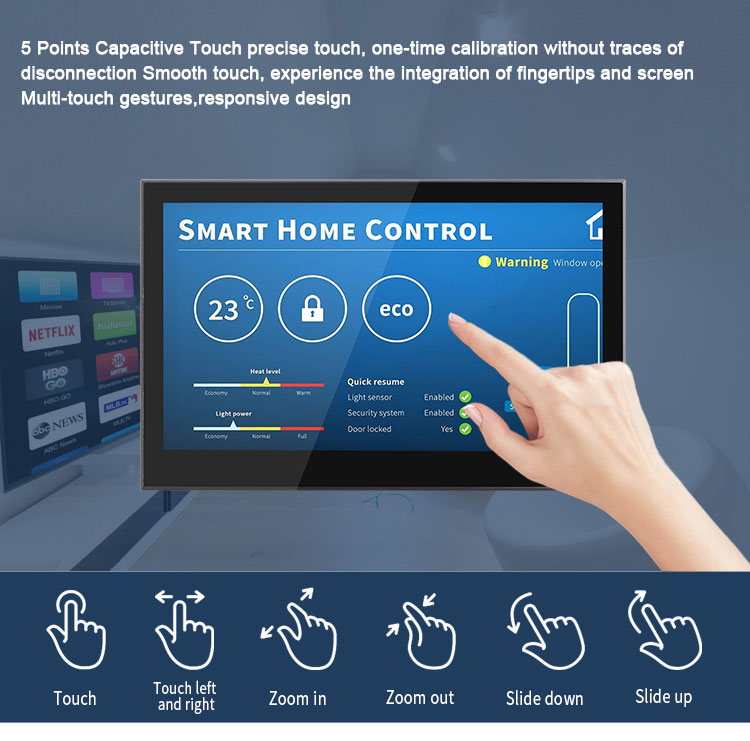

	Touch Panel	10-Point capactive IPS touch
	Resolution	1366*768
	Brightness	300nits
	Screen Ratio	16:9
Network	WIFI	802.11b/g/n (5G WiFi optional)
	Bluetooth	BLE 5.2
	Ethernet	10M/100M

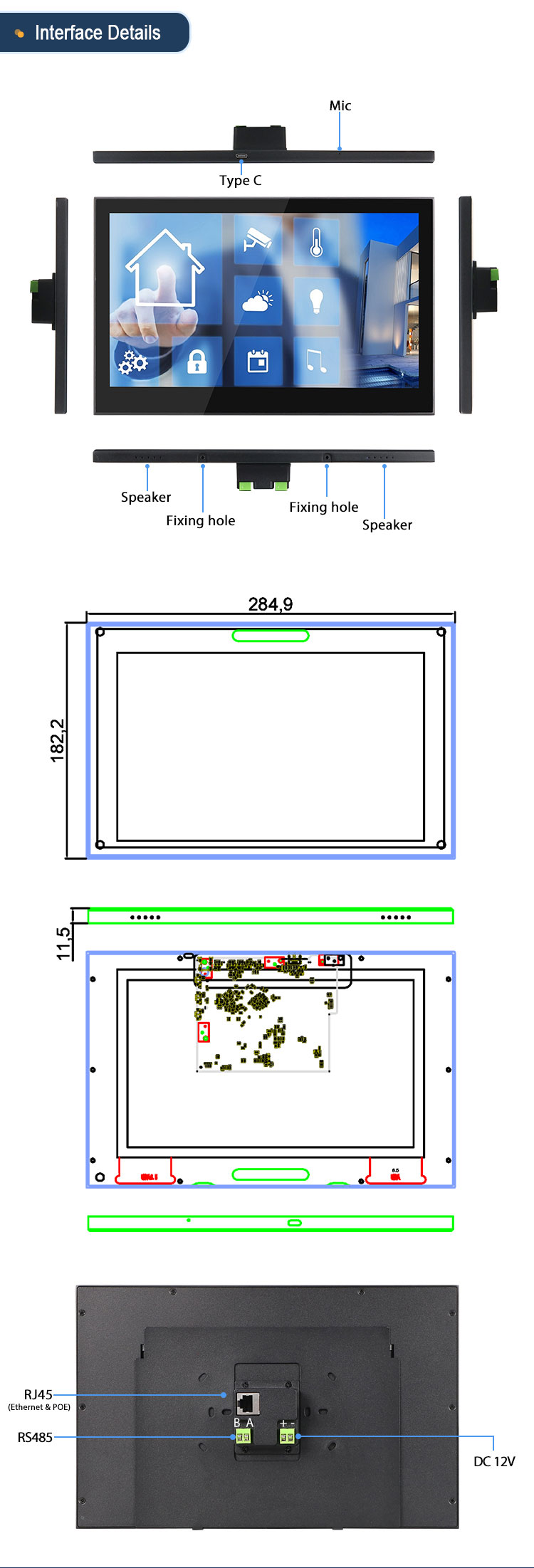

I/O Ports	RJ45	1*RJ45 Ethernet port input, support POE
	Type C	1*Type C
	RS485	RS485 A, B (RS232 optional)
	DC	1*DC power input
	Set	*1
	Restart	*1
Media plays	Video	MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB
	Audio	MP3 / WMA / WAV / AAC / FLAC / OGG
	Entertainment	Video / Movie / Music / FM online
	Microphone	Built-in
	Speaker	1W*2pcs
	Camera	No
Others	Wireless mouse	Support
	Wireless keyboard	Support
	Installation	In-wall
	Working Temperature	-5°~70°
	Power Consumption	2*10W Max
	Language	Support multi-language
	Dimension	282.1179.411.5 mm
	Material	Metal case + Glass touch panel

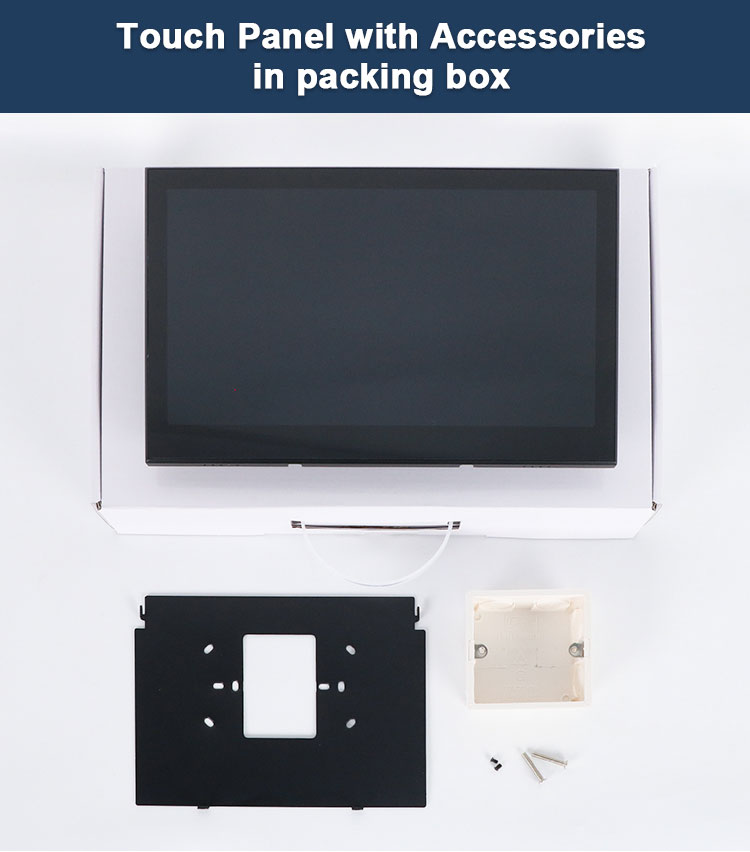

Accessories	Wall Box	1*86 wall box with bracket and mounting screws
	Color	Black
Warranty	12 months

Q&A

Q1:Does your panels support Zigbee?

A1:If you need your panels to work with Zigbee, we suggest using a Gateway. Connecting all sensors to the gateway, which is then linked to our control panel. A demonstration video illustrating this process can be found at the following link: https://youtu.be/D4vSVo23JXg

Q2:Does your panels support KNX?

A2:We are not currently a member of KNX, so we do not have authorization to include KNX protocol in our standard models. However, we offer two solutions:

1. Custom Integration: With 18 years of R&D and manufacturing experience, we can integrate KNX modules into our mainboards. We will provide a neutral Android OS, and you can handle the KNX firmware. This option allows you to create a custom model tailored to your specifications.

2. KNX IP Gateway Solution: For a quick and straightforward setup, you can use a KNX IP gateway to bridge your devices with our panel.

Q3:Can I open the box and start using the panel?

A3:All of our panels run on a neutral Android OS. They can connect wirelessly via Wi-Fi and Bluetooth. For wired connections, we offer RS485. Each panel comes with the Google Play Store, allowing you to easily install apps like Tuya and Home Assistant. Additionally, we can assist with pre-installing your APK upon request.

Q4:Does it come with POE?

A4:Yes, all our smart home control panels support PoE, adheres to the IEEE802.3af standard

Q5:What operating systems do you supply?

A5:Our smart home solutions support a variety of operating systems, including Android and Linux-based systems such as Ubuntu, Debian, and Buildroot.
