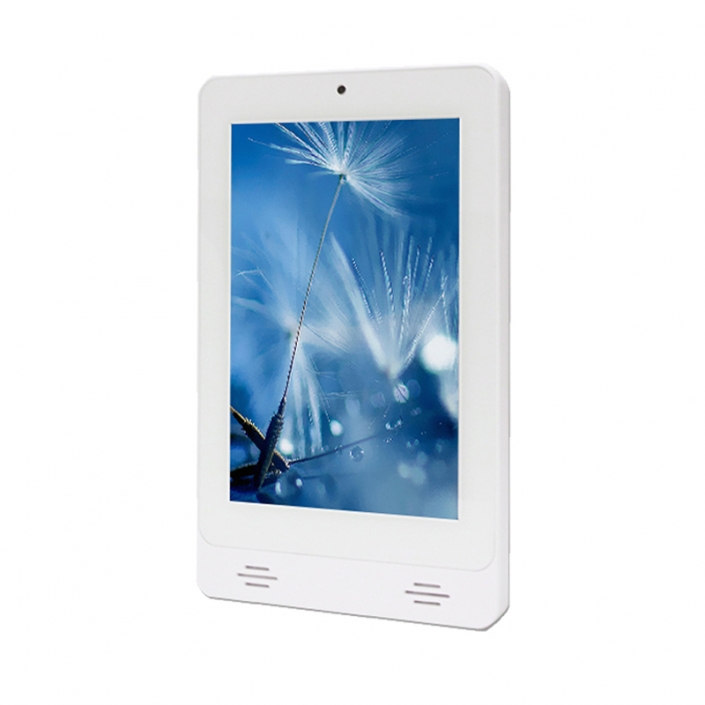

2D scanner android tablet
| System | CPU | Quad core Rockchip 3128 Quad Core 4-Corte 1.6GHz |
| Display size | 7 inch Multi points-Touch Touch Screen 800*1280 pixel | |
| System | Android 6.0 | |
| RAM | 1G | |
| Nand Flash | 8G | |
| Display | Brightneess(Nit) | 300 NIT |
| Touch Panel | touch screen | |
| Sound System | 1W*2pcs big speaker | |
| Vesa port | 104*166mm | |
| 2D Scanner | Support interface | USB, RS-232 |
| Sensor | Planar CMOS sensor | |
| Light source | Red LED( Aiming) +White LED(Lighting) | |
| Processor | 32-bit MCU | |
| Decoding Capability | Codabar,Code11, Code39/Code93, UPC/EAN, Code128/EAN128, InterLeaved2of5, Matrix20f5, MSI CODE, Standard20f5. QR CODE | |
| Resolution | Code39 5mil, QR 8.7mil, PCS45% | |
| Depth of Field | 5MIL CODE39: 5-12 CM 15MIL CODE39: 4-25 CM 10MIL CODE93: 4-21 CM 15MIL UPC/EAN: 4-25 CM 20MIL QR: 4-25 CM |
|
| Scanning Speed | 200scans/sec | |
| Scanning Method | Manual Trigger, Auto—sensing | |
| Scanning Area | 5 * 5 cm2—- 30 * 30 cm2 | |
| Prompting Mode | Buzzer, Indicator light(LED) | |
| Printing Contrast | at least 35% | |
| Scanning Angle | Roll 0-360° ,Pitch +65° ,Yaw +60° | |
| I/O ports | Front | 10 point capactive touch panel |
| Side | Speaker 2*1W | |
| POE RJ45 | Ethernet interface input (RJ-45 cable) supporting POE (IEEE 802.3af) | |
| USB host | 1*USB type A | |
| TF card slot | Option | |
| Mic | Yes | |
| DC | 12V DC in power terminal (12V/2A) | |
| Mount | RJ45 port( POE IEEE 802.3af) Vesa port | |
| Software specs | System | GoogleAndroid 6.0, Support Flash 11.1 |
| Video | MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB | |
| Audio | MP3 / WMA / WAV / AAC / FLAC / OGG | |
| Application software | Video / Movie / Music / FM online | |
| Office software | Office software: Word, Excel, PPT, PDF, TXT, HTML, RTF, FB2, UMD | |
| PDF Reader/Photo Browser | PDF Reader / Photo browser | |
| Language | Support multi-languages | |
| Customized software | Booted with Super SU & BOOTING LOGO |
Provide a perfect solution for the customer.
YC-102DM 10.1 inch Desktop 2D Scanner Android Tablet
